XiXun

XiXun L30 L20 LCD Multimedia Player LCD Display Controller

XiXun L30 L20 LCD Multimedia Player LCD Display Controller

Regular price $390.00 USD
Regular price $200.00 USD Sale price $390.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

 LCD Screen Android Multimedia Player L30s
L30S board Integrated HDMI/LVDS/EDP/Vby1 display interface, Ethernet/WIFI/
BT/4G expansion interface in one, which greatly simplifies the whole machine desi
gn. Support most of the current popular video and picture format decoding, can
drive a variety of TFT LCD display. It is more stable and widely used in AI servers,
face payment devices, security, medical, transportation, finance, industrial control,
smart education, smart retail and other AI intelligence fields.XiXun L30 L20 LCD Multimedia Player LCD Display Controller

  • 1. High integration: Integrated HDMI/LVDS/EDP/ Vby1/Ethernet/WIFI/Bluetooth in one, simplify the whole design, TF card can be inserted, built-in PCI-E 3/4G module interface;(2+16GB)
  • 2. High stability: In the hard and software, increase the self-developed technology to ensure the stability of the product, which can make the final product reach 7*24 hours unattended;
  • 3. Rich expansion interfaces: 6 USB ports (4 pins, 2 standard USB ports), 4 serial ports(can be changed to RS232/RS485), GPIO/ADC interface, can meet the requirements of various peripherals on the market.
  • 4. High-definition: Maximum support 3840 × 2160 decoding and LCD display with various LVDS/EDP interfaces;
  • 5. Complete functions: Support dual-screen display different, horizontal and vertical screen playback, video split screen, scrolling subtitles, timing switch, USB data import and other functions;
  • 6. Convenient management: The user-friendly playlist background management
  • software is convenient for advertising playback management and control. it is easy to understand the playback situation through Play log;
  • 7. Software: LedOK Express.

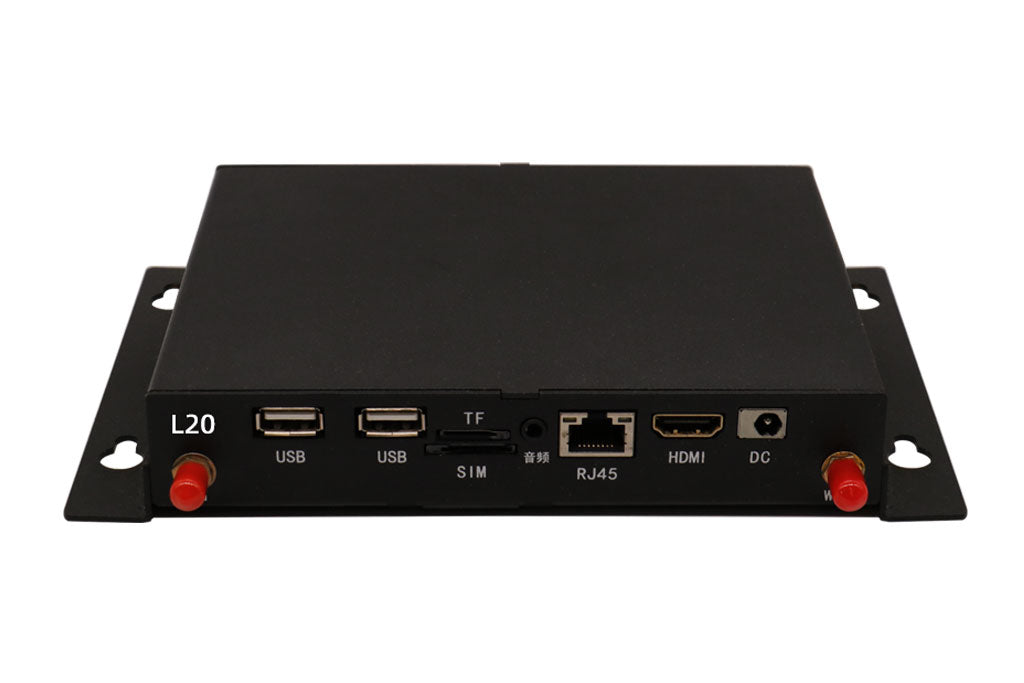

LCD Artificial Intelligence Android Player Box L20
L20 board integrates multimedia decoding, LCD driver, Ethernet, HDMI, WIFI, 4G,
Bluetooth, supports most of the current popular video and picture format decoding,
supports HDMI video output/input, dual 8/10-bit LVDS Interface and EDP interface, can
drive various TFT LCD displays, greatly simplify the system design of the whole machine,
TF card and SIM card holder with lock, more stable, very suitable for high-definition
network playback box, video advertising machine and picture frame Advertising
machine.
  • 1. High integration: Integrate USB/LVDS/EDP/HDMI/Ethernet/WIFI/Bluetooth into one,
  • simplify the design of the whole machine, and can insert TF card;(2+16GB)
  • 2. Save labor costs: The built-in PCI-E 4G module supports various PCI-E 4G modules
  • such as Huawei and Longshang, which is more suitable for remote maintenance of
  • advertising all-in-one machine and saves labor costs;
  • 3. Rich expansion interfaces: 6 USB interfaces (4 pins and 2 standard USB ports), 3
  • expandable serial ports, GPIO/ADC interface, which can meet the requirements of
  • various peripherals in the market;
  • 4. High-definition: Maximum support 3840 × 2160 decoding and LCD display with
  • various LVDS/EDP interfaces;
  • 5. Complete functions: Support horizontal and vertical screen playback, video split
  • screen, scrolling subtitles, timing switch, USB data import and other functions;
  • 6. Convenient management: The user-friendly playlist background management
  • software is convenient for advertising playback management and control. it is easy
  • to understand the playback situation through Play log;
  • 7. Software: LedOK Express.
