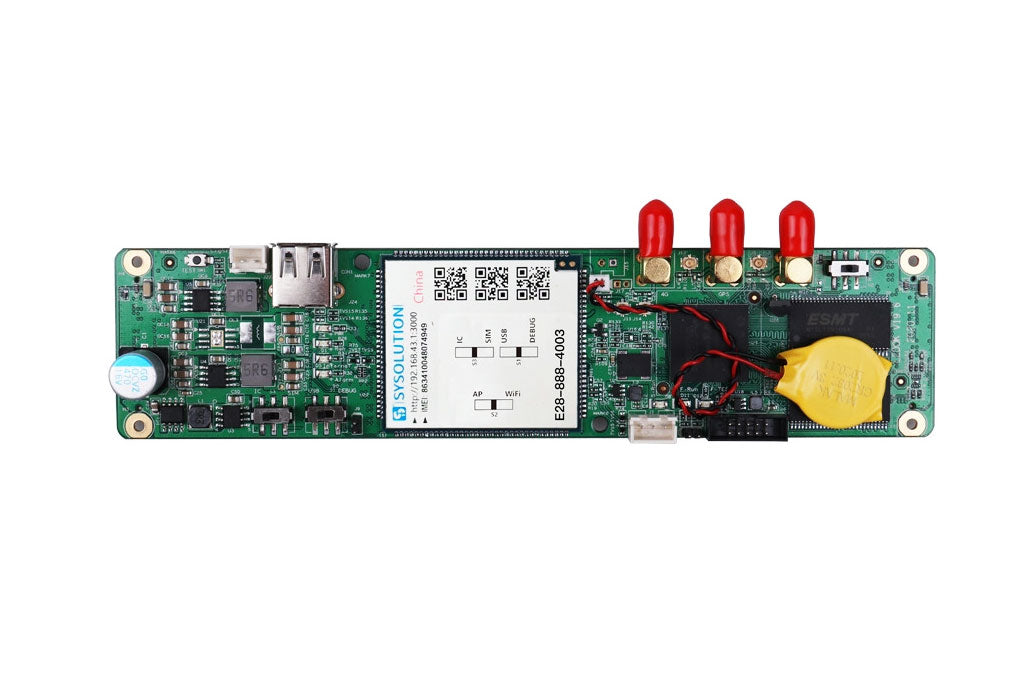

XiXun E Series LED Multimedia Card E22 E24 E26 E28 LED Display Controller
XiXun E Series LED Multimedia Card E22 E24 E26 E28 LED Display Controller
Xixun Sysolution E22 LED Control Card For Car Rear Window LED Screen
Xixun Sysolution E22 LED Control Card For Car Rear Window Screen With the development of LED car displays, in some areas, it needs to support wireless transmission, remote cluster control, docking with third-party platform applications, need control cards access the network and GPS positioning through WiFi or 4G, and need to be controlled by mobile phone. Xixun E22 is tailor-made for these needs, leading the mobile car screen market. Make user control easier.
E22 uses Qualcomm MSM8909 platform solution. The MSM8909 processor is manufactured using the 28nmLP CMOS process, and the quad-core frequency is 1.1GHz. The memory supports 1GB + 8GB (compatible with 2GB + 16GB) LPDDR3. The chip is a highly integrated product, can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other standards.
- Integrated 2 + 1 HUB75E interfaces;
- Dedicated for car screen, with “Passenger” and “No passenger” independent interfaces;
- Onboard WiFi module, realize wireless communication, support AP mode, tation mode;
- Support secondary development, support remote cluster control of cloud platform;
- Built-in Web Sever, support for local web page production, support computer, iPhone, Android phone, tablet stand-alone program editing, cross-platform system fully compatible;
- Support full color static to 32 scan module;
- Industrial-strength onboard Flash: 8GB.
With the development of LED car displays, in some areas, it needs to support wireless transmission, remote cluster control, docking with third-party platform applications, need control cards access the network and GPS positioning through Wi-Fi or 4G, and need to be controlled by mobile phone. Xixun E24 is tailor-made for these needs, leading the mobile car screen market. Make user control easier.
E24 uses Qualcomm MSM8909 platform solution. The MSM8909 processor is manufactured using the 28nmLP CMOS process, and the quad-core frequency is 1.1GHz. The memory supports 1GB + 8GB (compatible with 2GB + 16GB) LPDDR3. The chip is a highly integrated product, can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other standards.
- Integrated 4+ 1 HUB75E interfaces;
- Dedicated for car screen, with “Passenger” and “No passenger” independent interfaces;
- Onboard WiFi module, realize wireless communication, support AP mode, tation mode;
- Support secondary development, support remote cluster control of cloud platform;
- Built-in Web Sever, support for local web page production, support computer, iPhone, Android phone, tablet stand-alone program editing, cross-platform system fully compatible;
- Support full color static to 32 scan module;
- Industrial-strength onboard Flash: 8GB
With the development of LED car displays, in some areas, it needs to support wireless transmission, remote cluster control, docking with third-party platform applications, need control cards access the network and GPS positioning through WiFi or 4G, and need to be controlled by mobile phone. Xixun E26 is tailor-made for these needs, leading the mobile car screen market. Make user control easier.
E26 uses Qualcomm MSM8909 platform solution. The MSM8909 processor is manufactured using the 28nmLP CMOS process, and the quad-core frequency is 1.1GHz. The memory supports 1GB + 8GB (compatible with 2GB + 16GB) LPDDR3. The chip is a highly integrated product, can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other standards.
- Integrated 6 + 1 HUB75E interfaces;
- Dedicated for taxi full color screen
- Onboard WiFi module, realize wireless communication, support AP mode, tation mode;
- Support secondary development, support remote cluster control of cloud platform;
- Built-in Web Sever, support for local web page production, support computer, iPhone, Android phone, tablet stand-alone program editing, cross-platform system fully compatible
- Support full color static to 32 scan module;
- Industrial-strength onboard Flash: 8GB
The rear window of the taxi and the car-hailing car is dedicated to the full color screen of the car, and five independent current detection interfaces can be selected to check the power supply in real time;
Onboard WiFi module, realize wireless communication, support AP mode, Station mode; Support secondary development, only use cloud platform remote cluster control;
Built-in Web Sever, supports local web page production, supports computer, iPhone, Android phone, tablet stand-alone program editing, and is fully compatible with cross-platform systems;
Support full color static to 32 scan modules;
Industrial-grade on-board Flash: 8GB;
The ultra-narrow strip design makes the transparent rear window screen more transparent and beautiful;
Further Information:
Xixun E22/E24/E26/E28
Xixun E22 LED Controller Specification
Xixun E24 LED Controller Specification
Xixun E26 LED Controller Specification
Xixun E28 LED Controller Specification
