Xixun Dual-mode M Series LED Display Controller M90 M80 M70 LED Multimedia Player

LED Multimedia Player M90 Plus

3+1 network output, screen echo and backup
Gray level：65536
No need PC, setting simple
Can support LED screen maximum width 1920 pixels, maximum height 1200 pixels
Single sending card support 2,600,000 pixels, single network port support 650,000 pixles, image location can be set arbitrarily

LED Multimedia Player M80

M80 internet player adopts 8 core high performance CPU, also integrated with sending
card together, which features powerful video process ability and reasonable costs.
Small size, low power consumption, fits for wide temperature range and easy to install,
M80 has 4 Ethernet output ports, maximum 2.3 million pixels, widest reach to 3,840pixels,highest reach to 2,160 pixels.

LED Multimedia Player M70

The M70 synchronous and asynchronous dual-mode sending box is a highly integrated
and high-performance quad-core Cortex-A17 core board, running at a frequency of up to 1.8GHz, and comes standard with 2G memory and 16GB EMMC high-speed flash memory,supports synchronous HDMI input and output signals . It is more suitable for commercial display fields, such as mirror screen, advertising machine, lamp post sign and other applications.
1.3 million dual network ports loaded, the maximum width of asynchronous is 1920 pixels,the maximum of height is 1080 pixels, and the synchronization is 1.3 million custom width and height;

LED Multimedia Player M60

With the development of LED display industry, in some fields, it is necessary to support
wireless transmission, need control card to access the network through WiFi, and need to be able to control through mobile phone. M60 product to meet the requirements, you can eliminate the wiring trouble, like a router for wireless network configuration.
Dual network ports with super load capacity，1.3 million pixels，most wide1920 pixel，highest 1080 pixel；

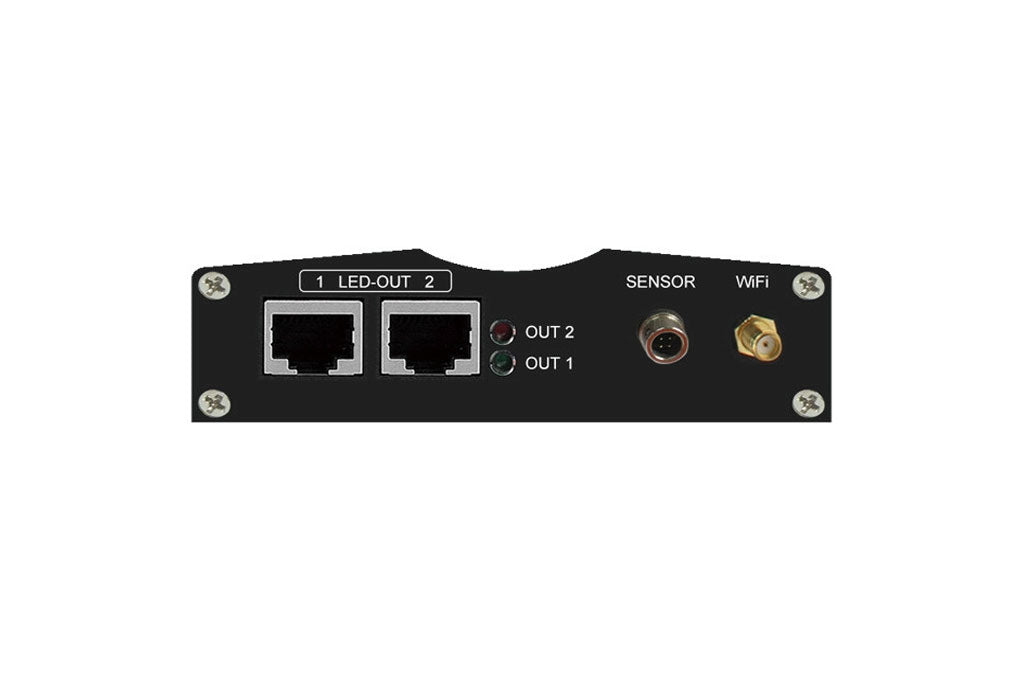

LED Multimedia Player M50

With the development of LED display industry, in some fields, it is necessary to
support wireless transmission, need control card to access the network through WiFi, and need to be able to control through mobile phone. M50 product to meet the requirements, you can eliminate the wiring trouble, like a router for wireless network
configuration.Onboard WiFi module，realize wireless communication ， Support AP
mode,station mode；
Dual network ports with super load capacity，1.3 million pixels，most wide1920 pixel，highest 1080 pixel；

Further Information:
Xixun M90 Plus
Xixun M90 Plus LED Controller Specification
Xixun M80
Xixun M80 LED Controller Specification
Xixun M70
Xixun M70 LED Controller Specification
Xixun M60
Xixun M60 LED Controller Specification
Xixun M50
Xixun M50 LED Controller Specification
