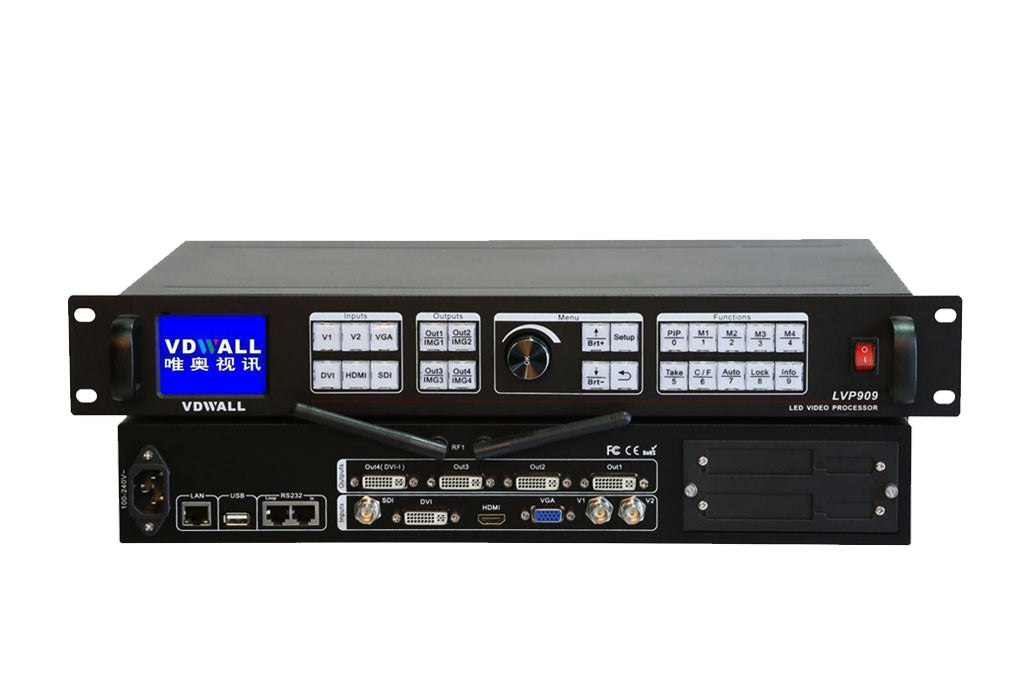

VDWall LVP909 Series LED Display Controller LVP909 909F LED Video Processor

VDWall LVP909 Series LED Display Controller LVP909 909F LED Video Processor

Regular price $960.00 USD
Regular price Sale price $960.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number
LVP909 Series LED HD Video Processor
4 windows in any size and overlay display,Wireless Wi-Fi control+ Wi-Fi video feedback monitor.

1.Seamless switching,fade in fade out swtiching between any inputs. Multiple mixed analog and digital inputs including 2*Video、1*VGA、1*HDMI、1*DVI、1*SDI/HD-SDI/3G-SDI;
2.“TAKE” fast switching.
3.Four sets of preset PIP display mode: seamless or fade in fade out between modes switching.
4.windows in any size and overlay display. Display 4 input signals picture at the same time.Each picture size, position and overlay order are adjustable.
5.Preview monitor+sync monitor
6.Wi-Fi wirless control+ Wi-Fi video feedback monitor: Wi-Fi video feedback function is realized through installing APP software in handheld device to monitor input signals. Meanwhile,wireless Wi-Fi controls the device to switch signals and call modes.

LVP909 series product model description
*LVP909 without Wi-Fi module,LVP909F with Wi-Fi module.

  • Feature one:4 windows in any size and overlay display909F LED Video Processor
  • Feature two:Wirelwss WI-FI control +WI-FI video feedback monitor909F LED Video Processor
  • Feature three:Frame synchronous technology,no misalignment in high-speed motion pictures909F LED Video Processor

For indoor and outdoor ultra big,abnormal LED screen splicing display;rental,staging,theatre performance LED screen and other fixed installations.

● LVP909 connection diagram

909F LED Video Processor

Input signals

type/nums

2×Video
1×VGA
(RGBHV)
1×HDMI(VESA/ CEA-861)

1×DVI(VESA/ CEA-861)
1×SDI(SDI/HD-SDI/3G-SDI)

Video system

PAL/NTSC

composite video scope/ Impedance

1V(p_p)/ 75Ω

VGA format

PC(VESA standard)

≤1920×1200_60Hz

VGAscope/ Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

DVI format

PC(VESA standard)

≤1920×1200_60Hz

HDMI-1.3(CEA-861)

≤1920×1080p_60Hz

SDI format

SMPTE 259M-C

SMPTE 292M

SMPTE 274M/296M

SMPTE 424M/425M

480i_60Hz

576i_50Hz

720p、1080i、1080p

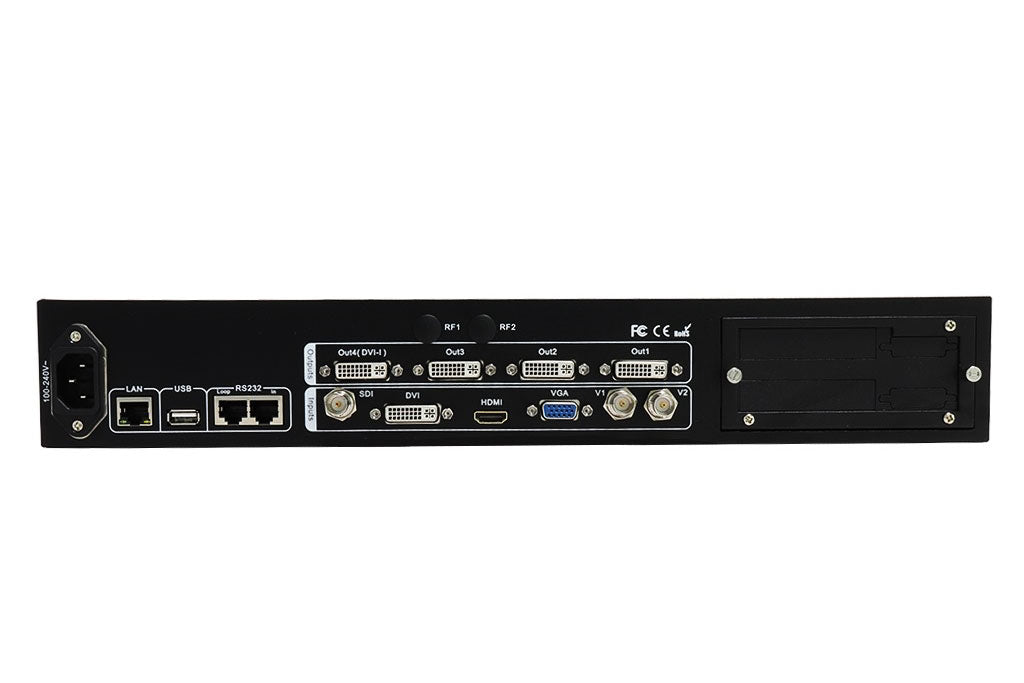

Input ports

Video:P4 of VGA port
VGA:15pin D_Sub( female)

HDMI:A type of HDMI port

DVI:24+1 DVI_D
SDI:BNC/ 75Ω

Output signals

type/nums

1×VGA

4×DVI

Preview output

1×VGA(DVI OUT4)

DVI resolution

1024×768_60Hz1280×1024_60Hz

1920×1080p_60Hz1920×1200_60Hz

Output port

DVI:24+1 DVI_I

others

Control ports

Front panel /RS232/USB/LAN/WIFI

Input voltage

100-240VAC 50/60Hz

power

≤80W

temperature

0-45

humidity

15-85%

size

483 (L) x274(W) x66.6   (H)mm

Weight

G.W.:5.5 Kg,   N.W.:4.2Kg


Authenticate
