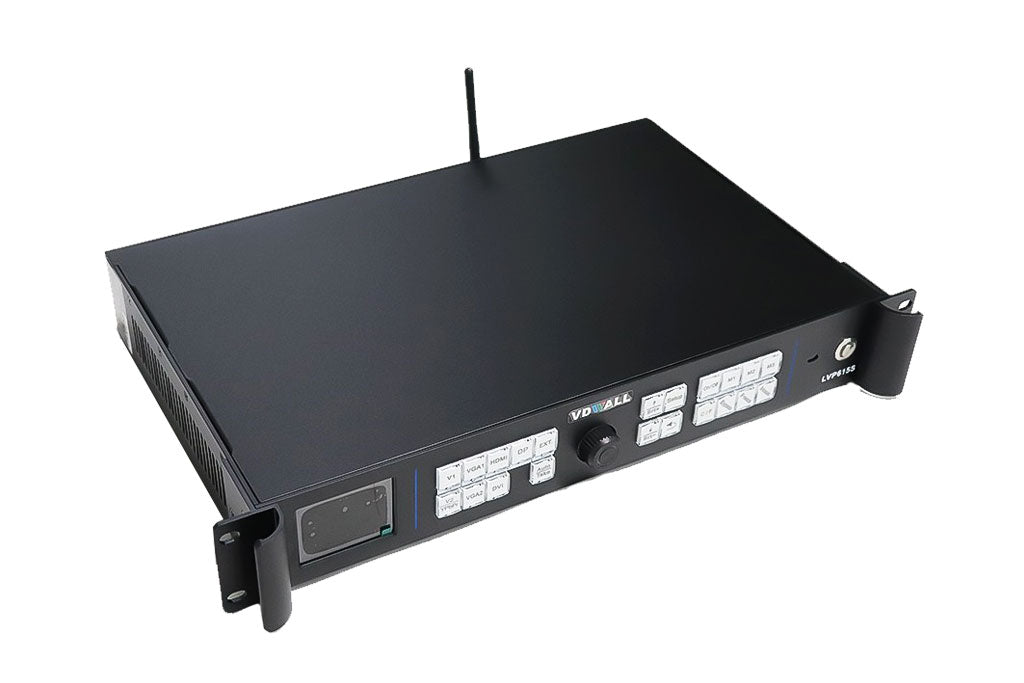

VDWall LVP615 Series LED Display Controller LVP615 615S 615D 615U LED Video Processor

VDWall LVP615 Series LED Display Controller LVP615 615S 615D 615U LED Video Processor

Regular price $480.00 USD
Regular price $590.00 USD Sale price $480.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number
LVP615 series LED HD Video Processor wireless WI-FI control&remote control pip/pbp,text overlay synchronic Multi-unit In Parallel.

1. New generation Faroudja® Real Color® professional LED video processor,10+ Bit Faroudja® DCDI Cinema Processing Faroudja® TureLife™ videoenhancer.
2.SeamlessSwitching、FadeinFadeoutSwitching、Blend Switching
3.Twosignalswitching ways:one keyswitchandPre.+Takeswitch
4. 3 sets of custom dualpicture display mode, one key switch between modes. Any PIP/PBP display. AIAO(Any In Any Out) function, any interception andanyoutput.
5. Inputsignalhotsparefunctiontoensureoutputmorestable.
6. Custominput DVIEDIDtorealizeperfectpixeltopixeldisplay.
7.Custom output format. Single unit maximum output horizontal 3840 pixelsorvertical1920pixels.
8. DVI input port supports APPLE PC. DVI Loop unlimited cascade to realize sync. mosaic to drive indefinite LED lattice. Frame sync technology . No miss alignment or delay between two adjacent image outputs.
9.Avariety ofcontrolmethods:wirelessWIFI、 IP/LAN、 frontpanelbutton、 infraredremote control、PC software,Ipad、mobile phone terminaland etc..Flexibleoperation.
10.2 channels configurable external audio inputs. Plus HDMI、DP and SDI audiototal5channelsaudiosyncswitch.
11. Built in 2 pieces LED sending cards(compatible 4 RJ45 ports sending cards.Cardsareoptional.)
12. 24/7application,highreliabilityandstability

LVP615 series product model description

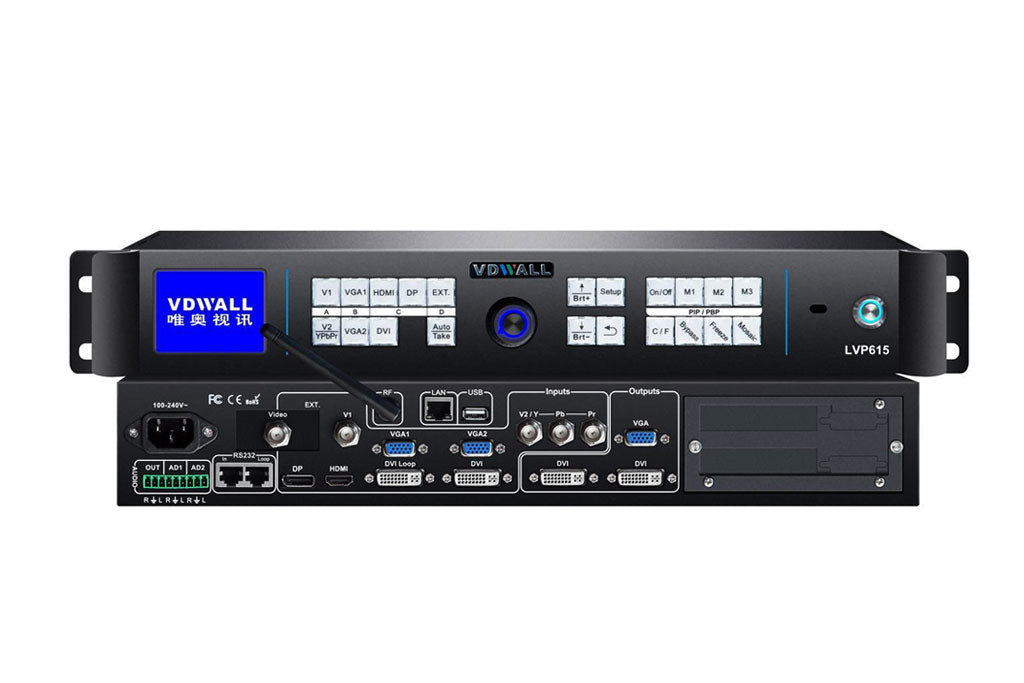

*LVP615: Extend interface optional 1×CVBS

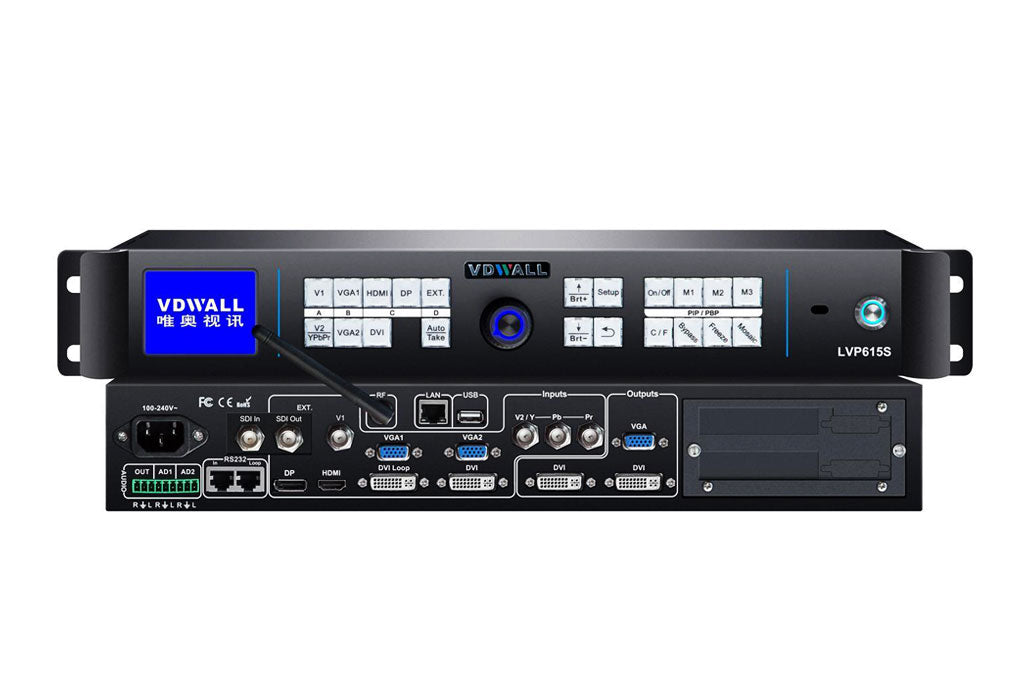

*LVP615S:Extend interface optional 1×SDI/HD-SDI/3G-SDI

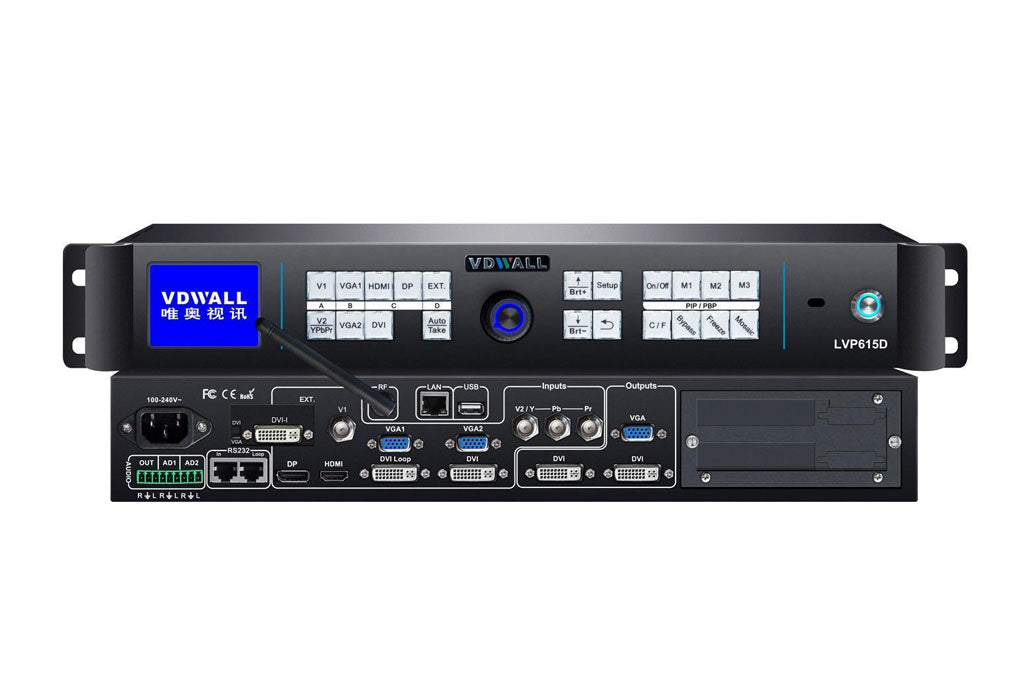

*LVP615D:Extend interface optional 1×VGA/DVI/HDMI

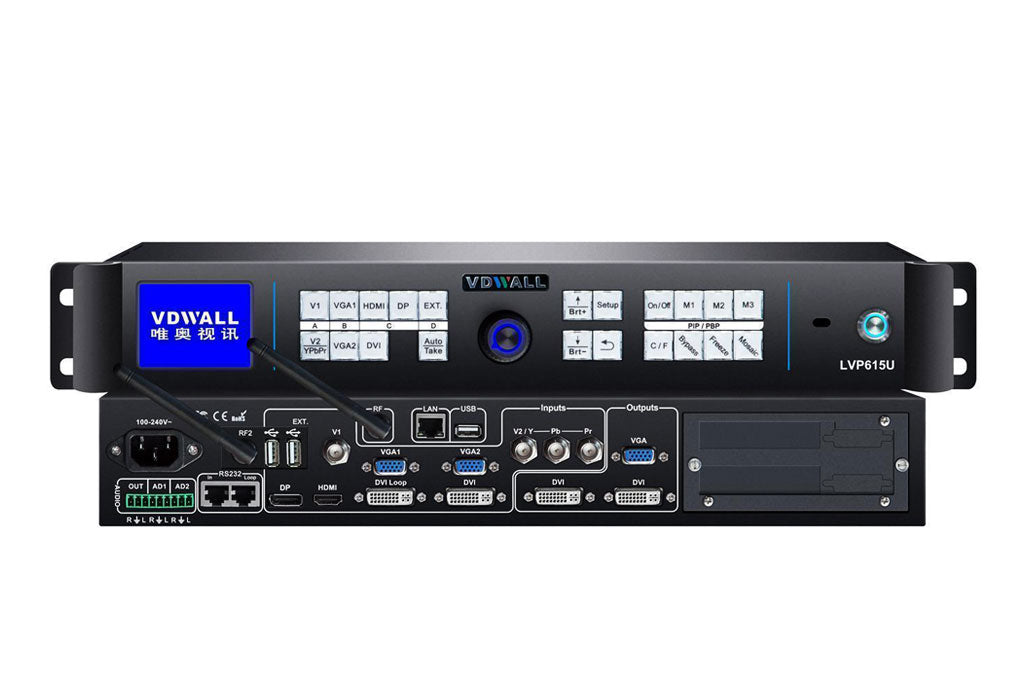

*LVP615U:Extend interface optional 1×Wi-Fi+2×USB

  • Feature one:Wireless Wi-Fi control&remote control615 LED Video Processor
  • Feature two:PIP/PBP,text overlay615 LED Video Processor
  • Feature three:Synchronic Multi-uit In Parallel615 LED Video Processor


Inputs

Number/type

2×Video

YPbPr

2×VGAVESA

DP(VESA

1×DVIVESA

HDMI(VESA/CEA-861

EXT.(extended Video/DVI-I/SDI)

Video system

PAL/NTSC

Composite video amplitude/Impedance

1V(p_p)/ 75Ω

YPbPr format

SD/HD(CEA -861)

YPbPr

Amplitude/Impedance

Y= 1.0V(p_p)/ 75Ω

Pb= 0.35V(p_p)/ 75Ω

Pr= 0.35V(p_p)/ 75Ω

VGA format

PC(VESA)

≤2048x1152 _60Hz

VGA Amplitude/Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

DP format

DisplayPort1.1(VESA)

DVI format

PC(VESA)

≤2304x1152_60Hz

HDMI1.3(CEA -861)

Custom output format

width3840 height1920

HDMI format

(HDCP1.3)

PC(VESA)

≤2304x1152_60Hz

HDMI1.3(CEA -861)

≤1920x1080p_60Hz

SDI format

SMPTE259M-C SMPTE 292M

SMPTE 274M/296M

SMPTE 424M/425M

480i_60Hz

576i_50Hz

720p、1080i1080p

Audio

2.0Vp-p/10KΩ

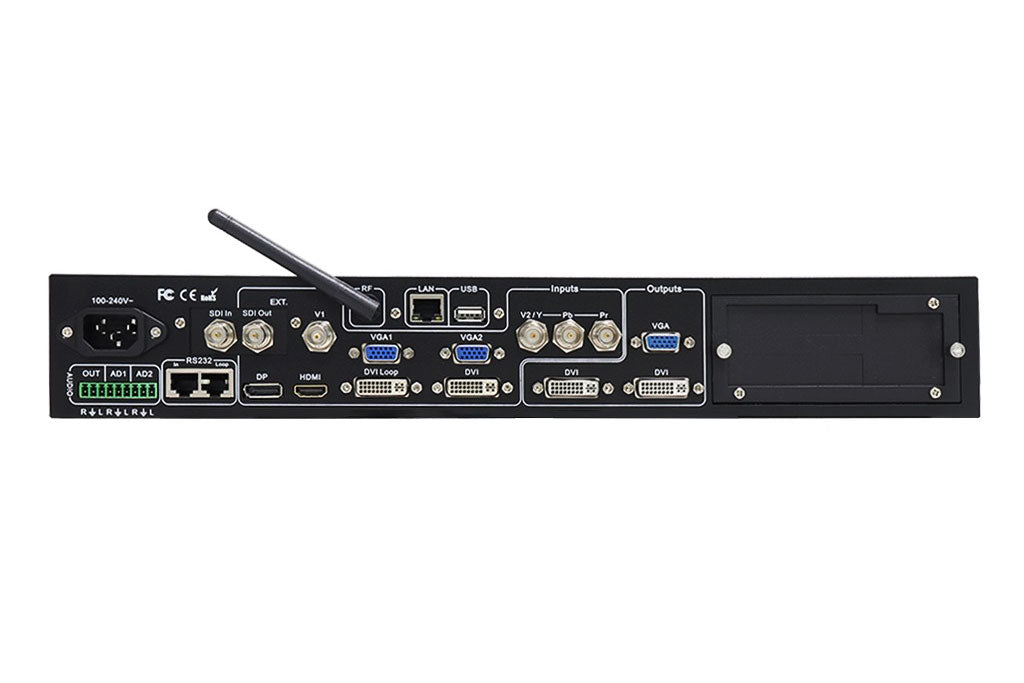

Input connectors

VideoBNC

YPbPr:BNC×3

VGA:15pin D_Sub(female)

DP:DisplayPort SMT female 20pin

DVI:24+1 DVI_D

HDMI:HDMI port A type

SDI :BNC

Outputs

Number /Type

VGA(RGBHV

2×DVI

VGA/DVI resolution

1024×768_60Hz/75Hz

1080×1920_60 Hz

1200×1600_60 Hz

1280×1024_60Hz/75Hz

1366×768_60Hz

1440×900_60Hz

1536×1536_60 Hz

1600×1200_60Hz

1920×1080p_50Hz/60Hz

1920×1200_60 Hz

2048×1152_60Hz

2304×1152_60Hz

2560×816_60Hz

Custom output format(maximum output horizontal 3840 pixels or vertical 1920 pixels.)

VGA Amplitude/Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

Output ports

VGA OUT:15pin D_Sub( female)

DVI OUT1:24+1 DVI_D

DVI OUT2:24+1 DVI_D

others

Control methods

Wireless wifi,IP/LAN,front panel button,infrared remote control, PC software,Ipad, mobile phone terminal and etc..

Input voltage

100-240VAC 50/60Hz

Maximum power consumption

≤25W

Environment  temperature

0-45 ℃

Environment humidity

15-85%

sizepackage

130mm(H)×350mm(W)×520mm(L

Weight

G.W.:5.7 Kg, N.W.:4.0 Kg


Authenticate
