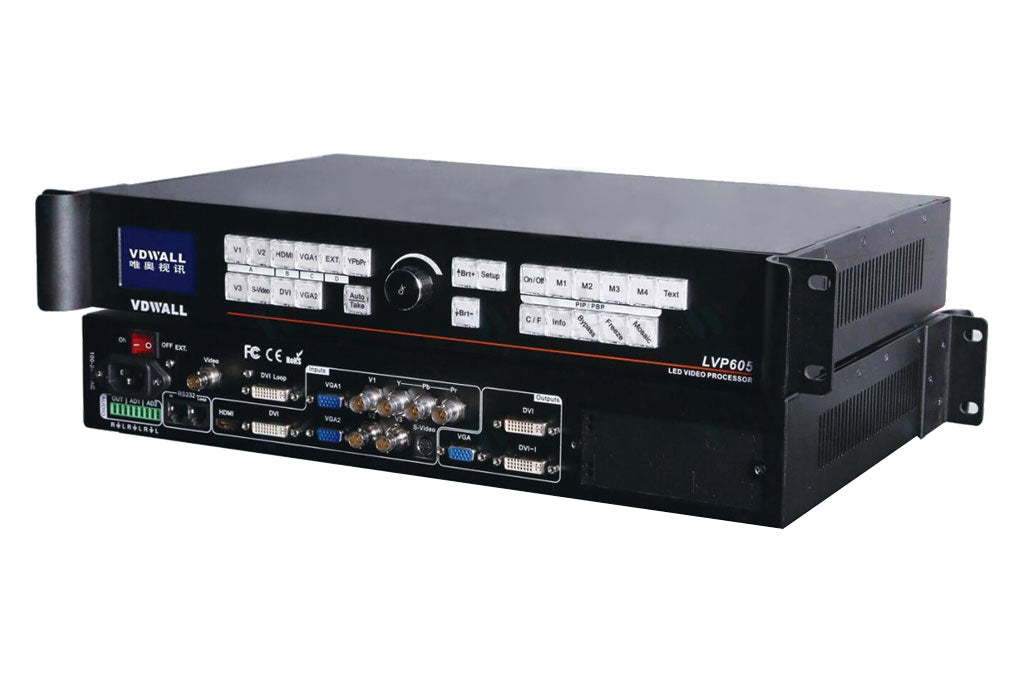

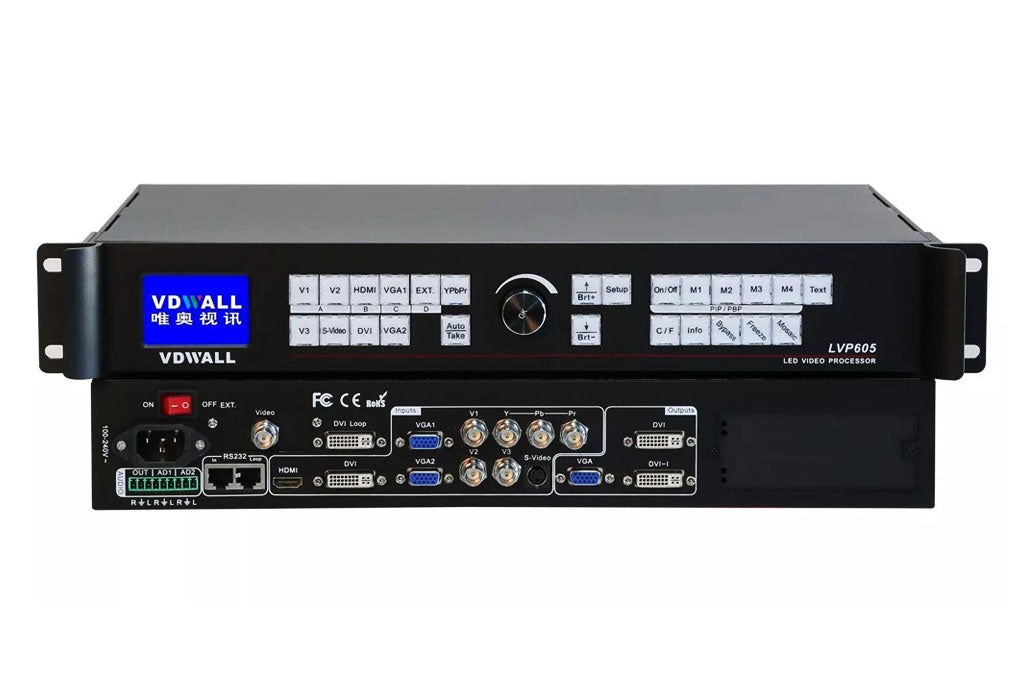

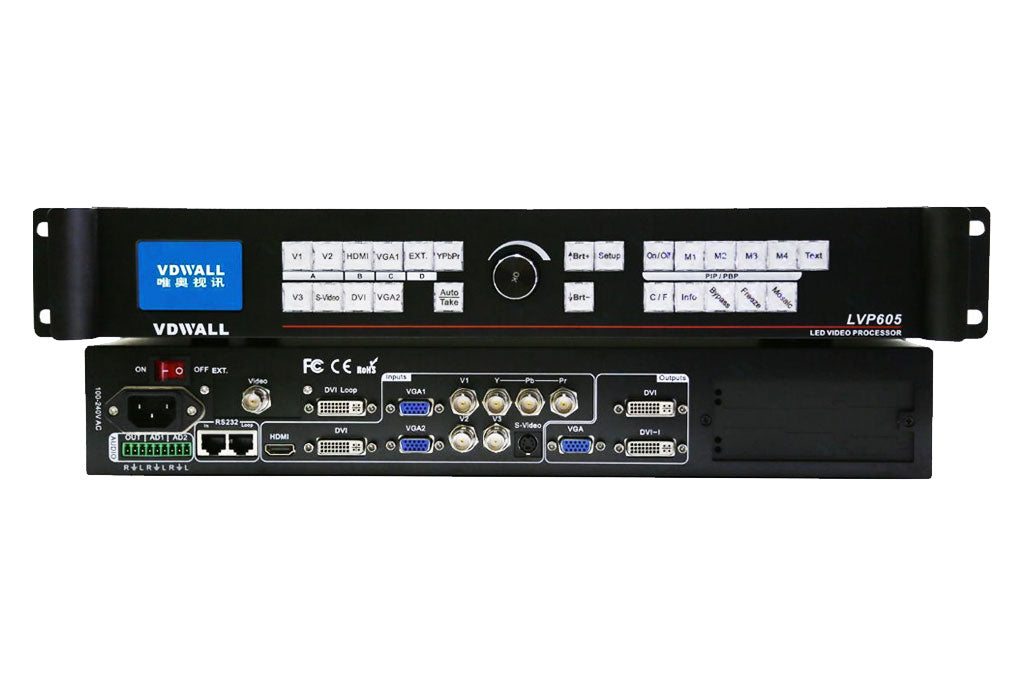

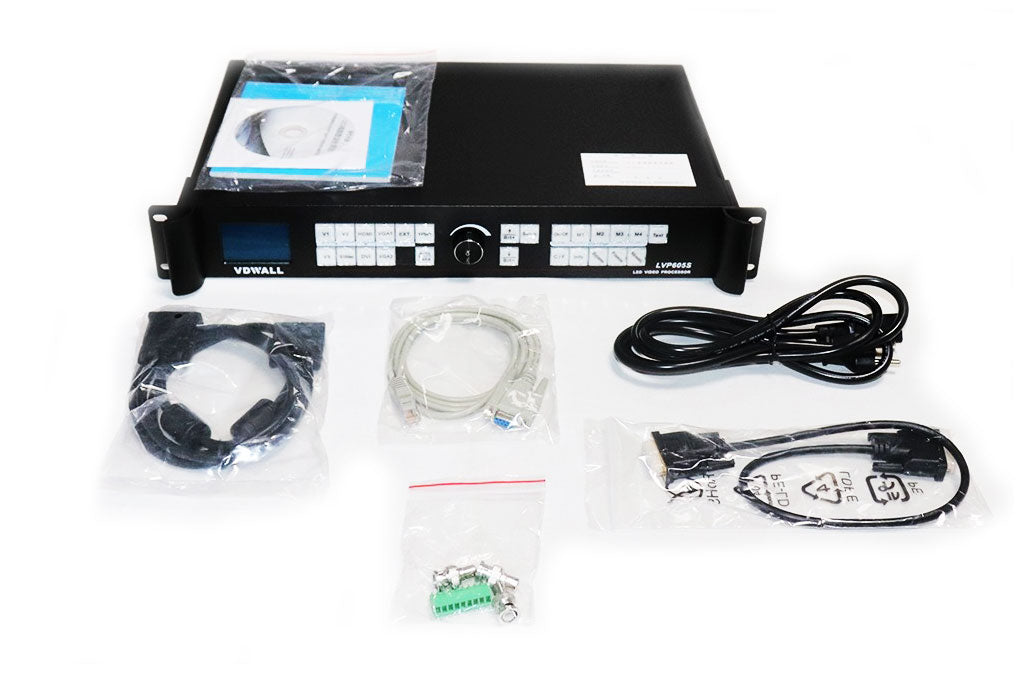

VDWall LVP605 Series LED Display Controller LVP605 LVP605D LVP605S LED Video Processor
VDWall LVP605 Series LED Display Controller LVP605 LVP605D LVP605S LED Video Processor
Seamless Switching
Fade-in / Fade-out switching & Blend switching
4 custom PIP / POP display modes
HD Text, Flash, Graphics & Logo Overlay
1. 10+ Bit Faroudja® DCDI Cinema Processing
2. New Faroudja® Real Color®
3. Faroudja® TureLife™ Video Enhancer
4. Advanced 4x4 Pixels Interpolation Scaling Algorithm
5. HDMI 1.3a with HDCP, HD 1080P input
6. SDI / HD-SDI / 3G-SDI (1080P) Input
7. 10-bit Processing
8. Seamless Switching, Fade-in / Fade-out switching & Blend switching in random input signals
9. HD Text, Flash, Graphics & Logo Overlay
10. 4 custom PIP / POP display modes, which can be switched by pressing one button
11. Hot Spare function, display will be stable and reliable
12. Picture Freeze function
13. AIAO( Any In Any Out ) function allows for displaying any capturing picture in specific area on the screen
14. 2304 x 1152 or 2560 x 816 output for single machine
15. Multi-machine in parallel, multi-unit installed in parallel drive indefinite LED lattice

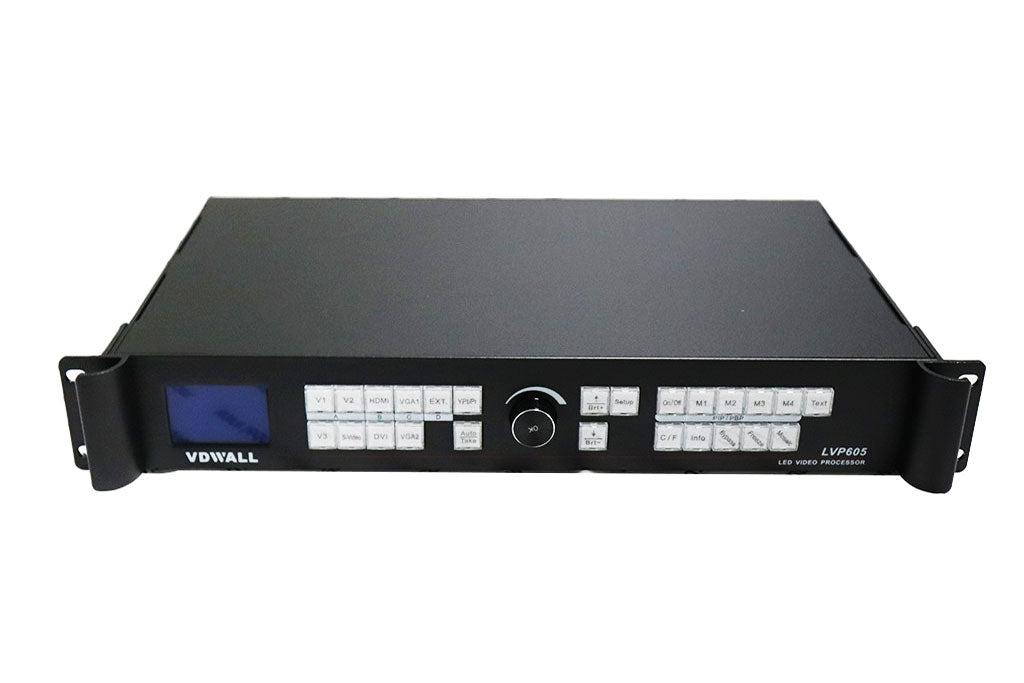

16. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command for operating and setting
17. Press keys or knob on frontal panel to directly select 10-channel input signal source,including:
3×CVBS 1×DVI 1×HDMI
2×VGA 1×YPbPr / YCbCr 1×S-Video
1×EXT.( extended modle , can be VIDEO or SD I / HD-SDI / 3G-SDI or VGA / DVI / HDMI )
18. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI and SDI audio,there are 5-channel audio for synchronous switch
19. 2 LED Transmission Cards Built-in ability ( sending cards are optional )
20. 24 / 7 Application
LVP 605 series product model description
*LVP605: Extend interface optional 1×Video
*LVP605S:Extend interface optional 1×SDI/HD-SDI/3G-SDI

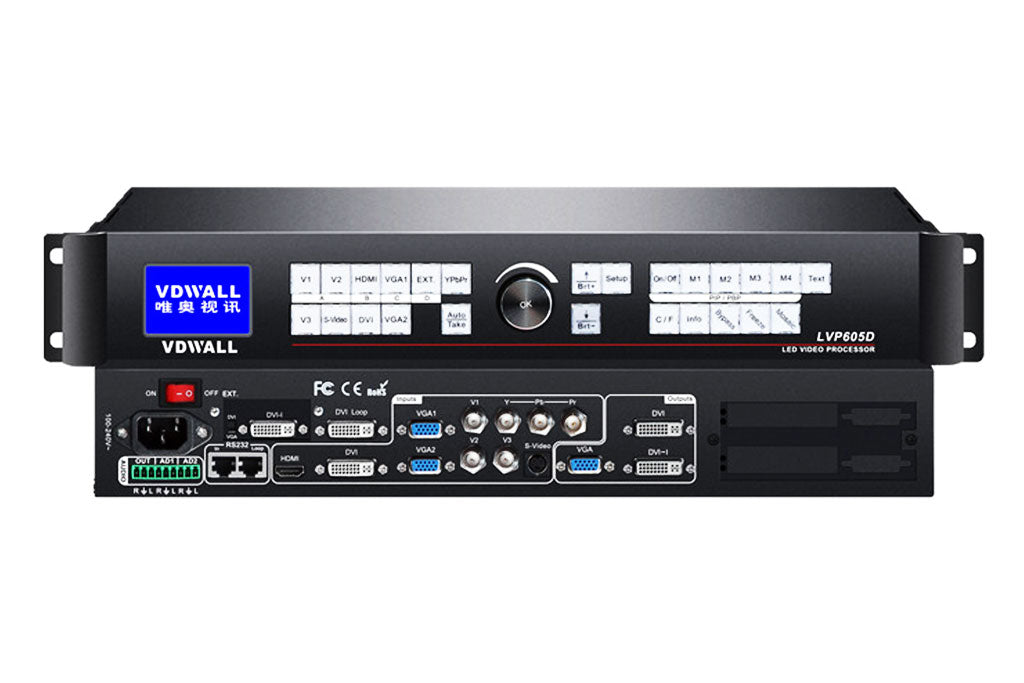

*LVP605D:Extend interface optional 1×VGA/DVI/HDMI
- Feature one : Fade-in / Fade-out
- Feature two : PIP, POP, Text overlay
Large venus display applications such as: Rental Performance, TV broadcast center, large-scale stage and theatre, high-end meeting, exhibition etc
Synchronic Multi-unit In Parallel
Connection Diagram:
Inputs |
||
Number/Type |
3×Video 1×S-Video 1×YPbPr 2×VGA (RGBHV) 1×HDMI (VESA/CEA-861) 1×DVI (VESA) 1×EXT. (Extended) |
|
Video system |
PAL/NTSC |
|
Composite Video Amplitude/Impedance |
1V (p_p) / 75Ω |
|
S-Video Amplitude /Impedance |
Y: 1.0V (p_p) / 75Ω, C: 0.35V (p_p) / 75Ω |
|
VGA Format |
PC (VESA) |
≤2048x1152_60Hz |
VGA Amplitude /Impedance |
R、G、B = 0.7 V (p_p) / 75Ω |
|
DVI Format |
PC(VESA) |
≤2304x1152_60Hz |
HDMI Format ( HDCP ) |
PC(VESA) |
≤2304x1152_60Hz |
HDMI1.3(CEA -861) |
≤1920x1080p_60Hz |
|
YPbPr Format |
SD/HD (CEA-861) |
≤1920x1080P_60Hz |
YPbPr Amplitude /Impedance |
Y= 1.0V (p_p)/75Ω Pb= 0.35V (p_p)/75Ω Pr= 0.35V (p_p)/75Ω |
|
SDI format |
SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz 576i_50Hz 720p、1080i、1080p |
Audio Scope/Impedance |
2.0Vp-p/10K? |
|
Input Connectors |
VGA: 15-pin D_Sub (Female) DVI: 24+1 DVI_D YPbPr: BNC×3 Video: BNC S-Video: 4pin mini DIN (Female) SDI: BNC |
|
Outputs |
||
Number/Type |
1×VGA (RGBHV) 2×DVI |
|
VGA/DVI Format |
1024×768_60Hz/75Hz 1280×1024_60Hz/75Hz 1600×1200_60Hz 1920×1080p_50Hz/60Hz 1366×768_60Hz 1440×900_60Hz 2048×1152_60Hz 2560×816_60Hz 2304×1152_60Hz 1920×1200_60 Hz 1200×1600_60 Hz 1080×1920_60 Hz 1536×1536_60 Hz Customizable output format (maximum horizontal pixel: 3840 or maximum vertical pixel: 1920) |
|
VGA Amplitude /Impedance |
R、G、B = 0.7 V (p_p) / 75Ω |
|

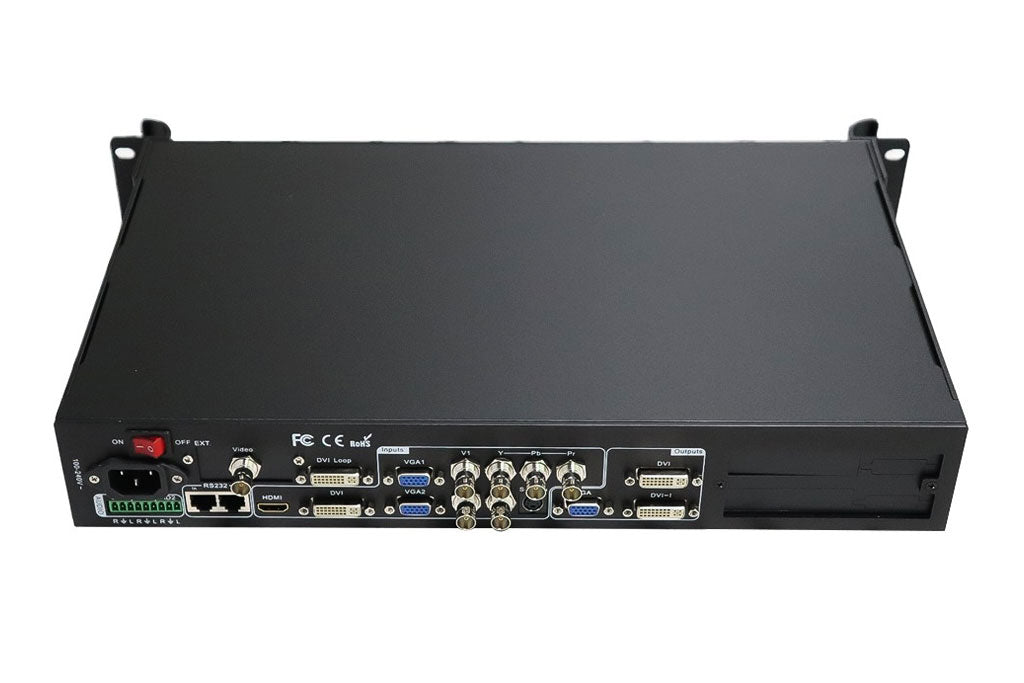

Output Connectors |
VGA OUT: 15-pin D_Sub (Female) DVI OUT1: 24+5 DVI_I DVI OUT2: 24+1 DVI_D |
|
Others |
||
Control |
Panel Buttons |
|
Input Voltage |
100-240VAC 50/60Hz |
|
Maximum Power Consumption |
≤20W |
|
Environment Temperature |
5-40 ℃ |
|
Environment Humidity |
15-85% |
|
Package Size |
145 mm (H) ×370mm (W) ×535mm (L) |
|
Weight (G.W.) |
5.0 Kg |
|
Weight (N.W.) |
3.2Kg |
