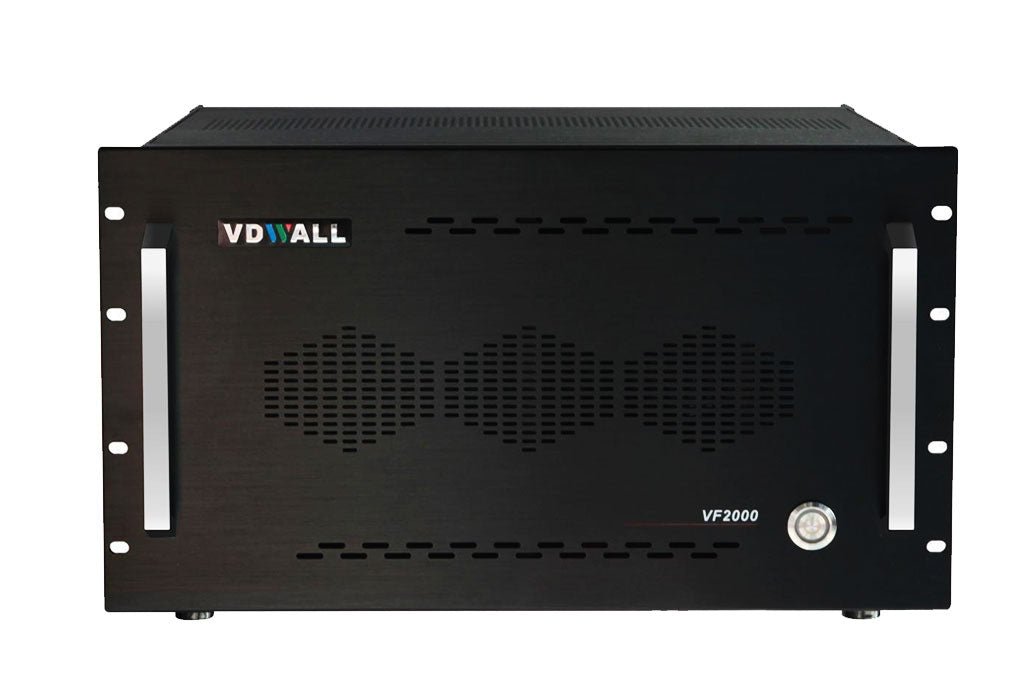

VDWall LED Display Controller VF2000 LED Video Processor

VDWall LED Display Controller VF2000 LED Video Processor

Regular price $10,500.00 USD
Regular price $15,000.00 USD Sale price $10,500.00 USD
Sale Sold out
Shipping calculated at checkout.
VF2000 Multi-window Video Wall Processor
Up to 64 HD+SD signal inputs
60Hz refresh rate in the whole processing
Up to 32 display windows
*This price is the full configuration price.You can configure the number of outputs and inputs, please contact us for a quote.

1. Faroudja® Real Color® Picture processing,10+ Bit Faroudja® DCDI Cinema Processing and Faroudja® TureLife™ Video image enhancement
2.Advanced interlaced motion image adaptive processing technology to eliminate video image movement tail and saw-tooth phenomenon
3.Plug-in design for more flexible and convenient hardware maintenance
4.Redundant power supply design, equipment operation more stable and reliable
5.CrossPoint fully cross-high bandwidth video switching technology
6.Support mixed video seamless switching technology, no black screen between image signals switching
7.Whole procedure 60Hz RGB format signal processing and transmission,without reducing image quality and frame rate,perfect image and color reproduction
8.Support functions like input text overlay,input signal remark and etc
9.Support signal sources preview function, support real-time preview of all input signal sources
10.AIAO(Any In Any Out)function,any input crop and any output
11.Using advanced sync-frame splicing technology, high-speed images are completely synchronized without tearing image
12.Support multiple SD、HD、analog and digital input
13.16×CVBS 16×VGA
16×DVI(HDMI) 16×SDI(SD-SDI / HD-SDI / 3G-SDI)
14.The quantity of supported input signal is up to 64, the supported function for any input signal includes opening window , roam , scale , free overlay, etc. it can process 32 signals at the same time, and it can display 32 different images at most
15.Maximally 16 preset display modes,switch and select seamlessly
16.Standard VESA DVI output, compatible with mainstream full-color control systems
17.16 DVI outputs, maximum output resolution 1920*1080_60Hz
18.single unit splicing output width up to 20480 pixels or output height up to 9600 pixels
19.Any input signals seamless switching and Fade-in/Fade-out switching
20.Support RS232 serial port, USB and TCP/IP control, open control protocol, easy integration with various control systems
21.PC software is easy to use, any open window , roam, overlay
22.Backup or Restore the device settings and adjustment data by a PC
23.24/7 Application, stable and reliable

Rental Performance,special-shaped or ultra-large LED display,mixed displays(with different poxel potch),Stage Entertainment & Theater,High-end meeting & Exhibitons etc.

Connection Diagram
VF2000 LED Video Processor

Specification of Inputs

Quantity/Type

1×CVBS

1×VGARGBHV

1×DVIVESA
1×HDMIVESA/CEA-861

Composite Video Input SYS

PAL / NTSC

Composite Video Amplitude Impedance

1V (p_p) / 75Ω

VGA Format

PC (VESA Standard)

≤2048×1152_60Hz

VGA Amplitude the impedance

RGB = 0.7 V(p_p) / 75Ω

DVI Format

PC (VESA Standard)

≤2304×1152_60Hz

HDMI Format

PC (VESA Standard)

≤1920×1080_60Hz

HDMI1.3 (CEA-861)

≤1080p_60Hz

Input Interface

CVBS: BNC

VGA: 15pin D_Sub (Female)

DVI: 24+1 DVI_D(Female)

HDMI: Type-A HDMI port

Specification of Outputs

Quantity / Type

2×DVI

DVI Format

1024×768_60Hz/75Hz

1080×1920_60Hz

1200×1600_60Hz

1280×1024_60Hz/75Hz

1600×1200_60Hz-

1920×1080_50Hz/60Hz-

1366×768_60Hz-

1440×900_60Hz-

1536×1536_60Hz-

1920×1200_60Hz

2048×1152_60Hz

2304×1152_60Hz

2560×816_60Hz

Output Interface

DVI OUT24+1 DVI_D

Others

Control Ports

RS232 (Optional)

Voltage of Input

100-240VAC 50/60Hz

Power Consumption

≤25W

Temperature of  Environment

0-45℃

Humidity of Environment

15-85%

Size of Product

482.6 (L) x 200 (W) x 44 (H)mm

Packing Size

535 (L) x 315 (W) x 145 (H)mm

Weight

G.W.: 35Kg,  N.W.: 22Kg

Standard accessories

1.5m power cord ×1 1.5m DVI cable ×1

User manual ×1    operations CD ×1   BNC-RCA adapter ×1

Optional accessories

LED sending cards×2
