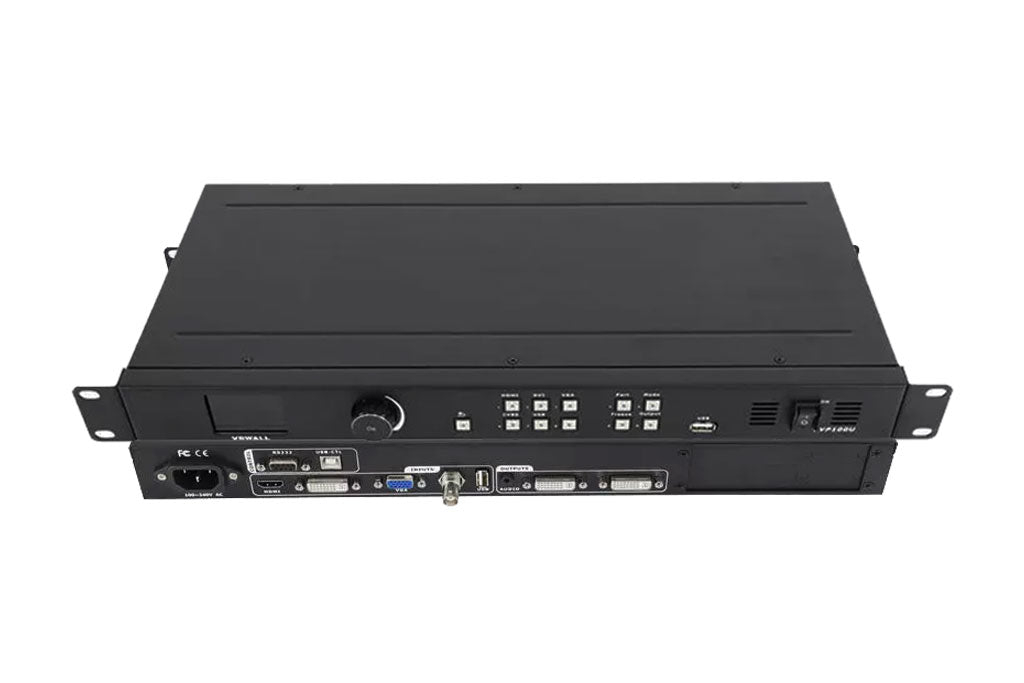

LVP 100U LED Video Processor
Cost-effective/ HD display/ high stability
1. 4 inputs, 2 outputs, dual images, it’s enough for the application requirements to small LED in most cases
2. It allows an access to set the output resolution to fulfill the size of LED screen
3.DVI EDID make it possible to set the input resolution freely to make dot-to-dot display successful.
4. PIP / PBP display among any 2 images, 3 custom preset dual-images mode
5.Seamless switching, fade in and fade out switching
6.Control method: operations on front panel buttons, it’s convenient and flexible for front panel users
7. It is enabled to put 2 sending cards inside
8. It is enabled to work for seven days a week and twenty four hours a day. High-reliable and stable.
|
Specification of Inputs |
||
|
Quantity/Type |
1×CVBS 1×VGA（RGBHV） 1×DVI（VESA） |
|
|
Composite Video Input SYS |
PAL / NTSC |
|
|
Composite Video Amplitude Impedance |
1V (p_p) / 75Ω |
|
|
VGA Format |
PC (VESA Standard) |
≤2048×1152_60Hz |
|
VGA Amplitude the impedance |
R、G、B = 0.7 V(p_p) / 75Ω |
|
|
DVI Format |
PC (VESA Standard) |
≤2304×1152_60Hz |
|
HDMI Format |
PC (VESA Standard) |
≤1920×1080_60Hz |
|
HDMI1.3 (CEA-861) |
≤1080p_60Hz |
|
|
Input Interface |

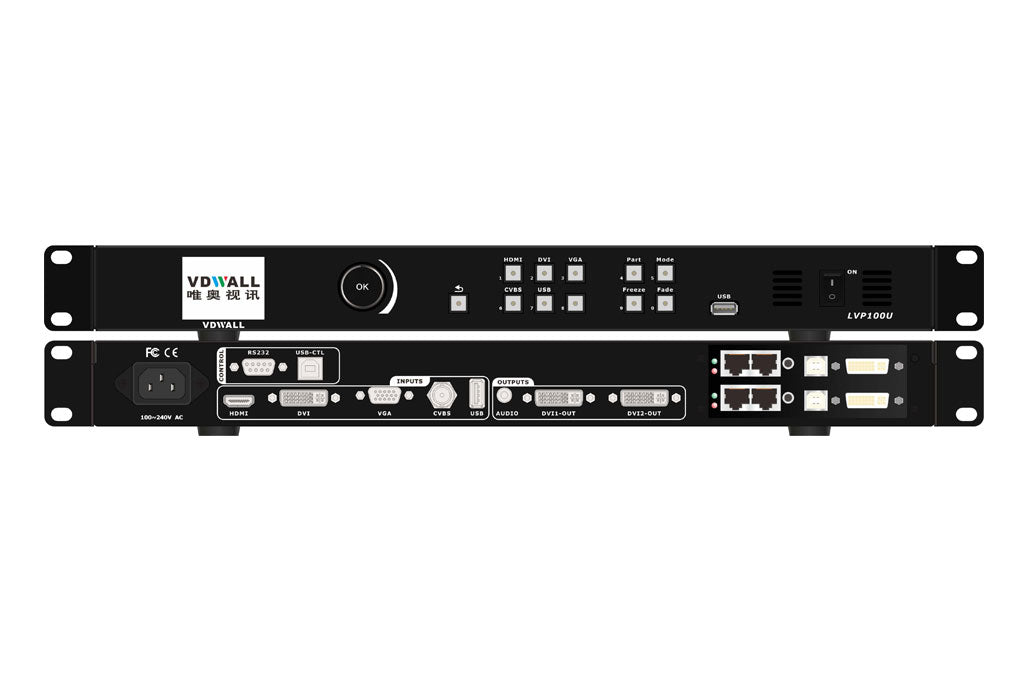

CVBS: BNC VGA: 15pin D_Sub (Female) DVI: 24+1 DVI_D(Female) HDMI: Type-A HDMI port |
|
|
Specification of Outputs |
||
|
Quantity / Type |
2×DVI |
|
|
DVI Format |
1024×768_60Hz/75Hz 1080×1920_60Hz 1200×1600_60Hz 1280×1024_60Hz/75Hz 1600×1200_60Hz- 1920×1080_50Hz/60Hz- 1366×768_60Hz- 1440×900_60Hz- 1536×1536_60Hz- 1920×1200_60Hz 2048×1152_60Hz 2304×1152_60Hz 2560×816_60Hz |
|
|
Output Interface |
DVI OUT：24+1 DVI_D |
|
|
Others |
||
|
Control Ports |
RS232 (Optional) |
|
|
Voltage of Input |
100-240VAC 50/60Hz |
|
|
Power Consumption |
≤25W |
|
|
Temperature of Environment |
0-45℃ |
|
|
Humidity of Environment |
15-85% |
|
|
Size of Product |
482.6 (L) x 200 (W) x 44 (H)mm |
|
|
Packing Size |
535 (L) x 315 (W) x 145 (H)mm |
|
|
Weight |
G.W.: 4Kg, N.W.: 2.5Kg |
|
|
Standard accessories |
1.5m power cord ×1 1.5m DVI cable ×1 User manual ×1 operations CD ×1 BNC-RCA adapter ×1 |
|
|
Optional accessories |
LED sending cards×2 |
|
