VDWALL D6000 4K Multi-Window Mosaic Processor 60HZ LED Video Wall Splicer

VDWALL Showcases the D6000 4K 12×16 Multi-Window Processor

Faroudja® Real Color®true color processing，10+ Bit Faroudja® DCDI de-interlacing processing，Faroudja® TureLife™ video image augment；

Versatile input signal：
6 4K2K_60Hz UHD input，including 4*HDMI2.0 (support HDCP2.2), 2*DP1.2；
6 HD+SD, analog+digital input，including 2 HDMI1.3(compatible with DVI, VGA input ）2*3G-SDI, 2*CVBS；

Seamless switching and Fade in/Fade out switching between different input signal;

Support 4K 4 windows 6 images display, 4K arbitrary scaling, open window, overlay. 4 windows include 2*4K and 2*2K，freely scale, overlap, roam among 8 unit screen. 2 *2K window support PIP or POP function，total 6 image display simultaneously；
16 DVI output，driving capability up to 36 million pixels. Support output resolution 1920× 1080P@60Hz and 16 DVI outputs synchronized splicing，support 15360×2160 screen driving；

Support user defined output resolution, maximum 2160 pixels in height or width，16 DVI can drive 34560 pixels in horizon or vertical；

Each DVI output support any in any out cropping, random size and position setup on LED screen, realize perfect mosaic of irregular screen；

Each DVI output support color, gray level, brightness adjustment in independent RGB channel with 256 level, achieve uniform color of different screen batches；

Auto calculation aided splicing, user just set the total screen size and unit screen size&position, the device will automatically calculate and complete the splicing, intuitive and convenient；

Multi-Window support vertical cropping, the cropped image remain the same aspect ratio with the source image, avoid image deformation;
Support 4 windows overlay, layer sequence can be adjusted freely, optional seamless or Fade in/Fade out switching effect;
4 windows support image frame function,frame on/off、thickness、colour is adjustable;
4 windows support input image quality adjustment, including colour、gray level、brightness in independent RGB channel with 256 level；
Support output image hot backup，Any output port can output same image , greatly enhance output stability，16 outputs can be divided into 8 main and 8 standby；
Support synchronized monitoring, one 1080P LCD monitor can have a synchronized view of LED screen image；
13 preset multi-window display modes, support mode duplication and backup. No black screen or blurred screen during mode switching;
13 preset splicing mode of 16 DVI output, mode duplication and mode backup provided;
Flexible and convenient front panel control，support remote PC control via RS232/USB/LAN
Designed for small pitches LED screen，widely applied in exhibition、station advertisement、 stage performance、restaurant、lecture hall、conference room、school auditorium、church、 company promotion etc，；

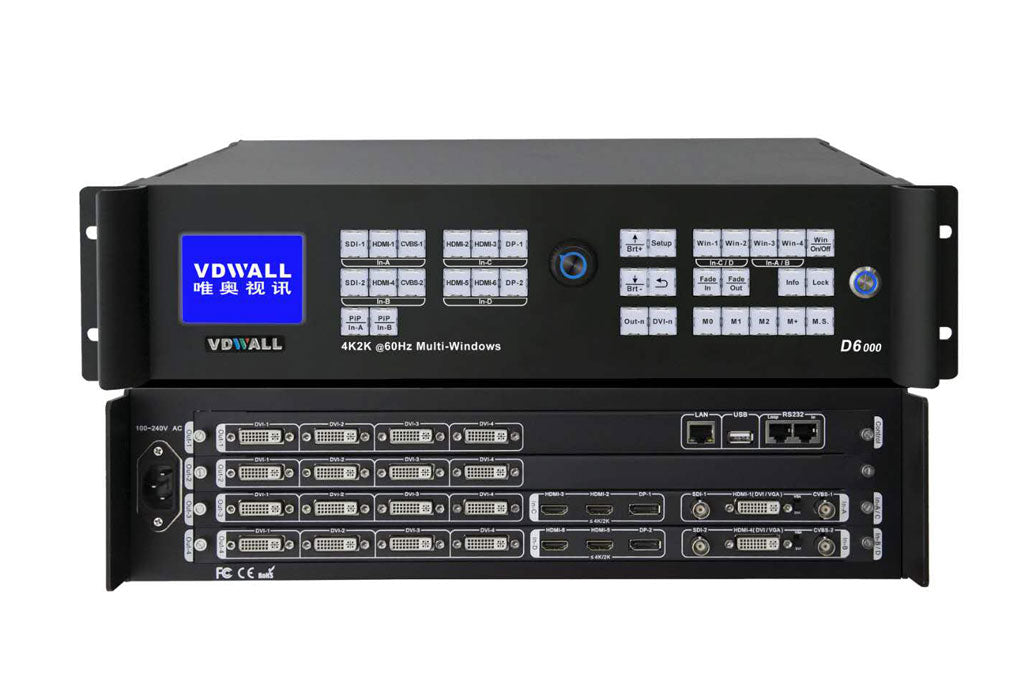

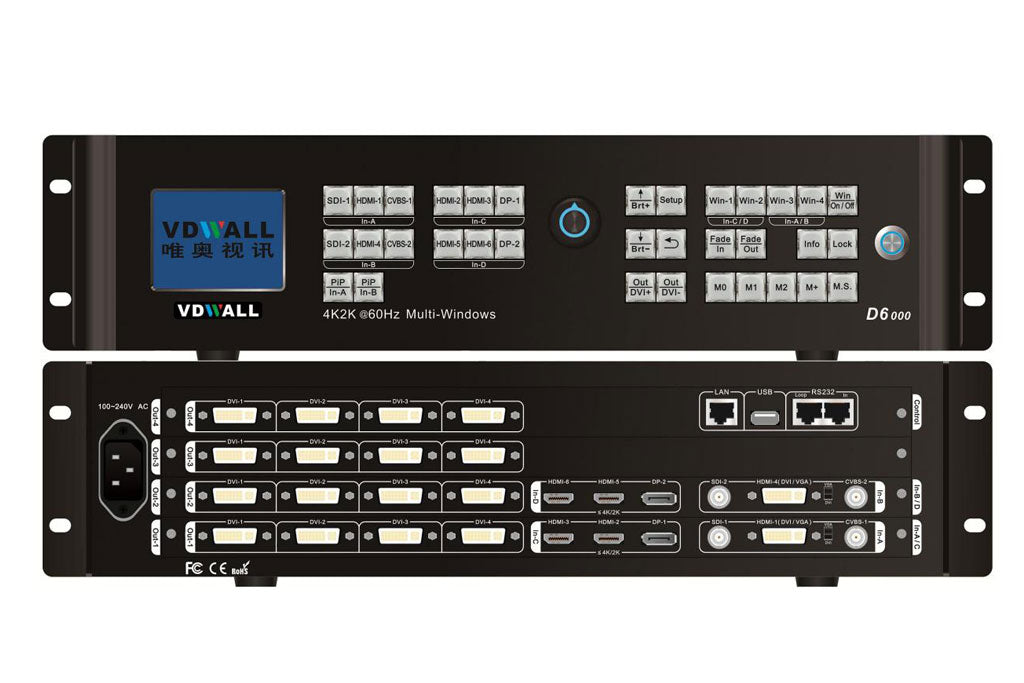

D6000 LED Video processor Appearance

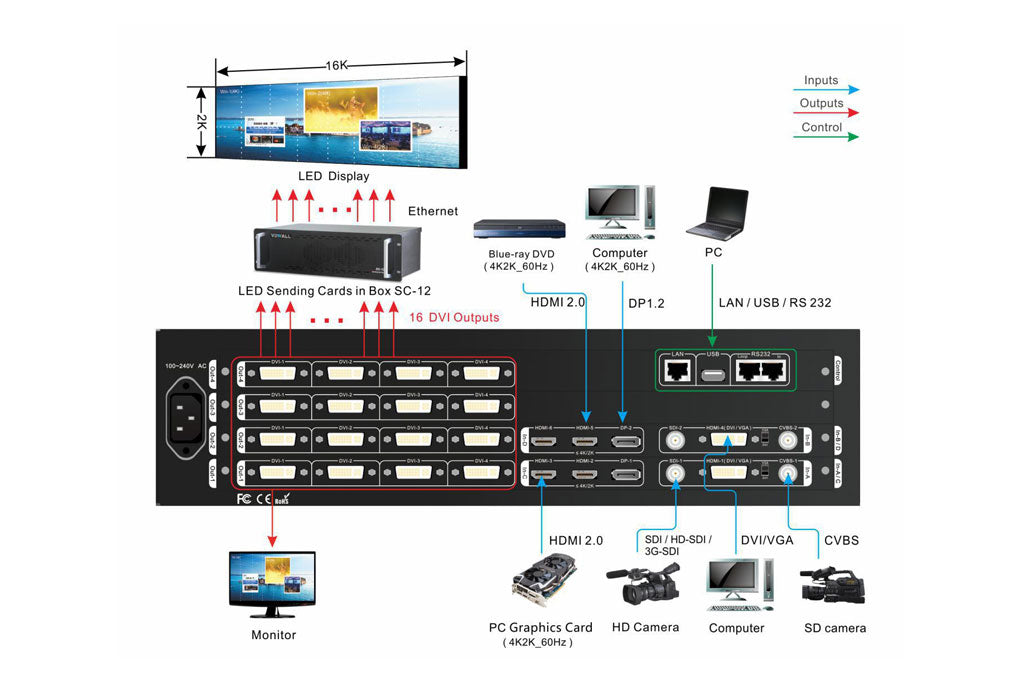

D6000 LED Video processor Working Diagram Specification
AC Power Input: 100-240VAC 50/60Hz
Power Consumption: 110W
Ambient Temperature: 0-45℃
Ambient Humidity: 15-85%
Product Dimension: 482x415.5x109.4mm
Package Dimension: 510x552x198.4mm
Net Weight: 8.0Kg
Gross Weight: 11.4Kg

Further Information:
D6000
VDWALL D6000 LED Video Processor Specification
