VDWALL A66 4K LED Video Processor With 4 DVI Output LED Video Wall Splicer

VDWALL A66 4K Mosaic Processor
VDWall 4k Processor A66 provides multi-level synchronized cascading via Genlock function 4 A66 cascading extend pixel to pixel display up to 8K4K@60HZ
Versatile control method, including front panel button control, RS232, USB, Lan control
Genuine 4K@60Hz processor
Prevalent in high-end occasions, such as stage performance, exhibition, conven-tionhall, school auditorium, church, advertising, monitoring and control center etc.

• 1. Support 4K2K@60Hz, 1080p@60Hz various input signal
• 2. Maximum 4 4K windows display
• 3. Preset fixed 6 dual images display
• 4. One key switch between single image, dual images and 4 images mode
• 5. 4 DVI output sync splicing, driving capability up to 9.2 million pixels
• 6. Freely image cropping on input signal
• 7. User definable output resolution
• 8. Gray level, brightness adjustment in independent RGB channel
• 9. 13 preset display mode, mode duplication and backup

Inputs
8 UHD input consist of HDMI2.0/1.4*5, DP 1.2*3 Maximum input resolution up to 4096*2160@60Hz
Support HDCP1.4/HDCP2.2

Output
4ch DVI/HDMI output, synchronized splicing, drive LED with 9.2 million pixels
Each DVI output, any input signal crop, freely adjust size and position of output image
User-defined output resolution
Auto calculation mosaic, fast mosaic
Each output can adjust color, RGB and bias independently
13 preset display modes, display mode duplicate, display mode backup

Multi-Image process
Support maximum 4*4K2K60Hz images display simultaneously
6 preset dual images display mode
One key freely switches among single image, dual images and quad images mode

Image processing
Real 10-bit image processing, color more vivid and natural

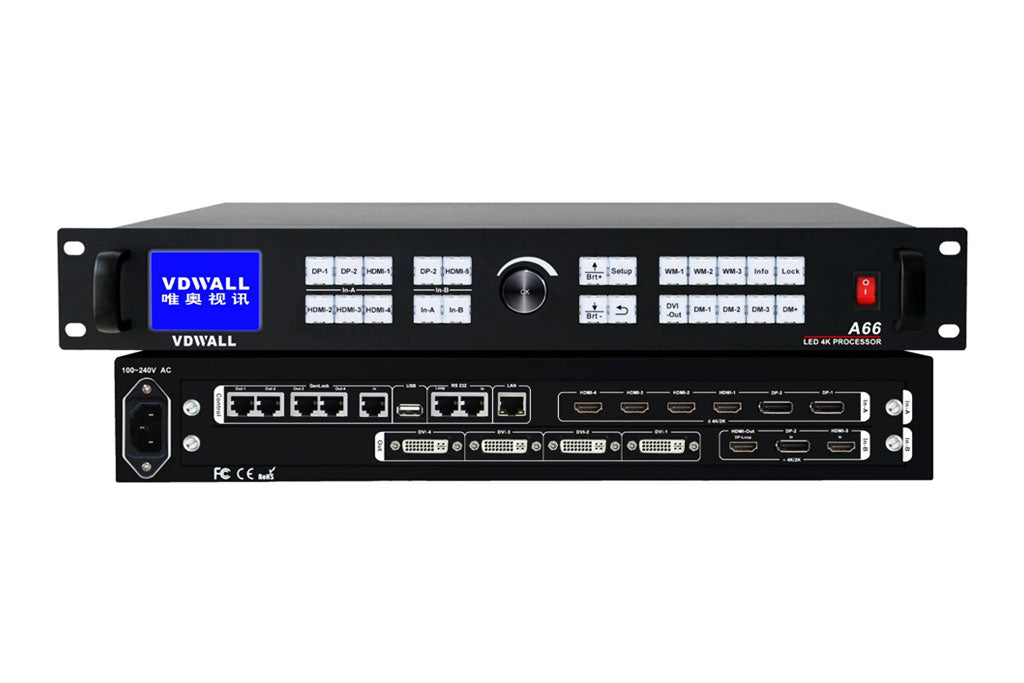

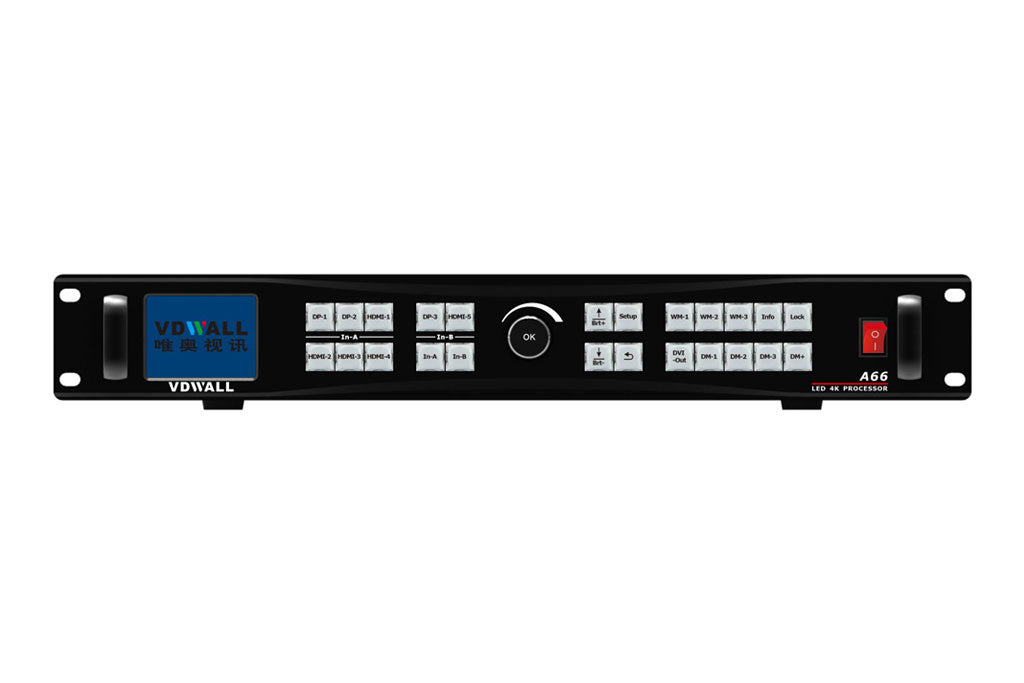

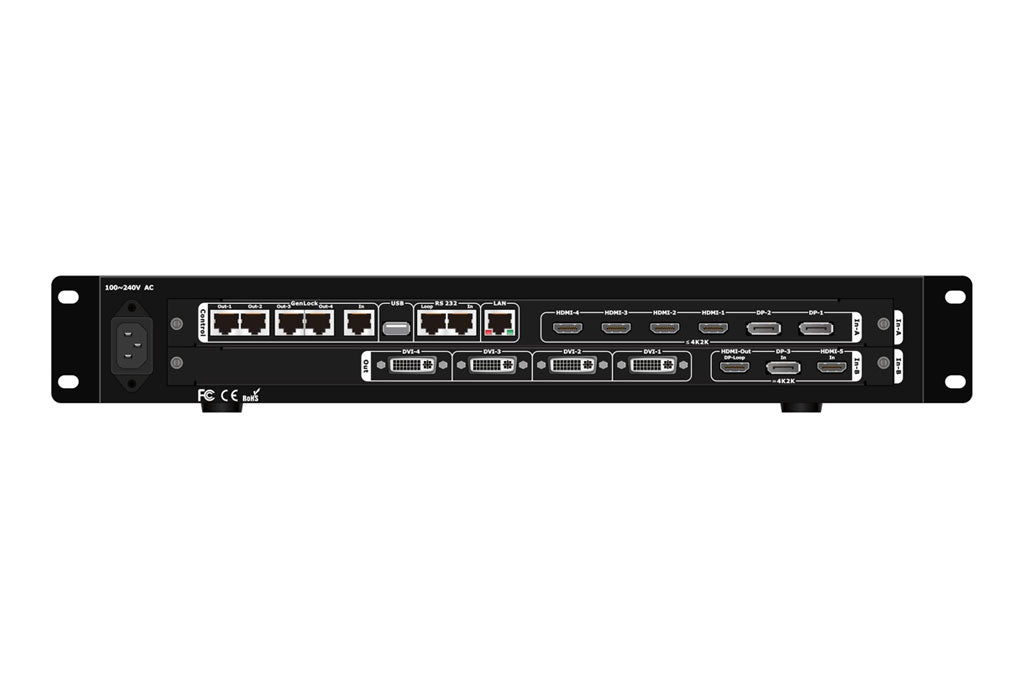

A66 LED Video processor Appearance

A66 LED Video processor Working DiagramSpecification
