VDWALL A65 4K LED Video Processor With 4 DVI Output LED Video Wall Splicer

VDWALL A65 4K Mosaic Processor


Faroudja® Real Color® image processing，10+ Bit Faroudja® DCDI de-interlacing processing，Faroudja® TureLife™ image quality enhancement；
5 true 4K2K_60Hz input ports，among which 3 HDMI2.0（HDCP2.2）、2 DP1.2；3 2K combined digital+ analogue input ports, including one HDMI1.3(compatible with DVI、VGA ）、one 3G-SDI、one CVBS；
Seamless and Fade in/out signal transition；
Genuine 10-Bit image processing，color more vivid and natural，gray level transition more smooth;
4 DVI output ports，driving capability up to 9.2 million pixels. Synchronized splicing of 3840X2160 LED screen；each DVI output offers user defined resolution, maximum width or height 2160, 4 DVI outputs jointly realize 8640 pixels driving in width or height;

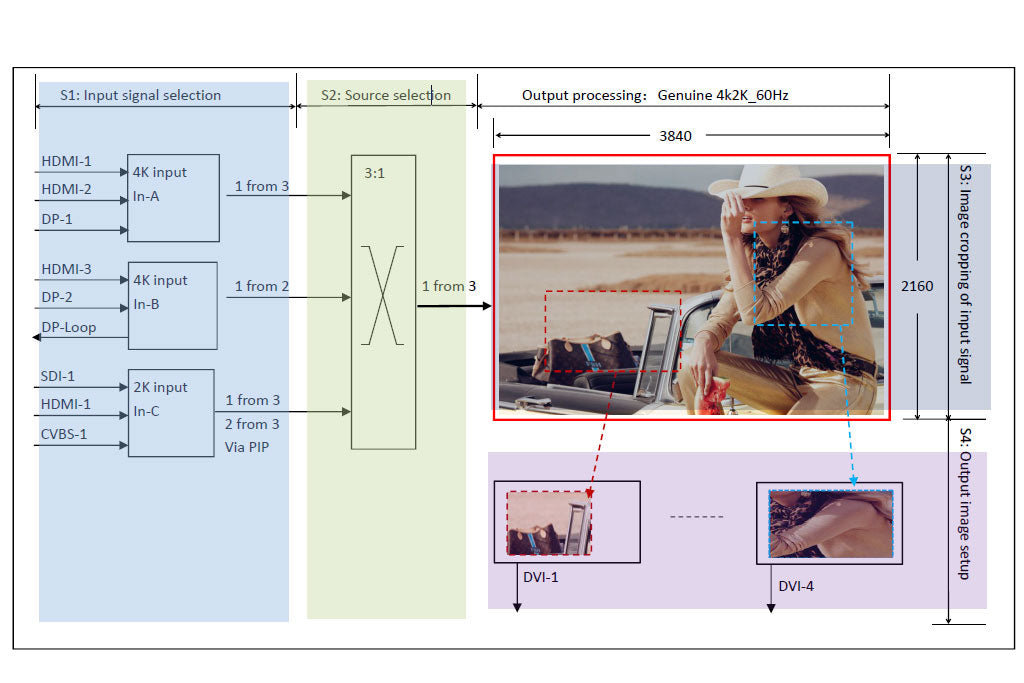

Any size&position setup of output image and input image cropping, greatly facilitate irregular screen splicing;
Provides saturation、gray level、brightness adjustment in individual RGB channel with 256 level；
Adaptive calculation aided splicing，user just configure size&position of each unit screen, A65 will automatically calculate and apply mosaic parameter, flexible and intuitive;
Synchronized monitoring available，connect one DVI output to 1080P LCD to monitor 4K input signal；
Genlock multiple device cascading, extend pixel to pixel display to 8K4K@60Hz or 16K2K@60Hz via 4 A65 cascading;
13 preset display modes，support mode duplication and backup;
Flexible and convenient front panel control or RS232/USB/LAN control;
Widely applied in narrow pitch screen projects, such as exhibition、station advertisement、stage performance、restaurant hall、lecture room、school auditorium、church、market promotion etc；
Input
3×HDMI 2.0（VESA/CEA-861）
2×DP1.2（VESA）
1×CVBS
1×DVI（VESA/CEA-861）compatible with HDMI1.3a/VGA
1×SDI（SDI/HD-SDI/3G-SDI）

Output
4×DVI

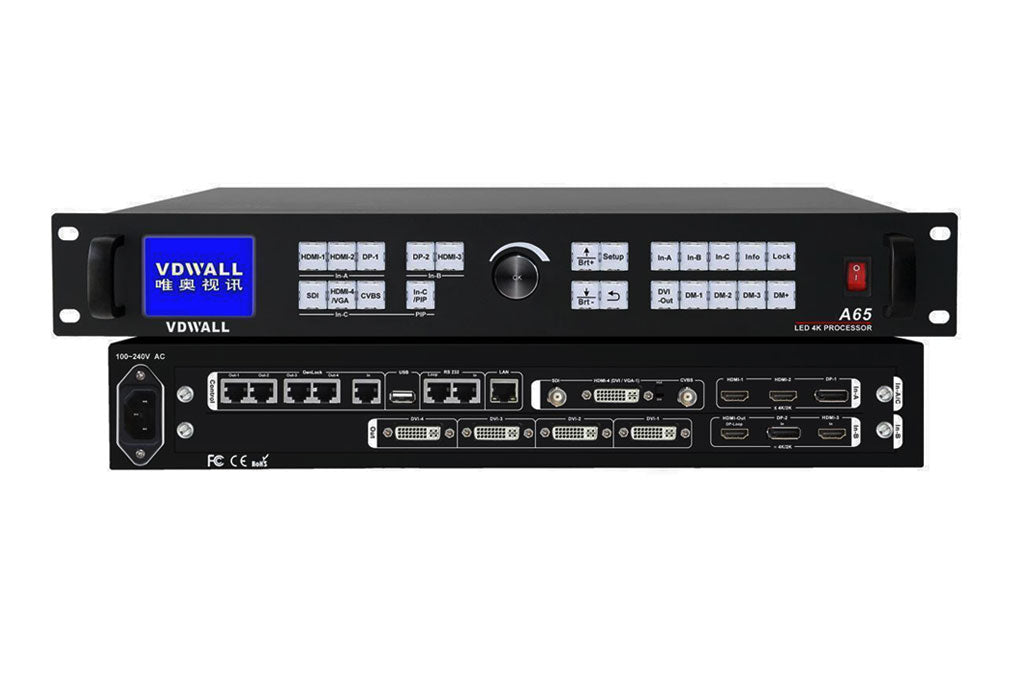

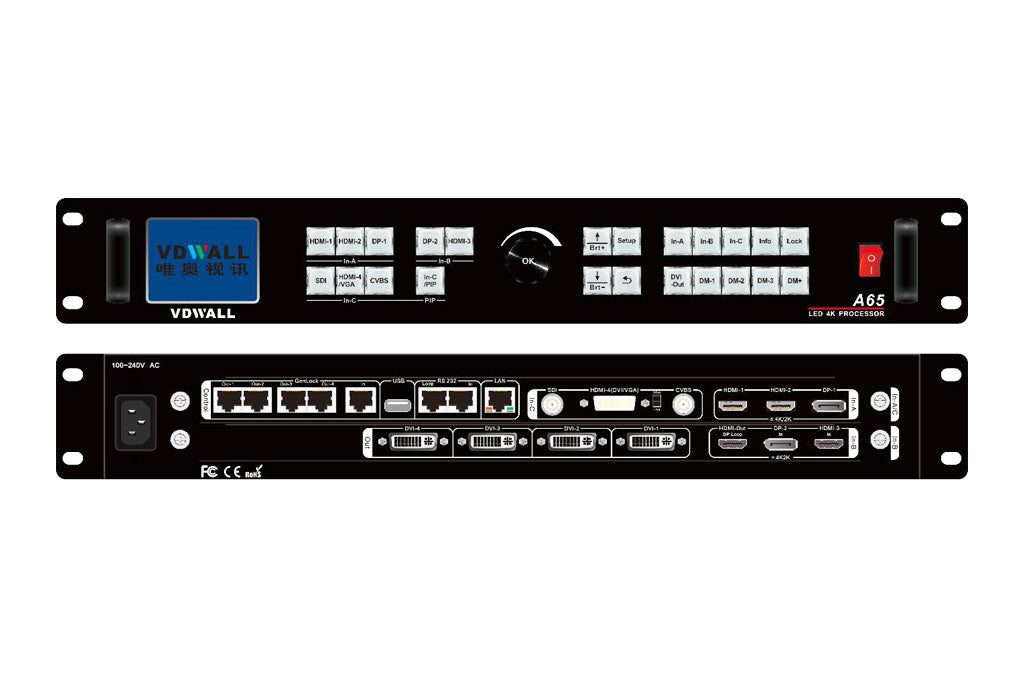

A65 LED Video processor Appearance

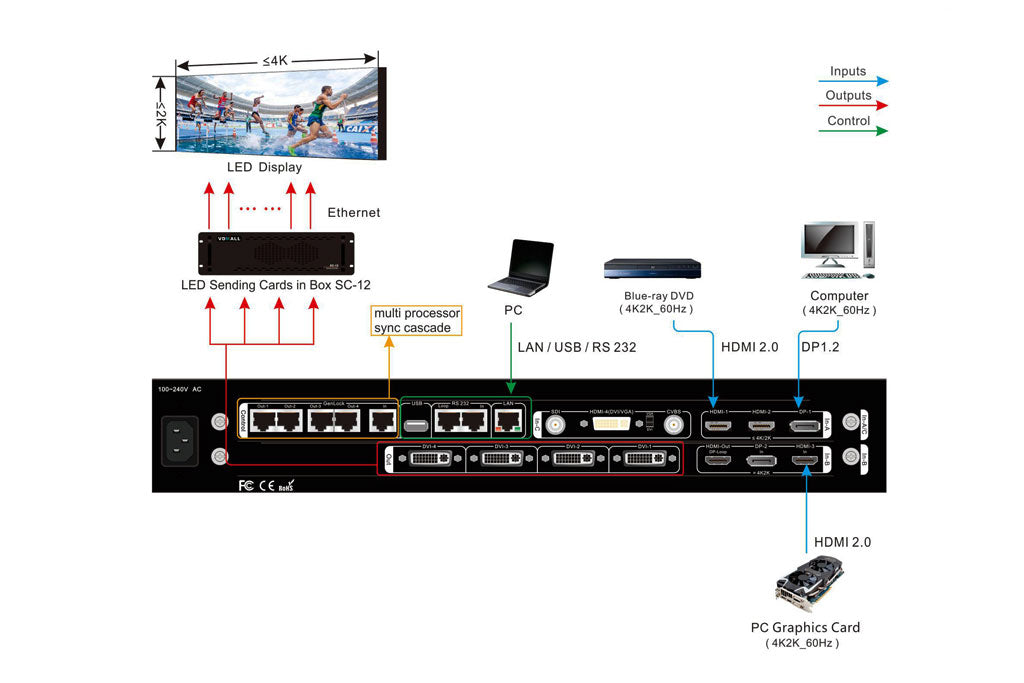

A65 LED Video processor Working DiagramSpecification
AC Power Input: 100-240VAC 50/60Hz
Power Consumption: 35W
Ambient Temperature: 0-45℃
Ambient Humidity: 15-85%
Product Dimension: 482x380x66.6mm
Package Dimension: 535x475x145mm
Net Weight: 6Kg
Gross Weight: 8.5Kg

Further Information:
VDWALL A65 4K Mosaic Processor
VDWALL A65 4K Mosaic Processor user manual
