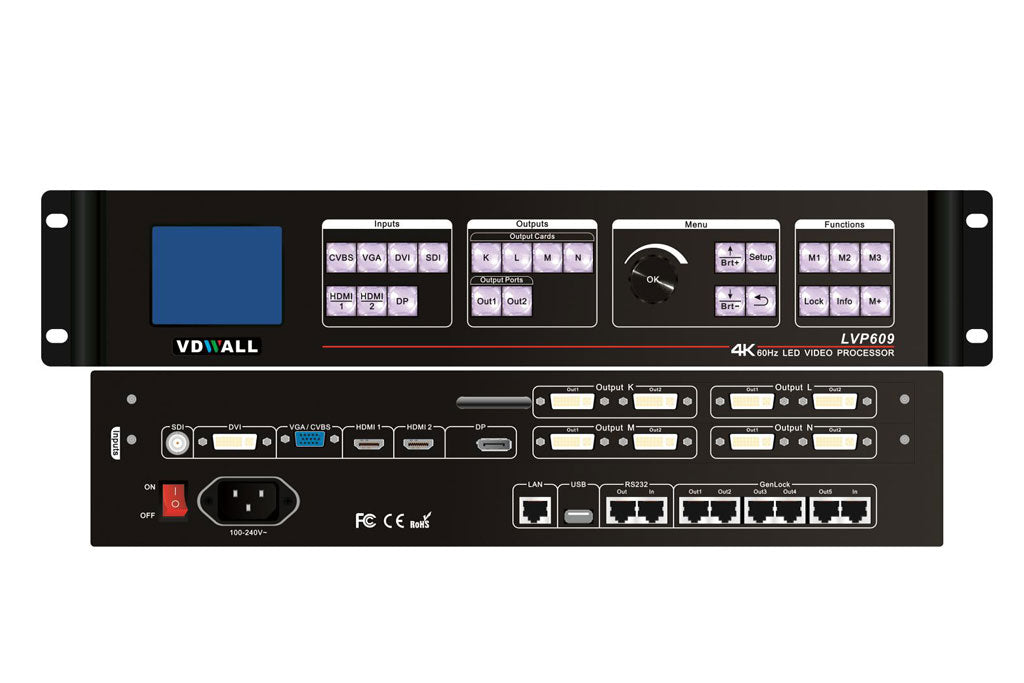

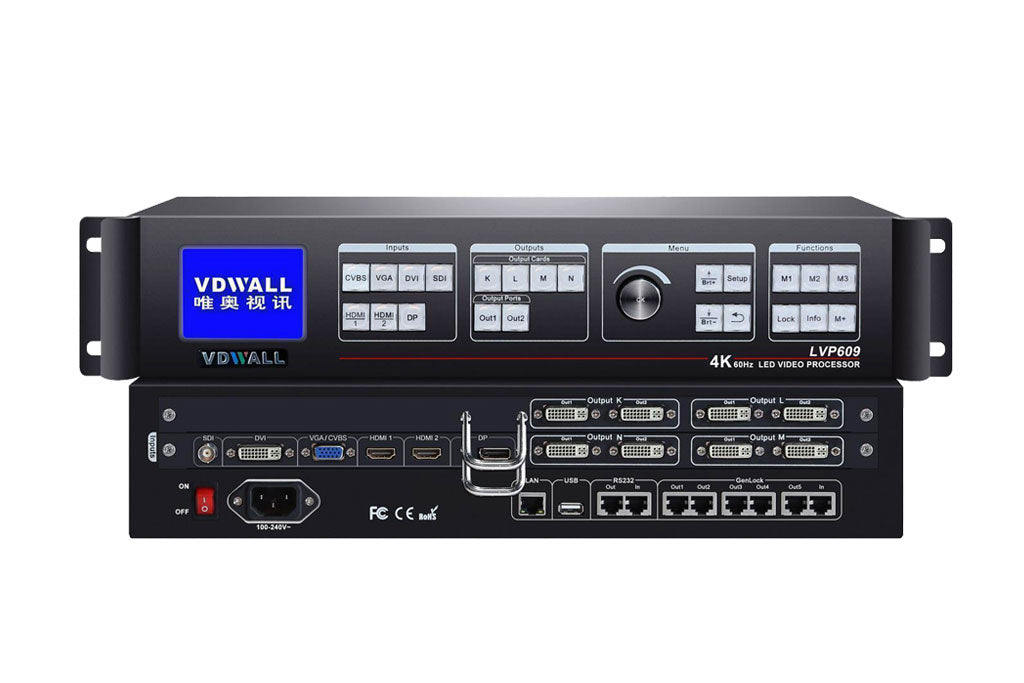

VDWall 4K Processor LED Display Controller LVP609 LED Video Processor

4K2K ultra HD video processing, single port HDMI or DP can receive 4K2K ultra HD video signal. LVP6092, LVP6093, LVP6094 three options available.

Difference among LVP6092, LVP6093 and LVP6094:

LVP 6092 has 4 DVI outputs;
LVP 6093 has 6 DVI outputs;
LVP 6094 has 8 DVI outputs.

VDWall LVP 609 4K/2K 60HZ LED HD Video Processor Features:

1.4K2K_60Hz real 4K pole-clear LED video processor, advanced interlaced motion image adaptive processing technology, moving images without tailing and saw-tooth;

2. Within 4K2K range, the LED screen shows point-to-point synchronization display; supporting Promise zoom;the maximum load of one single machine is 16 million pixels, without cumbersome software settings;

3. Input: Ultra HD + HD + SD, analog + digital; HDMI2.0 (4K2K_60Hz) x 1, CVBS x 2, VGA x 1, DVI x 1, SDI / HD-SDI x 1;the seamless switch , fade in and out switch among them

4. Output: DVI digital full HD, up to 8 route, single-port resolution of 1920 x 1080_60Hz

5. Synchronous monitoring, you can use the monitor to monitor the 1080P 4K2K_60Hz input screen;

6. A variety of pre-stored mode and a key call, mode calling use seamless or fade in and fade out switch

7. Convenient panel key operation or RS232 / USB / LAN control settings.

Key Application

Small pixel pitch and ultra HD LED screen,video conference,TV studio,rental,staging,exhibition and etc.

Connection Diagram

Inputs
Quantity /Type	2×Video 1×VGA（VESA） 1×DVI（VESA） 1×HDMI 2.0（（VESA/CEA-861） 1×SDI（SDI/HD-SDI/3G-SDI）
Video system	PAL/NTSC
Composite video amplitude Impedance	1V（p_p）/ 75Ω
VGA Format	PC（VESA）	≤1920×1200_60Hz
VGA amplitude Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
DVI Format	PC（VESA）	≤1920×1200_60Hz
HDMI Format（HDCP2.0）	PC（VESA）	≤3840×2160_60Hz
	HDMI2.0（CEA-861）
SDI Format	SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M	480i_60Hz 576i_50Hz 720p、1080i、1080p
Input connectors	Video： BNC/ 75Ω VGA：15pin D_Sub(Female) DVI：24+1 DVI_D HDMI：HDMI ATYPE SDI：BNC/ 75Ω
Output
Quantity /Type	8×DVI
DVI Format	1920×1080_60Hz
Output connectors	DVI：24+1 DVI_D
Others
Control	RS232/USB/LAN
Input voltage	100-240VAC   50/60Hz
Overall power consumption	≤70W
Environment temperature	0-45℃
Environment humidity	15-85%
Product size	483(L) x 338(W) x94(H)mm
Carton size	540(L) x 400(W) x 180(H)mm
Net weight	5.95Kg
Gross weight	8.8Kg
