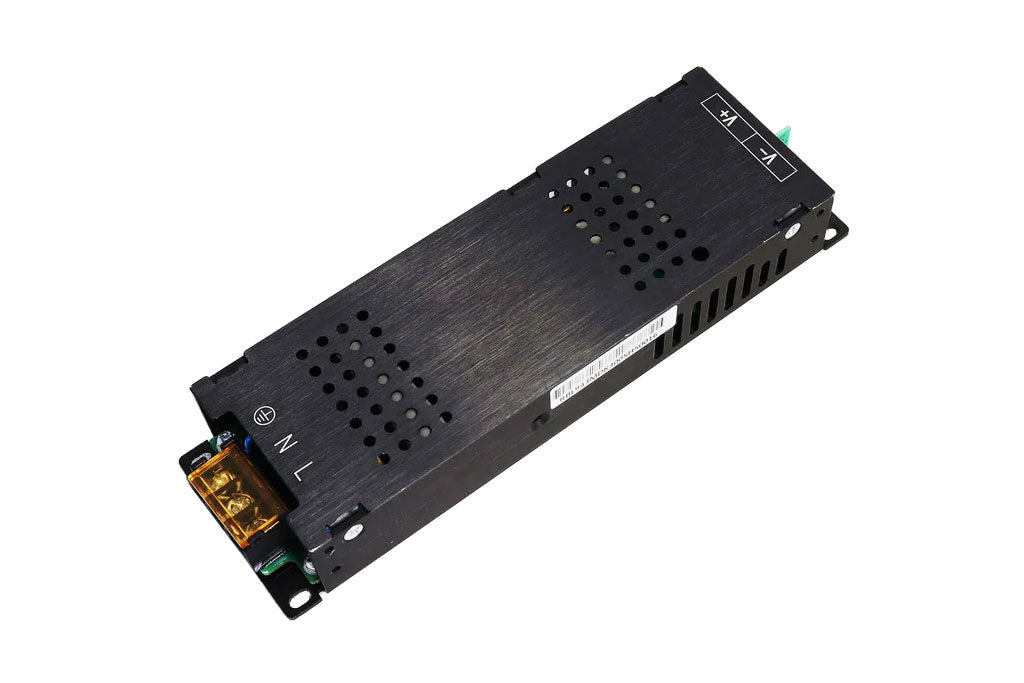

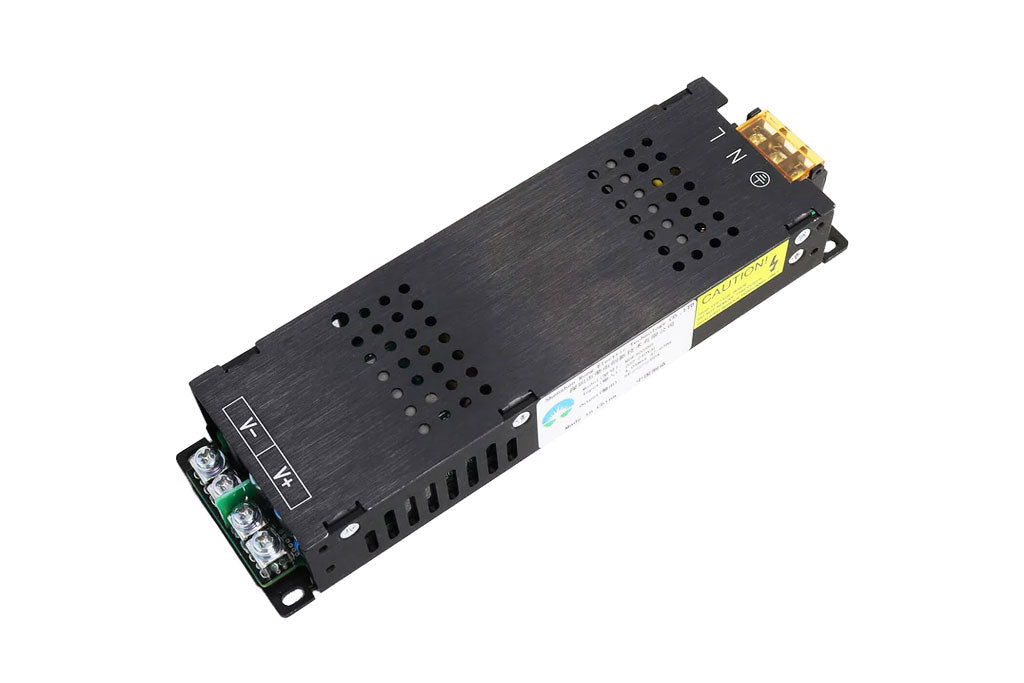

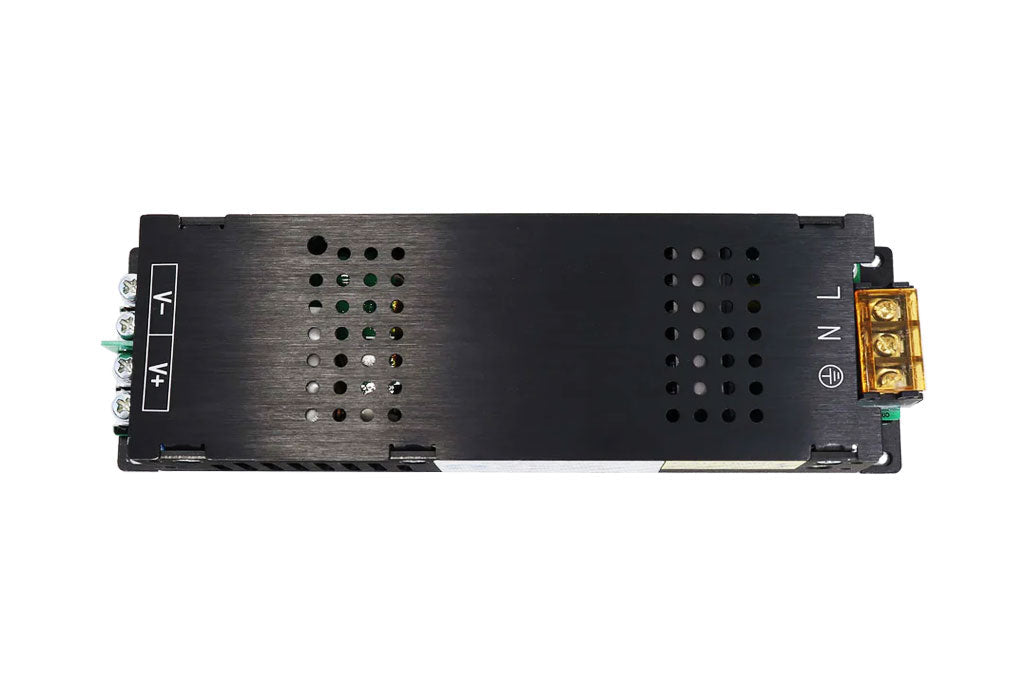

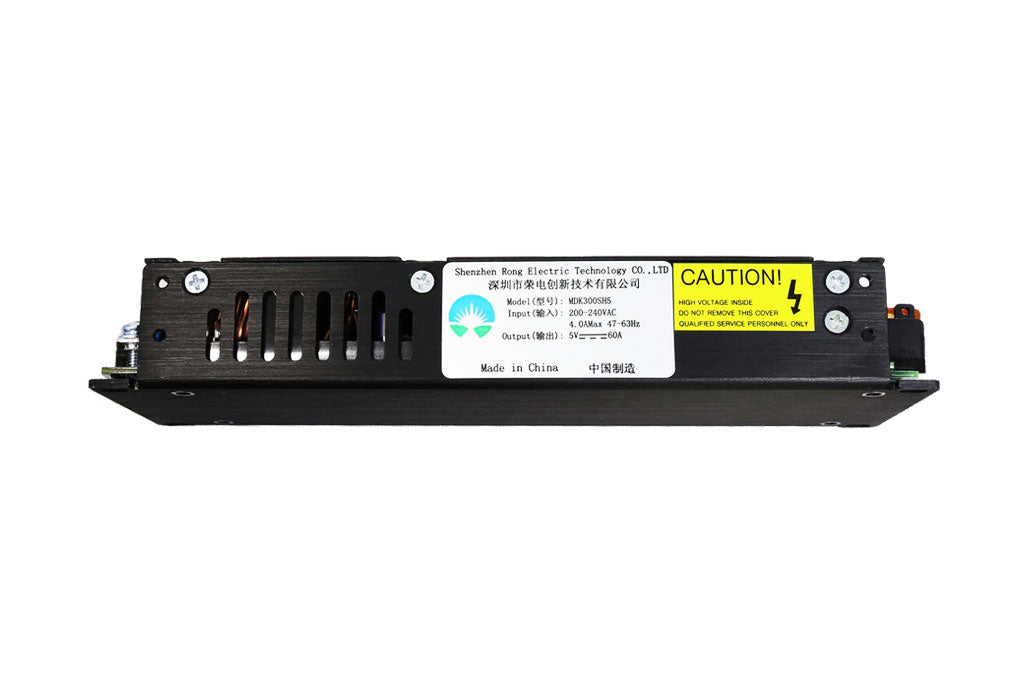

Rong-Electric LED Displays Power Supply MDK300SH5 5V60A 300W LED Display Power Supply

Rong-Electric MA300SH5F LED Displays Power Supply Features:

Rong-Electric MDK300SH5 power supply was designed for LED display :,small size, high efficiency, stability, and reliability. Power supply has input undervoltage, output current limiting, output short circuit protection. Power supply will apply with high rectification which greatly improves the power efficiency,can reach 88.5% above, saving energy consumption.
Input Voltage:200-240Vac, 47-63Hz
Power Factor:0.50@230Vac
Leakage Current:0.30mA@230Vac
Protection Function:Input Undervoltage,Over Current,Short
Operating Temperture:-30～+60℃
Cooling Mode:Forced cooling
Insulation:I/P-O/P:3.0KVac;I/P-FG:1.5KVac;O/P-FG:0.5KVac

Rong-Electric MDK300SH5 5V60A 300W LED Display Power Supply Parameters:
Model:MDK300SH5
Category:constant voltage
Output voltage:5V
Output current:60A
Ripple and noise:<150mV
Efficiency:88%
Watts:300W
Output:Single
Size:185 x 55x 30mm

View More
MDK300SH5
Rong-Electric MDK300SH5 LED Power Supply Specification
