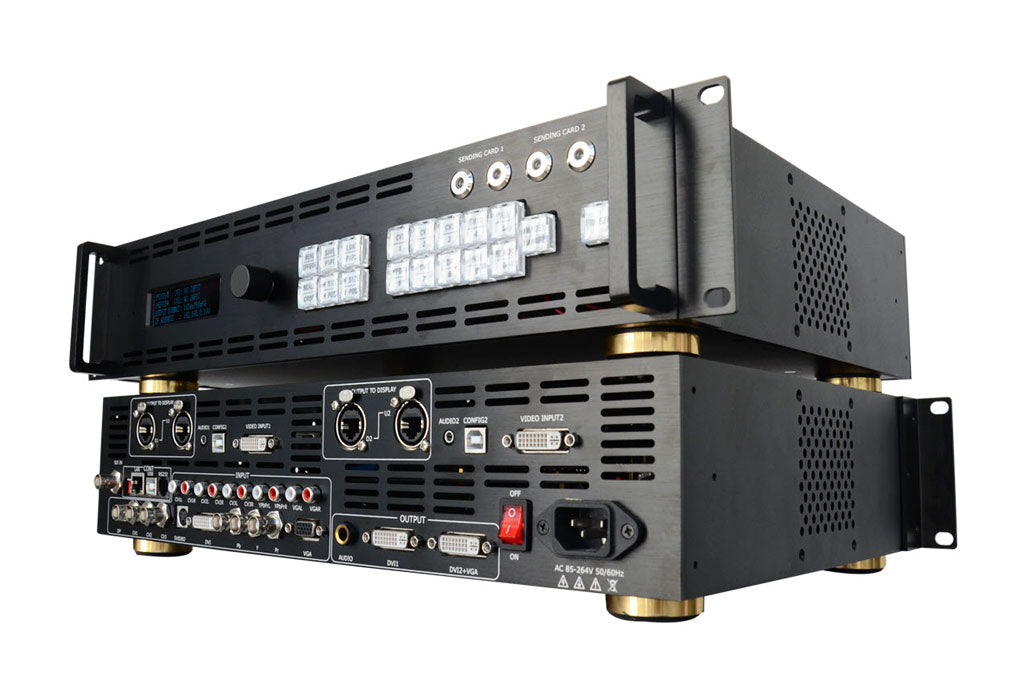

RGBlink VSP9516S LED Video Processor LED Display Controller Integrated Scaling & LED Control

*VSP9516S has been discontinued, please purchase the replacement product Venus X1.
VSP9516S is designed specifically for LED video processing with Sender Carrds built in and configuration of LED displays available directly from the front panel controls without external software.Scale pixel-pixel for each LED display output.
Supported inputs includie CVBS, S-Video, Component, VGA, DVI-I (compatible with HDMI), Displayport, and 3G-SDI offerinf up to 9 inputs. .Indidivual audio inserts are also provided.Controls LED screen include display connection, brightness adjustment and gamma correction.


● LED display connection from front panel directly
● Dual LED Sender Cards built-in
● Seamless switching between inputs
● Resolutions up to 2048x1152@60Hz or 2560x816x60Hz
● User-defined resolution adjustment
● Picture in picture
● Audio and video sync
● DSK for subtitle overlay

RGBLink VSP 9516 S  LED Video Processor Parameters:

Input	3 x CVBS
	1 x S-Video
	1 x YPbPr (Standard or HD)
	1 x VGA
	1 x DVI (HDMI 1.3 )
	1 x SDI (3G-SDI,S module)
	1 x Displayport
	1 x Balanced analog audio
Output	2 x DVI
	1 x VGA (Via DVI2+VGA OUT port)
	1 x Balanced analog audio
	4 x LAN (Output of sending card)
Control Interface	Local front panel operation
	Remote RS232, USB, TCP/IP control
Net Size	480mmx331mmx89mm
Package size	585mmx405mmx195mm
Net weight	5.2kg
Package weight	8.6kg
Work Temperature	0°C~40°C
Relative Humidity	10%~85%
