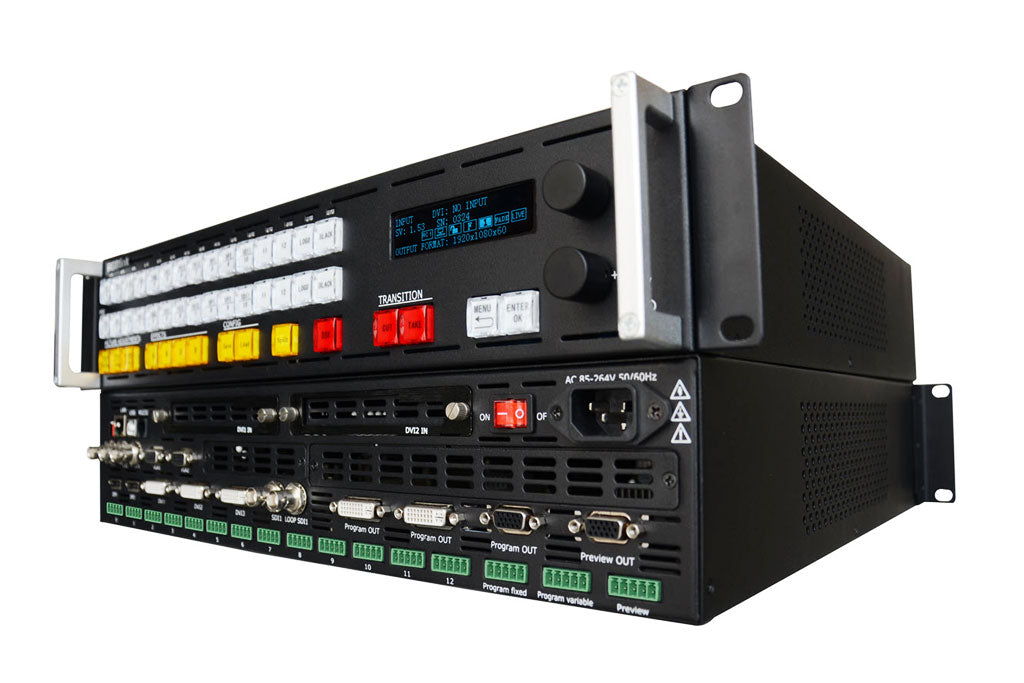

RGBlink VSP5360 4 Layer Present LED Video Switch Processor LED Screen Controller

*VSP5360 has been discontinued, please purchase the replacement product Venus X1.
VSP5360 utilises RGBlink embedded video processing technbologies with the processor supporting seamless switching between up to 14 inputs A gour channel processot, multi-mode capabiliteis allow on board capabilities to be employed in a variety ways and applicaitions including for presenetation PST/PGM operations, videowall and matrix.
DSK/Chroma Key maybe used on a foreground layet, and OSD is also available too for subtitle overlay inputs on the VSP5360 include twelve stadnard signals plus a slot allowing two optional signals to be fitted. Signals supported include DisplayPort, HDMI, DVI, 3G-SDI. VGA, CVBS and UDB media.VSP5360 inlcudeds 10 bit motion adaptive de-interlace, advance noise reduction and detail enhancement core processor.Flexible PIP,PBP,seamless switching, cross and frame rate conversion with pixel-to-pixel scaling and zoom engine up to 4Kx2K is supported .VSP5360 is ideal for multi-signal environments requiring switcher and scaler for presentation. Extending operations beyond the front panel, VSP5360 suppotd RGBlink CP2048 remote control console which offers familar vision mixing style operations including T-Bar.

● 4 layer seamless presentation
● Up to 4096x1152 (5120x816) spliced output across 4 outputs
● Multi-mode opeations including presentation, video wall and matrix
● 12 standard inputs plus 2 optional inputs with seamless switching
● Auto input and status detection
● PIP between any two inputs
● Pixel to Pixel mapping
● Multiple cascadable with sync mapping
● Dual slots supproting common LED Sender Card installations
● Control from front panel or optional CP2048 control consle

RGBLink VSP5360 LED Video Processor Parameters:

Input	3 x CVBS
	2 x VGA
	3 x DVI (HDMI 1.3 )
	2 x Displayport
	1 x SDI (3G-SDI)
	2 x SDI/VGA/DVI/USB (SDI/VGA/DVI/USB module)
Output	1 x SDI LOOP
	2 x DVI
	2 x VGA
	2 x SDI LOOP (Optional module)
Operations	Local front panel operation
	Remote RS232, USB, UDP/IP control
Net Size	485mmx450mmx89mm
Package size	630mmx585mmx250mm
Net weight	8.1kg
Package weight	13.3kg
Work Temperature	0°C~40°C
Relative Humidity	10%~85%
