RGBlink RMS 8424S Rack Mounting Standard LCD Monitor LED Screen Broadcast Monitor

RGBlink RMS 8424S Rack Mounting Standard LCD Monitor

RMS 8424S is a 19in 4RU standard rack mounting LCD monitor, with 2 high resolution 8.4in LCD panels of independent input controlling, 1024×3(RGB)×600, and wide viewing angle.
Each monitor of RMS 8424S accepts 1 3G/HD/SD-SDI, 1 DVI, 1 VGA, and 1 Composite video, each input with loop through output. Support SDI and HDMI embedded audio output.
RMS 8424S has a 2-pin pole 12V DC power connector for all the 2 LCD panels.

• Standard 4 unit rack mount size
• 8 inch LCD ×2
• 1024×3(RGB)×600
• 16:9 / 4:3 adjustable
• 3G/HD/SD-SDI, DVI, VGA, Composite video
• SDI embedded audio output via 3.5mm earphone socket
• HDMI embedded audio output via 3.5mm earphone socket
• Max input resolution 2048 x 1152 or 2560 x 816
• Underscan / Overscan switch
• Viewangle adjustable structure

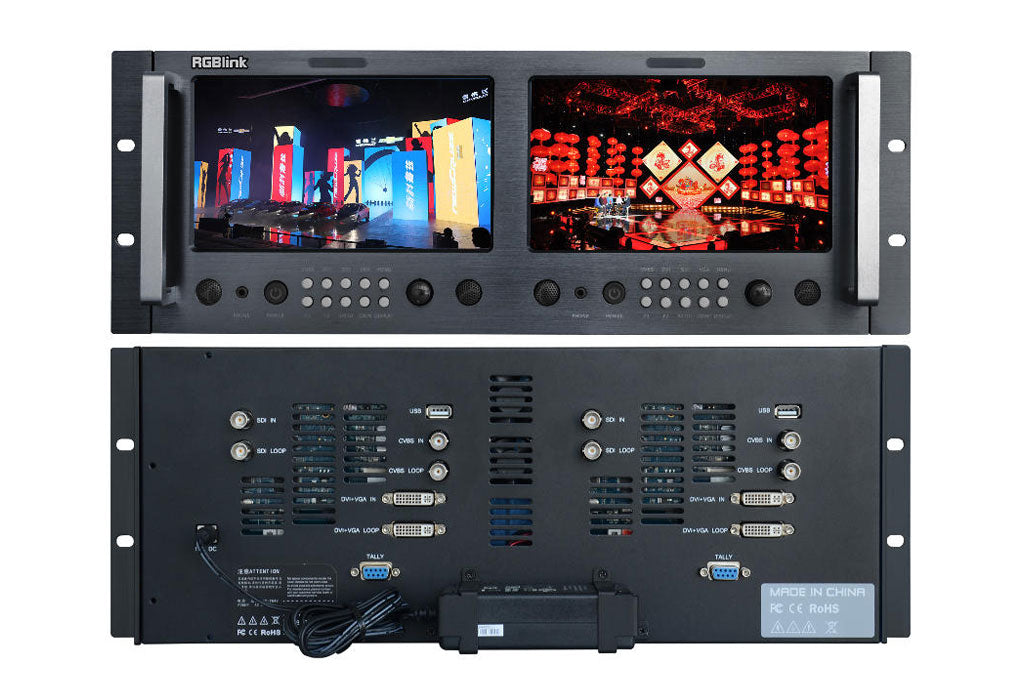

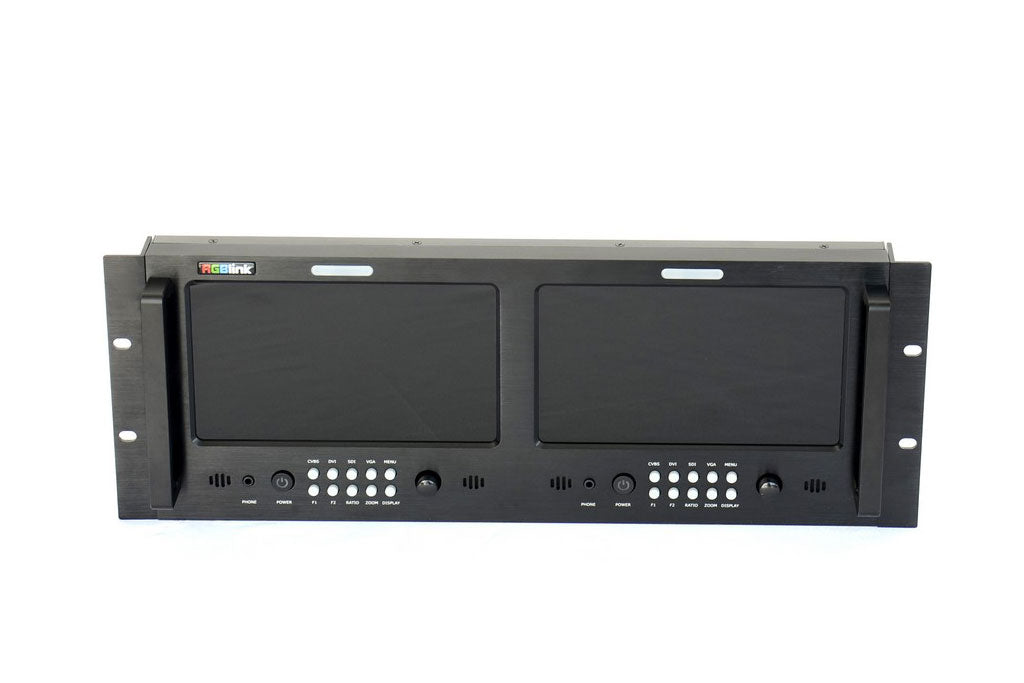

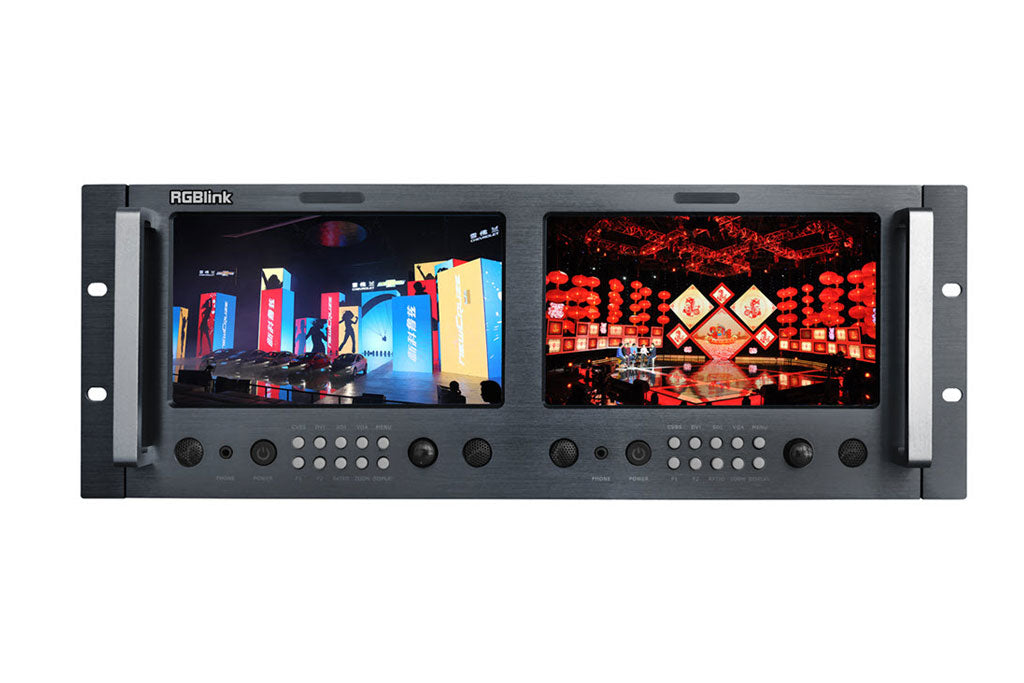

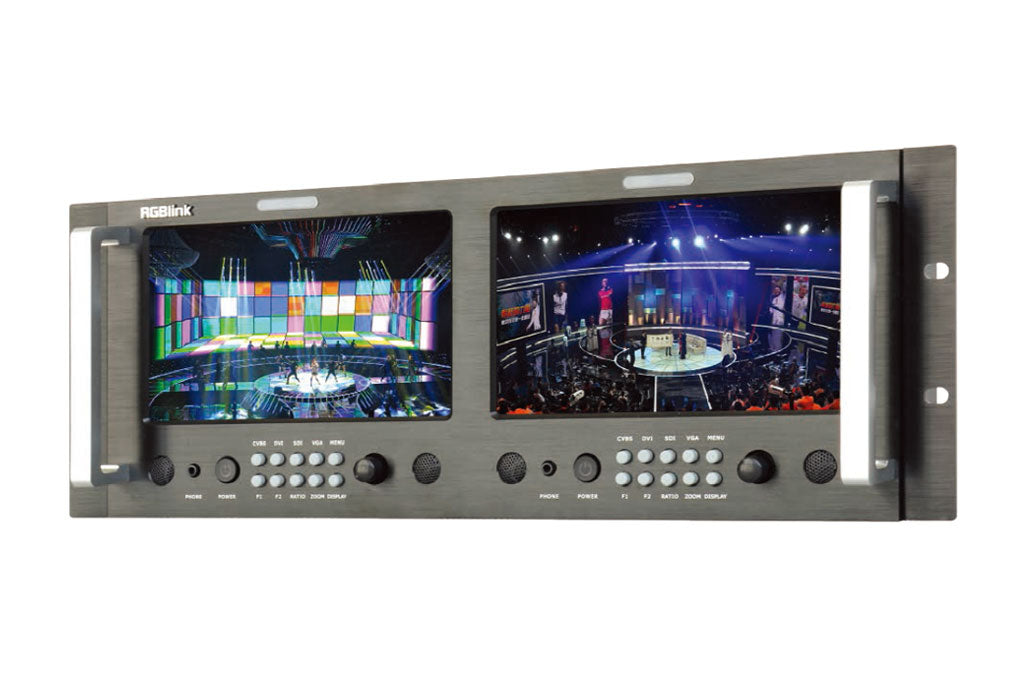

Rack Mounting Standard LCD Monitor AppearanceRack Mounting Standard LCD Monitor Working DiagramRGBlink RMS 8424 S Rack Mounting Standard LCD Monitor

nput	1 x DVI (HDMI1.3)
	1 x CVBS
	1 x VGA (Via DVI+VGA IN port)
	1 x SDI (3G/HD/SD-SDI module)
Loop Out	1 x DVI (HDMI1.3)
	1 x CVBS
	1 x VGA (Via DVI+VGA LOOP port)
	1 x SDI (3G/HD/SD-SDI module)
Net Size	480mmx172mmx114.3mm
Package size	545mmx240mmx170mm
Net weight	3.4kg
Package weight	5.0kg
Work Temperature	0°C~40°C
Relative Humidity	10%~85%
