RGBlink FLEX RS1 Creative LED Display Splicer Rotate LED Display Controller

FLEX RS1 adds new levels of flexibility to hardware based video solutions for creative displays.RS1 provides multiple operation modes enabling advanced rotation, blending and splicing of up to four output displays from a choice of 4K inputs.
Each output is resolution independent. In rotation applications, each output can individually be rotated in single degree increments, positioned on a virtual canvas or pixel space with support for variable pixel densities. As a blending processor for projection, variable edge blending is configurable to produce panoramic displays or arrays in any configuration. For splicing applications, ideal for LED displays RS1 is an easy to use compact processor for up to 8K x 1K.
RS1 is configurable from RGBlink XPOSE and remote controllable via RGBlink OpenAPI and industry standard Art-Net.

• 4K@60Hz input via DP1.2, HDMI 2.0
• 4K@30Hz input via Dual Link DVI, HDMI 1.4
• Three operation modes: Rotation, Blending and Splicing,
• Independent output scaling to any aspect or resolution
• Independent output rotation in 1 degree increments
• Independent edge blending for each output Image splicing for each 2K output
• Cascade multiple units for additional screens
• Control Protocol Support:- UDP (RS232), Art-Net (DMX512)
• Control and configure with XPOSE

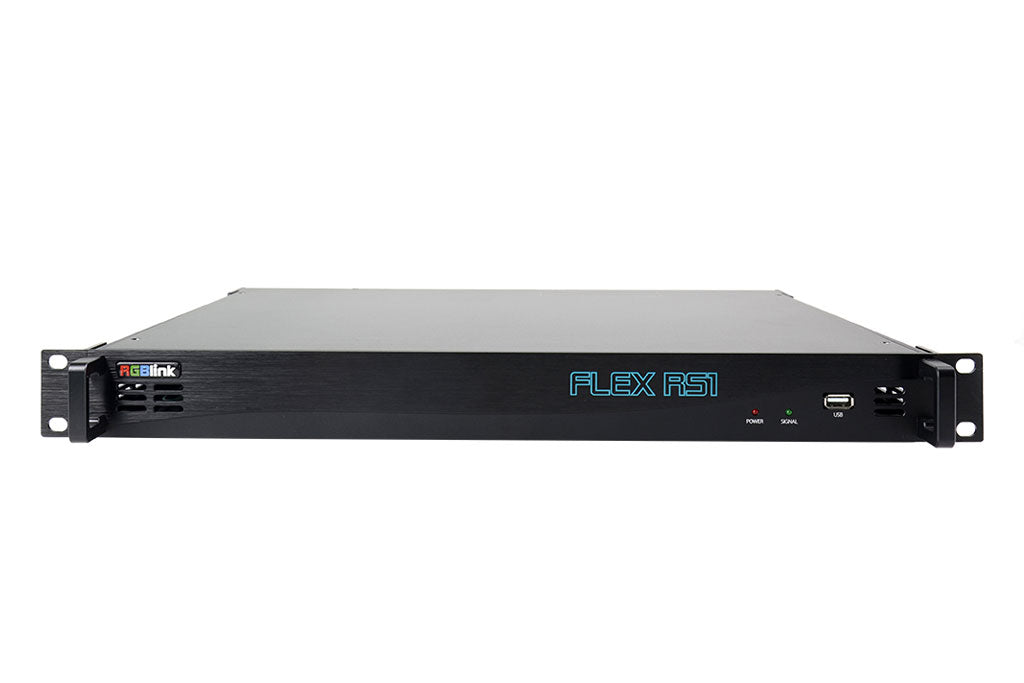

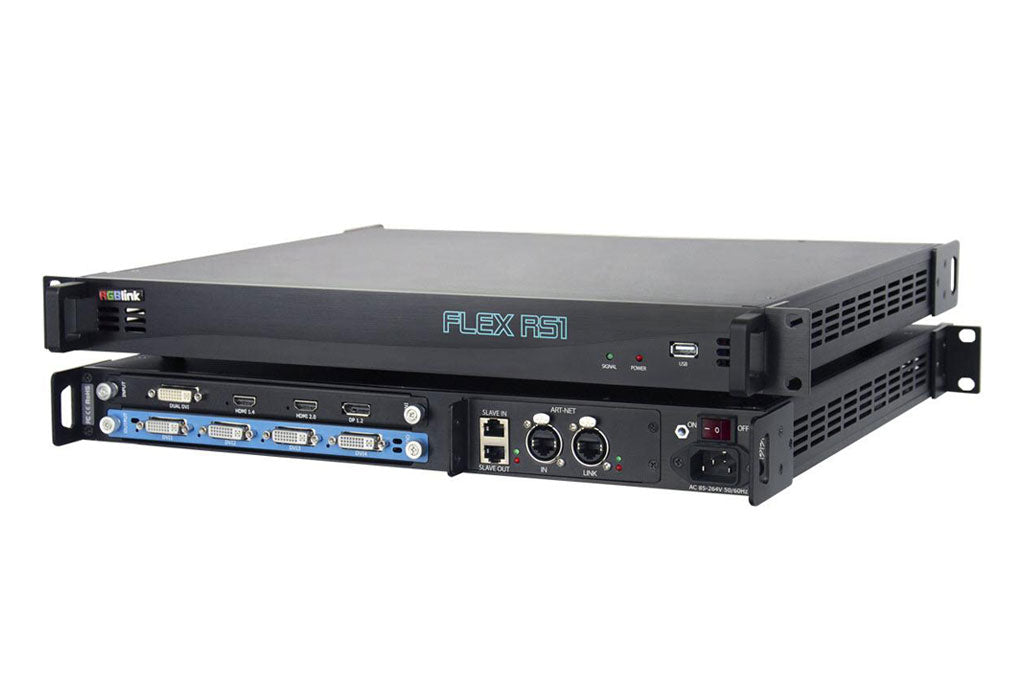

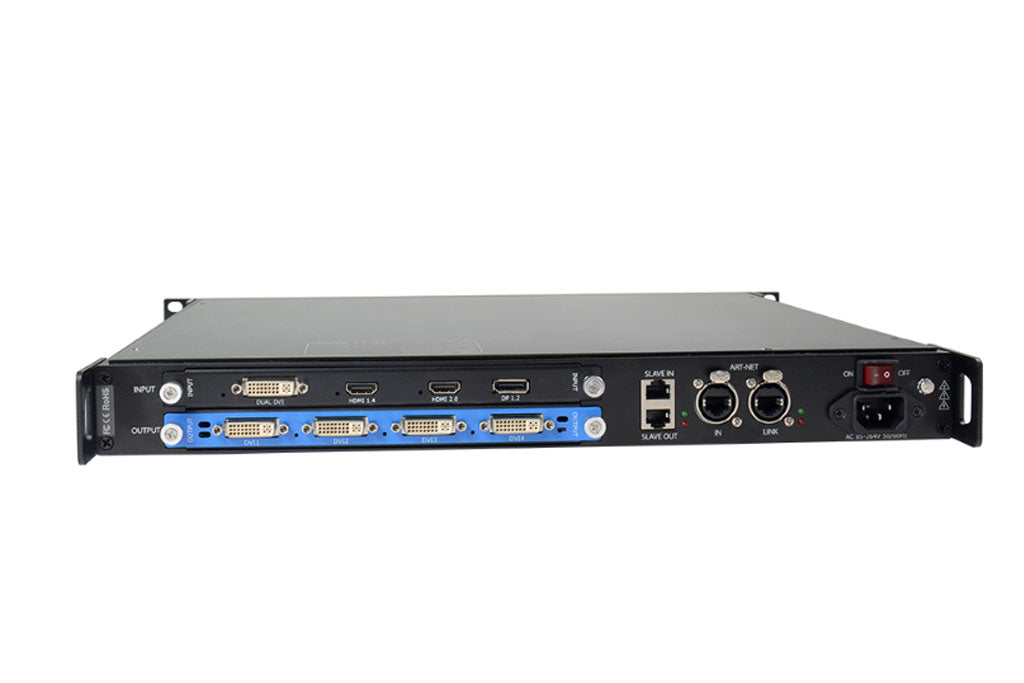

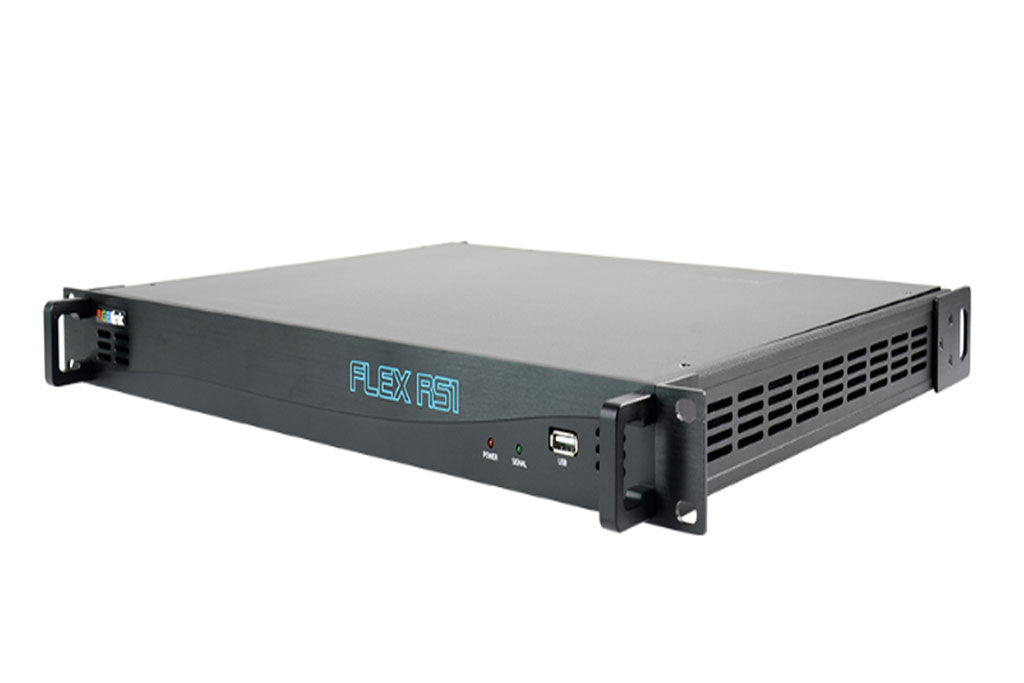

LED Video processor Appearance

LED Video processor Working Diagram

RGBLink FLEX RS1 Creative LED Display Splicer

Depth : 303 mm
Height : 45 mm
Width : 480 mm
Product Weight : 2.50 kg
Active Power : 65 Watt
Number of Inputs : 1
Number of Outputs : 4
Operating Temperature (Maximum) : 55 C
Operating Temperature (Minimum) : -25 C
AC Voltage (Minimum) : 85 Volts
AC Voltage (Maximum) : 264 Volts
Supported Resolution - 4K (4096x2400)
Switcher Connector Type - DisplayPort
Switcher Connector Type - DVI
Switcher Connector Type - HDMI
Switcher Type - Audio
Switcher Type - Video
