RGBlink DXP H1010 HDMI 10 Input 10 Output Video Matrix Switcher 4K LED Video Processor

DXP H1010 is a true 4K HDMI Matrix Switcher which allows to route any of 4 HDMI sources to any 4 HDMI displays! The 10x10 HDMI Matrix switch is a complete HDMI routing solution for True 4K HDMI systems. It supports resolution up to 4K 60Hz @ 4:4:4 and effortless control through Ethernet control, Android App Control, IR remote control, RS-232 and the front panel.

• HDMI 2.0 with 3D, HDCP 2.2 & DVI1.1 Compliant
• Rack mountable( 1U design)
• Ultra-high-definition video up to 4K 60Hz @ 4:4:4 18Gbps (6Gbps per color)
• S/PDIF coaxial audio outputs allow audio
• Support HDR10, Dolby Vision, HLG to be de-embedded from HDMI outputs
• Supports up to, Dolby TrueHD, Dolby ATMOS, DTS-HD MA, DTS:X, LPCM 7.1 @ 192KHz
• Support HDMI cable lock on each HDMI input/output port
• Supports ARC (Audio Return Channel) function
• Multiple control methods: Front panel buttons/ IR remote control/and RS232 Control
• Built-in LCM screen & LED button at front panel provides quick view of all port connection

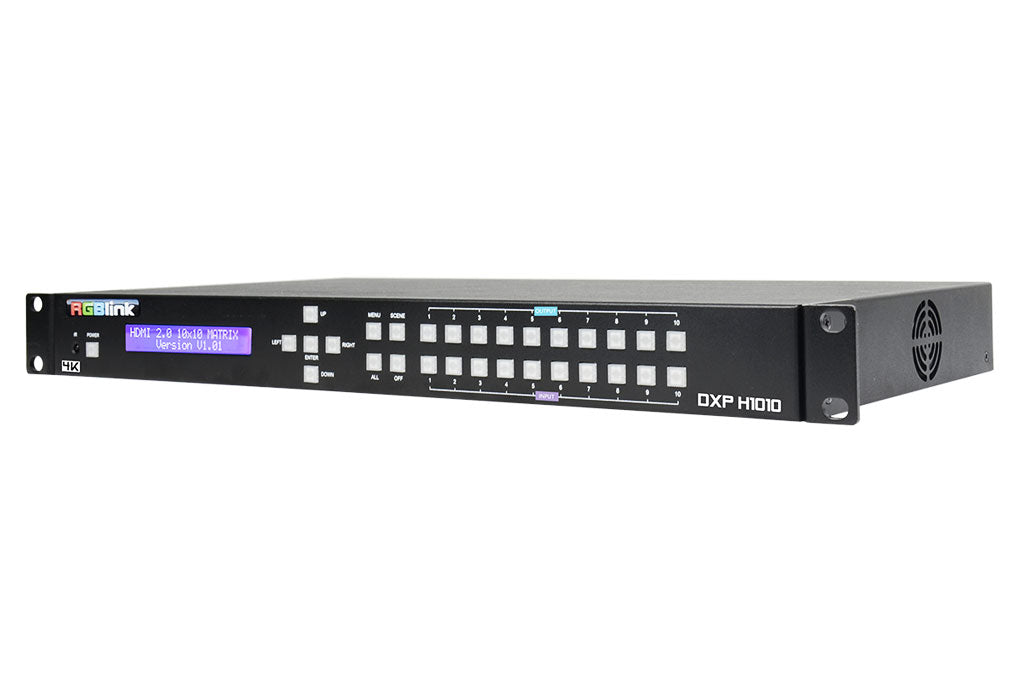

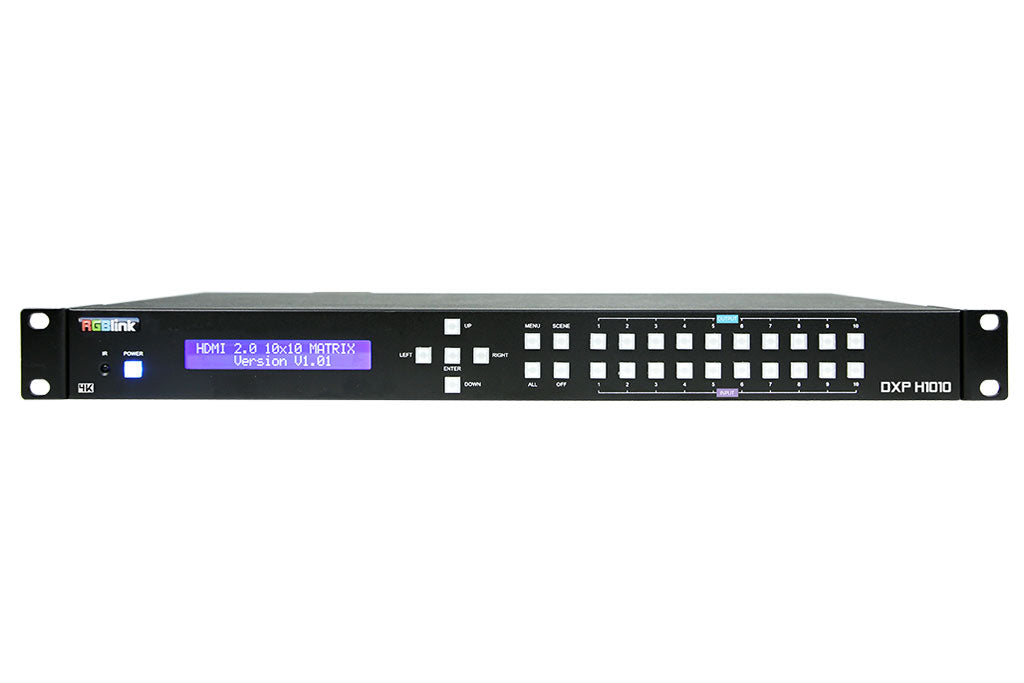

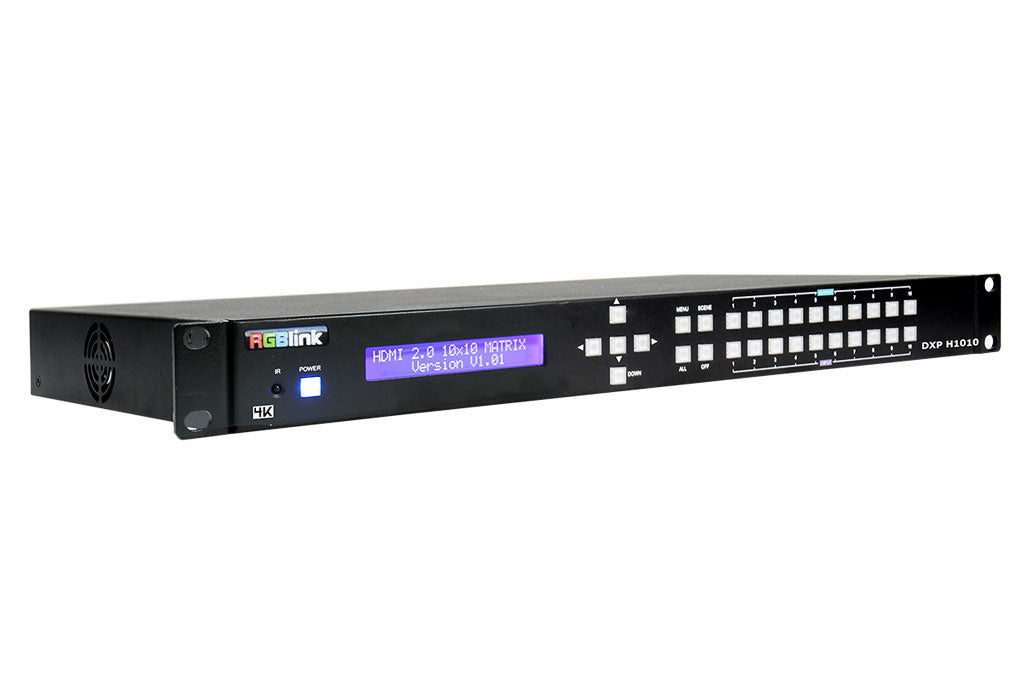

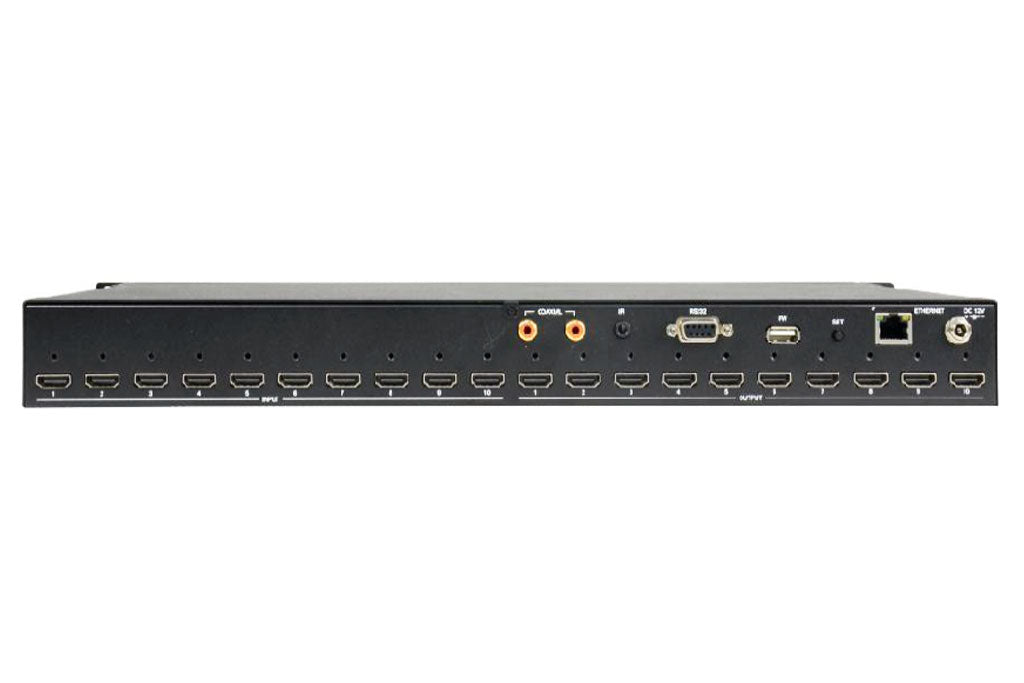

LED Video processor Appearance

LED Video processor Working Diagram

Parameter
Power
Input Voltage DC 12V 6.67A(via AC plug pack supplied)

Environment
Temperature 0℃~55℃
Humidity 10%~95% RH

Physical
Weight Net (Device) 2.92kg
Dimension Net (Device) 483mm×225mm×44mm
