RGBlink DXP H0404 HDMI 4 Input 4 Output Video Matrix Switcher 4K LED Video Processor

DXP H0404 is a 4K high-definition HDMI2.0 matrix switcher. It consists of 4 HDMI inputs and 4 HDMI outputs, and a 4x4 matrix switcher. Each HDMI output has 1 SPDIF audio output.
Supports HDMI2.0 standard, compatible with HDCP2.2, supports up to 4Kx2K @ 60Hz4: 4: 4 resolution. Intelligent EDID management, built-in 10 EDID data. Device control methods are flexible and diverse, including infrared control, serial port control, network port control (optional), panel key control.

•  Connects up to 4 HDMI sources to 4 x HDMI display monitors.
•  HDMI 2.0 with 3D, HDCP 2.2 & DVI1.1 Compliant.
•  Built-in LCM screen & LED button at front panel provides
•  Ultra-high-definition video up to 4K 60Hz @ 4:4:4 18Gbps (6Gbps per color) quick view of all port connection.
•  Support HDR10, Dolby Vision, HLG
•  Rack mountable( 1U design)
•  Supports up to, Dolby TrueHD, Dolby ATMOS, DTS-HD MA, DTS:X, LPCM 7.1 @ 192KHz
•  S/PDIF coaxial audio outputs allow audio to be
•  Supports ARC (Audio Return Channel) function. de-embedded from HDMI outputs
•  Multiple control methods:
•  Support HDMI cable lock on each HDMI input/output port
• Front panel buttons/ IR remote control/ Web UI Control/ and RS232 Control.

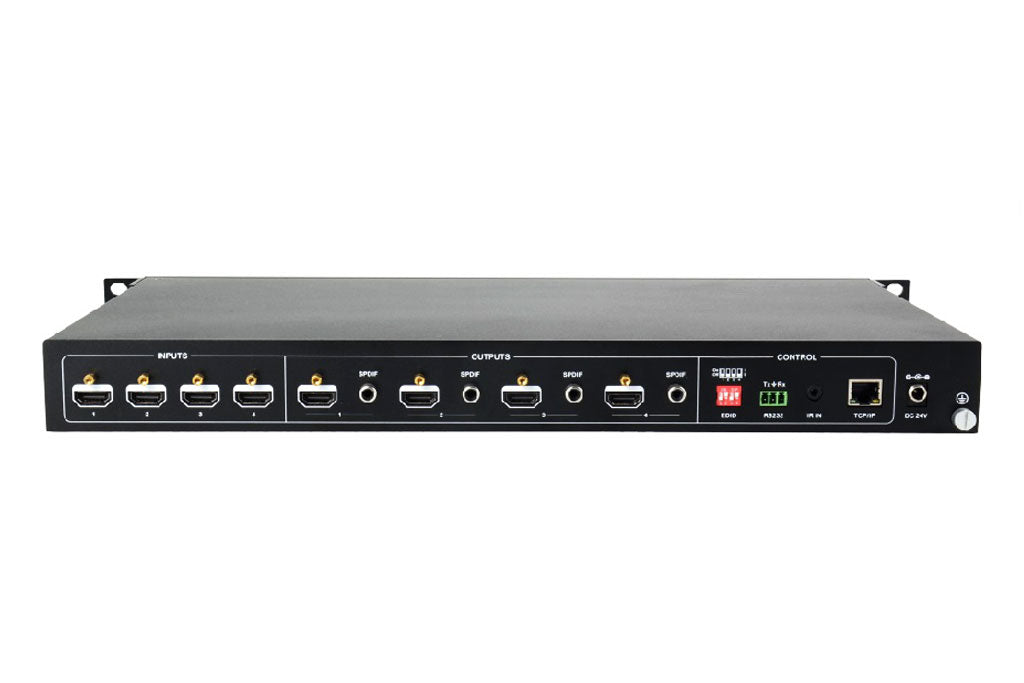

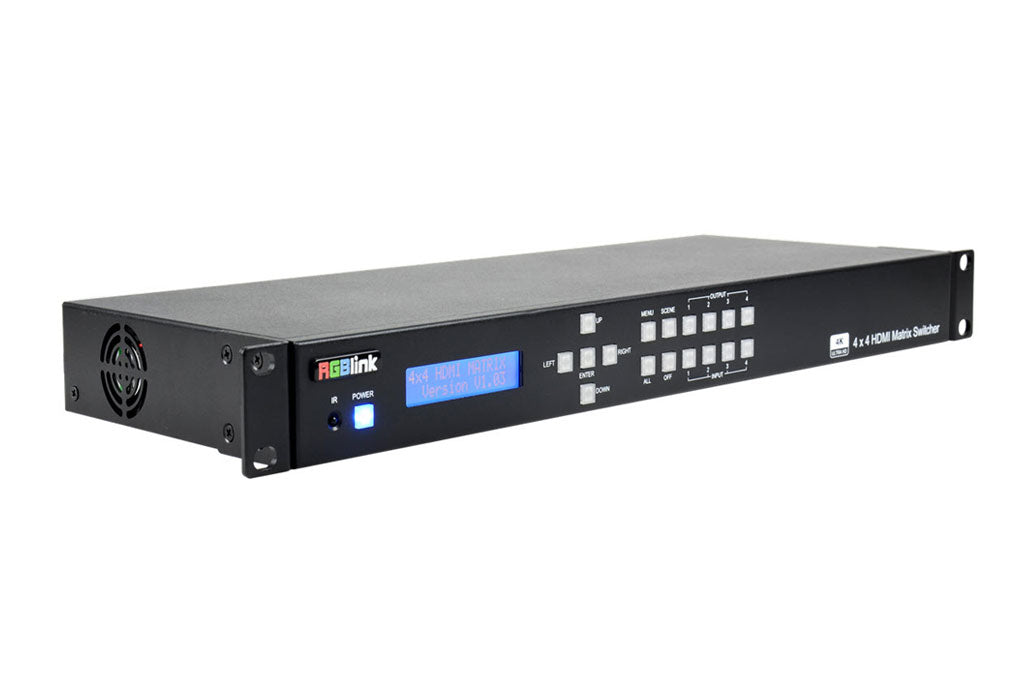

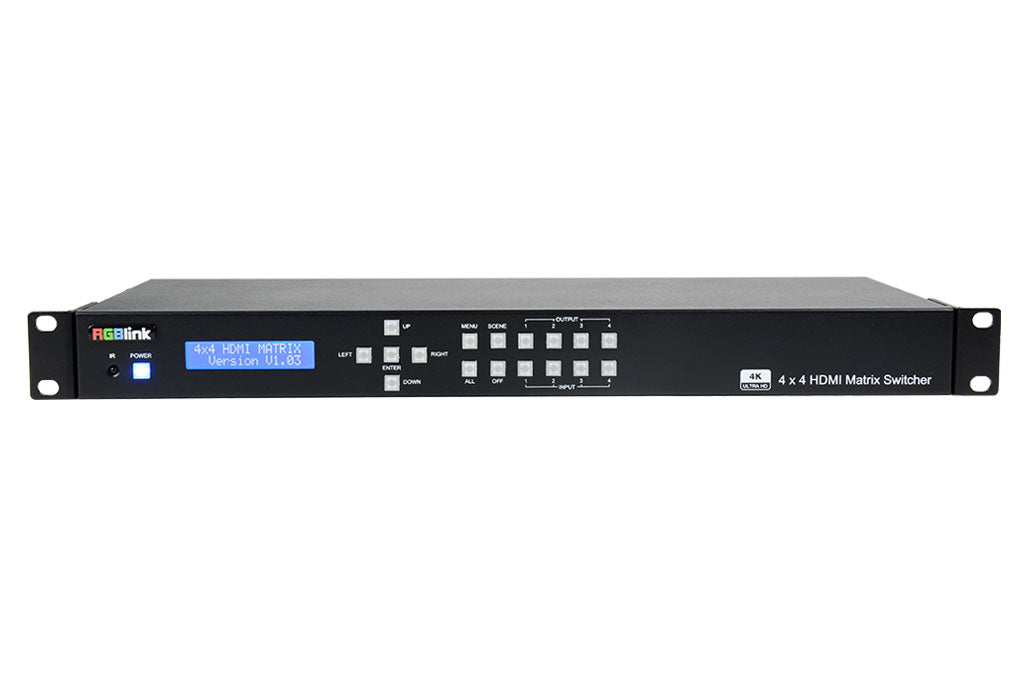

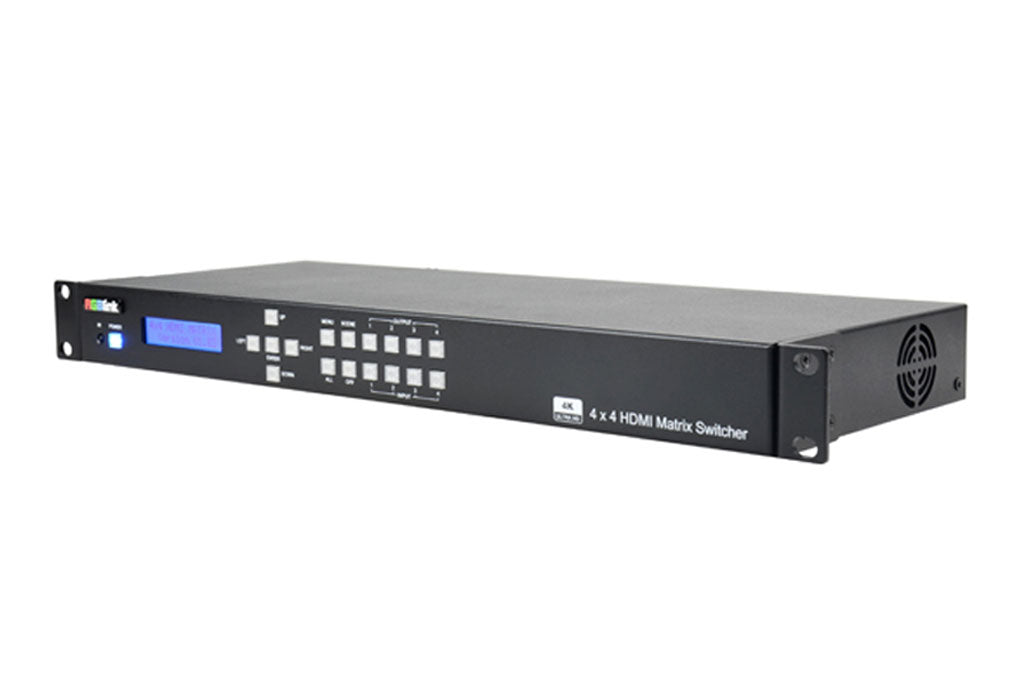

LED Video processor Appearance

LED Video processor Working Diagram

RGBlink DXP H0404 HDMI 4 Input 4 Output Video Matrix

Parameter
Power： Input Voltage 24V DC 1.25A (via AC plug pack supplied)
Max Power 14W
Enviroment： Temperature -10℃~ 55℃
Humidity 10%~95%
Physical： Weight 1.7kg
Dimension 437mm×44mm×237mm
