RGBlink DXP H0108 Distributor HDMI 1 Input 8 Output Video Matrix Splitter LED Video Processor

DXP H0108 is a HDMI2.0 one HDMI input and eight HDMI outputs video distributor to achieve 1 x HDMI2.0 input and 8 x HDMI2.0 output signals distribution. HDMI2.0 supports HDR Ycbcr:4:4:4 technology and 4Kx2K /60Hz resolution, HDCP2.2, 8 bits /10 bits /12 bits /36 bits deep color. It.supports input EDID management with two EDID modes, users can set according to the needs of the application, complete the best quality image allocation without signal loss display.

• 1 HDMI in, 8 HDMI out
• HDMI 2.0, HDCP 2.2 compliant
• Output resolution up to 4096x2160@60
• Serializable to increase numbers of display

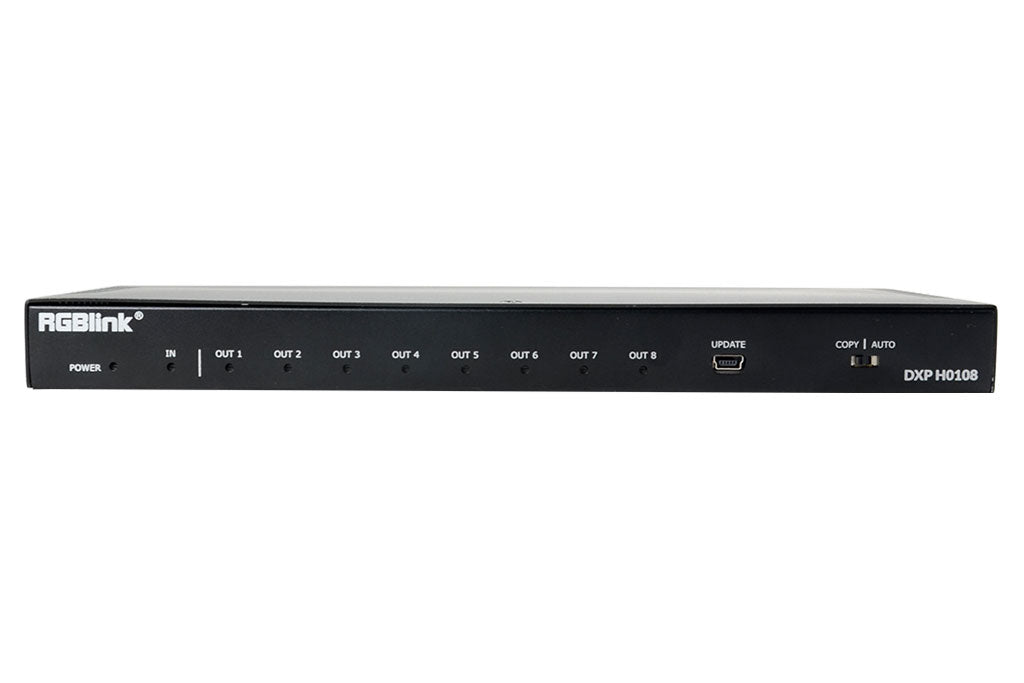

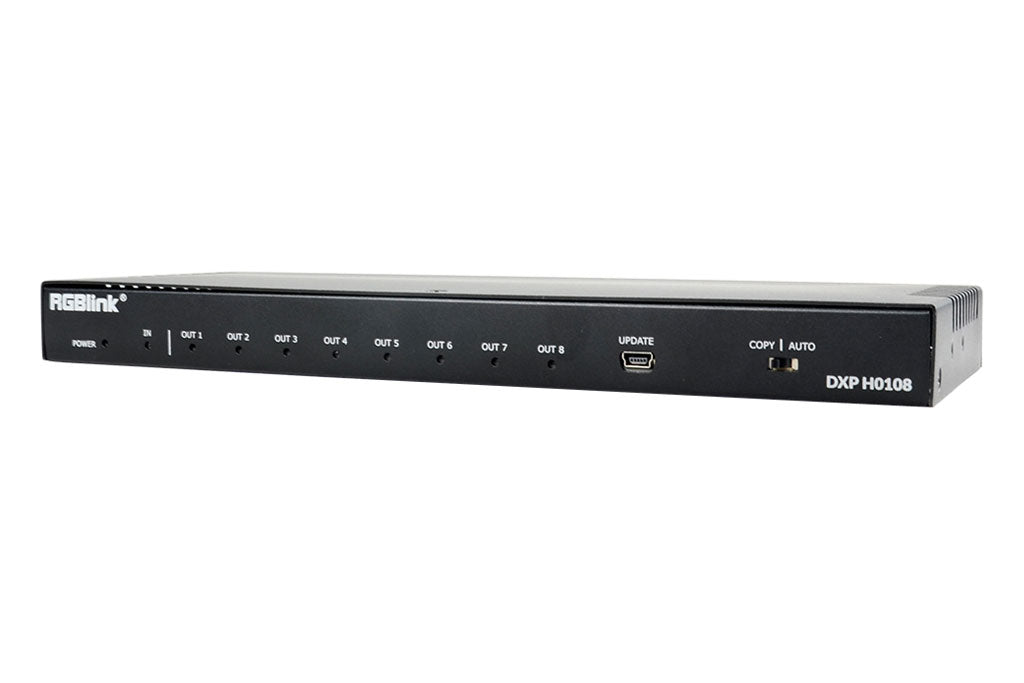

LED Video processor Appearance

LED Video processor Working Diagram

Parameter
Power
Input Voltage DC 5V

Enviroment
Temperature 0℃～55℃
Humidity 10%~95%

Physical
Weight: Nett 0.52 kg
Dimensions: Nett 296mmx103mmx24mm

Further Information:
RGBlink DXP H0108
RGBlink DXP H0108 LED Video Processor Specification
RGBlink DXP H0108 LED Video Processor User Manual
