RGBLink DV8 DV4 LED Sending Box LED Display Controller

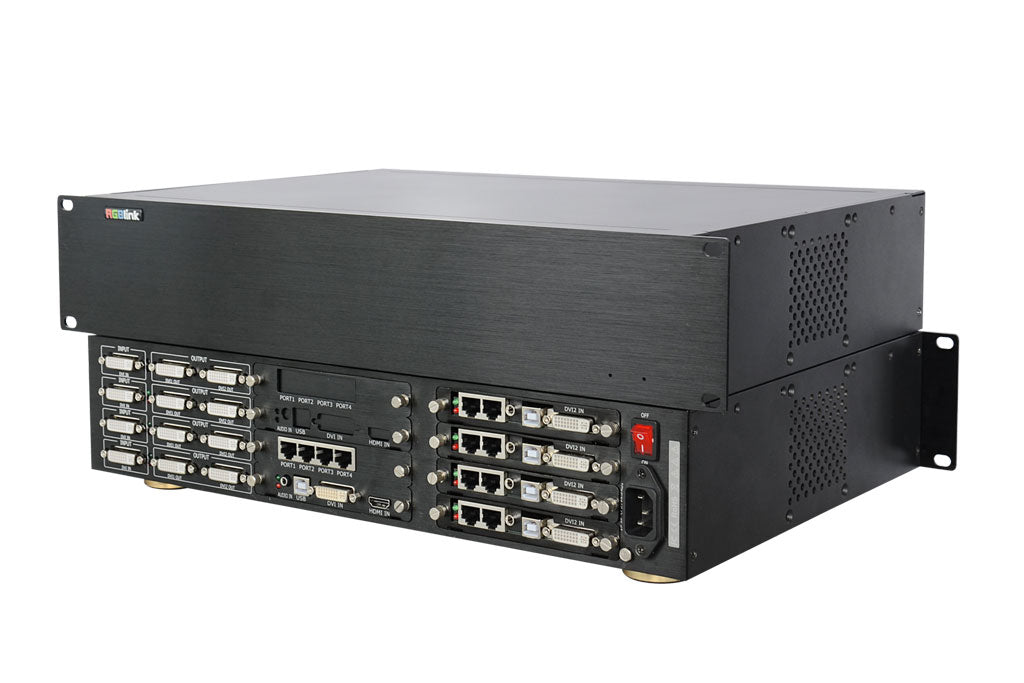

RGBLink DV8 LED Sending Box

DV8 sending card install case supports DVI signal distribution, each DVI input can be distributed to 2 DVI outputs.
DV8 is ingeniously designed, adopts board pluggable structure, which can built in 8 install full-color LED sending card slots (4 sending card slot for Nova MSD600).
It compatible with all kinds of sending cards, including Linsn 801/802, Nova MSD300, Nova MSD600, Mooncell, Colorlight IT7 and DBstar Q2011, etc.
The signal adaptive matching design can solve the problem of high resolution interference and out of sync when distribute signal.
DV8 adopts air cooling processing energy conservation and environmental protection, it can meet the demands of current LED screen control.

• DVI signal distribution, each DVI input can be distributed to 2 DVI outputs
• Compatible with Linsn 801/802, Nova MSD300/600, Mooncell, Colorlight IT7 and Dbstar Q2011 sending cards, 8 install full-color LED sending card slot
• System integration, ingeniously designed, which adopts board pluggable structure
• Adopts air cooling processing, energy conservation and environment protection
• Signal adaptive matching design to solve the problem of high resolution interference and out of sync when distribute signal
• Point-to-point correction technology allows the manufacturers to relax the requirements in LED brightness and color, which reduce the purchasing cost

Power Input Voltage:AC 85~264V, 50/60Hz
            Max Power:65W
Environment  Temperature:0℃～45℃
                         Humidity:10% ~ 85%
Physical Weight:3kg (Net) 5.3kg (Packaged)                Dimension:483mmx300mmx88.6mm (Device) 585mmx410mmx205mm (Packaged)

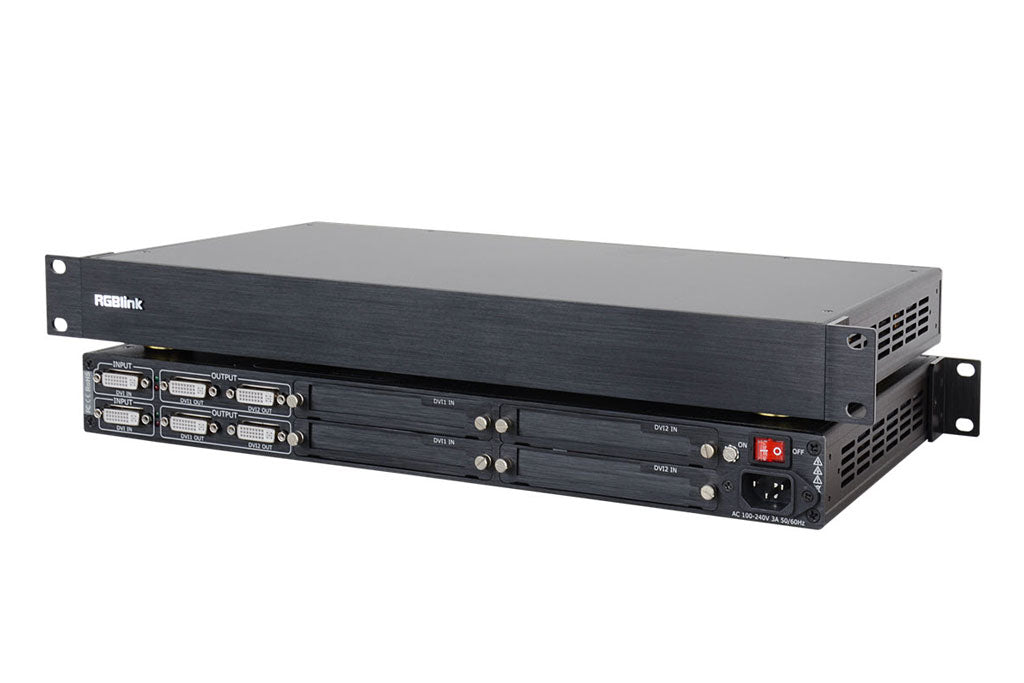

RGBLink DV4 LED Sending Box

DV4 accepts a wide variety of video signals, including computer video, HDTV video. It combines seamless, fade in fade out switching with advanced scaling technologies, which meet the requirements of high quality, high resolution video presentations.
In addition, it uses the demo enhancements, such as loop out, multiple switching effects, PIP operation, multiple split modes, PTP mapping, save and recall functions and multiple controlling ways. All these make lots of advanced functions in high-end show are available.
DV4 can meet the demands of current LED screen control, it can save the area and improve the efficiency, and the installation of power is quite simple if setting the power supply module.

• DVI signal distribution, each DVI input can be distributed to 2 DVI outputs.
• Compatible with Linsn 801/802, Nova MSD300/600, Mooncell, Colorlight IT7 and Dbstar Q2011 sending cards, 4 install full-color LED sending card slot.
• System integration, ingeniously designed, which adopts board pluggable structure.
• Adopts air cooling processing, energy conservation and environment protection.
• Signal adaptive matching design to solve the problem of high resolution interference and out of sync when distribute signal.
• Point-to-point correction technology allows the manufacturers to relax the requirements in LED brightness and color, which reduce the purchasing cost.

Power Input Voltage:AC 85~264V, 50/60Hz
            Max Power:65W
Environment Temperature:0℃～45℃
                      Humidity:10% ~ 85%
Physical Weight:2.1kg (Net) 3.6kg (Packaged)
                Dimension:480mmx250mmx45mm (Device) 535mmx365mmx135mm (Packaged)
