RGBlink D6 4K Presentation Scaler & Switcher LED Video Processor LED Display Controller

Modern presentations demand 4K at refresh rates supporting digital media. D6 builds on the tradition of its broadcast quality predecessors and RGBlink innovations while adding new and enhanced features. RGBlink modular slots are utilised throughout for the ultimate in flexibility and configurability, with each slot supporting 4K 60fps and signal options including HDMI, DisplayPort and 12G-SDI as well as conventional 2K signal options
D6 has RGBlink XPOSE built right in for interactive and visual configuration in conjunction with the large integrated LCD display. Preview not only directly on board, but also from the dedicated PVW multi-view output.
*The price is the top configuration price, please contact us if you need to customize the configuration.

The true mixed signal capability D6 synchronises all signals presenting video to output across a range of system operation modes for multi-layer 4K and 2K display with auxiliary video facilities too.

• 4K@60Hz on HDMI, DisplayPort and/or 12G-SDI
• Dedicated PVW Output

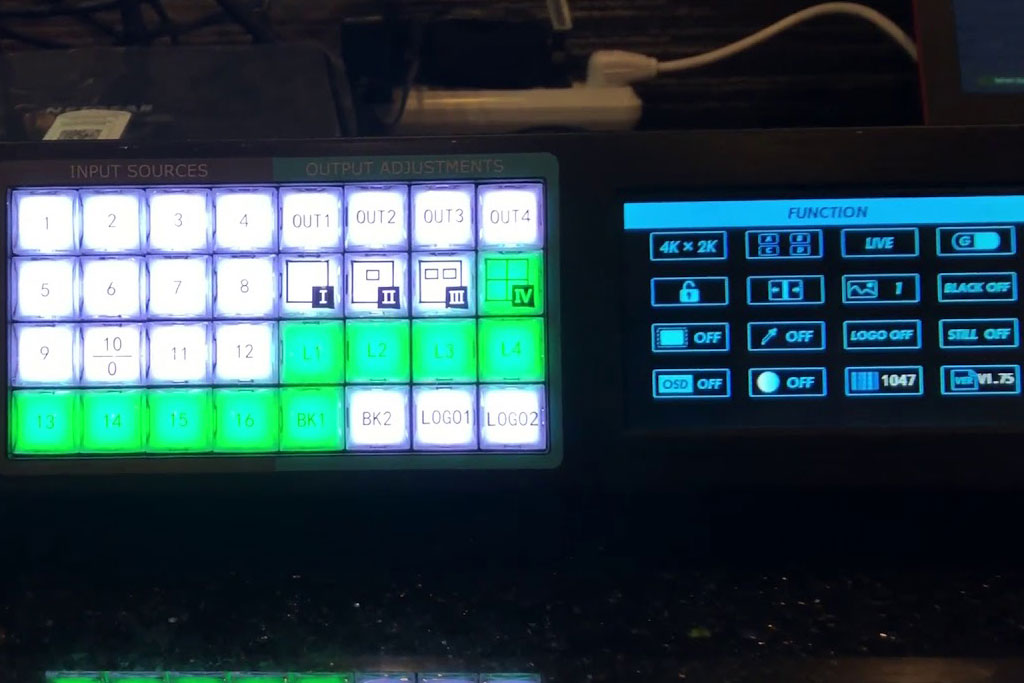

• LCD Display and Video Preview
• Integrated EDID Management
• DSK / Chroma Key
• Soft Edge Blending
• Advanced Image Enhancements including Noise Reduction
• De-Interlacing
• Genlock Y In
• Control Remotely from XPOSE, T-TWO or RGBlink OpenAPI

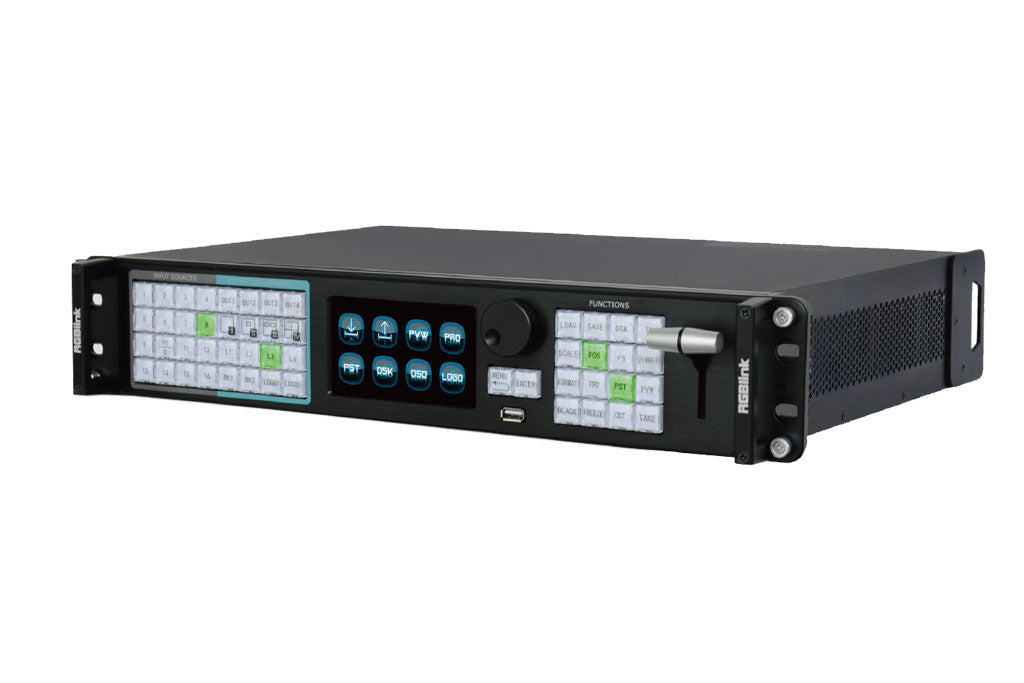

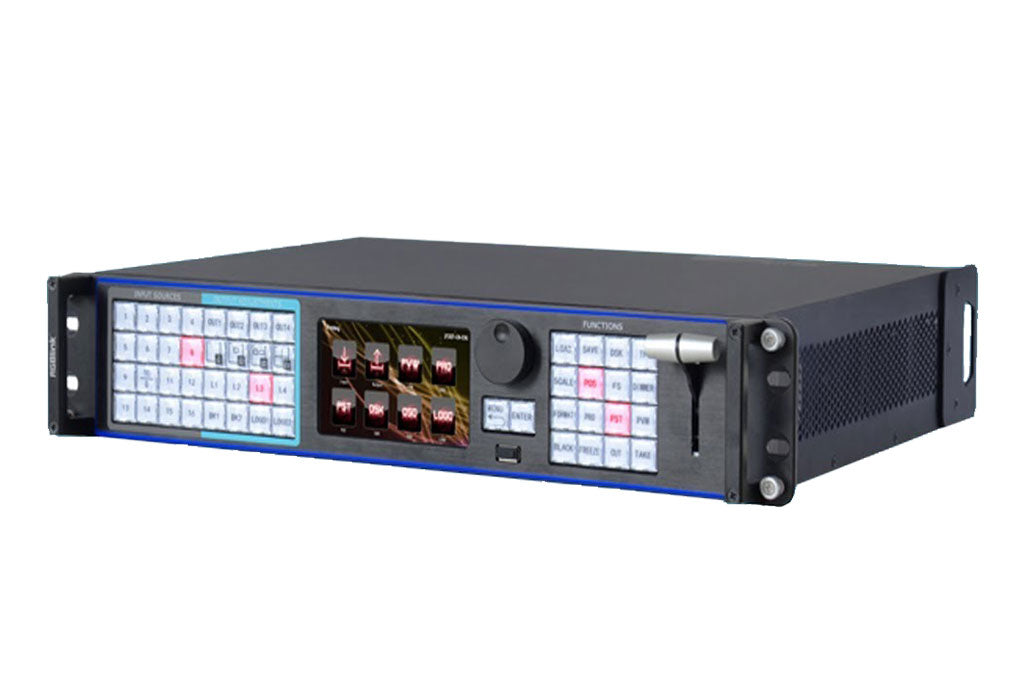

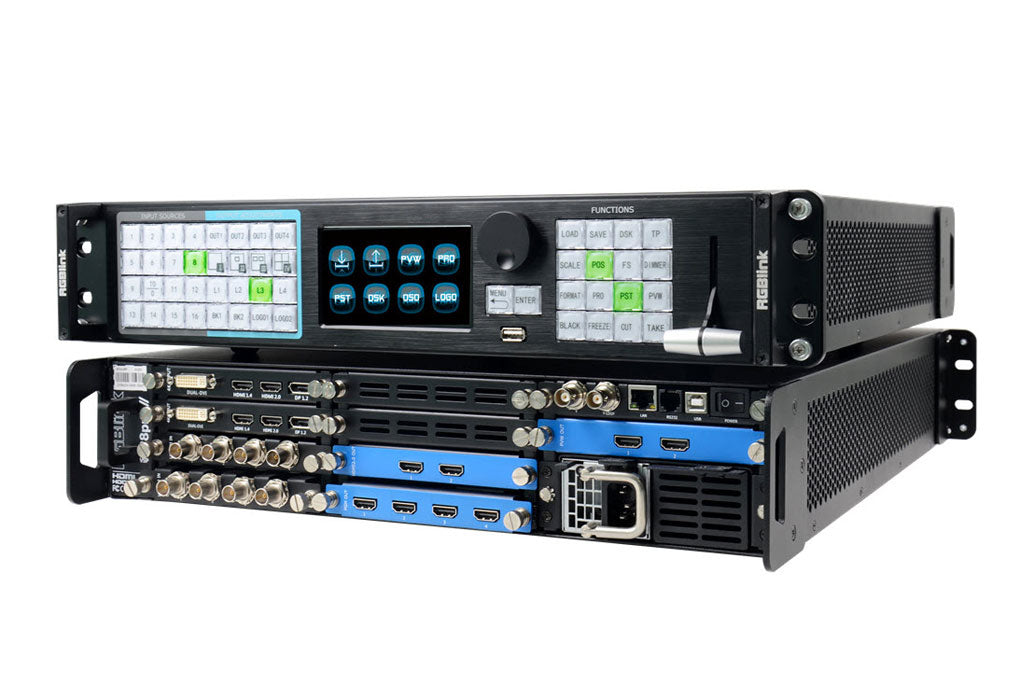

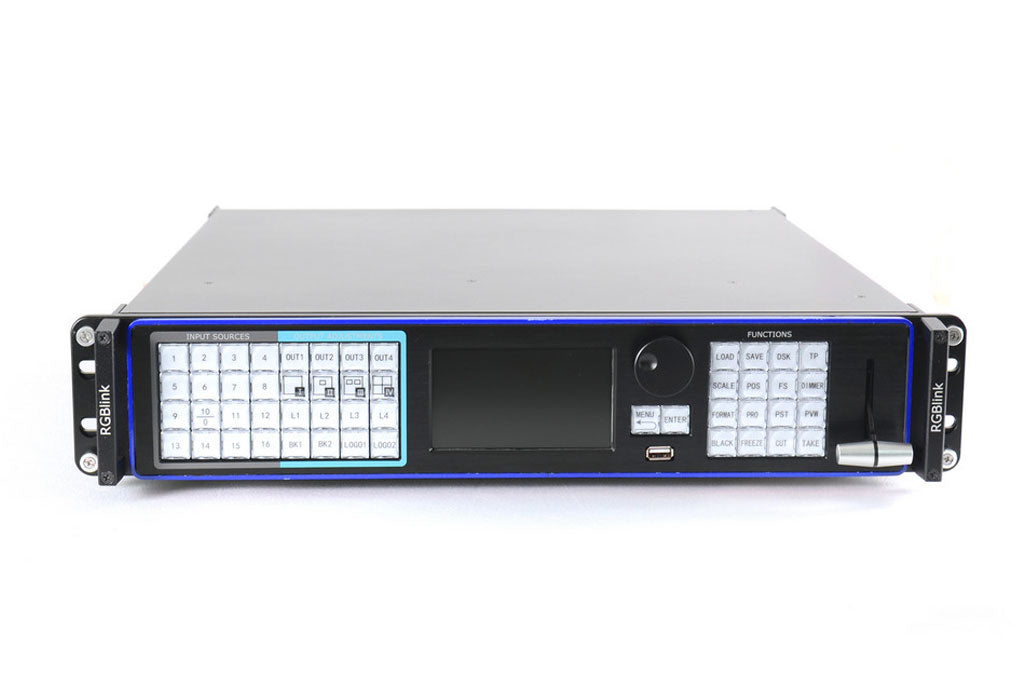

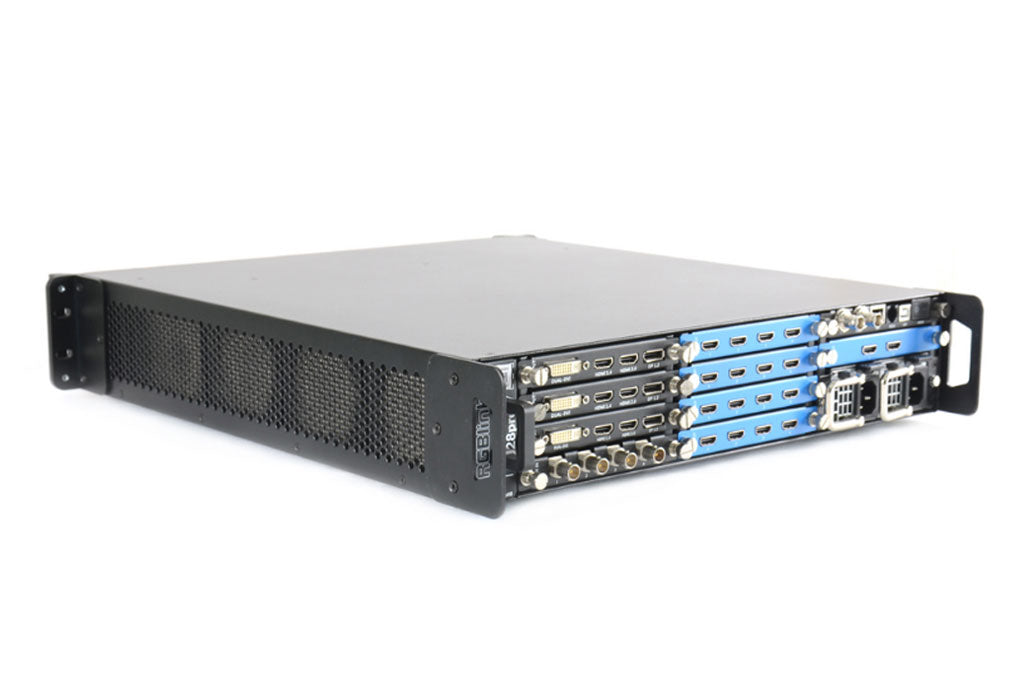

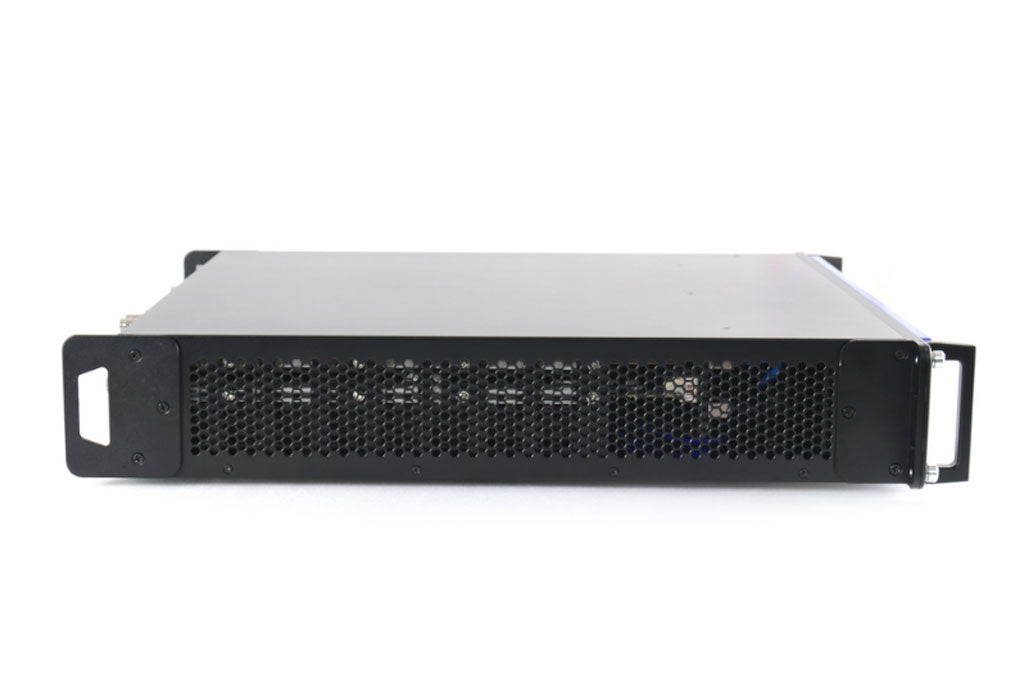

LED Video processor Appearance

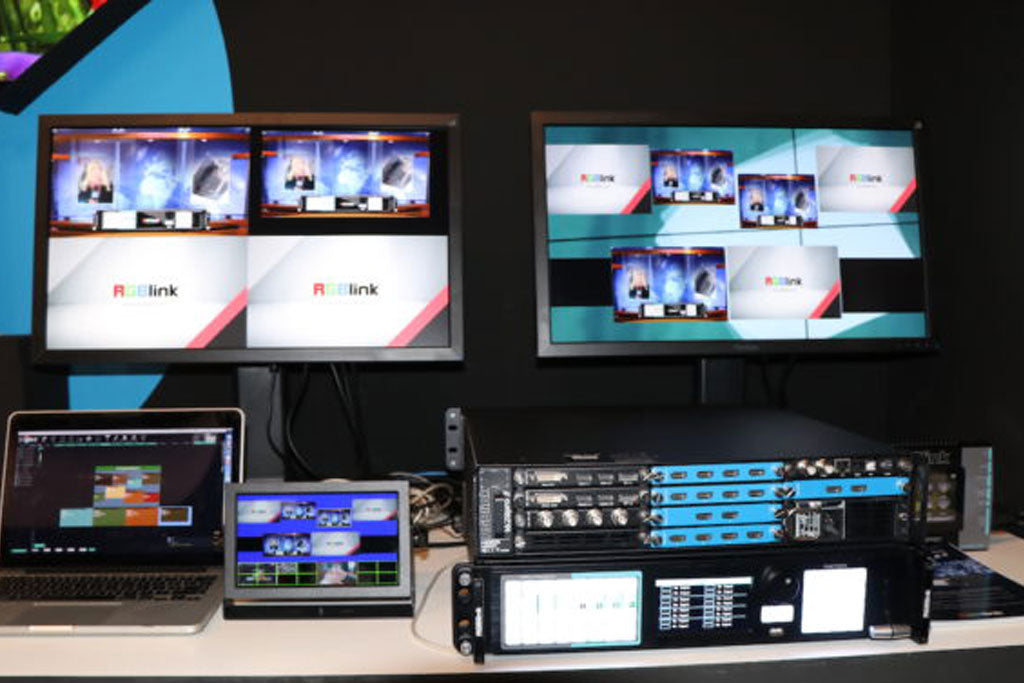

LED Video processor Working Diagram

RGBLink D6 4K HDR Scaler & Switcher Parameter

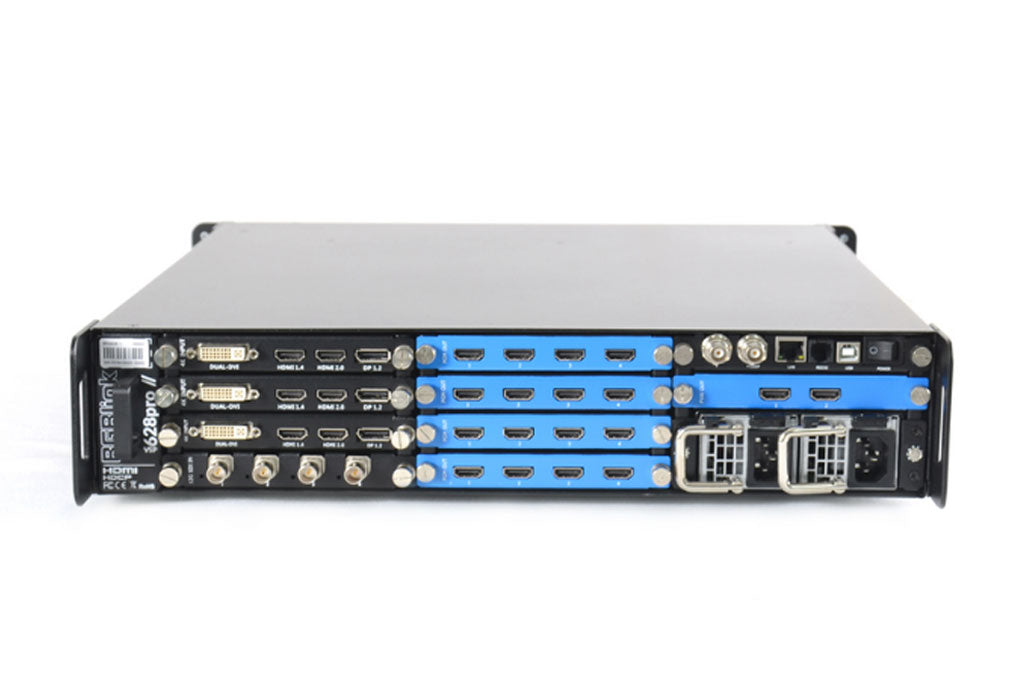

Connectors

Input Resolution-------
4 slots, up to 16 inputs
Select from
4K Digital Module：1 x DVI | 2 x HDMI | 2 x DisplayPort
12G-SDI Module ：4 x BNC
Quad 2K HDMI Module：4 x HDMI

Output Resolution-------
4 slots, up to 16 outputs
4K HDMI Module：2 x HDMI
12G-SDI Module：4 x BNC
Quad 2K HDMI Module：4 x HDMI

Communication------
2 x BNC：Genlock Y In/Loop
1 x RJ45：LAN
1 x RJ11：Serial RS232 In
1 x USB-B：Serial USB In
1 x USB A：USB In
Powe ： 2 slots  fit up to 2 power supplies  1 x IEC (each power supply)

Performance

Input Resolutions--------
SDI
SMPTE：480i | 576i | 720p@25/30/50/60Hz | 2160p@30/50/60Hz | 1080i@50/59.94/60Hz | 1080psf@23.98/24/25/29.97/30Hz | 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
DVI
SMPTE：480i | 576i | 720p@50/60Hz | 1080i@50/60Hz | 1080p@50/60Hz | 2160p@30Hz
VESA：800x600@50/60Hz | 1024x768@50/60Hz | 1280x720@50/60Hz | 1280x800@50/60Hz | 1280x960@50/60Hz | 1280x1024@50/60Hz | 1400x1050@50/60Hz | 1600x1200@50/60Hz | 2048x1152@50/60Hz | 2560x1600@50/60Hz | 1920x1080@50/60Hz | 3840x1080@50/60Hz | 3840x2160@24/25/30Hz
DisplayPort | HDMI
SMPTE：480i | 576i | 720p@50/60Hz | 1080i@50/60Hz | 1080p@50/60Hz | 2160p@50/60Hz
VESA：800x600@50/60Hz | 1280x720@50/60Hz | 1280x800@50/60Hz | 1400x1050@50/60Hz | 1024x768@50/60Hz | 1280x960@50/60Hz | 1280x1024@50/60Hz | 1600x1200@50/60Hz | 1920x1080@50/60Hz | 2048x1152@50/60Hz | 2560x1600@50/60Hz | 3840x1080@50/60Hz | 3840x2160@24/25/30/50/60Hz | 4096x2160@50/60Hz


Output Resolutions-------------
Select from below or configure customized
SDI
SMPTE：480i | 576i | 720p@25/30/50/60Hz | 1080i@50/59.94/60Hz | 1080p@23.98/24/25/29.97/30/50/59.94/60Hz | 1080psf@23.98/24/25/29.97/30Hz | 2160p@30/50/60Hz
HDMI
SMPTE：720p@50/60Hz | 1080p@50/60Hz
VESA：800x600@50/60Hz | 1280x800@50/60Hz | 1400x1050@50/60Hz | 2048x1152@50/60Hz | 1024x768@50/60Hz | 1280x720@50/60Hz | 1280x960@50/60Hz | 1280x1024@50/60Hz | 1600x1200@50/60Hz | 1920x1080@50/60Hz | 2560x1600@50/60Hz | 3840x1080@50/60Hz | 3840x2160@24/25/30/50/60Hz | 4096x2160@50/60Hz

Supported Standards---------
SDI：12G SDI
HDMI：2.0
DVI：DVI-I
DisplayPort：1.2

Power
Voltage：AC 50/60Hz
Max Power：400W

Environmental
Temperature：0°C – 40°C
Humidity：10% - 85%

Physical
Weight：Nett：15.1kg/Packaged:19.7kg
Dimension:Nett:483mm x 545mm x 95mm
Dimensions:630mm x 595mm x 255mm
