RGBlink D4 4K HDR Scaler & Switcher LED Video Processor LED Display Controller

With standard any in and any out, D4 is so much more than 4K scale.With multiple output modes, D4 is a very flexible solution accross a range of applications Whether for scaling, presentation switching, 4K distribution or broadcast.
Truly an All-In-One solution, D4 accept a wide range of input signals in a huge array of formats. Inputs can be converted, scaled, transcoded to standard to HDMI 2.0outputs or output to optional ports including DP1.2,12G/6G/3G/HD/SD SDI, Fiber port and HDBaseT.
With a built-in dual channel 4k scaler, D4 provides 12bit interface connection, with EDID management, HDCP2.X compliant and YUV4:4:4 10 bit color reproduce.
Based on the flexible modular structure, D4 can be expanded to more connection or any connection in need, but not features only as a standard unit, besides its embedded and de-embeded audio processing capacity.

• Internal YUV4:4:4 processing
• 12 Bit processing
• HDMI 2.0 compatible
• HDCP 2.X compliance
• DisplayPort 1.2 Compatible
• HDR Compatible
• 12G/6G/3G/HD/SD SDI input compatible
• 4K@60 outputs including HDMI 2.0, DisplayPort 1.2
• EDID management
• Up to 8K2K output splicing
• Independent PST,multiple pictures seamless switching
• Multiple operation mode
• 90°and 270° rotation
• Support multiple cascade control

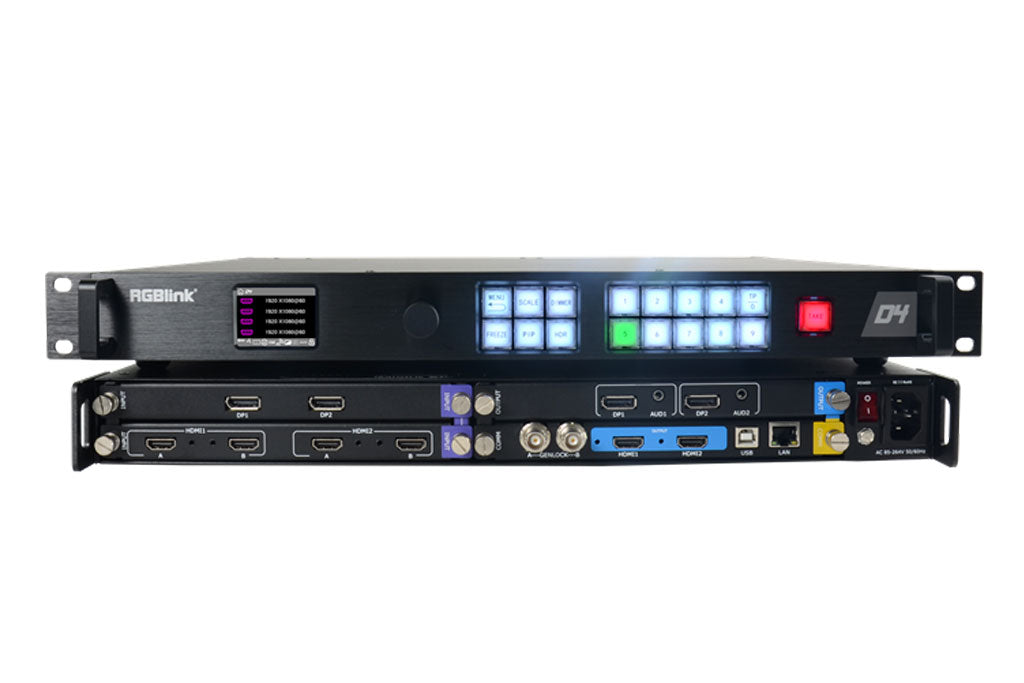

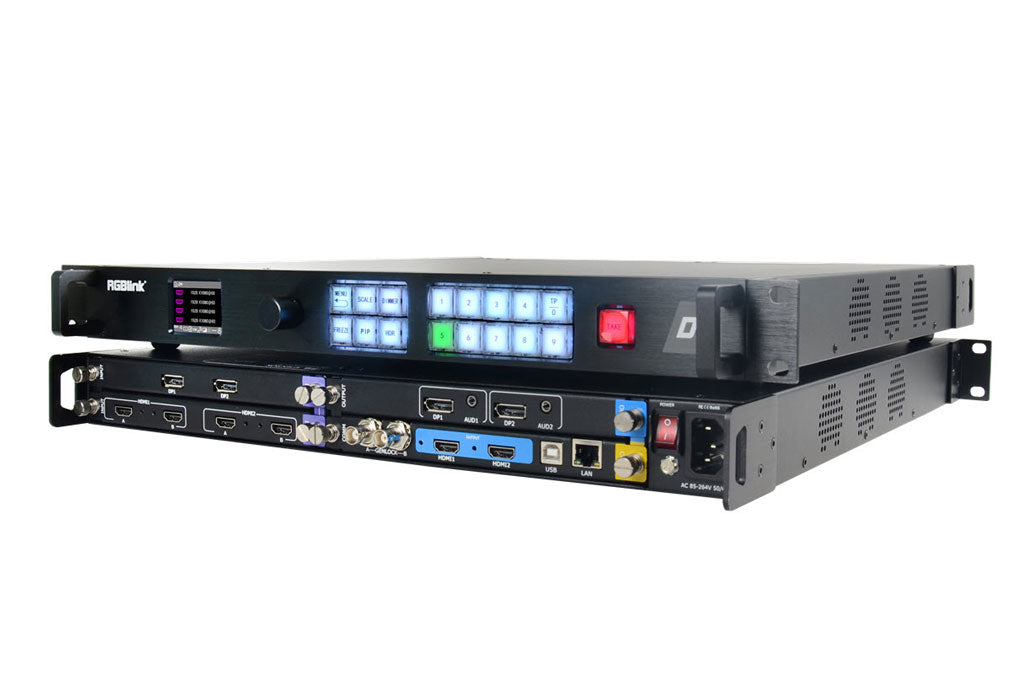

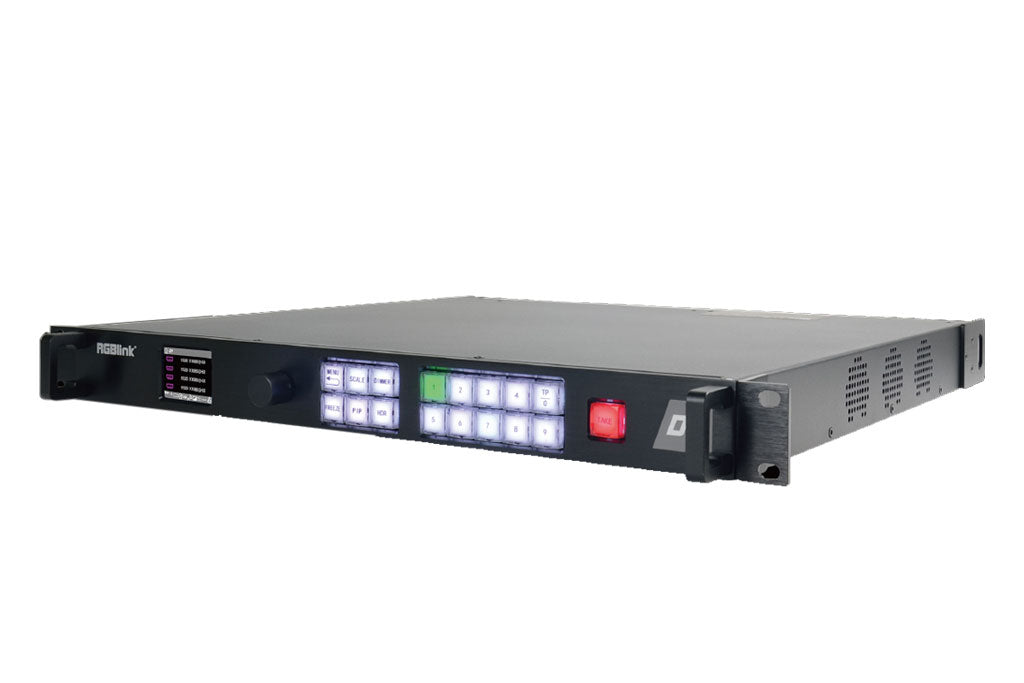

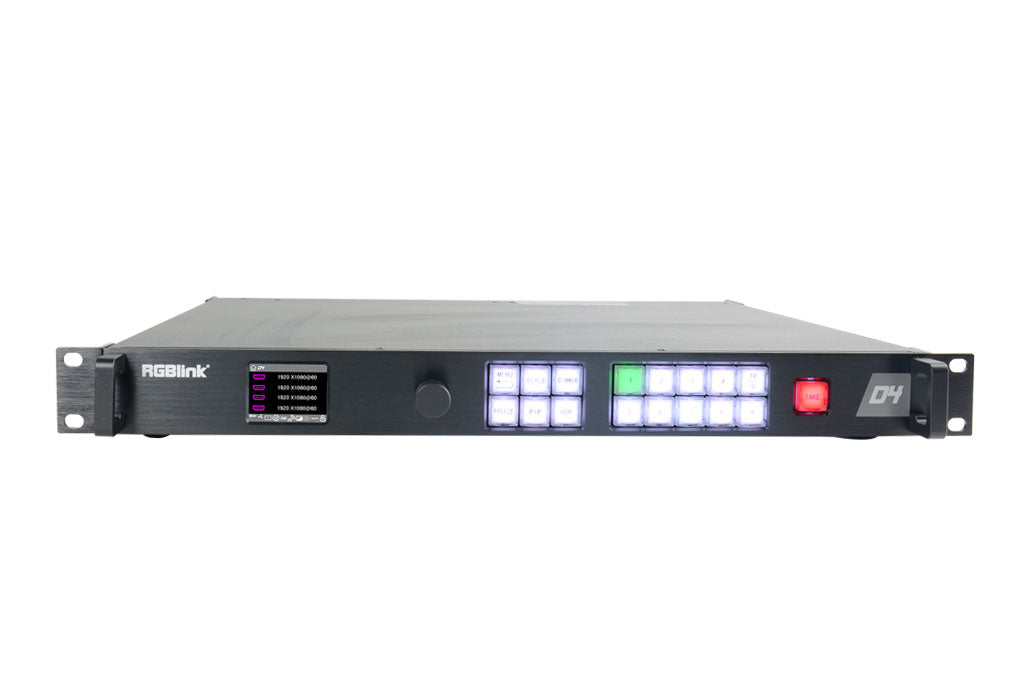

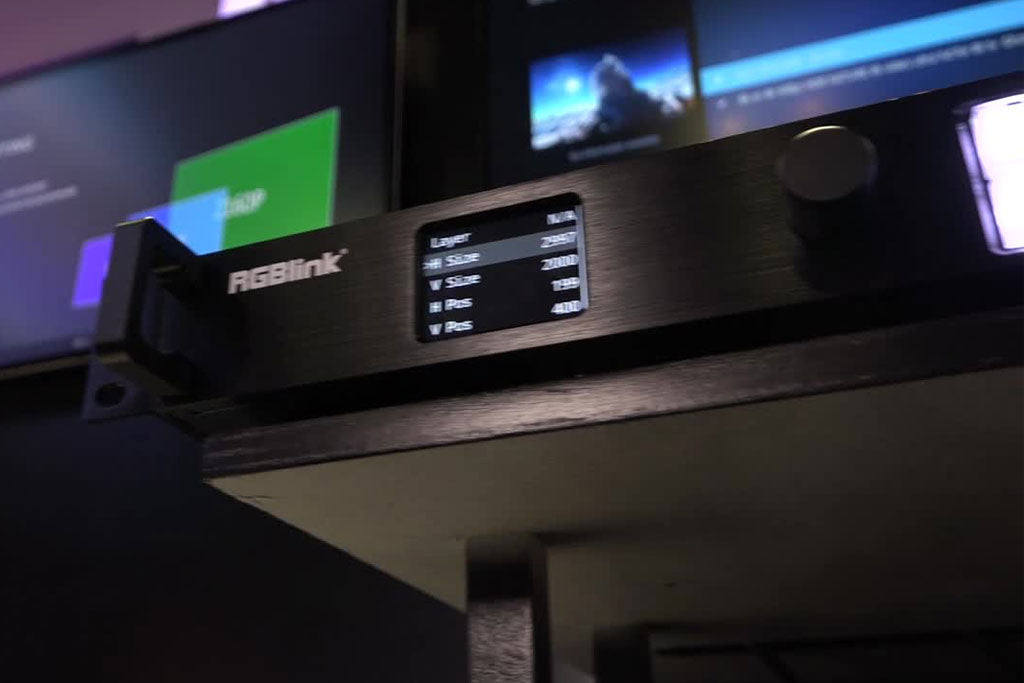

LED Video processor Appearance

LED Video processor Working Diagram

RGBLink D4 4K HDR Scaler & Switcher Parameter

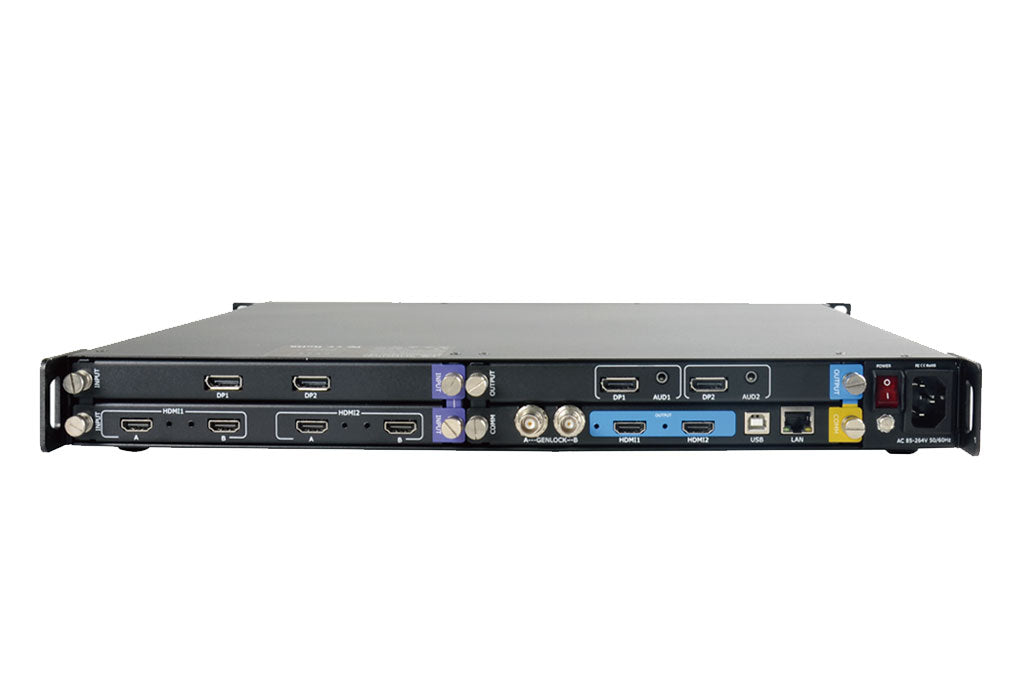

Connectors

Input Resolution-------
2 slots, up to 4 inputs
Select from
4K HDMI Module:4 x HDMI-A (2 In/2 Loop)
DisplayPort Module:2 x DisplayPort
SDI Module:4 x BNC

Output Resolution-------
2 slots, up to 8 outputs,Standard with HDMI 2.0
HDMI 2.0,2xHDMI-A
Select from
4K HDMI Module:2 x HDMI-A
DisplayPort Module:2 x DisplayPort
SDI Module:4 x BNC

Communication------
Genlock:2 x BNC
LAN:1 x RJ45
Serial USB In:1 x USB-B
Power:1 x IEC

Performance

Input Resolutions--------
SDI
SMPTE:480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60 | 2160p@30/50/60
DisplayPort
SMPTE：720p@25/30/50/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60 | 2160p@30/50/60
VESA：1920x1200@60 | 2560x1600@60 3840x2160@23.98/24/25/29.97/30/50/60 | 4096x160@50/60
HDMI
SMPTE：720p@25/30/50/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60 | 2160p@30/50/60
VESA：800x600@60 | 1024x768@60 | 1280x768@60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 | 1366x768@60 | 1400x900@60 | 1600x1050@60 | 1600x1200@60 | 1680x1050@60 | 1920x1080@23.98/24/25/29.97/30/50/59.94/60 | 1920x1200@60 | 2048x1152@60 | 2560x812@60 | 2560x816@60 | 2560x1600@60 | 3840x1080@60 | 3840x2160@23.98/24/25/29.97/30/50/60 | 4096x2160@50/60

Output Resolutions-------------
Select from below or configure customized
SDI
SMPTE：480i | 576i | 720p@25/30/50/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60 | 2160p@30/50/60
DisplayPort
SMPTE：480i | 576i | 720p@25/30/50/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60 | 2160p@30/50/60
VESA：1920x1200@60 | 2560x1600@60 3840x2160@23.98/24/25/29.97/30/50/59.94/60 | 4096x2160@60
HDMI
SMPTE：720p@25/30/50/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60 | 2160p@30/50/60 |
VESA：800x600@60 | 1024x768@60 | 1280x769@60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 | 1366x768@60 | 1400x900@60 | 1600x1050@60 | 1600x1200@60 | 1680x1050@60 | 1920x1080@23.98/24/25/29.97/30/50/59.94/60 | 1920x1200@60 | 2048x1152@60 | 2560x812@60 | 2560x816@60 | 2560x1600@60 | 3840x1080@60 | 3840x2160@23.98/24/25/29.97/30/50/60 | 4096x2160@50/60

Supported Standards---------
SDI：SMPTE ST 2082-1, SMPTE ST 2081-1, SMPTE ST 424, SMPTE ST 424, SMPTE ST 292-1, SMPTE ST 259, DVB-ASI, MADI
DisplayPort：1.2
HDMI：2.0

Grey Level：12bit
Color Space： 4:4:4

Power
Input Voltage：AC90~264VAC,50/60Hz

Further Information:
RGBlink D4
RGBlink D4 LED Video Controller Specification
RGBlink D4 LED Video Controller User Manual
