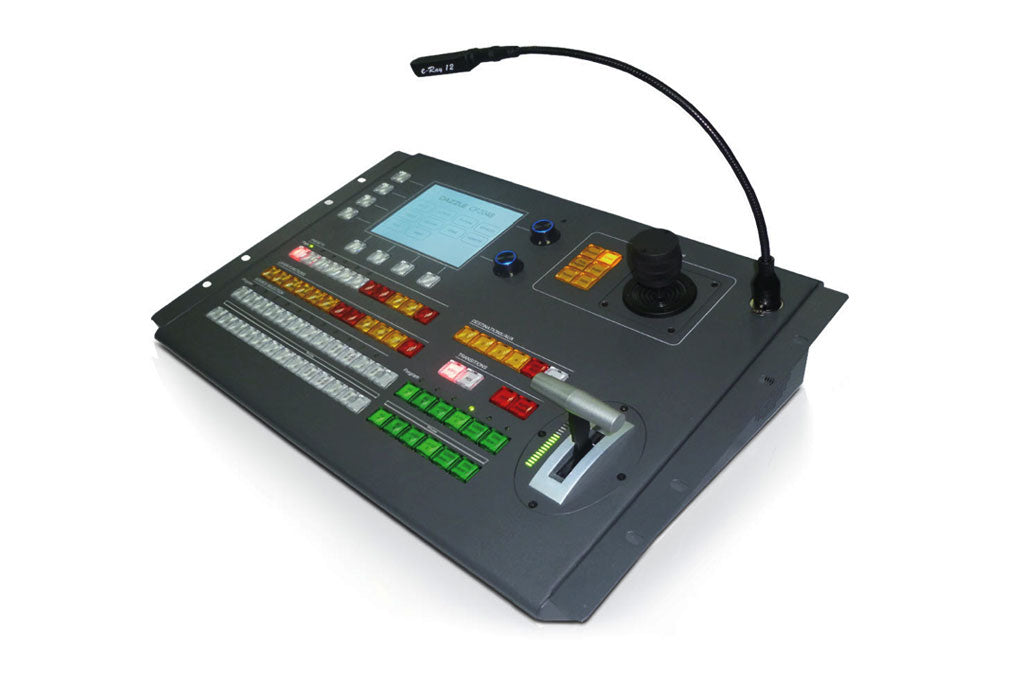

RGBlink CP2048 LED Control Consoles LED Video Switcher LED Screen Controller

Providing remote control visiion mixer style controls, CP2048 offers input selection, transition effects, and picture control of the connected processor.
On board there are a range of digital effects controllable via the integrated T-bar and rotary knobs and 3D joystick.
Connection to processors may be via direct Ethernet (RJ45) or Serial (DB9) connection.
ideal for environments where the processor and control positions need to be separated.

● Control X3 or VSP5360
● Input selection contrlo for Program and Preview outputs
● Comprehensive picture controls
● Transition effects
● Illuminated tactile selection buttons for easy operation
● 3D Joystick control for scale, position, zoom
● T-bar
● Ethernet or Serial Connection

Specifications of RGBlink CP2048 LED Video Switcher:

CONTROL/REMOTE-CONTROL PANEL
Series control port	RS-232,9-pin female D connector
Ethernet control port	1 RJ-45 female connector
Ethernet data rate	10/100 Base-T,half/full duplex with autodetect
Ethernet protocol	UDP
GENERAL
Power	100VAC to 240VAC,50/60Hz,2*25 watts,internal, dual power supply with redudant
Temperature/humidity	Storage -40°to +158℉(-40°to +70℃)/10% to 90%,noncondensing , Operating +32°to +122℉(0 to +50℃)/10% to 90%, noncondensing
Enclosure type	Metal
Enclosure dimensions	480mm*330mm*130mm
Product weight	6.5kg
