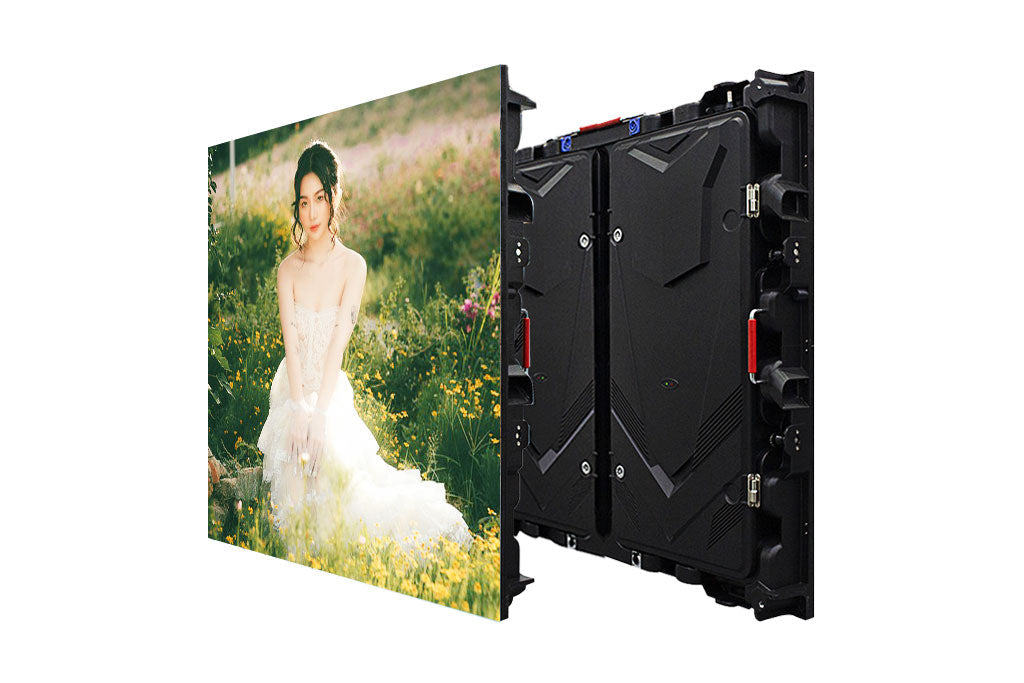

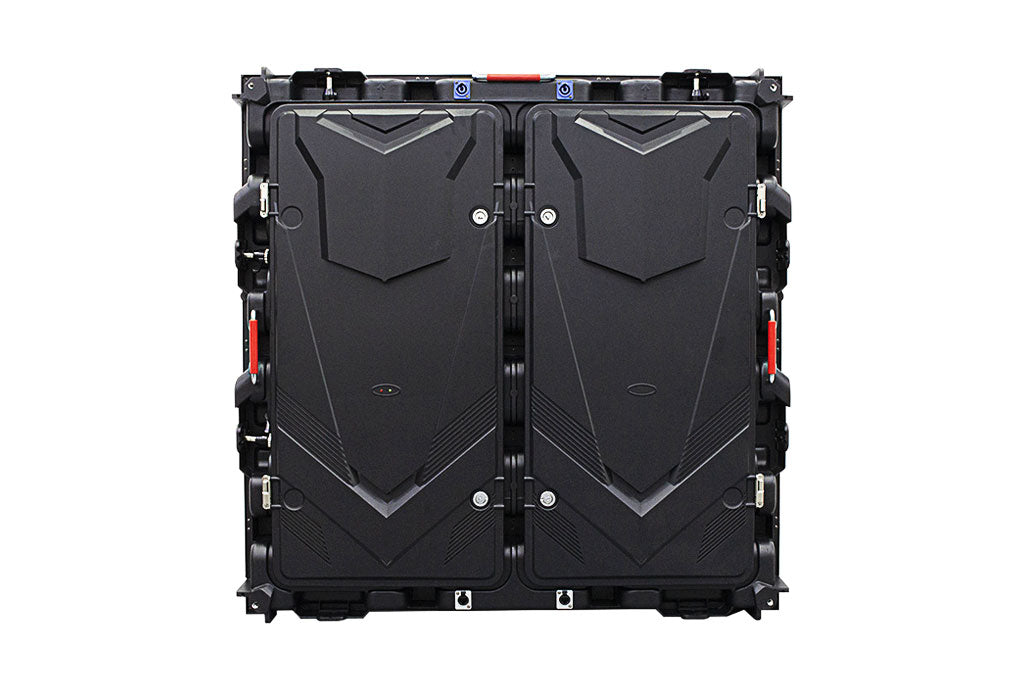

P6 P8 P10 Front Service Outdoor Fixed Advertising Screen LED Displays Cabinet
P6 P8 P10 Front Service Outdoor Fixed Advertising Screen LED Displays Cabinet
Couldn't load pickup availability
P10 Front Service Outdoor Fixed Advertising Screen
-
ANTI-RUST FUNCTION
The cabinet of unit modules adopts to high-temperature spraying technology, the anti-rust function is greatly improved. -
HIGH WATERPROOF GRADE
IP65 High waterproof grade to protect your screen from no matter how heavy rain it is. -
SUPER WIDE VIEWING ANGLE
The display features a wide viewing angle of 120° horizontal and 120° in vertical. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. -
EASY & QUICK FOR INSTALLATION & MAINTENANCE
Standardized cast aluminum design with quick locks and connectors for fixed and rental installations. Lightweight, ultra-slim, easy for installation and maintenance. -

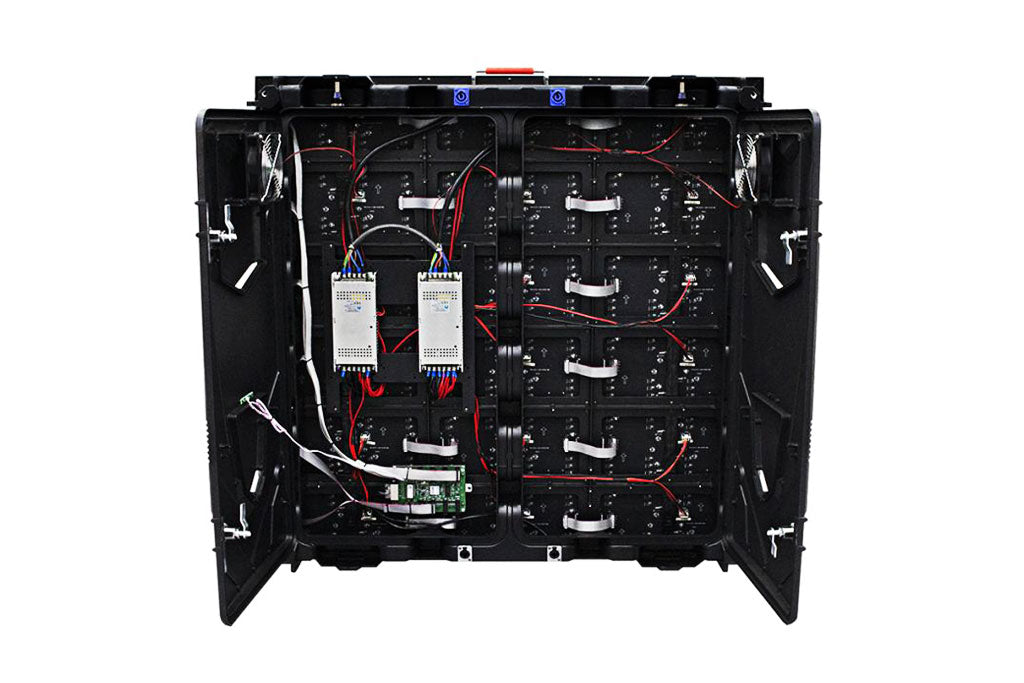

INDEPENDENT POWER CABINET
The power box is independent, and it can be moved. It is convenient to assemble and maintain the power supply and the LED receiving card. -
EASY SERVICEABILITY
Magnetic modular LED sections for easy, tool-free serviceability from the front or rear of the screen. High-stability, cable-free connections with a detachable modular power supply housing guarantee minimal downtime.

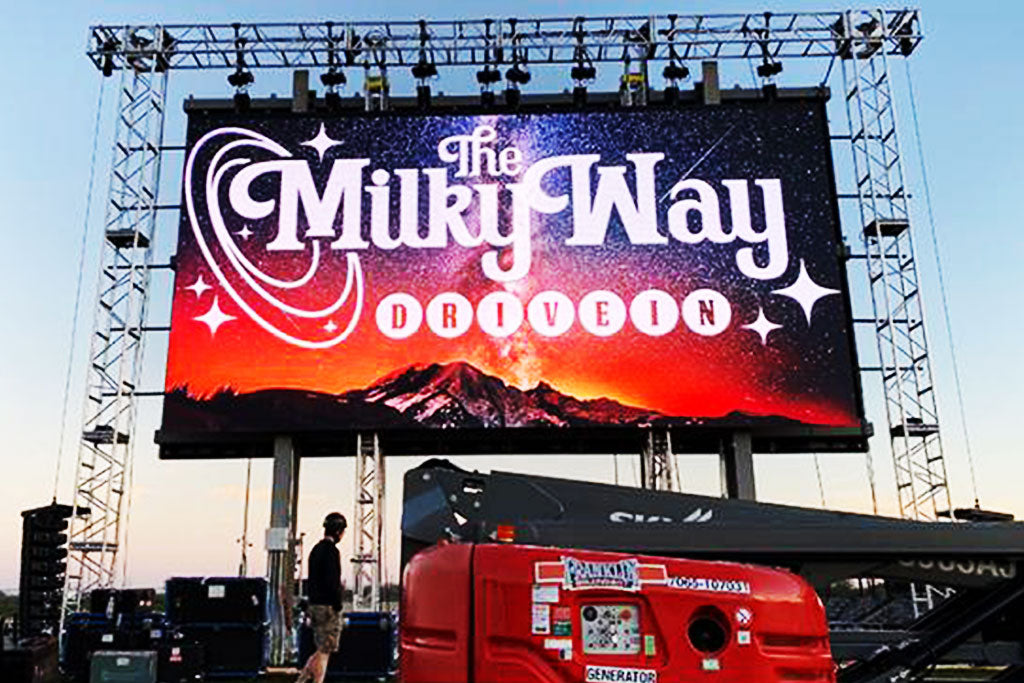

P10 Outdoor Fixed Advertising Screen installations
| Advertising LED Display Screen | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 3.91 | 4.81 | 6.67 | 8 | 10 |
| LED Chips | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel density(dots/m2) | 62500 | 40000 | 22477 | 15625 | 10000 |
| Driving Method | 1/8 scanning | 1/13 scanning | 1/6 scanning | 1/4 scanning | 1/2 scanning |
| Module Size(mm) | 250*250 | 250*250 | 320*160 | 320*160 | 320*160 |
| Module Resolution | 40*40 | 40*40 | 48*24 | 40*20 | 32*16 |
| Cabinet Size( W*L mm) | 1000*1000 | 1000*1000 | 960*960 | 960*960 | 960*960 |
| Cabinet Material |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
| Cabinet Weight( Kg/m2 ) | 35 | 35 | 35 | 35 | 35 |
| Max.Consumption(W/m2) | 800 | 800 | 800 | 800 | 800 |
| Ave.Consumption(W/m2) | 350 | 350 | 350 | 350 | 350 |
| Brightness( Nits ) | ≥5500 | ≥5000 | ≥5500 | ≥5800 | ≥6000 |
| Viewing Angle (Vertical / Horizontal) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
Notice before order:
1) Parts included : High-quality steel cabinets, LED modules, power supplies, LED receiving card, power cables and signal cables. It does not include sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
Contact an expert immediately to request a quote for the application.
