P2.5 P2 P3 P4 Indoor soft flexible LED Display module
P2.5 P2 P3 P4 Indoor soft flexible LED Display module

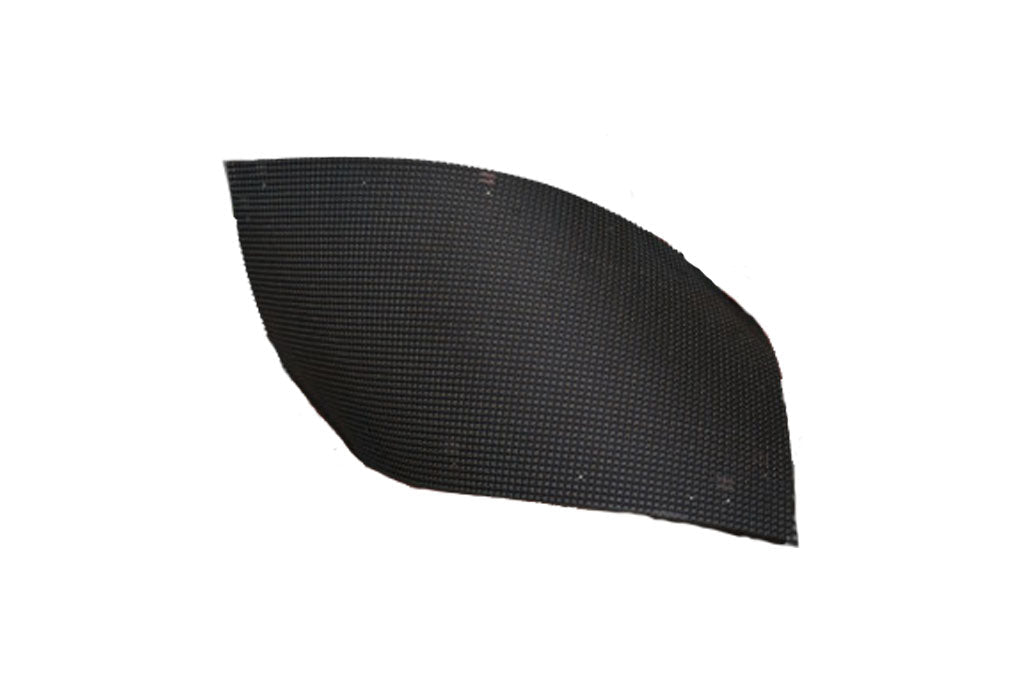

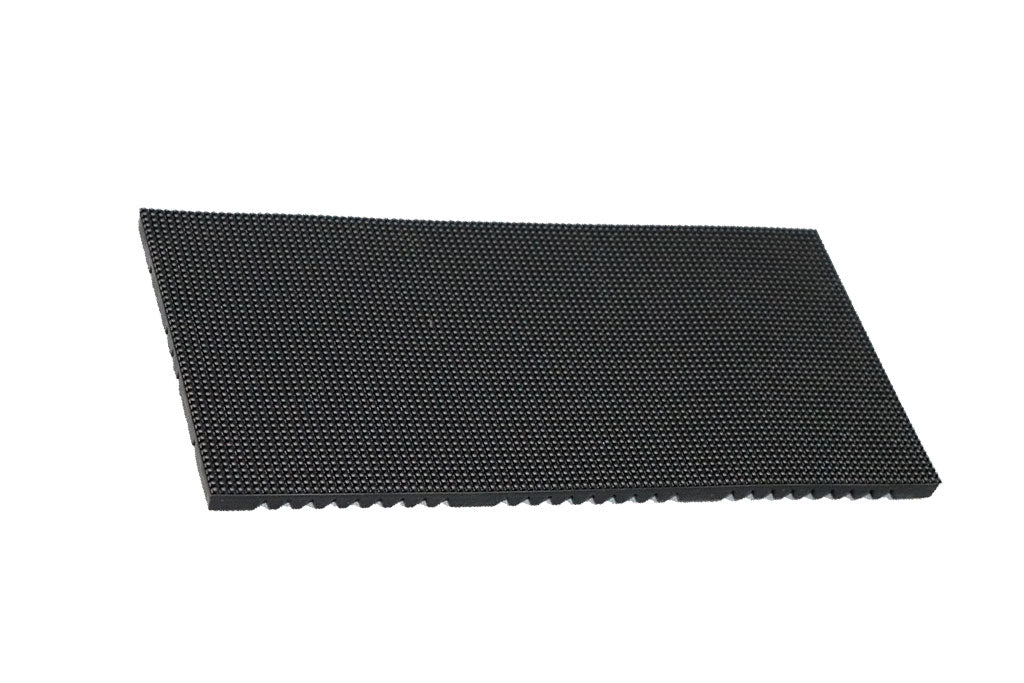

Indoor Soft Flexible LED Display Module is designed for the creative LED Screen applications. It is much flexible and can be fit any curved surface with magnetics on the module back side.

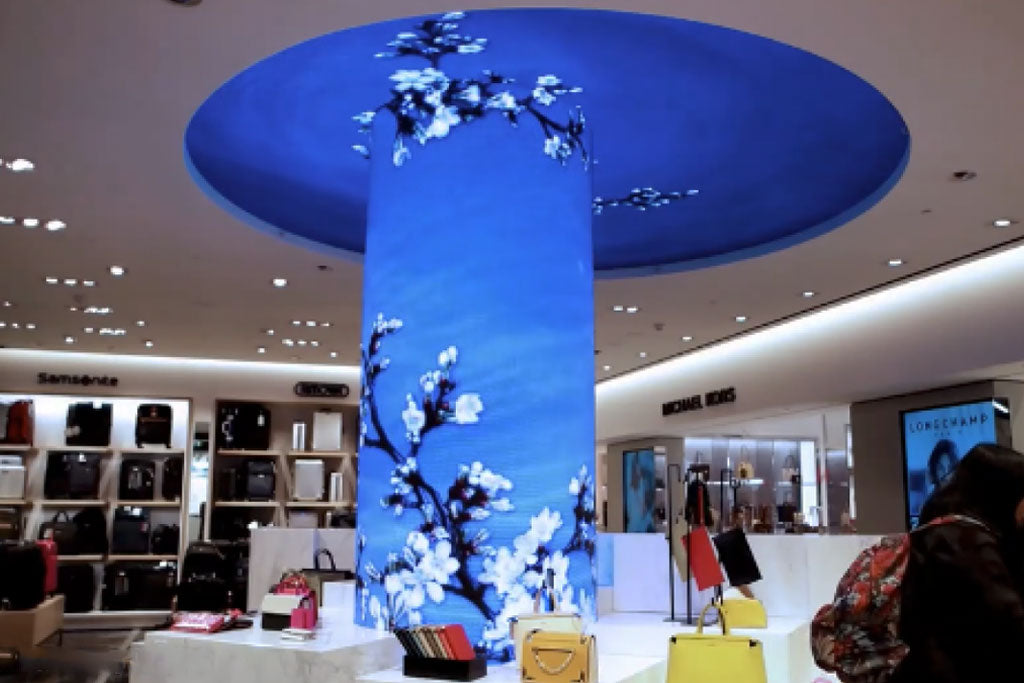

Application:Suitable for irregular construction, such as the club, stage, studio, super market, shopping mall,stadium, concert, amusement park, sight seeing area, real estate, airport etc.

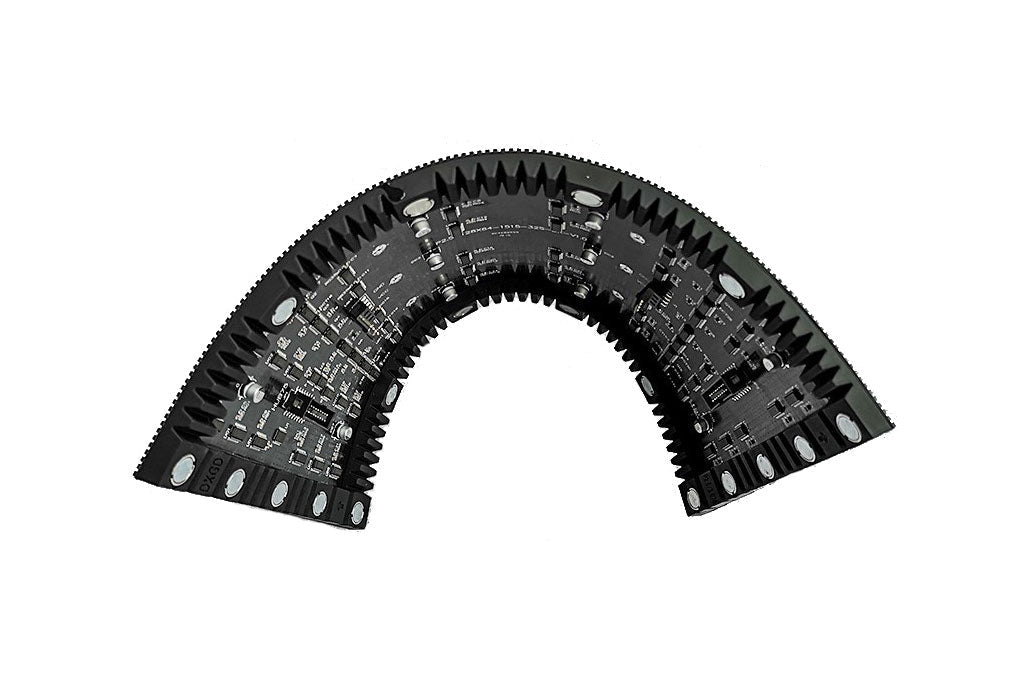

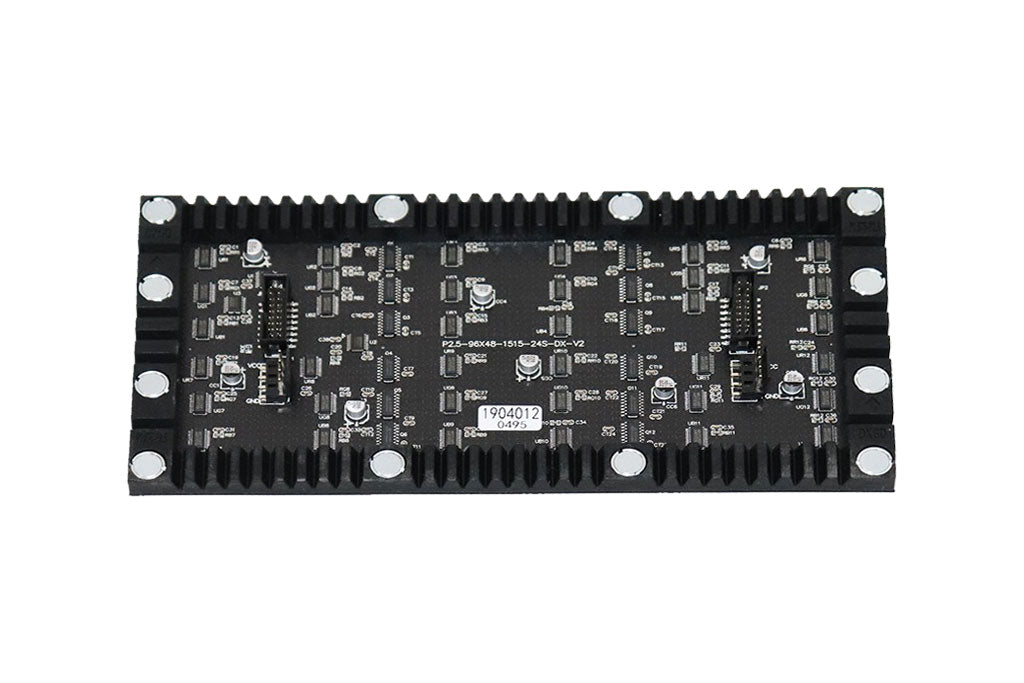

- Soft& Flexible: It used silicone shell work with soft PCB.
- Reliable: used special SMT technology to make sure no drop LEDs.
- High Refresh IC: MBI5124 driving IC.

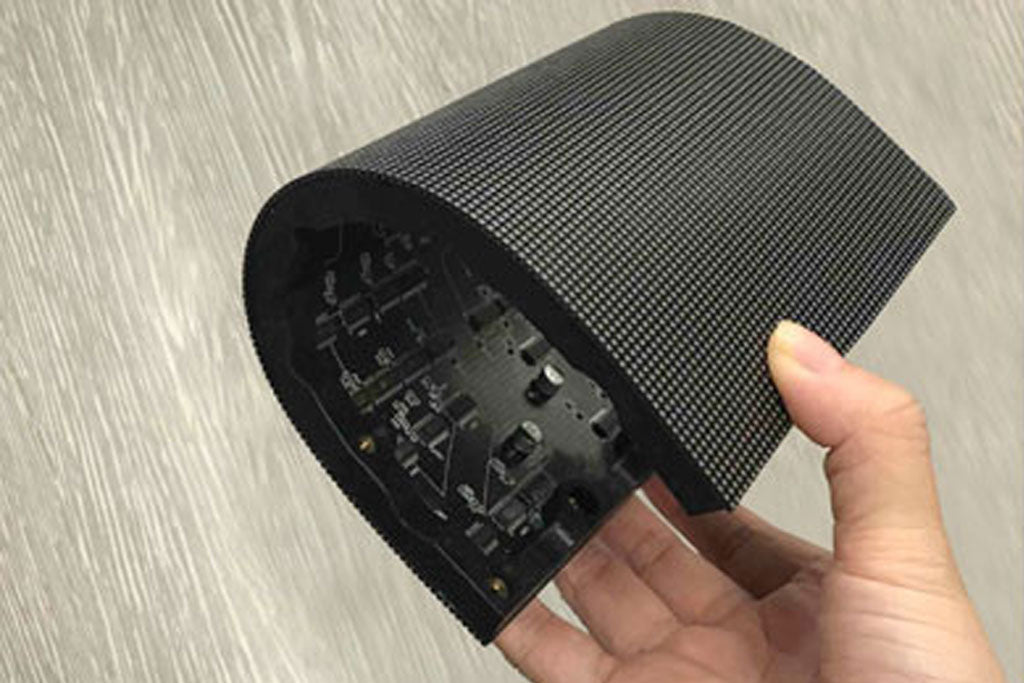

Ultra-flexible
It's available for customized design, such like rolling, bending and swing.based on customer's demands.
Ultra-thin
Adopting special material and advanced technology, super thin and light, weight of each module is just 0.3Kg.
Easy Assemble
Easy installation, strong magnet, available for front service.
Specification
Pixel pitch (mm) |
P1.5625 |
P1.875 |
P2 |
P2.5 |
P3 |
P4 |
P5 |
P6 |
P8 |
LED configuration |
SMD 1010 |
SMD 1515 |
SMD 1010 |
SMD 1010 |
SMD 1515 |
SMD 2121 |
SMD 2121 |
SMD 3528 |
SMD 3528 |
Pixel density ( pixel/m2) |
409600 |
284444 |
250000 |
160000 |
111111 |
62500 |
40000 |
27777 |
15625 |
Module size (mm) |
200*150 |
240*120 |
256*128 |
240*120 |
240*120 |
256*128 |
320*160 |
192*192 |
256*128 |
Module resolution (dot) |
128*96 |
128*64 |
128*64 |
96*48 |
80X40 |
64*32 |
64*32 |
32*32 |
32*16 |
Scan model |
32S |
32S |
32S |
24S |
20S |
16S |
16S |
8S |
4S |
Brightness (cd/m2) |
≥700 |
≥700 |
≥700 |
≥1000 |
≥800 |
≥1200 |
≥1100 |
≥1100 |
≥1100 |
Viewing angle |
120° |
120° |
120° |
120° |
120° |
120° |
120° |
120° |
120° |
Environmnet |
Indoor |
Indoor |
Indoor |
Indoor |
Indoor |
Indoor |
Indoor |
Indoor |
Indoor |
Brightness adjustment |
0-255 level |
||||||||
Working voltage |
AC100/240V 50/60HZ |
||||||||
Working temperature |
-20℃~+60℃ |
||||||||
Lifespan |
100,000 hours |
You'd better buy all modules at a time for one LED Screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can't work together with your previous or later modules.
We recommend that you purchase the LED Screen cabinet as the smallest unit for assembly. Need to be personalized,Please leave a message to our sales staff for the LED Display system solution.
