Novastar CMS260 LED Display Controller and video processing Two-in-one controller

The CMS260 (VX400s-N) is NovaStar’s new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports. A CMS260 (VX400s-N) unit can drive up to 2.6 million pixels, with the maximum output width and height both up to 3840 pixels.
The CMS260 (VX400s-N) is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling and chroma calibration and more, to present you with an excellent image display experience.
Thanks to its powerful video processing and sending capabilities and other outstanding features, the CMS260 (VX400s-N) can be widely used applications such as rental, stage control systems and fin-pitch LED screens.
The difference between NovaStar video processor VX400 and VX400s-N
Please note that CMS260 (VX400s-N) only works with Novastar receiving card.

• Input connectors
  1x HDMI 1.3 (IN & LOOP)
  1x HDMI 1.3
  1x 3G-SDI (IN & LOOP)

• Output connectors
  4x Gigabit Ethernet ports
  A single device unit drives up to 2.6 million pixels, with a maximum width of 3840 pixels and a maximum height of 3840 pixels.

• Audio input and output
  Audio input accompanied with an HDMI input source
  Audio output via a multifunction card
  Output volume adjustment supported

• 2x layers
  Adjustable layer size and position
  Adjustable layer priority

• Output synchronization
  An internal input source can be used as the sync source to ensure the output images of all cascaded units in sync.

• Powerful video processing
  Based on SuperView III image quality processing technologies to provide stepless output scaling
  One-click full screen display
  Free input cropping

• Easy preset saving and loading
  Up to 10 user-defined presets supported

• Multiple kinds of hot backup
  Backup between devices
  Backup between Ethernet ports

• Up to 4 units cascaded for image mosaic
  Output image quality management
  Brightness, saturation, contrast and hue adjustment

• Pixel level brightness and chroma calibration
  Working with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, effectively removing color discrepancies and greatly improving LED display brightness and chroma consistency, allowing for better image quality.

• Multiple operation modes
  Control your device as you wish via NovaLCT or device front panel knob and buttons.

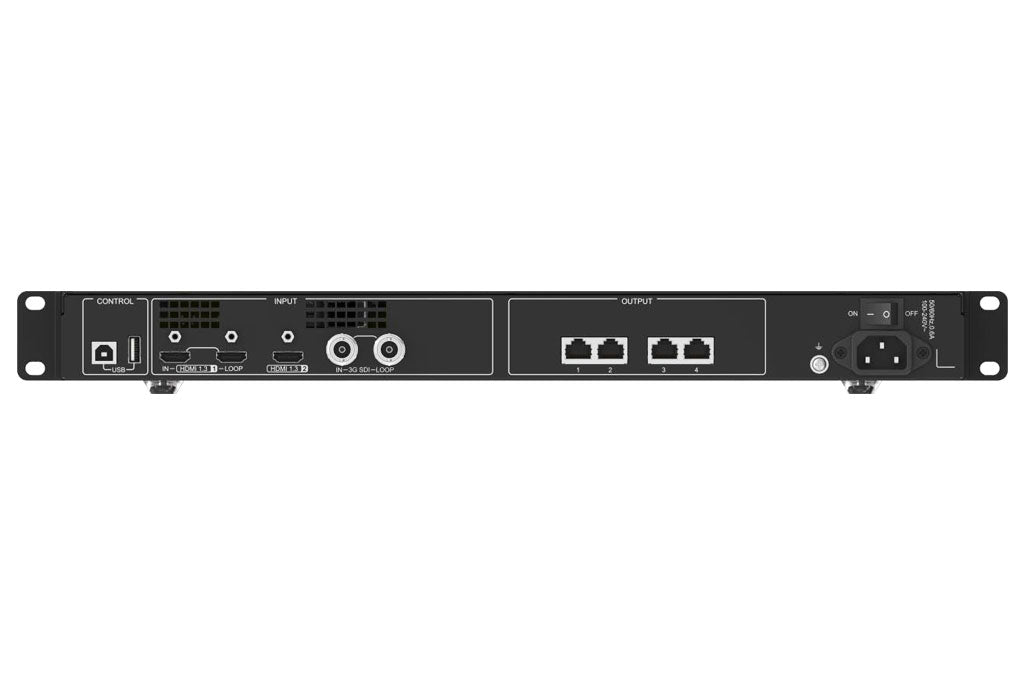

Novastar CMS260 (VX400s-N) LED Video processor Appearance

Novastar CMS260 (VX400s-N) LED Video processor Working Diagram

Power connector:AC 100-240V–50/60Hz
Overall consumption:28 W
Operating temperature:-20°C–60°C
Dimensions:482.6 mm ×250 mm ×50.1 mm
Weight:10 kg
