Novastar CMS130 LED Display Controller and video processing Two-in-one controller

The CMS130 (VX200s-N) is NovaStar’s new all-in-one controller that integrates video processing and video control into one box. It features 2 Ethernet ports. A CMS130 (VX200s-N) unit can drive up to 1.3 million pixels, with the maximum output width and height both up to 1920 pixels.
The CMS130 (VX200s-N) all-in-one controller is a pure hardware device that is easy to operate. It features different types of high-definition input connectors, and integrates professional LED screen control technologies and video processing capabilities, making on-site installations effortless. Designed with an industrial-grade casing, the
CMS130 (VX200s-N) is well suited for complex operational environments and can be widely used in applications such as malls, hotels, exhibition sites and TV studios.
The difference between NovaStar video processor VX400 and VX400s-N
Please note that CMS130 (VX200s-N) only works with Novastar receiving card.

• Up to five input connectors: 1x DVI, 1x HDMI1.3, 1x VGA, 1x USB, 1x CVBS

• Adjustable layer position and size, and input cropping supported

• Press input source buttons to easily switch between the input sources.

• External independent audio

• EDID management supported

• Personalized image scaling: Full screen, pixel to pixel and custom

• Quick configuration to easily configure the LED screen

• 2x Ethernet output connectors with a loading capacity of up to 1.3 million pixels

• Easy preset saving and loading Up to 6 user-defined presets

• LED screen color adjustment, such as brightness and Gamma

• Controlled via central control devices

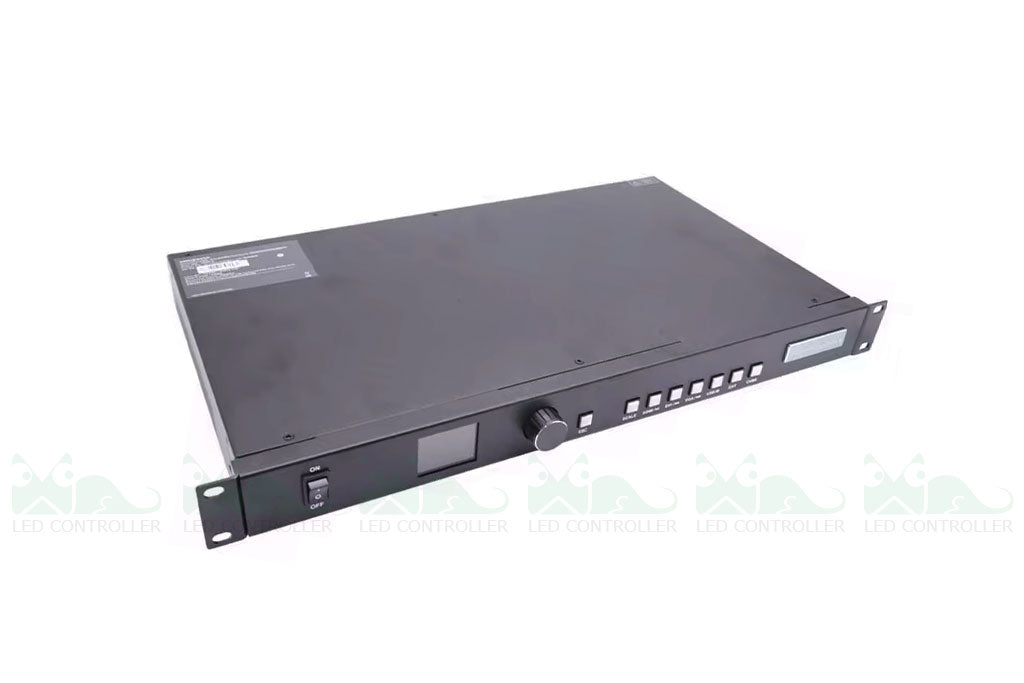

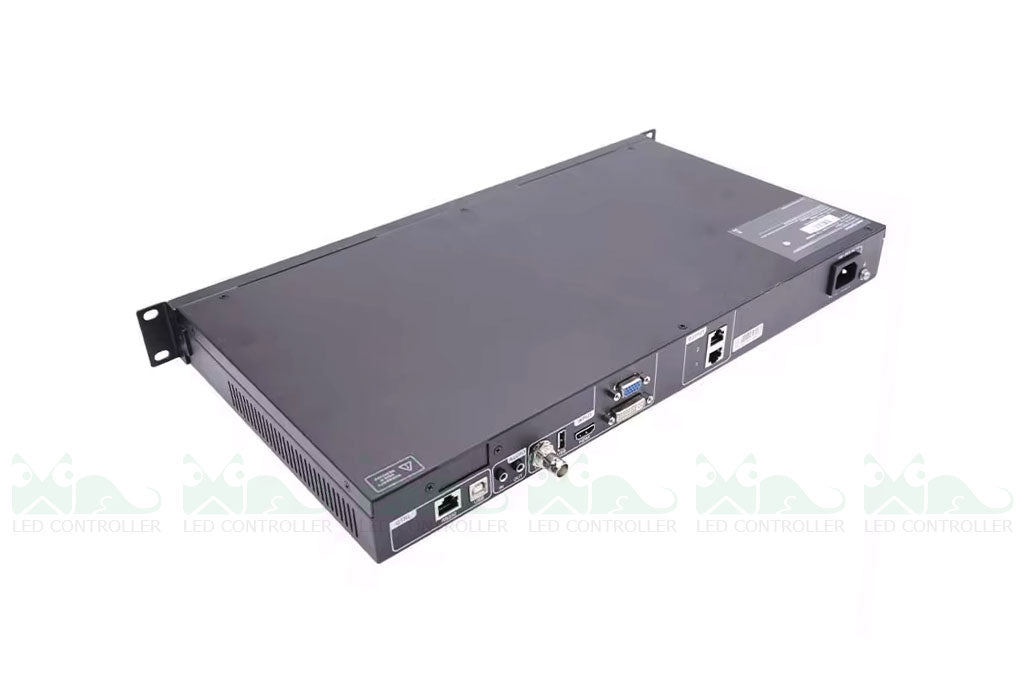

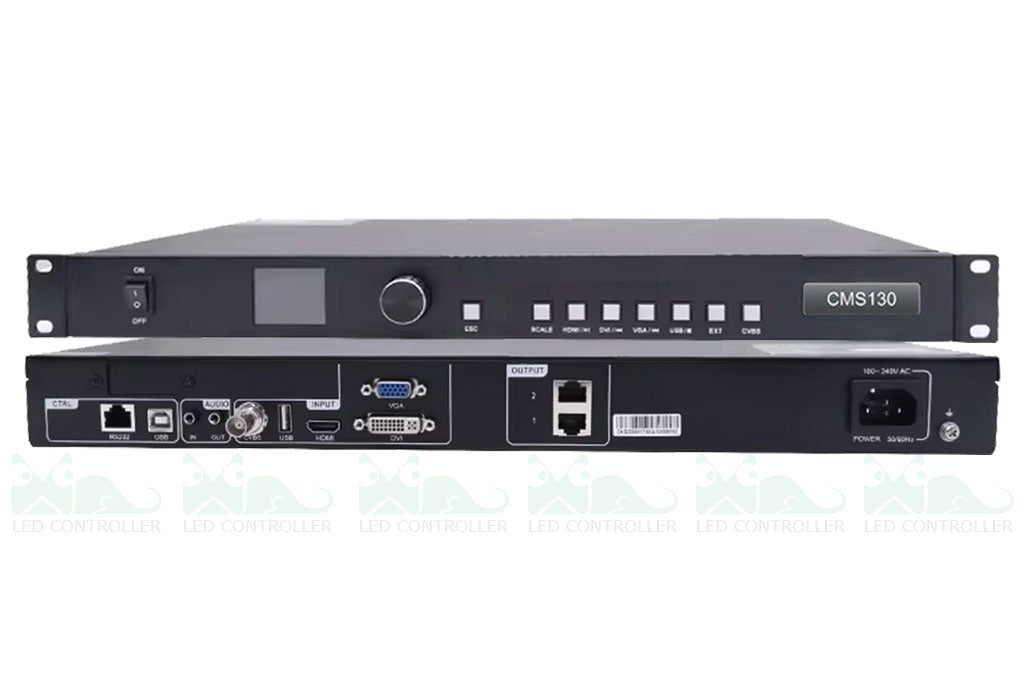

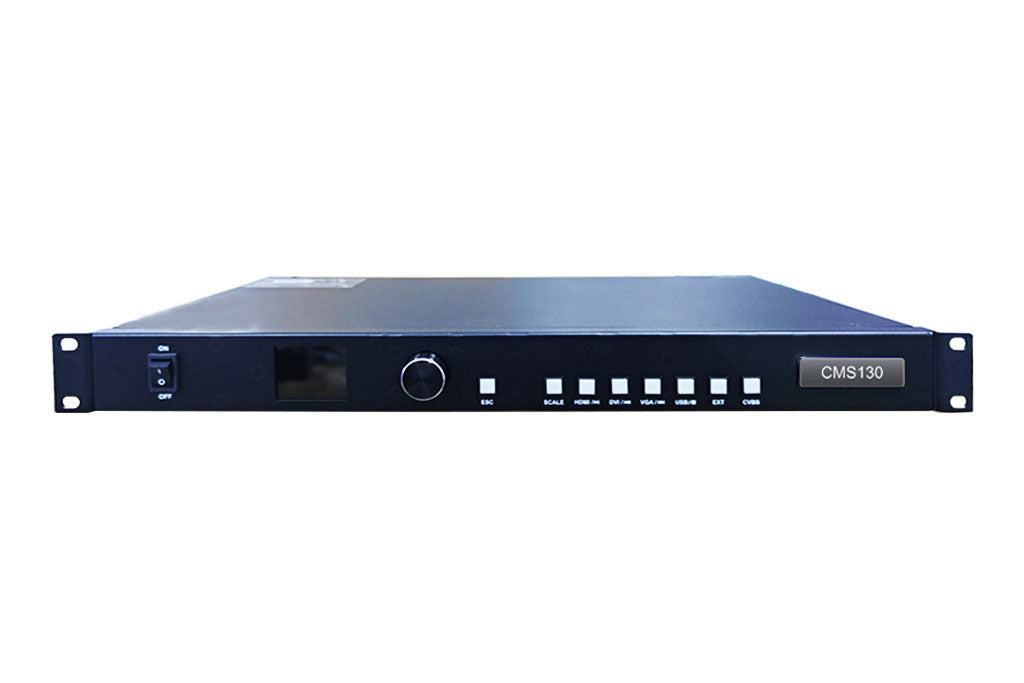

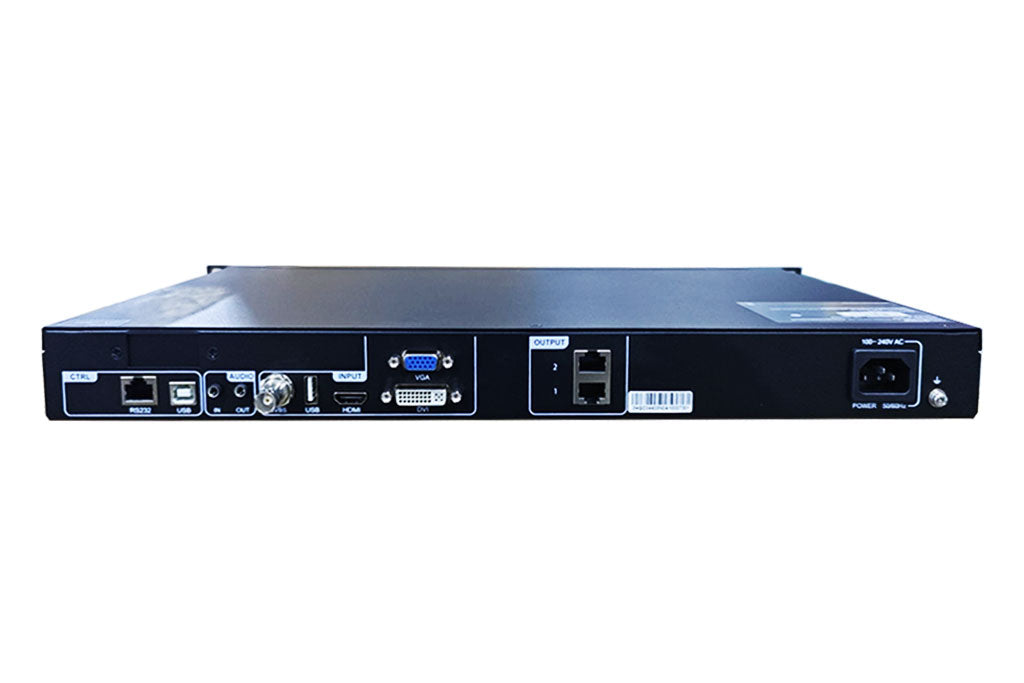

Novastar CMS130 (VX200s-N) LED Video processor Appearance

Novastar CMS130 (VX200s-N) LED Video processor Working Diagram

Power connector:AC 100-240V–50/60Hz
Overall consumption:12 W
Operating temperature:-20°C–60°C
Dimensions:482.6 mm ×250 mm ×50.1 mm
Weight:6.00 kg
