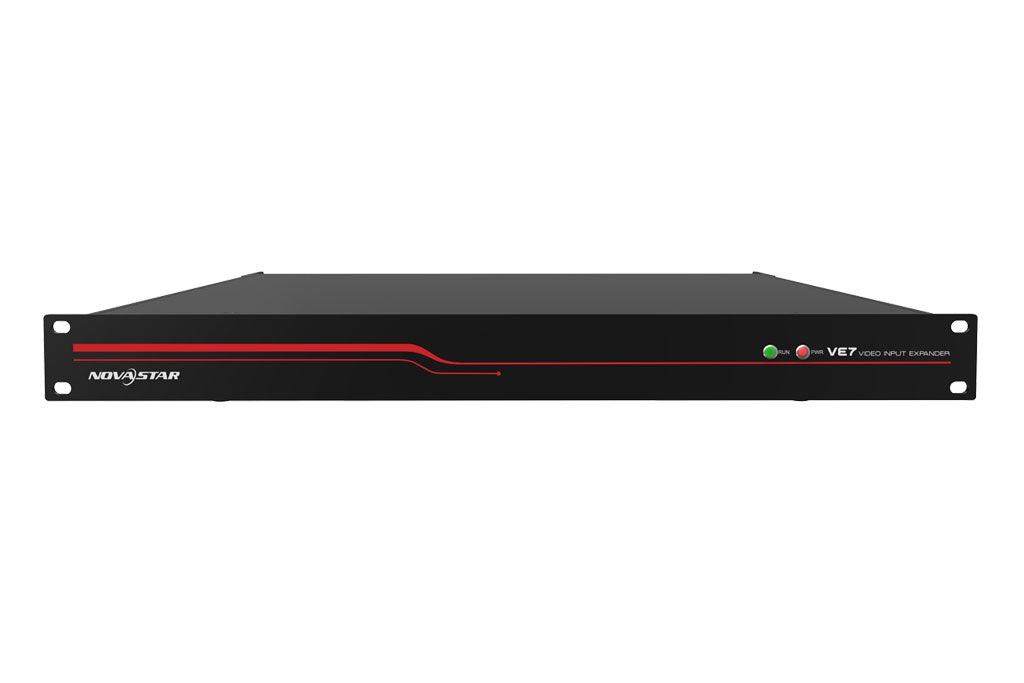

Novastar VE7 Video Input Expander
- Industry-standard video input connectors
− HDMI 1.3: 1920×1080@60Hz and other VESA standard video source inputs
− 3G-SDI: 1920×1080@60Hz
− DP 1.1: 4K×2K@30Hz
− HDMI 1.4: 4K×2K@30Hz
- 4 optical fiber outputs
- DVI MVR output
− Displaying input resolution and frame rate
− Loop output of one input source
- EDID management and input color adjustment
− Input color adjustment
- Device update via V-Can or NovaLCT

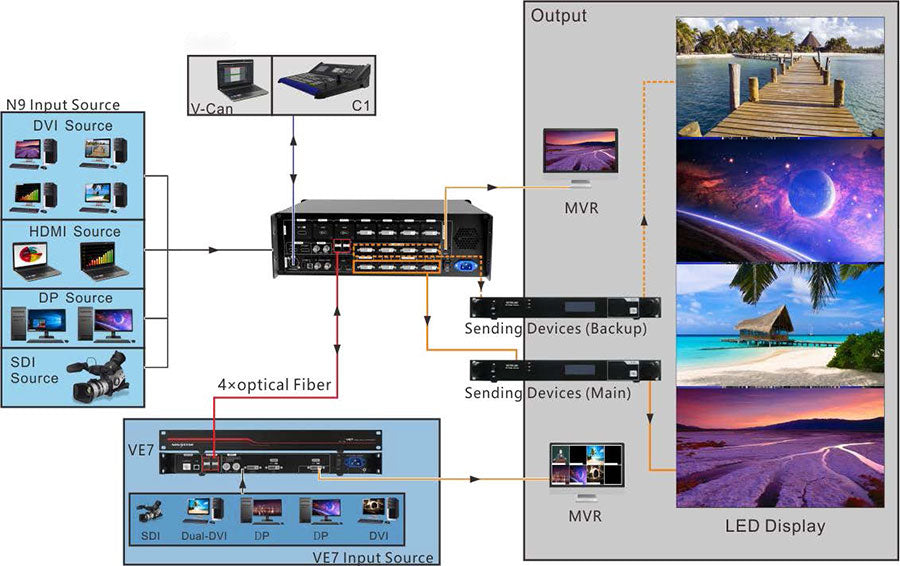

VE7 Video Input Expander Working Diagram
Support for common video input interfaces
DVI interface, supports VESA standard video source input such as 1920×1080@60Hz, supports custom resolution
HDMI1.3 interface supports VESA standard video source input such as 1920×1080@60Hz. Support for custom resolution
3G-SDI interface, supports 1920×1080@60Hz input, backward compatible, supports de-interlacing
DP1.1 interface, support 4K×2K@30Hz input, backward compatible, support custom resolution
HDMI1.4 interface, supports 4K×2K@30Hz input, backward compatible, supports custom resolution
Dual DVI interface, supports 4K×2K@30Hz input, backward compatible, supports custom resolution
Supports 4 fiber optic outputs
The input source received by VE7 is output to seamless switcher N9 via four optical fibers.
DVI premonitor output
Supports premonitoring of all VE7 input sources.
Support superimposed display of information such as input resolution and frame rate.
Supports 1 input source loop output for VE7.
EDID management and image quality adjustment
Input resolution management with support for DVI, HDMI and DP interfaces
VE7 input quality adjustment support
Support for upgrading devices via V-Can or NovaLCT

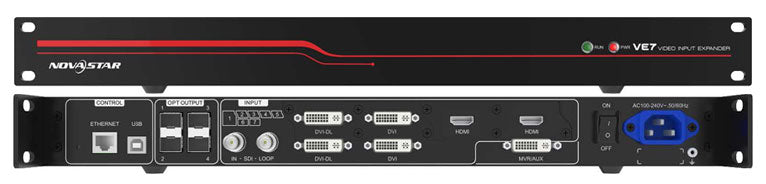

Novastar VE7 Video Input Expander
Electrical specifications
Power connector:AC100-240V~, 50/60Hz。
Power consumption:40W
Operating environment
Operating temperature:0℃~60℃
Operating humidity:0%RH~95%RH non-condensing
Storage temperature:-20℃~60℃
Physical specifications
Dimensions:482.6mm×382.0mm×51mm
Net weight:3.4 kg
Further Information:
VE7
Novastar VE7 Video Input Expander Specification
