Novastar TCC70G LED Multimedia Player Controller Card for Smart Car Screen
Novastar TCC70G LED Multimedia Player Controller Card for Smart Car Screen
Couldn't load pickup availability
Novastar TCC70G Smart Car Screen Sending Card
The TCC70G, launched by NovaStar, is a multimedia player that integrates sending and receiving capabilities. It allows for solution publishing and screen control via various user terminal devices such as PC, mobile phone and tablet. The TCC70G can access the cloud publishing and monitoring platforms to easily enable cross-region clustered management of screens.The TCC70G comes with eight standard HUB75E connectors for communication and supports up to 16 groups of parallel RGB data. On-site setup, operation and maintenance are all taken into account when the hardware and software of the TCC70G were designed, allowing for an easier setup, more stable operation and more efficient maintenance.
Thanks to its stable and secure integrated design, the TCC70G saves space, simplifies cabling, and is suitable for the applications requiring small loading capacity, such as vehicle-mounted displays, small traffic displays, displays in communities, and lamp-post displays.
. Loading capacity of a single card up to 512×384 pixels
− Maximum width: 1280 (1280×128)
− Maximum Height: 512 (384×512)
·1x Stereo audio output
·1x USB 2.0 port
Allows for USB playback.
·1x RS485 connector
Connects to a sensor such as light sensor, or connects to a module to implement corresponding functions.
·Powerful processing capability
− 4 core 1.2 GHz processor
− Hardware decoding of 1080p videos
− 1 GB of RAM
− 8 GB of internal storage (4 GB available)
·All-round control scheme
− Solution publishing and screen control via user terminal devices such as PC, mobile phone and tablet
− Clustered remote solution publishing and screen control
− Clustered remote screen status monitoring
·Built-in Wi-Fi AP
User terminal devices can connect to the built-in Wi-Fi AP of the TCC70G. The default SSID is "AP+Last 8 digits of SN" and the default password is "12345678".
·Support for global 4G networks (Japan not included, CAT4 by default)
For the details of the supported countries and regions as well as frequency bands, please contact the pre-sales technical engineers of NovaStar.
·Support for GPS positioning and GPS time synchronization
·Support for relays (maximum DC 30 V 3 A)

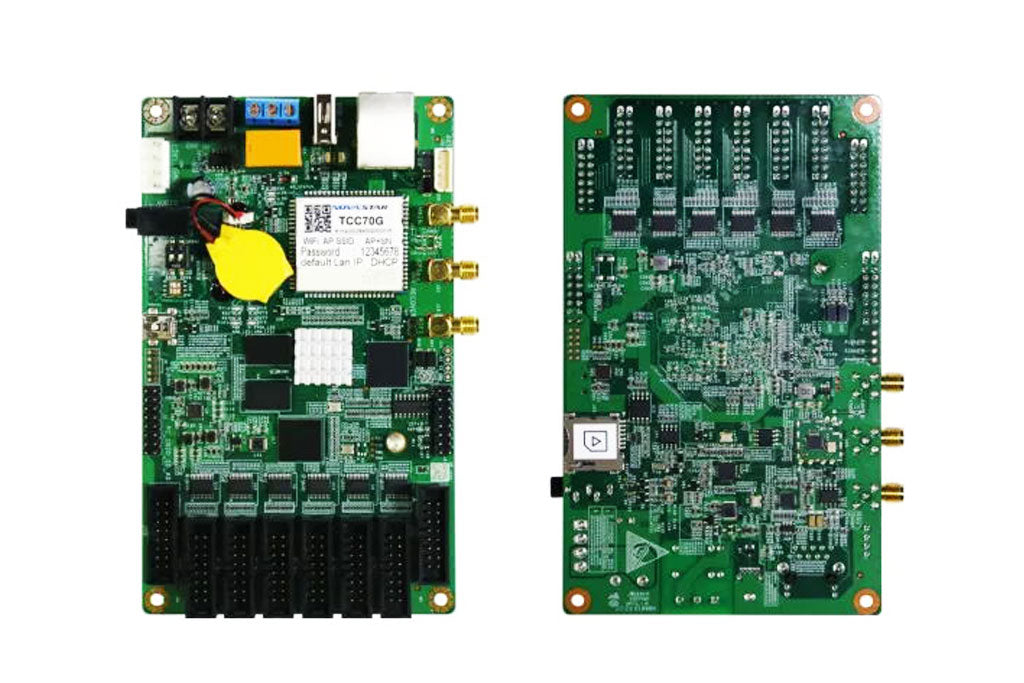

TCC70G Smart Car Screen Sending Card Appearance
TCC70G Smart Car Screen Sending Card Working Diagram
