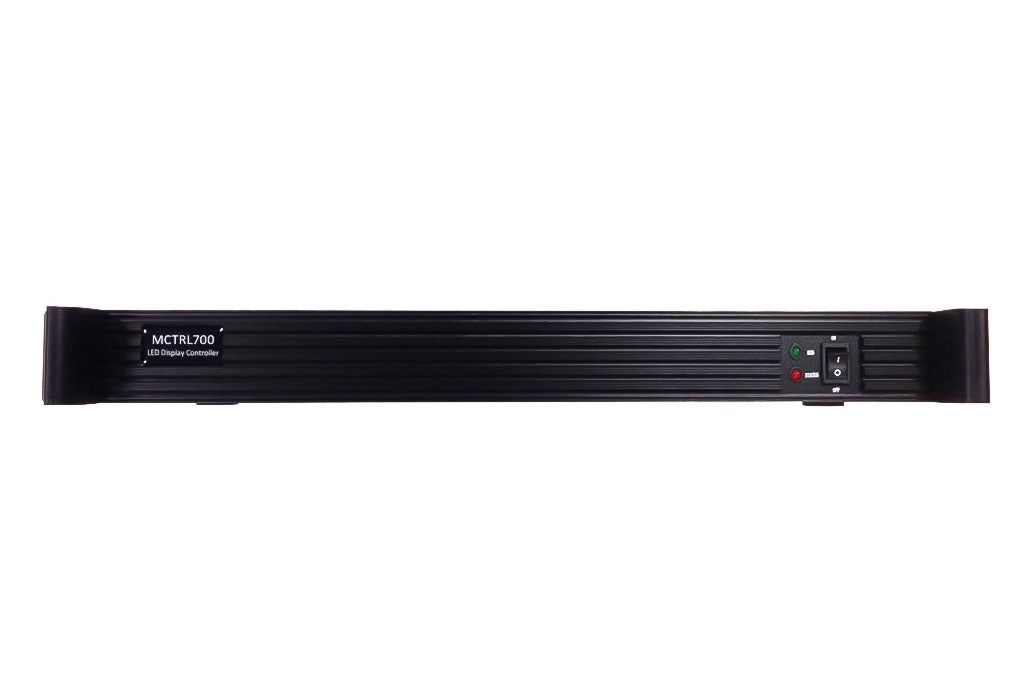

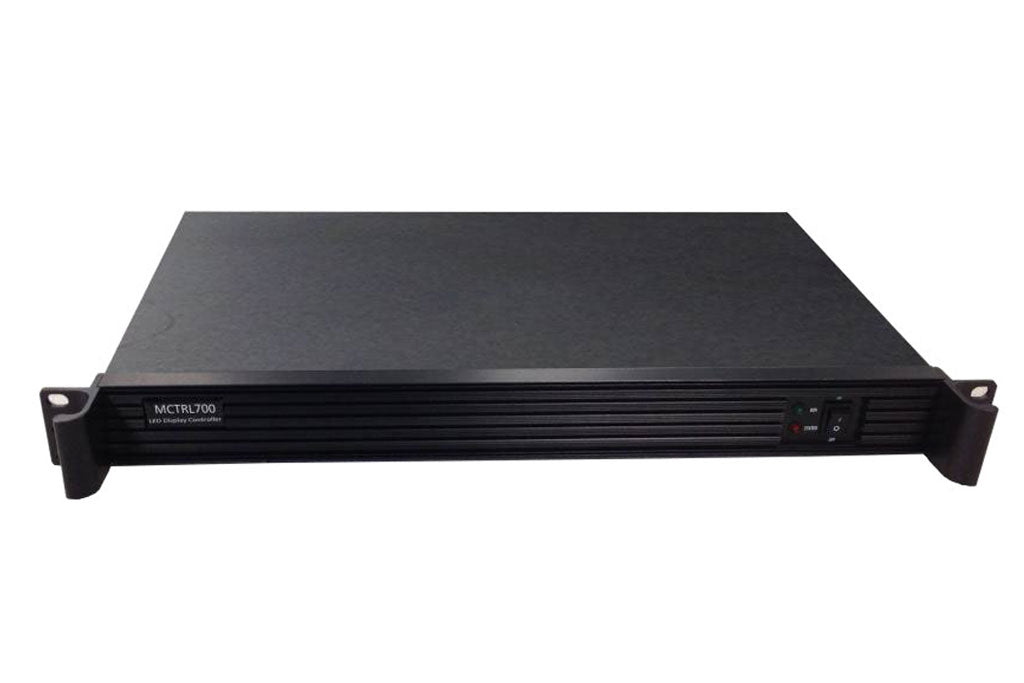

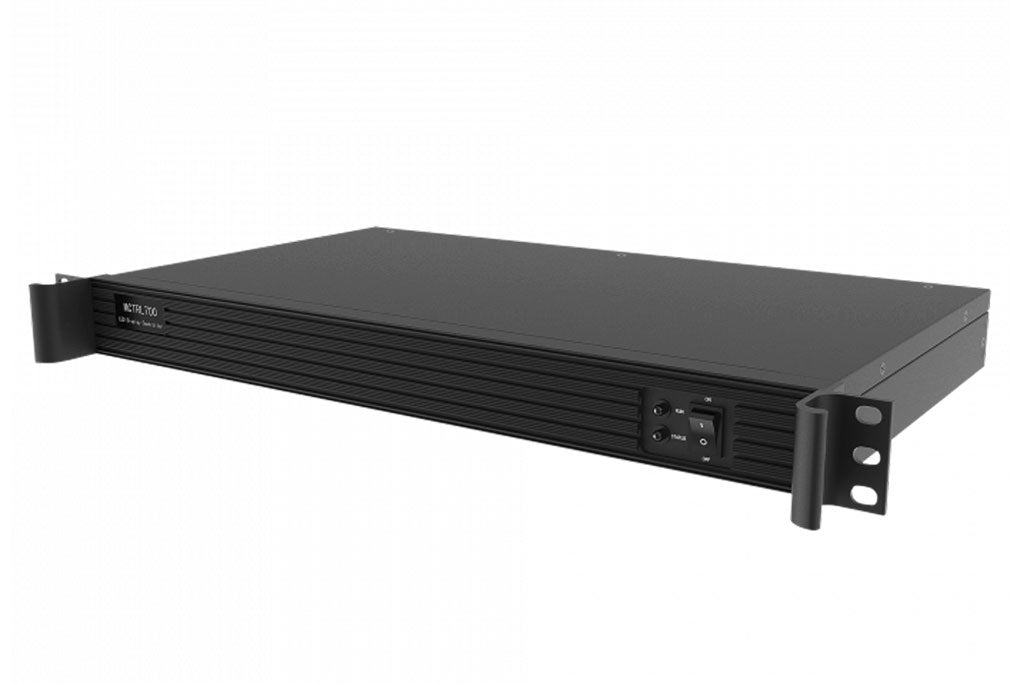

Nova Mctrl Series Mctrl700 LED Sending Box Small Pitch LED Screen Controller

MCTRL700 is a large on-board controller from Nova. The specific features are as follows:

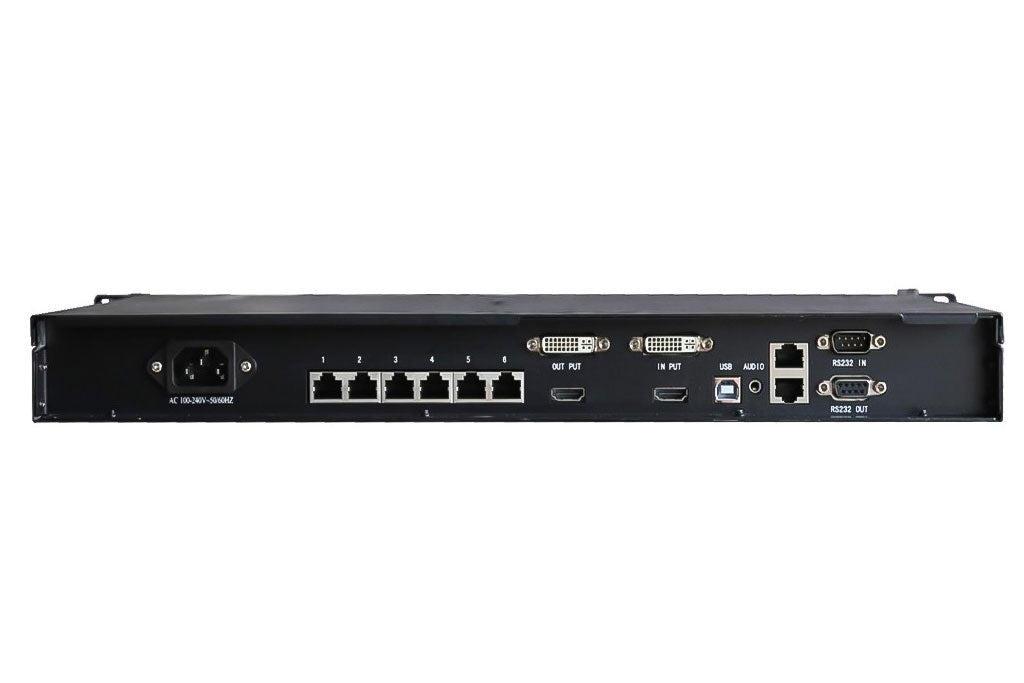

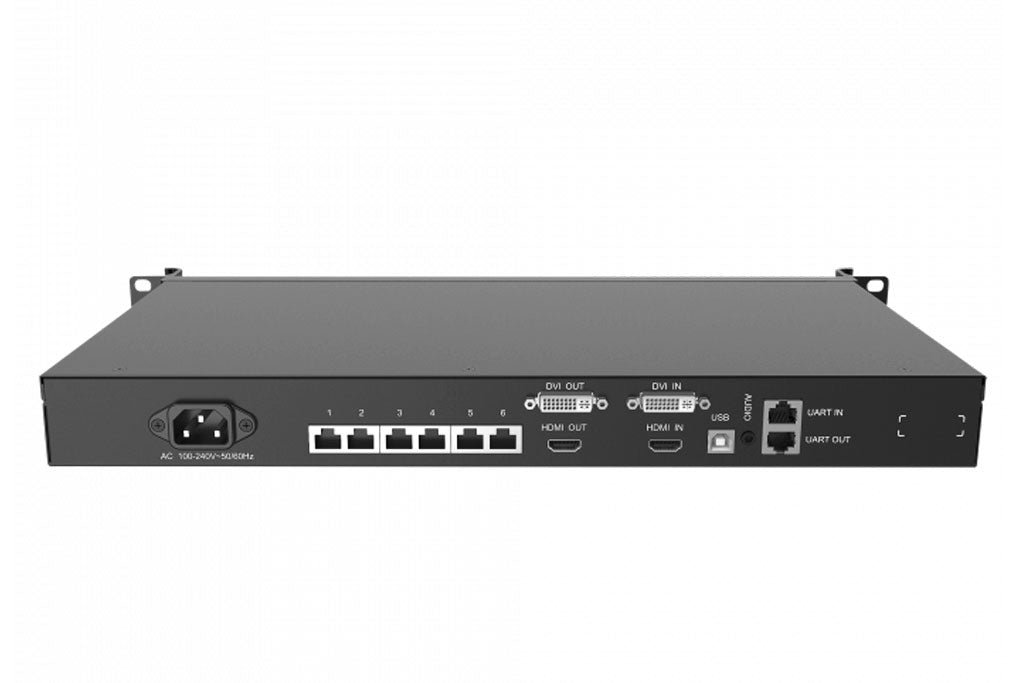

1) Support 1 channel of DVI video source input.
2) Support 1 HDMI video source input.
3) Support 1 channel of audio input.
4) Support 6-channel Gigabit Ethernet port output, each network port supports up to 650,000 pixels.
5) Support 1 channel DVI video source output for cascading or monitoring.
6) Support 1 HDMI video source output for cascading or monitoring.
7) Support 1 way port USB control interface.
8) Supports RS232 IN and RS232 OUT control interfaces for device cascading.
9) Support 2 channels of 100M network port, with square port USB interface, device cascading.
10) Maximum load resolution 2048×1152@60Hz or 1920×1200@60Hz.
