Novastar Mctrl Series Mctrl660 PRO/660/600 LED Sending Box LED Display Controller

The MCTRL Series is a professional controller developed by Nova. A single MCTRL Series has a loading capacity of up to 1920×1200@60Hz. It allows users to customize resolutions to configure ultra-large screens with ultra-width or ultraheight .

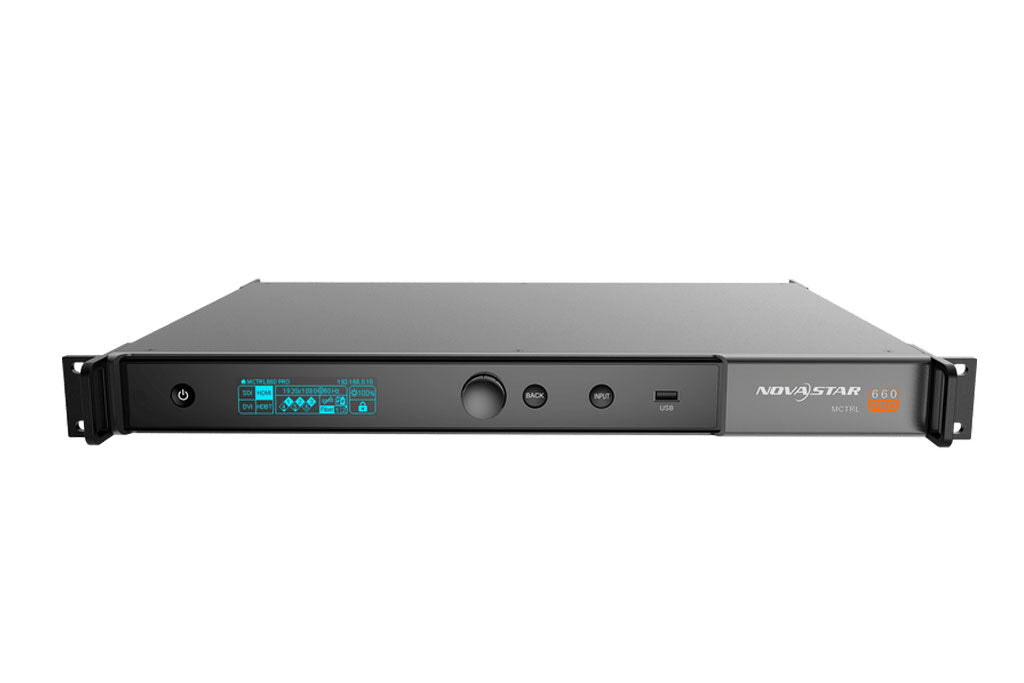

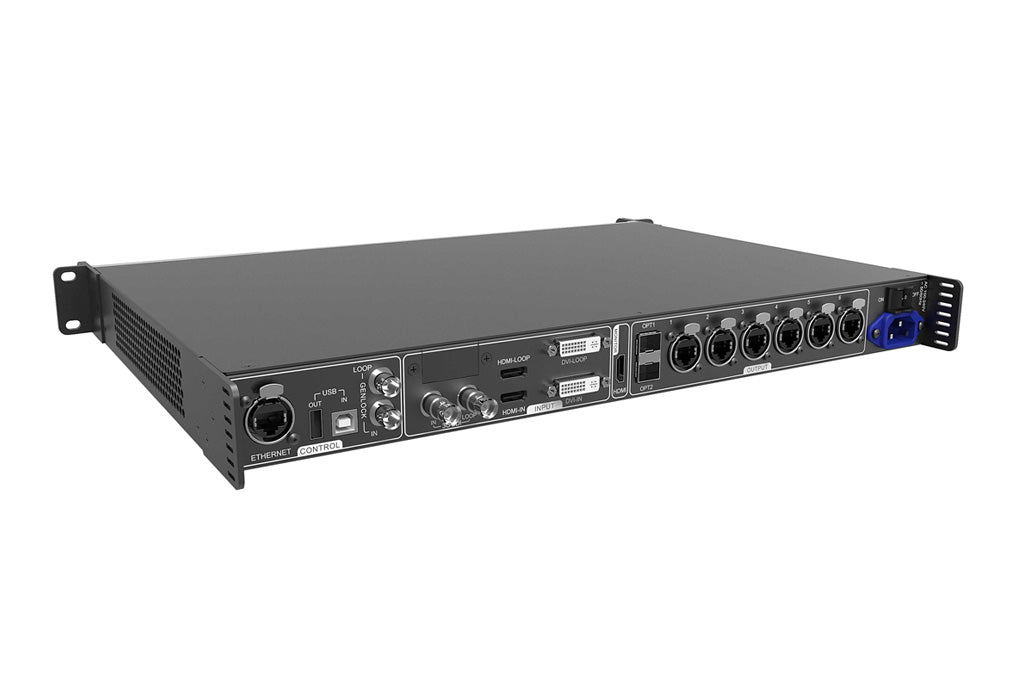

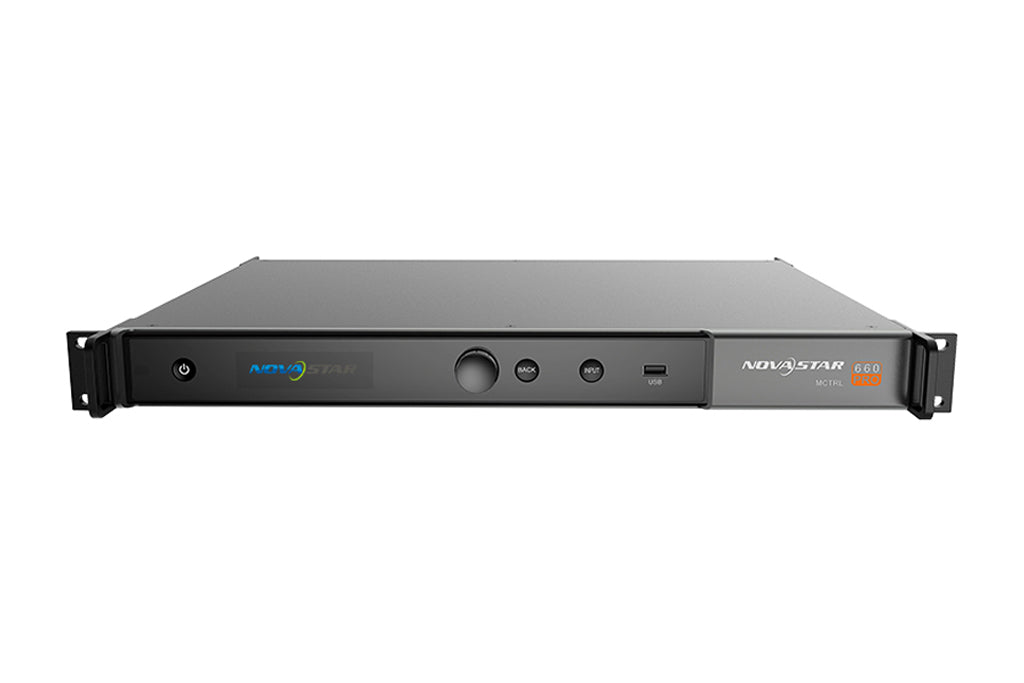

LED Video Controller Appearance



LED Video Controller Working Diagram

• Product Type ：Controller

• Input Resolution ：1920×1200@60Hz

• Capacity ：2.3 million pixels

• Supply Voltage ：100～240V AC

• Control Method ：USB, ETHERNET,GENLOCK

• Video Interface ：HDMI/DVI/3G-SDI

• Audio Interface ：HDMI/3.5mm Audio connector

• Viedo Format ：RGB444/YCbCr444/YCbCr422/YCbCr420

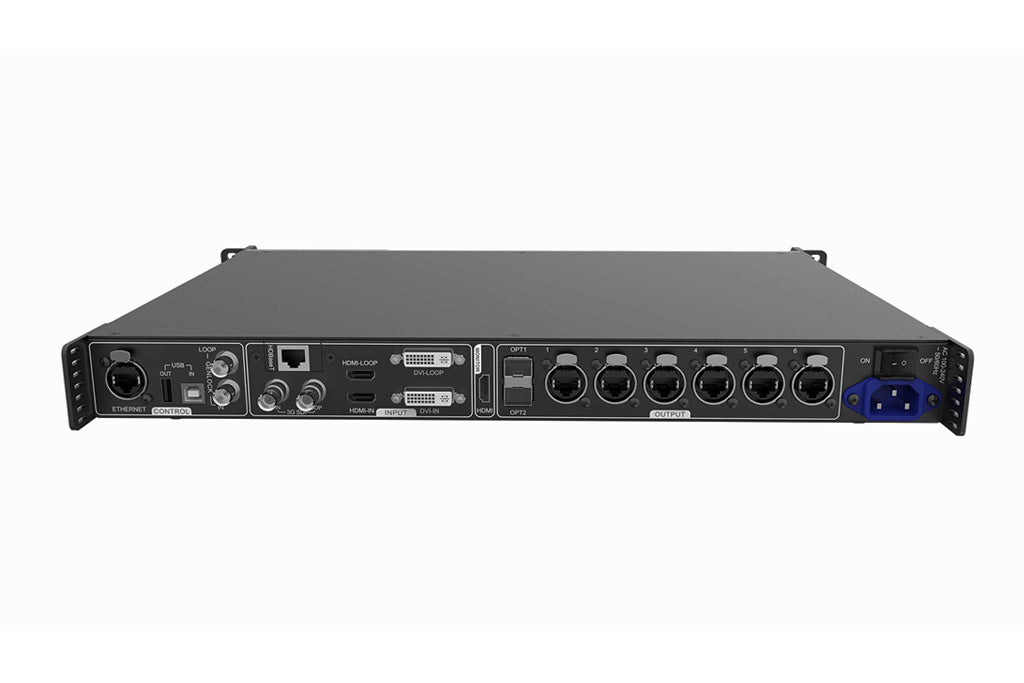

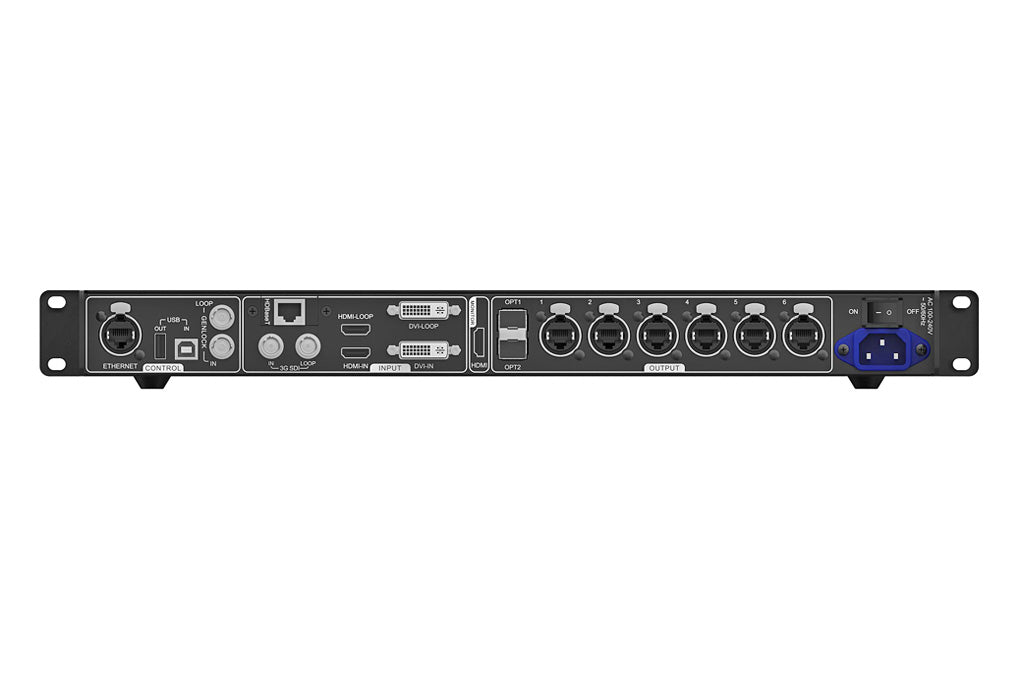

• Output Interface ：6 × Gigabit Ethernet ports, 2 × 10G optical ports.

• Bit Depth Of Video Resource ：8/10/12bit

• Light Sensor Interface ：Don't Support

• Certification ：EMC,  RoHS,  FCC,  IC, LVD

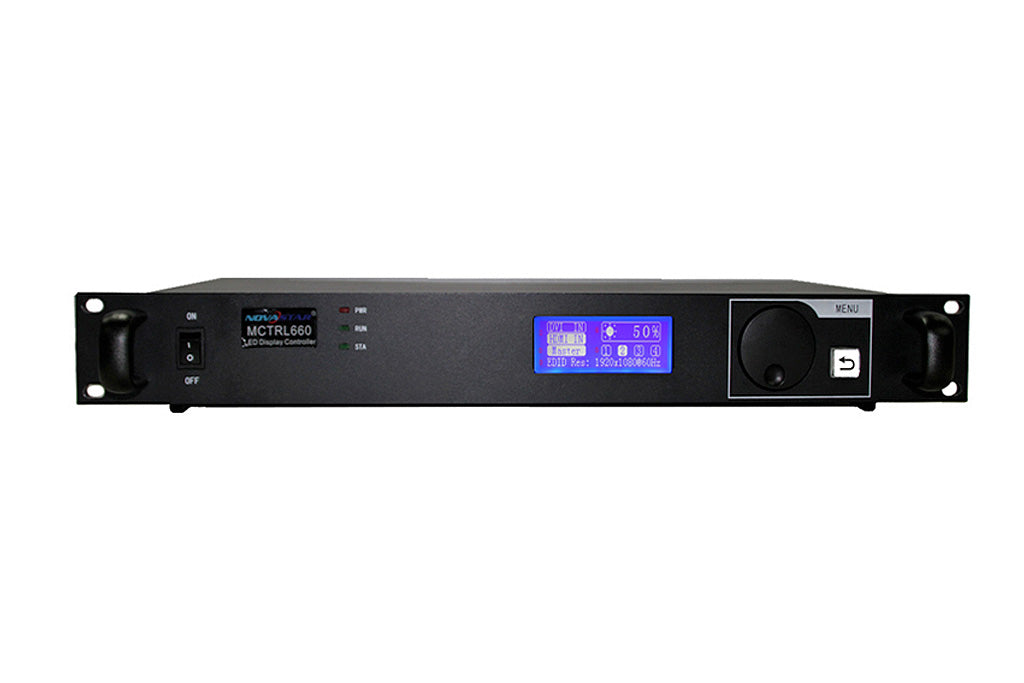

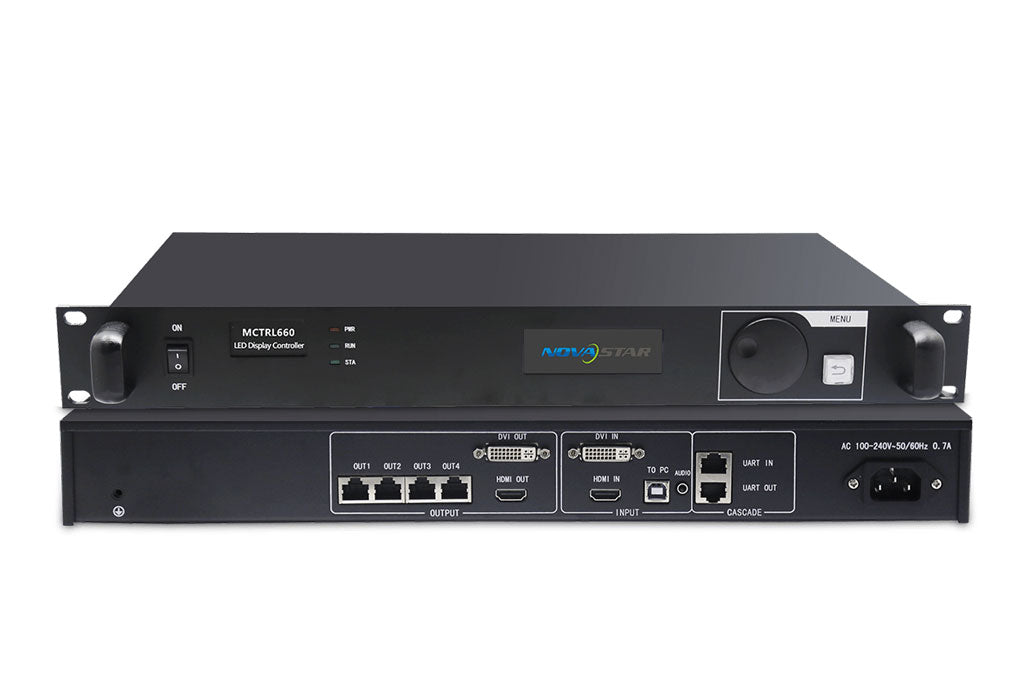

MCTRL660

No PC required for LED display configuration

√  Cabinet config files saving & sending

√  Brightness, Color & Test pattern adjustable by knob

√  Full HD pixels capacity

√  HDCP & 12-bit HDMI

• No PC required for LED display configuration.

• LED display brightness adjustable directly with knob.

• 12-bit / 10-bit HDMI input, DVI input.

• HDMI / DVI output, for cascading or monitoring.

• HDMI / external audio unput.

• HDCP Blu-Ray input.

• Resolutions supported: (8-bit)

  • 2048×1152@60Hz,

  • 1920×1200@60Hz,

  • 2560×  960@60Hz.

• Resolutions supported: (12-bit / 10-bit)

  • 1440×900@60Hz.

• Customized resolution supported:
  maximum width / height up to 3840 pixels.

• Cascading supported.

• Video formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4.

• Independent power supply.

• 19 × 1.5U standard cabinet.

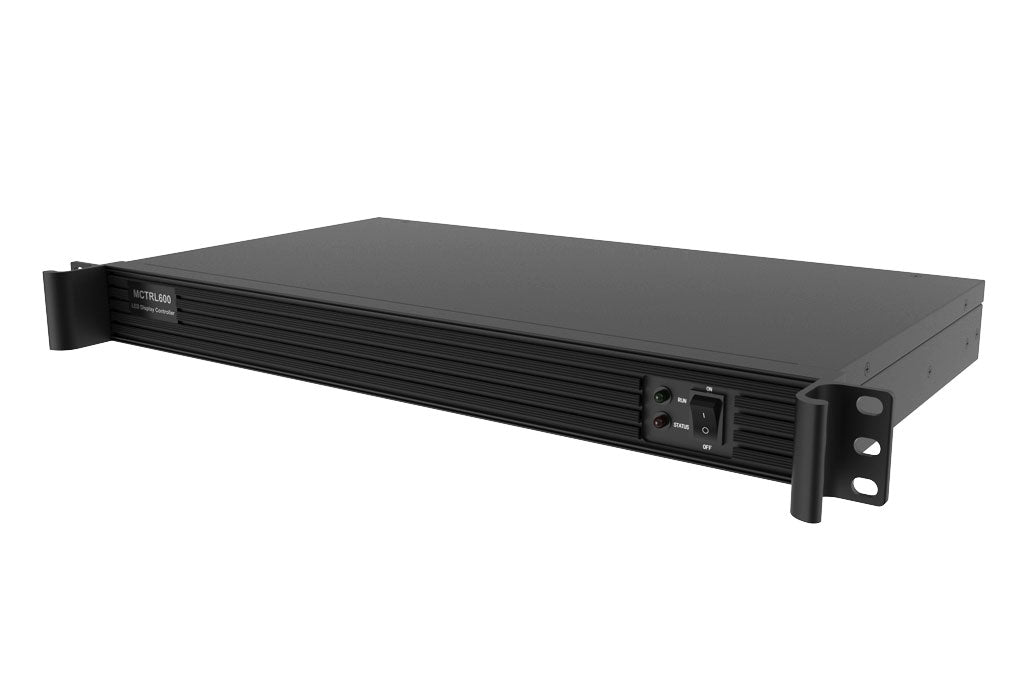

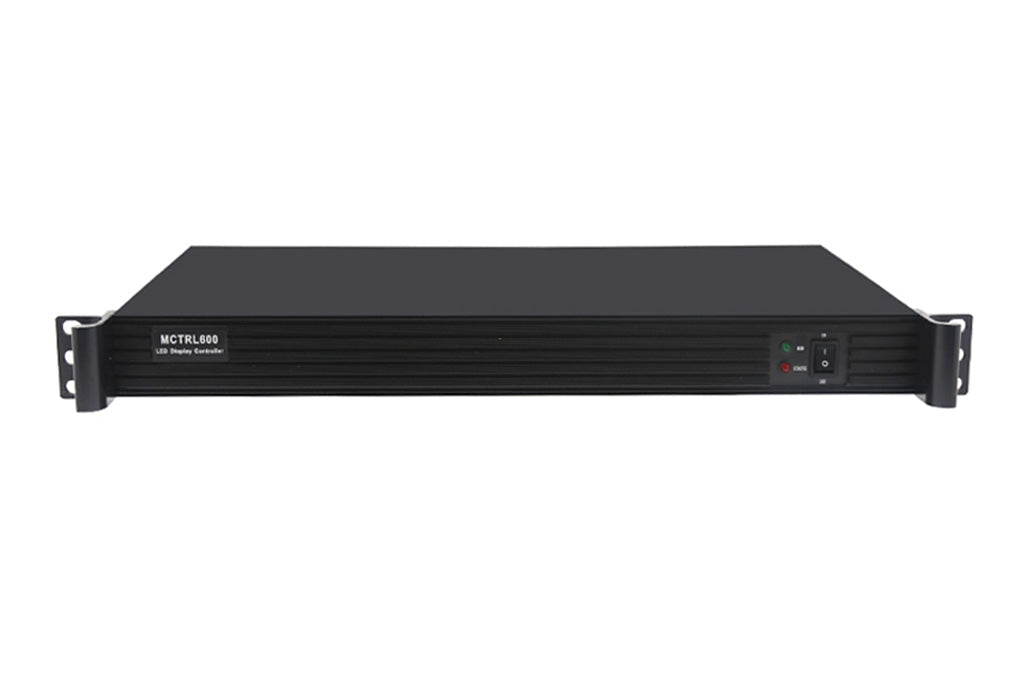

MCTRL600

• 12-bit / 10-bit HDMI input, DVI input.

• HDMI / external audio input.

• HDCP Blu-Ray input.

• ​Resolutions supported: (8-bit)

  • 2048×1152@60Hz​,

  • 1920×1200@60Hz,

  • 2560×  960@60Hz.

  • Customized resolution supported, maximum width/height up to 3840 pixels.

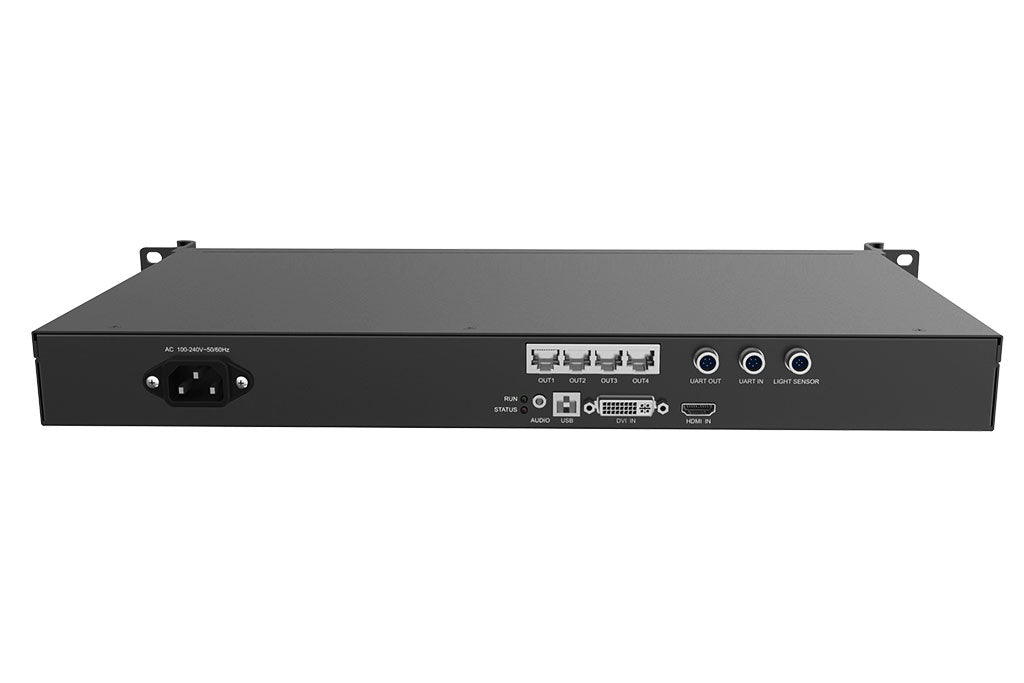

• ​1 light sensor interface, for auto brightness adjustment.

• Cascading supported.

• Video formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4.

• Certification: CE, RoHS, FCC, EAC, IC.
