Novastar

Novastar Mctrl Series Mctrl300 Mctrl500 LED Sending Box LED Screen Controller

Novastar Mctrl Series Mctrl300 Mctrl500 LED Sending Box LED Screen Controller

Regular price $200.00 USD
Regular price $400.00 USD Sale price $200.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

MCTRL300 LED Controller Box of LED Display

1) HDMI/DVI input;
2) HDMI/external audio input;
3) 12bit/10bit/8bit HD video source;
4) Resolution supported: 2048×1152,1920×1200,2560×960;
5) Resolution supported: 1440×900 (12bit/10bit);
6) 1 light sensor interface;
7) Cascading supported;
8) 18bit gray scale processing and presentation;
9) Video format: RGB, YCrCb4:2:2, YCrCb4:4:4;
10) Standard 1U housing and independent power supply.

MCTRL500 LED Display Controller Box

1. 2 DVI interfaces for cascade (video input and output).
2. Audio input interface integrated.
3. Optional data output interfaces (4 RJ45 Ethernet ports or 4 optical fiber ports) to scanbords (receiver cards).
4. RS232 serial ports for cascade instruction communication.
5. Maximum load capacity: 1920×1200 or 2048×1152.
What is Included:
1 x Mctrl500 sending box
1 x power cable (power 110-264 VAC input)
1 x DVI cable
1 x USB cable
*MCTRL500 has been discontinued, please purchase another model MCTRL600/MCTRL700.
MCTRL500/300 LED Controller Box

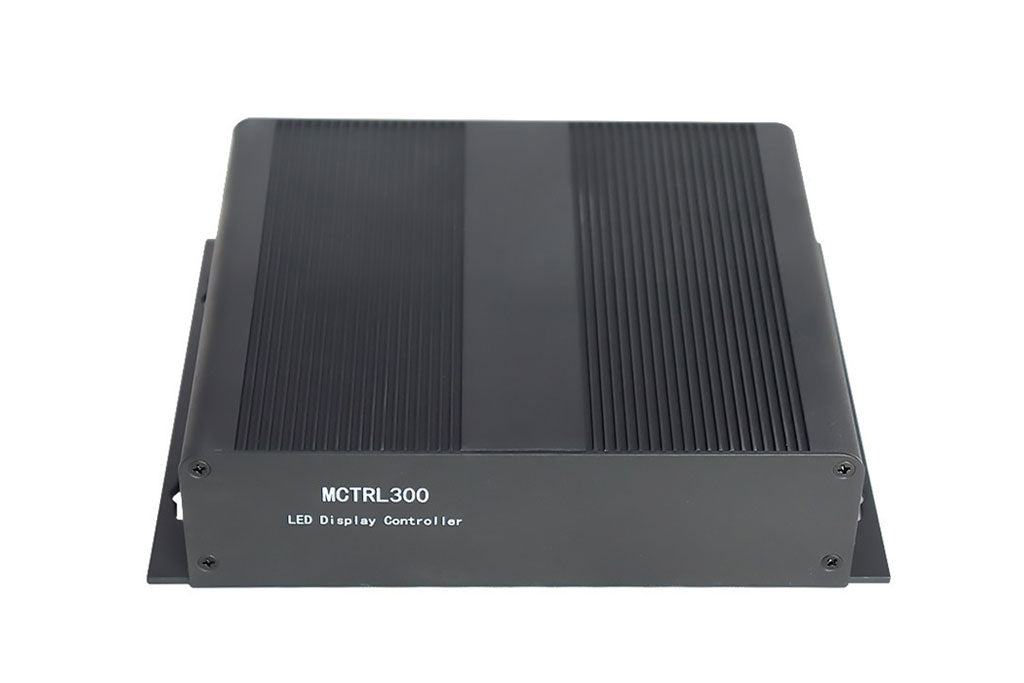

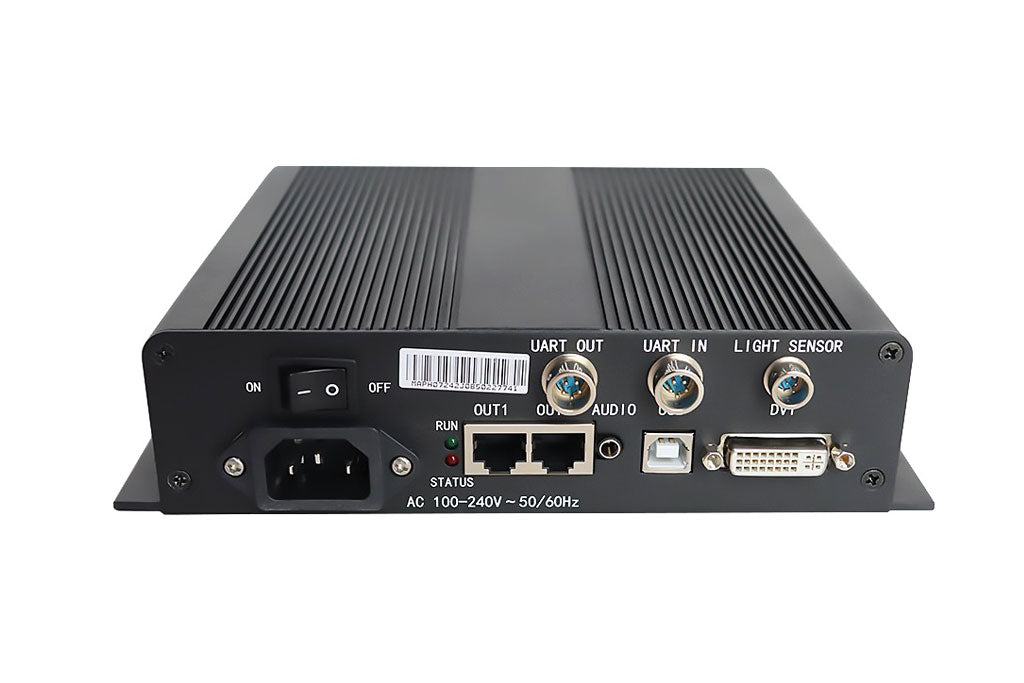

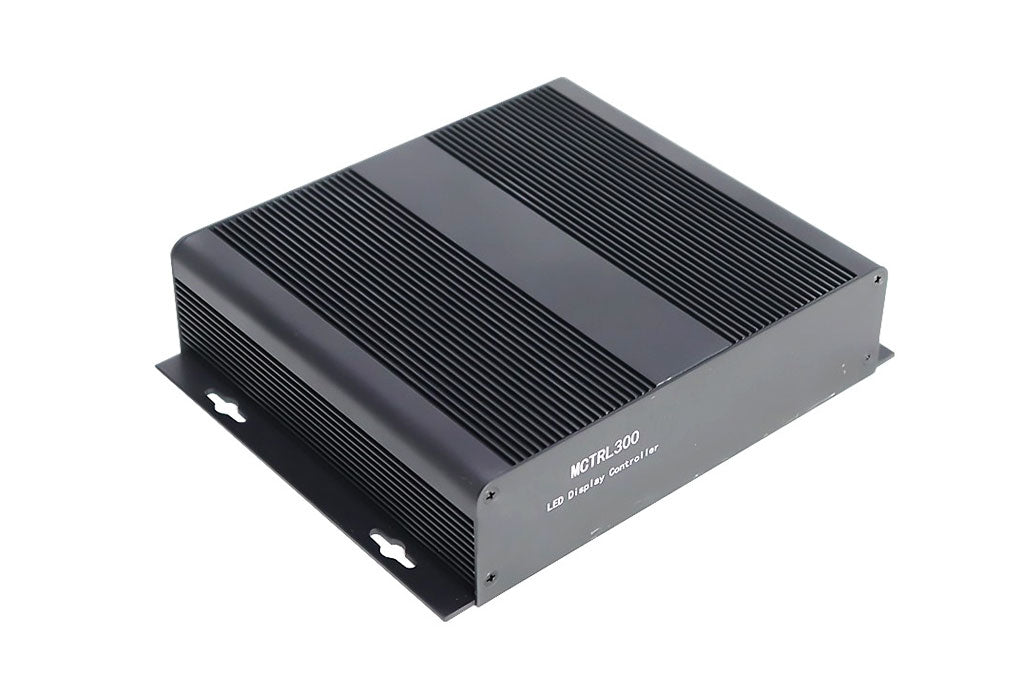

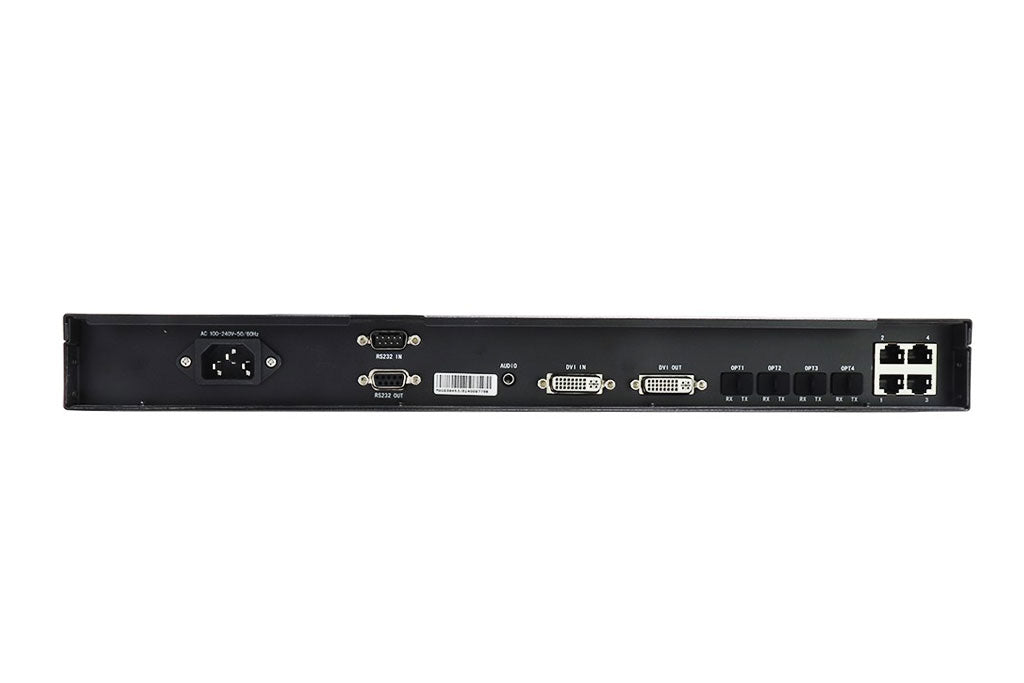

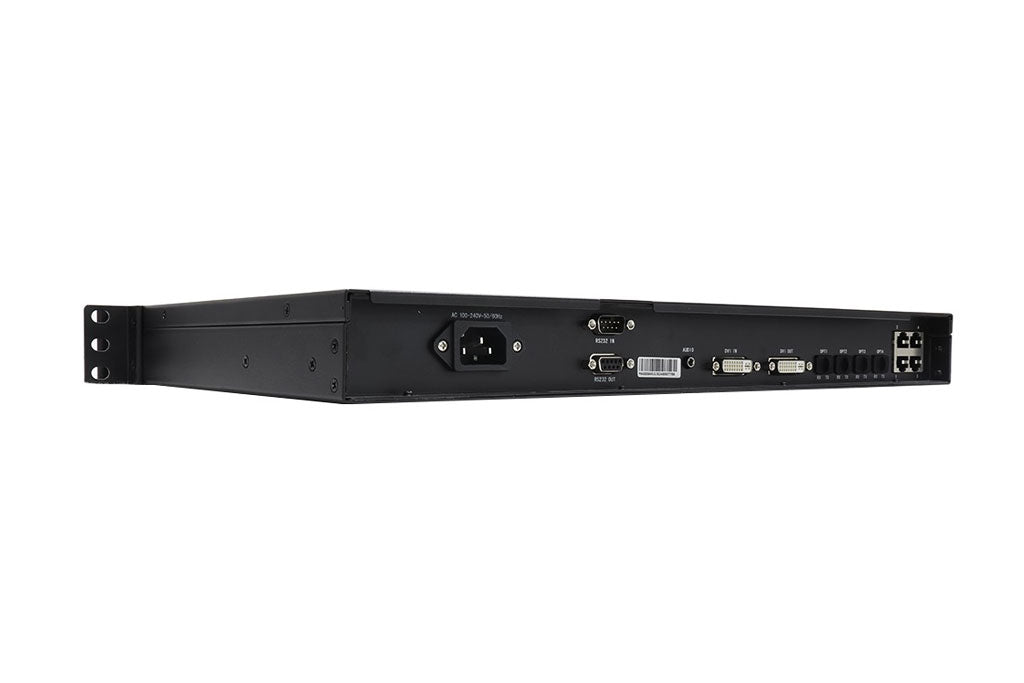

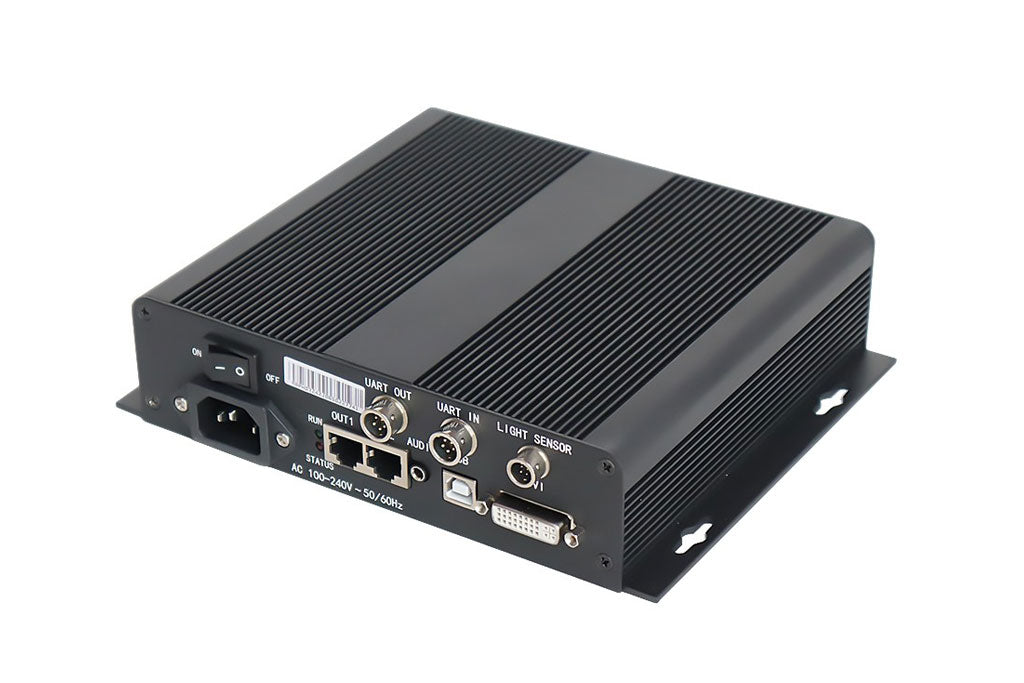

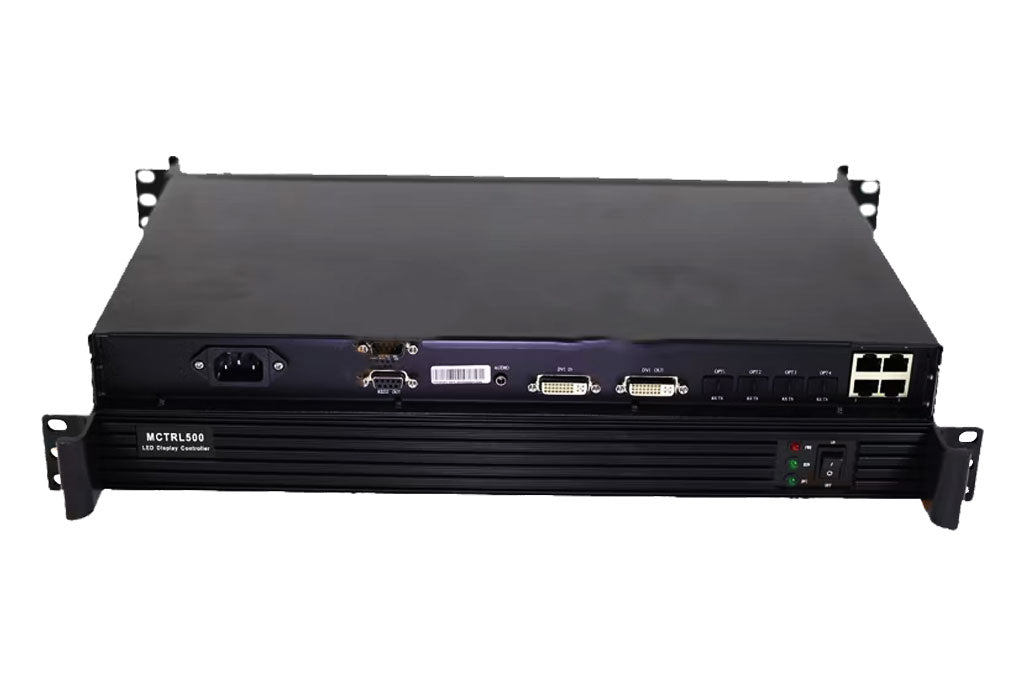

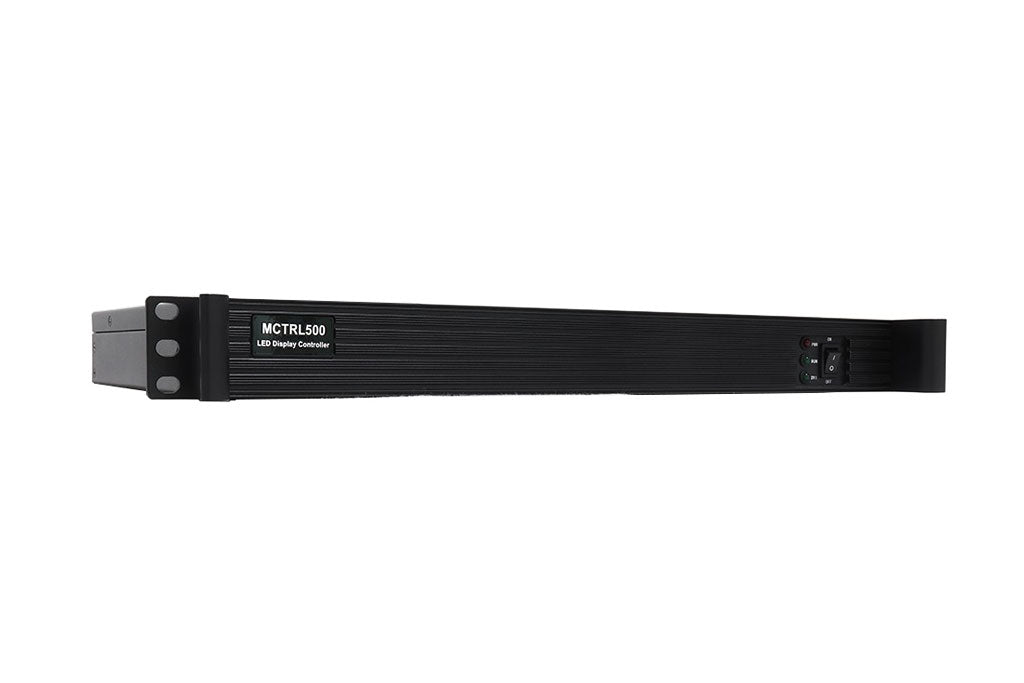

LED Display Controller Box Appearance

MCTRL500/300 LED Controller Box

LED Display Controller Box Specifications

Mctrl300 LED Main Controller
Input voltage: AC 100V-240V~50/60Hz
Rated power consumption: 3.0 W
Temperature: –20°C to +60°C
Humidity: 10% RH to 90% RH, non-condensing
Dimensions: 204.0 mm × 160.0 mm × 48.0 mm
Net weight: 1.04 kg
Note: It is the weight of a single device only.
Cardboard box: 280 mm × 210 mm × 120 mm
Accessories: 1x Power cord, 1x Cascading cable (1 meter), 1x USB cable,1x DVI cable
Certifications: EAC, RoHS, CE, FCC, IC, PFOS, CB

Mctrl500 LED Main Controller
Input voltage: AC 100 V–240 V, 50/60 Hz
Rated power consumption:10 W
Temperature: -20°C–60°C
Humidity: 0% RH–90% RH, non-condensing
Temperature: -20°C–70°C
Dimensions: 482.0 mm × 268.5 mm × 44.4 mm
Weight: 2.9 kg
Space Requirement:1U
Carrying case: 530 mm × 140 mm × 370 mm, craft paper box
Accessory box:402 mm× 347 mm × 65 mm, craft paper box
 1 × power cord,1 × USB cable,1 × DVI cable
Packing box: 550 mm × 440 mm × 175 mm, craft paper box
Certifications: FCC, RoHS, EAC, IC, PFOS, LVD, EMC

Further Information:
Mctrl300
Novastar Mctrl Series Mctrl300 LED Sending Box Specification

Mctrl500
Novastar Mctrl Series Mctrl500 LED Sending Box Specification
