Novastar LED Display Accessories Monitoring Card MON300

Nova MON300 is a monitoring card designed specifically for engineering projects and projects with high requirements of safety.

Monitoring Card MON300 Description:

• Cabinet temperature, humidity and smoke monitoring.

• 8 power supply voltage monitoring.

• Ribbon cable status monitoring.

• Cabinet door open / close status monitoring.

• 4 fan speed monitoring.

• LED error status monitoring.

• Certification: CE, RoHS.

1) Used together with receiving card MRV320;
2) Supporting open and short circuit detection (drive IC support required);
3) Supporting flat cable fault detection;
4) Supporting cabinet humidity detection (no need to purchase extra module);
5) Supporting cabinet temperature detection (no need to purchase extra module);
6) Supporting 8-way power supply voltage detection;
7) Support 4-way fan speed detection;
8) Cabinet door open/close status detection supported;
9) Monitoring card HUB is required for LED status inspection or flat cable detection.

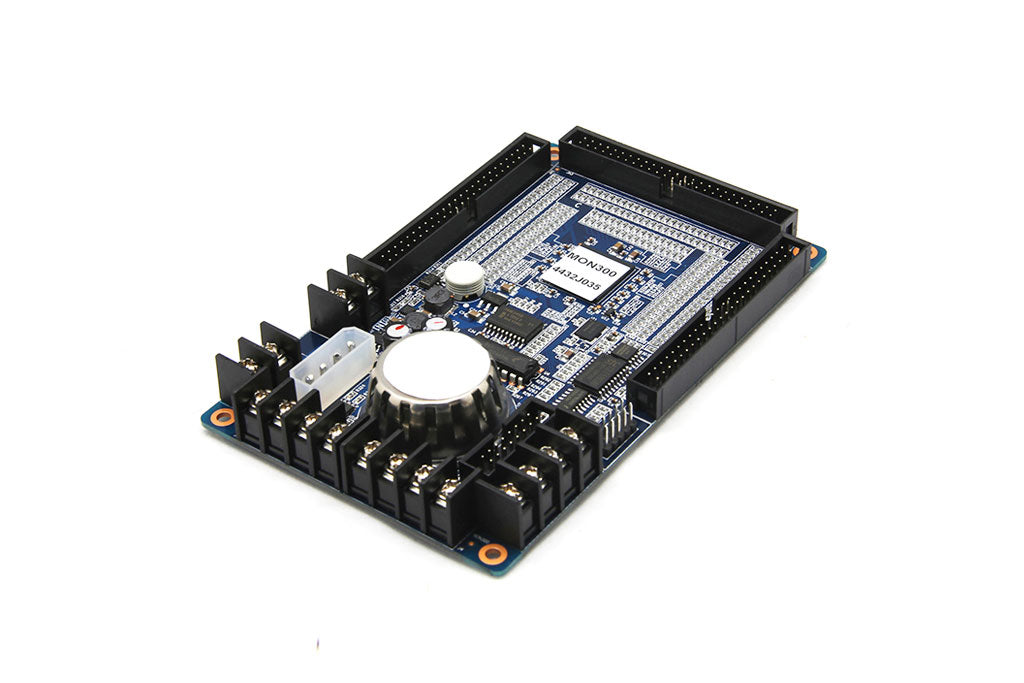

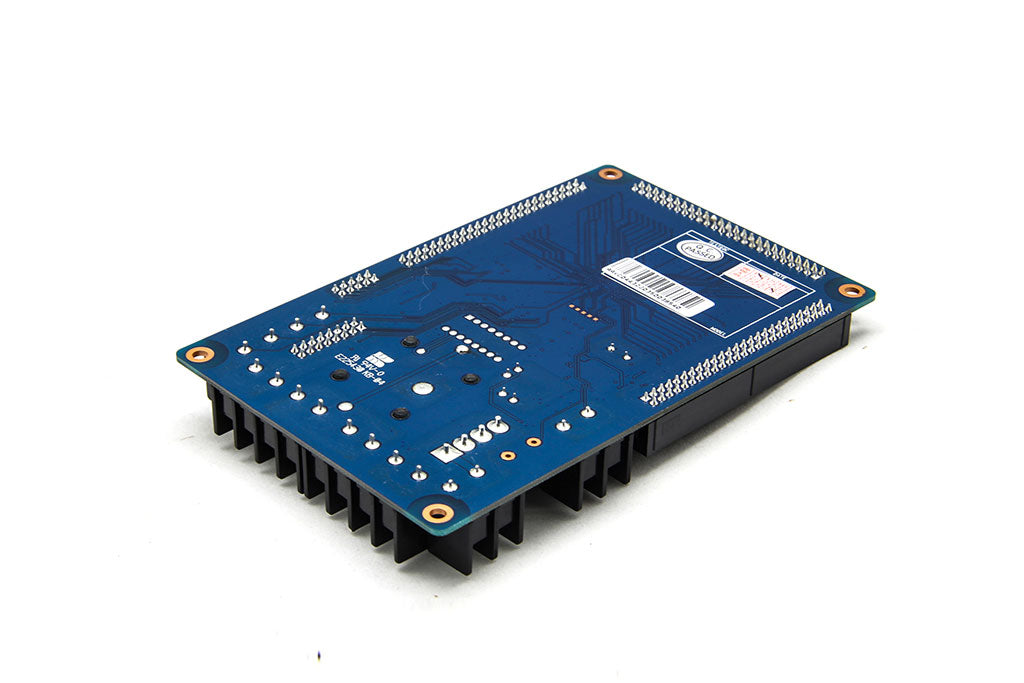

Monitoring Card Appearance

LED Sending Card Working Diagram
