Novastar

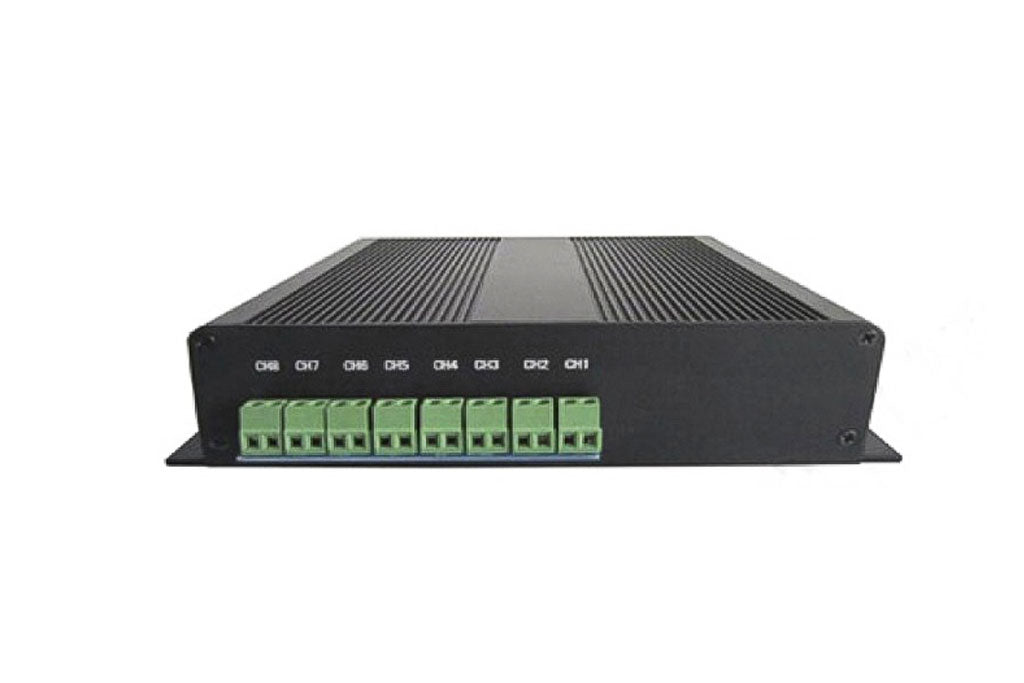

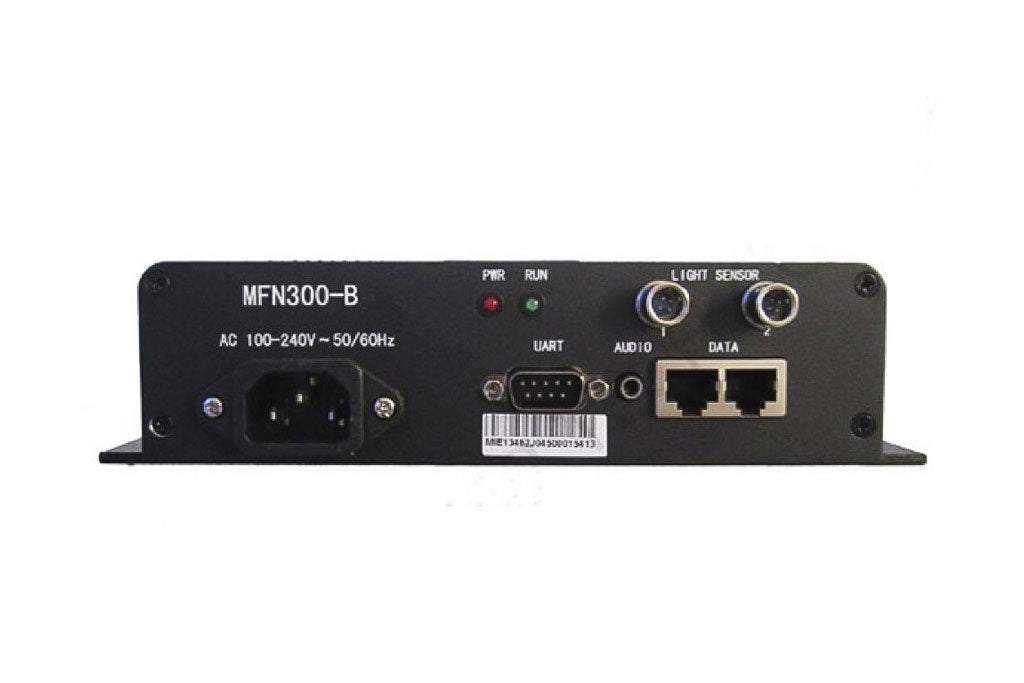

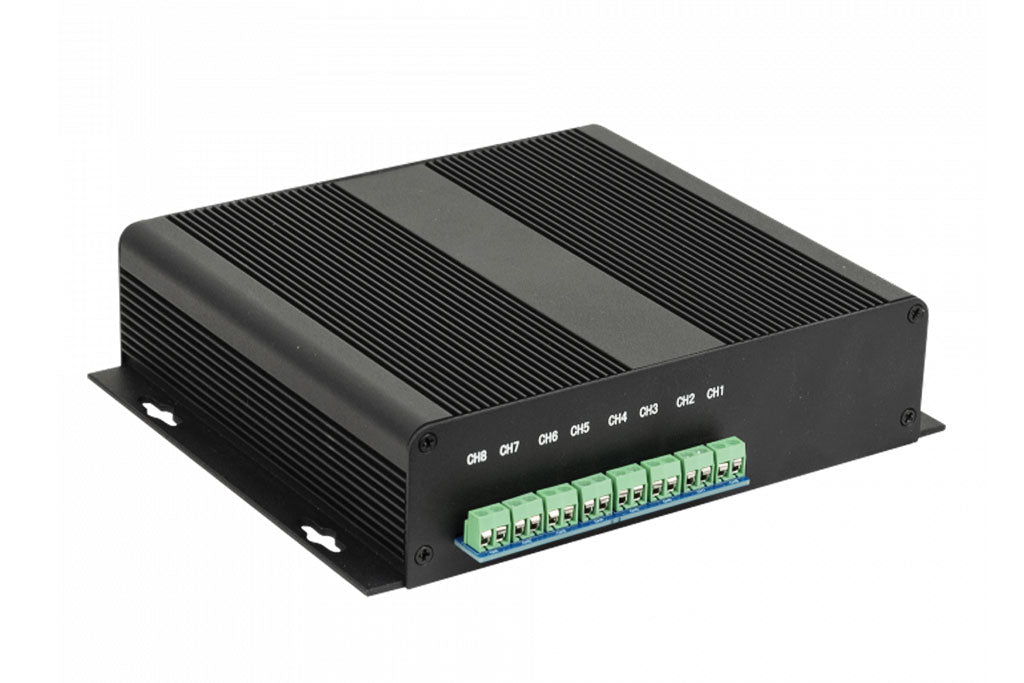

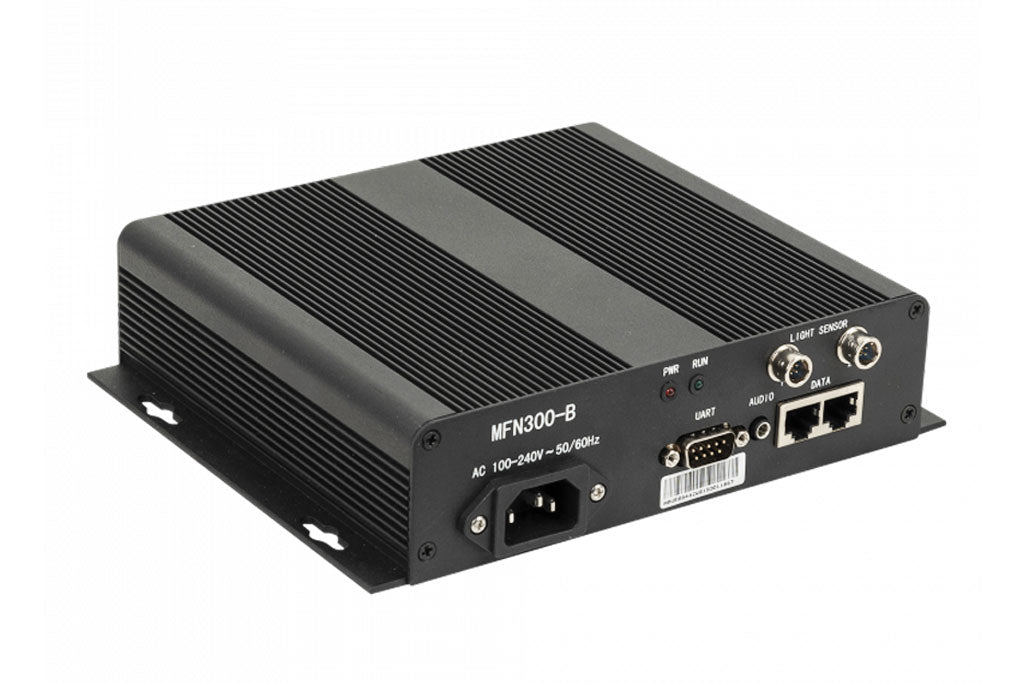

Novastar LED Display Accessories MFN300-B Multi Function Box

Novastar LED Display Accessories MFN300-B Multi Function Box

Regular price $200.00 USD
Regular price $300.00 USD Sale price $200.00 USD
Sale Sold out
Shipping calculated at checkout.

Novastar MFN300-B is a multi-function box with a variety of auxiliary functions. It has the following characteristics:
1) RS232 serial or Gigabit Ethernet port communication;
2) Support Ethernet port connection between two receiving cards or at the end;
3) Has timer function, can replace timer and delayer;
4) Support temperature detection of power distribution box;
5) Support humidity detection of power distribution box;
6) Support audio output;
7) Support 2-way light sensor connection, achieve automatic brightness
adjustment;
8) Support Temperature and humidity module connection;
9) Supports 8-way power switch control;

LED Sending Card Working Diagram

● Connect function card to computer directly by RS232 serial cable.
Multifunction Card MFN300 sc 1
● Connect function card between sending card (or independent controller) and the first receiving card.
Multifunction Card MFN300 sc 2
● Connect function card between any two receiving cards.
Multifunction Card MFN300 sc 3
● Connect function card to the last receiving card.
Multifunction Card MFN300 sc 4
Further Information:
MFN300-B
Novastar MFN300-B Multi Function Box Specification
