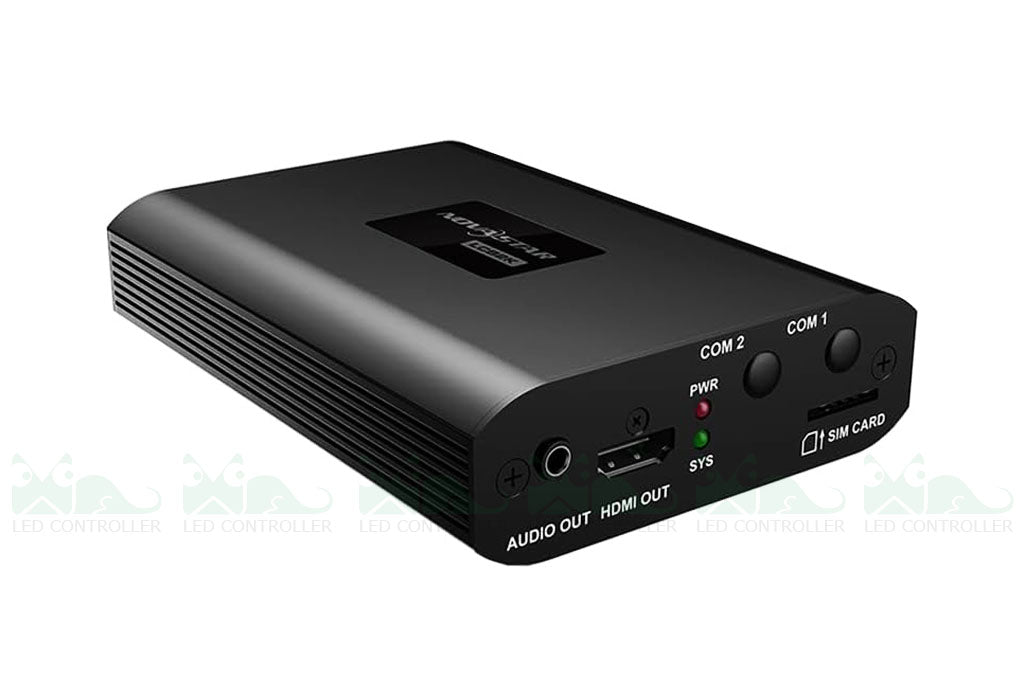

Novastar LCB2K LCD Multimedia Player LCD Display Controller

The LCB2K is an LCD multimedia player created by NovaStar. This multimedia player applies to LCD screens in advertising media, digital signage, commercial display and other fields.

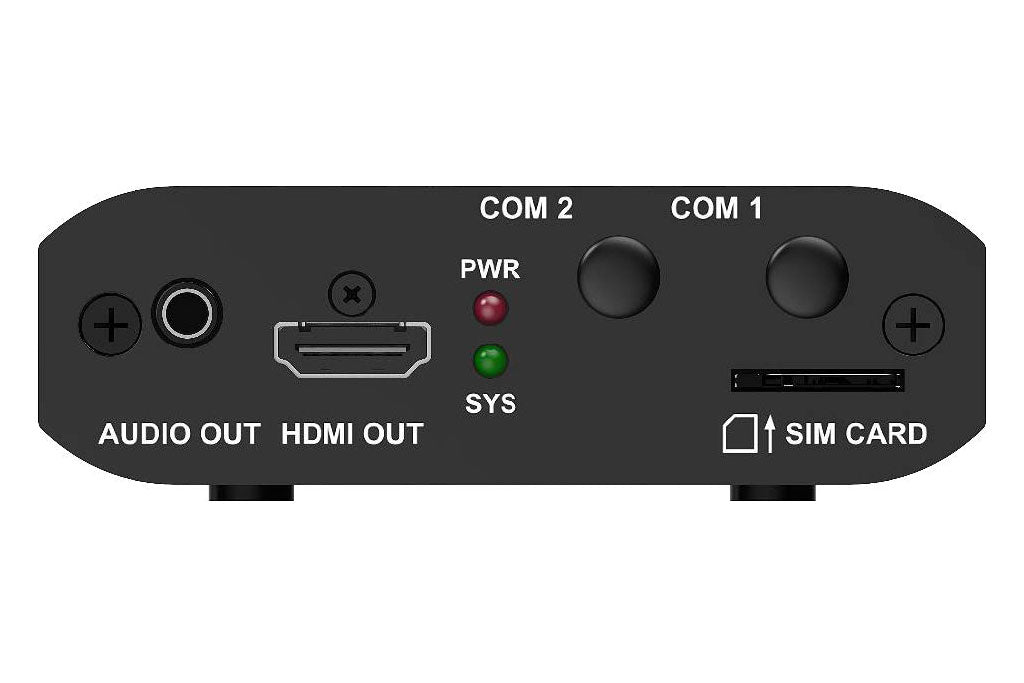

Output

• 1x HDMI connector
• 1x Stereo audio connector
  The audio sample rate of the internal source is fixed at 48 kHz.

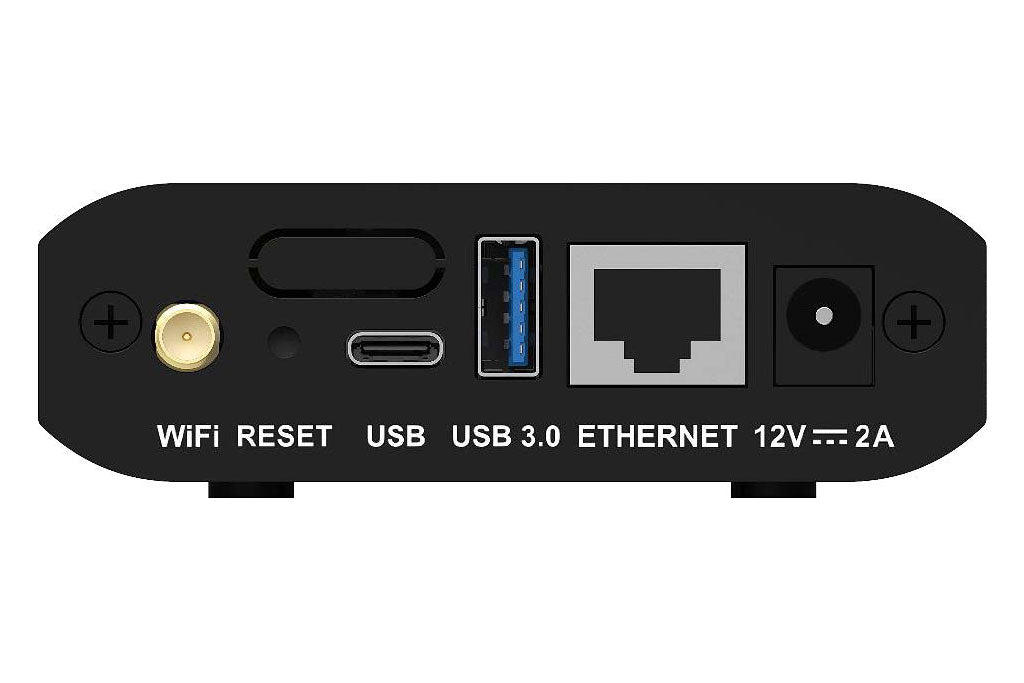

Control

• 1x USB 3.0 (Type A) port
  Allows for playback of content imported from a USB drive and firmware upgrade over USB.

• 1x USB (Type C) port
  Connects to the control computer for solution publishing and screen control.

• 1x Fast Ethernet port
  Connects the control computer to the device,or connects to a LAN or public network for solution publishing and screen control.

Performance

• Powerful processing capacity
  − Quad-core processor @1.3 GHz
  − Support for decoding of 4K videos
  − 1 GB of RAM
  − 16 GB of internal storage
• Flawless playback
  Playback of 1x 4K video, 2x 1080p videos, 4x720p videos

Functionality

• All-round control plans
  − Enables users to publish content and control screens from a computer, mobile phone, or tablet.
  − Allows users to publish content and control screens from anywhere, anytime.− Allows users to monitor screens from anywhere, anytime.

• Synchronous playback across multiple screens(Playback limit: 1x 1080p video)
  − NTP time synchronization
  − GPS time synchronization (The specified 4G module must be installed.)
  − RF time synchronization (The specified RF module must be installed.)


• Switching between Wi-Fi AP and Wi-Fi STA
  − In Wi-Fi AP mode, the user terminal connects to the built-in Wi-Fi hotspot of the LCB2K. The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.
  − In Wi-Fi STA mode, the user terminal and the LCB2K are connected to the Wi-Fi hotspot of a router.

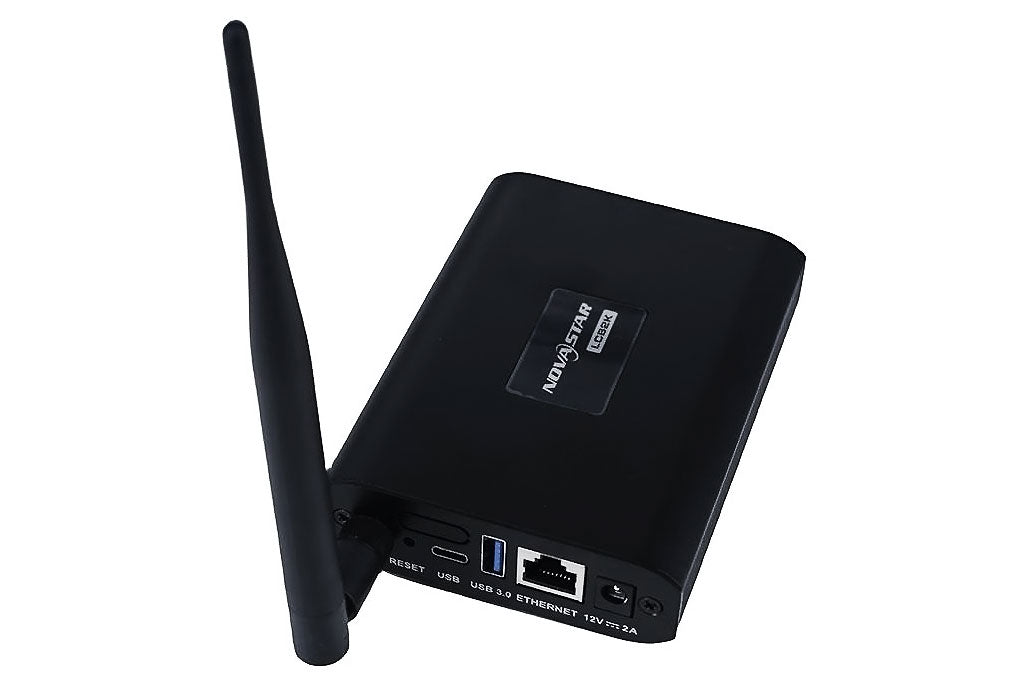

• Support for 4G modules
  The LCB2K ships without a 4G module. Users have to purchase 4G modules separately if needed.
  Network connection priority: Wired network >Wi-Fi network > 4G network When multiple types of networks are available, the LCB2K will choose a signal automatically according to the priority.
