Novastar H Series Standard Central Control Input Card

Novastar H Series Standard Central Control Input Card

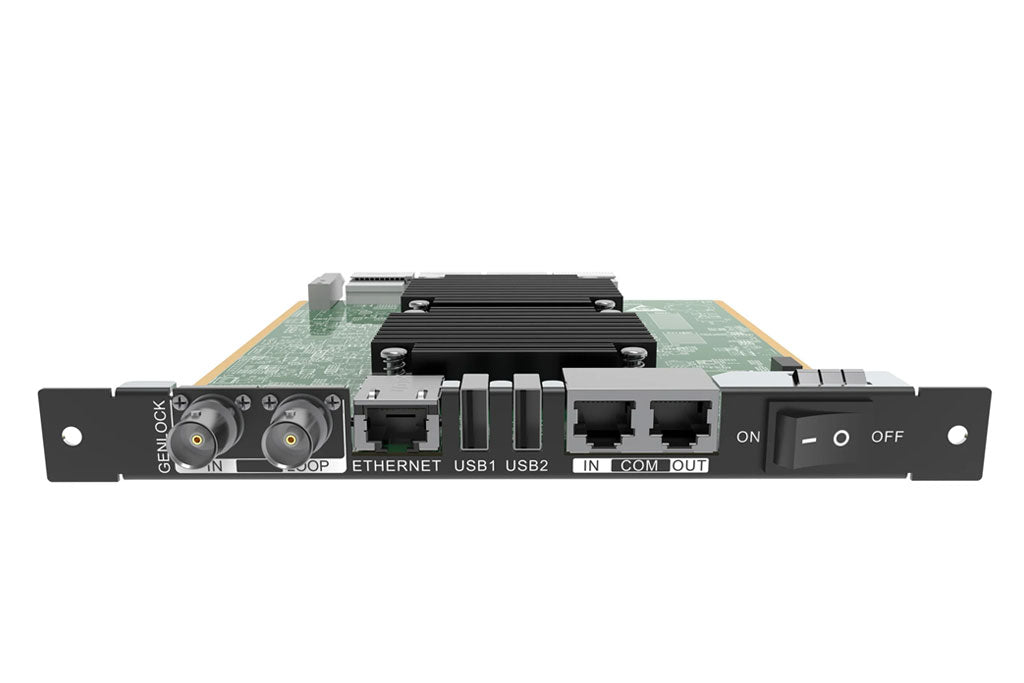

The H Series Standard Central Control Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. Integrated control card with centralized control protocol for wireless control of devices via Android, iPad computers, etc. High anti-interference ability and system stability. Interactive and humanized operation through open platform, can edit image text etc. freely on iPad.

• A connector for connecting the Genlock signal √
• A Gigabit Ethernet port  √

• 2 × USB 2.0 ports  √

• A serial port that adopts RS232 serial protocol  √

GENLOCK
IN: Accept the Genlock signal
LOOP: Loop the Genlock signal.

ETHERNET
Connect to the control PC for communication.
Connect to the router, switch or PC for Web control and NovaLCT screen configuration.

USB 1 & USB 2
Insert a USB drive to update the device program.
Insert a USB drive to import or export the device configuration parameters.

COM
IN: Accept the signal from the central control system.
OUT: Loop the signal to other connected devices.

Power switch
ON: Power on the device.
OFF: Power off the device.
