Novastar H Series 4x HDBaseT output card

Novastar H Series 4x HDBaseT output card

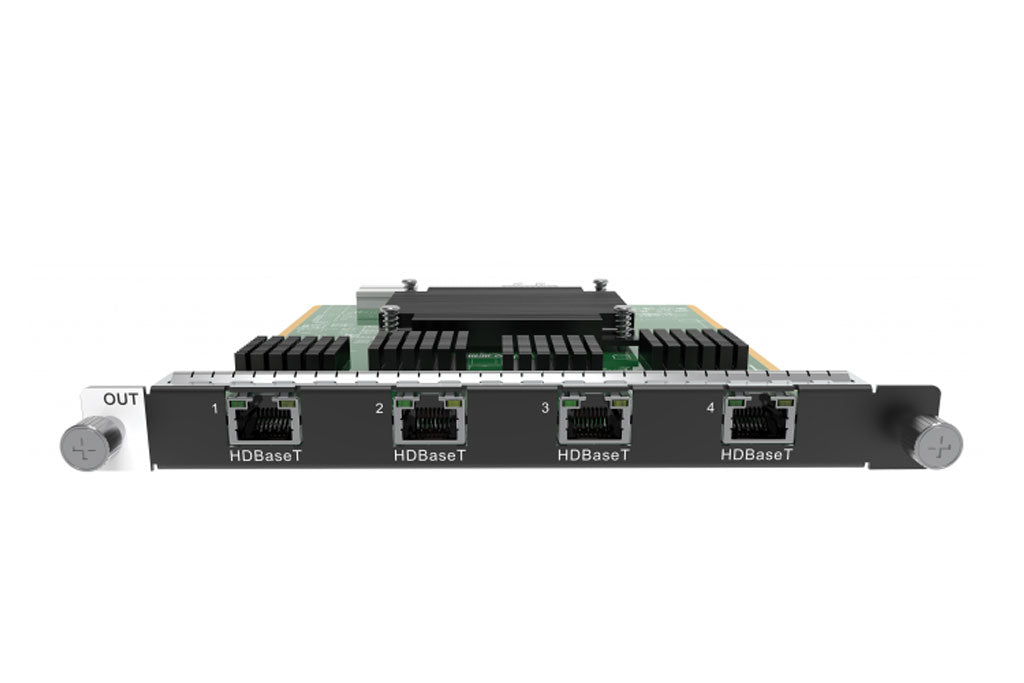

The Novastar H Series 4x HDBaseT output card has four RJ45 Gigabit Ethernet ports that support single and dual link output modes and accompanied audio. In single link mode, all four connectors are available for output and each connector supports a maximum resolution of 2048 x 1152 @ 60 Hz. Custom resolution has a maximum width of 2560 pixels (2560 x 983 @ 60 Hz) and a maximum height of 2560 pixels (884 x 2560 @ 60 Hz). In dual link mode, connectors 2 and 4 are available for output (connector 1 copies the output on connector 2 and connector 3 copies the output on connector 4). In this mode, each connector supports a maximum resolution of 4096 x 2160 @ 30 Hz or 3840 x 1080 @ 60 Hz. Custom resolution in this mode has a maximum width of 4096 pixels (4096 x 1130 @ 60 Hz) and a maximum height of 4096 pixels (1014 x 4096 @ 60 Hz). In both single link and dual link output modes 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 and 10-bit YCbCr4:4:4 outputs are supported. The status LEDs on the back indicate if an output signal is present. Note that this card does not support the fade transition effect.

HDBaseT (Out ):4
Output Slots:1
Maximum Output Resolution:2048 x 1152 , 4096 x 2160
Data Connector Out:RJ45
Weight:0.5 kg (1.102 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
