Novastar H Series 1x HDMI 2.0 Input Card

Novastar H Series 1x HDMI 2.0 Input Card

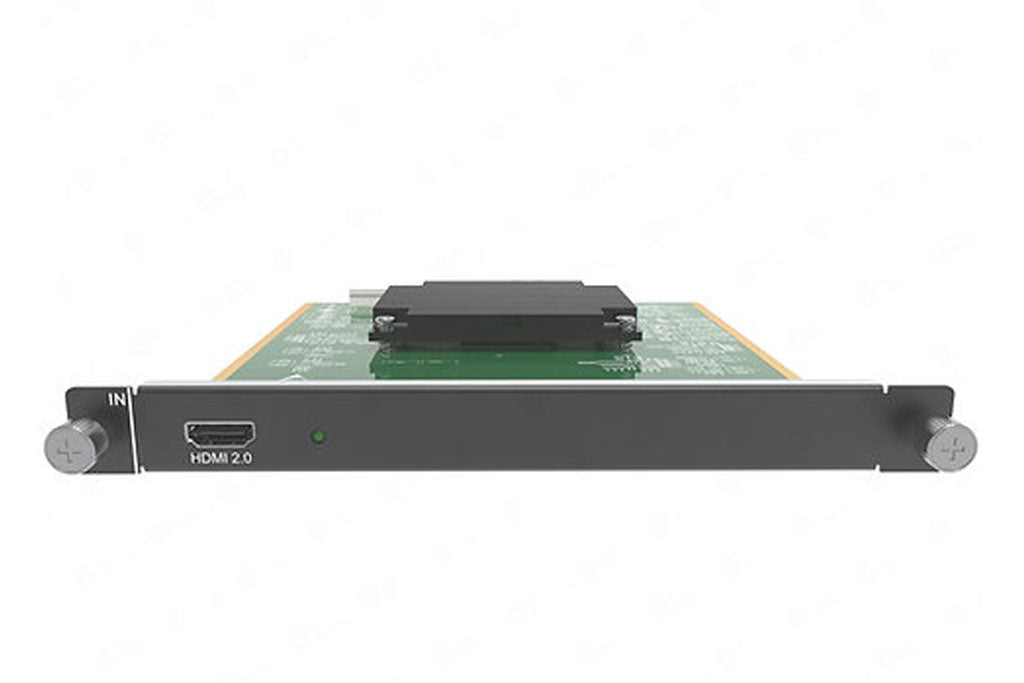

The H Series 1x HDMI 2.0 Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It is HDCP 2.2 compliant and backward compatible with HDMI 1.4 and HDMI 1.3. The supported resolution is 3840 x 2160 @60 Hz, with maximum custom resolutions up to 4092 x 2261 @60 Hz or 2188 x 4095 @60 Hz. A status LED indicates whether the input signal is valid.

• Supports HDMI 2.0 Backward compatible with HDMI 1.4 and HDMI 1.3 √
• HDCP 2.2 compliant   √
• 4K / 60 Hz compatible  √

• Each connector supports the maximum resolution of 3840×2160@60Hz.  √
• Supports accompanied audio.  √
• Supports 144Hz input.  √

• One status LEDs   √


DP 1.2:1
HDMI 2.0:1
Input Slots:1
Maximum Input Resolution:4096 x 2160, 8192 x 1080
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
