Novastar H Series 1x 12G-SDI Input Card
Novastar H Series 1x 12G-SDI Input Card
Couldn't load pickup availability
Novastar H Series 1x 12G-SDI Input Card

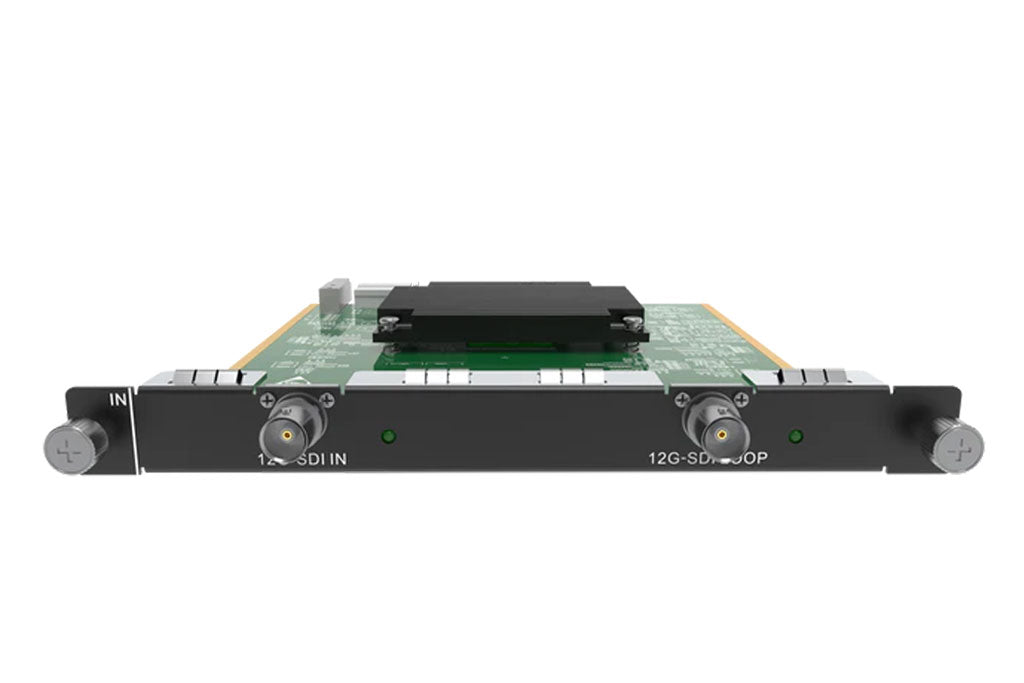

The H Series 1x 12G-SDI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It supports resolutions of up to 4096x2160 @60 Hz and 1080i/576i/480i de-interlacing processing. It supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and SMPTE 259 (SD) SDI signals. The 12G-SDI Loop output forwards the 12G-SDI input signal. Two status LEDs indicate if the input signal is valid.
- Max. resolution 4096x2160 @60 Hz √
- Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI √
- Supports 1080i, 576i, and 480i √
- Two status LEDs √
12G-SDI:1
Input Slots:1
12G-SDI (Loop):1
Maximum Input Resolution:4096 x 2160
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
