Novastar Fiber Converter CVT8-5GS CVT8-5GM EO Converter Device Fiber Interface
Novastar Fiber Converter CVT8-5GS CVT8-5GM EO Converter Device Fiber Interface
Couldn't load pickup availability
The CVT8-5G fiber converter offers a cost-effective way of conversion between optical signals and electrical signals for video sources to connect the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.
The CVT8-5G hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting,two CVT8-5G devices, or one CVT8-5G device and a connecting piece can be combined into one assembly that is 1U in width.
The CVT8-5G-S/M can only be connected directly to Novastar CX series processors that use the 5G platform, such as the Novastar CX 40 and CX 80.
The CVT8-5G-S/M comes with a power cord, USB cable, two 40G SFP (LC)modules, two supporting brackets, screws, 19” installation kit and assembling diagram.
- Models include the CVT8-5GS (single-mode) and the CVT8-5GM (multi-mode).
- 1x optical port with bandwidth up to 40 Gbit/s, hot-swappable optical module supplied
- 8x 5G BaseT Ethernet ports, bandwidth of each up to 5 Gbit/s
- 1x type-B USB control port
- Maximum Transmission Distance: CVT8-S:10km / CVT8-M:100m
The CVT8-5G is used for long-distance data transmission.

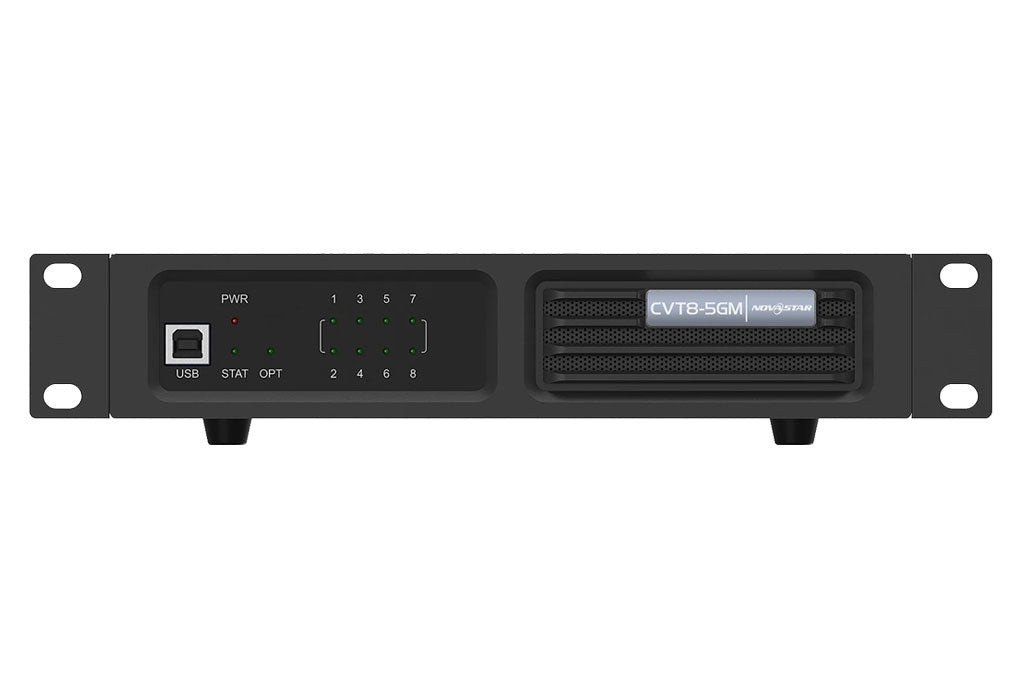

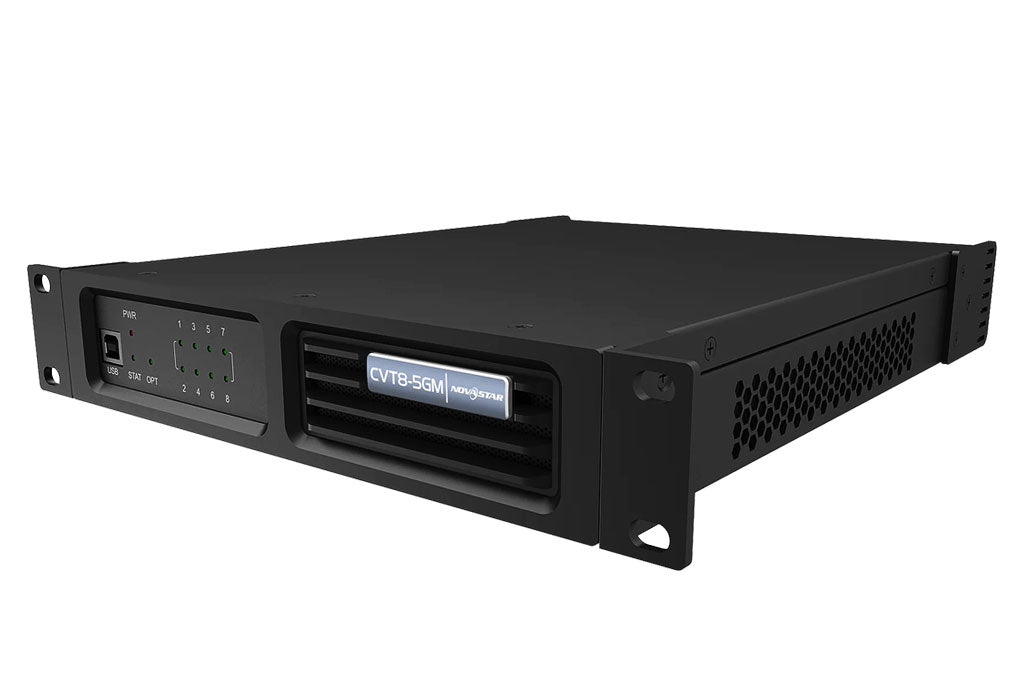

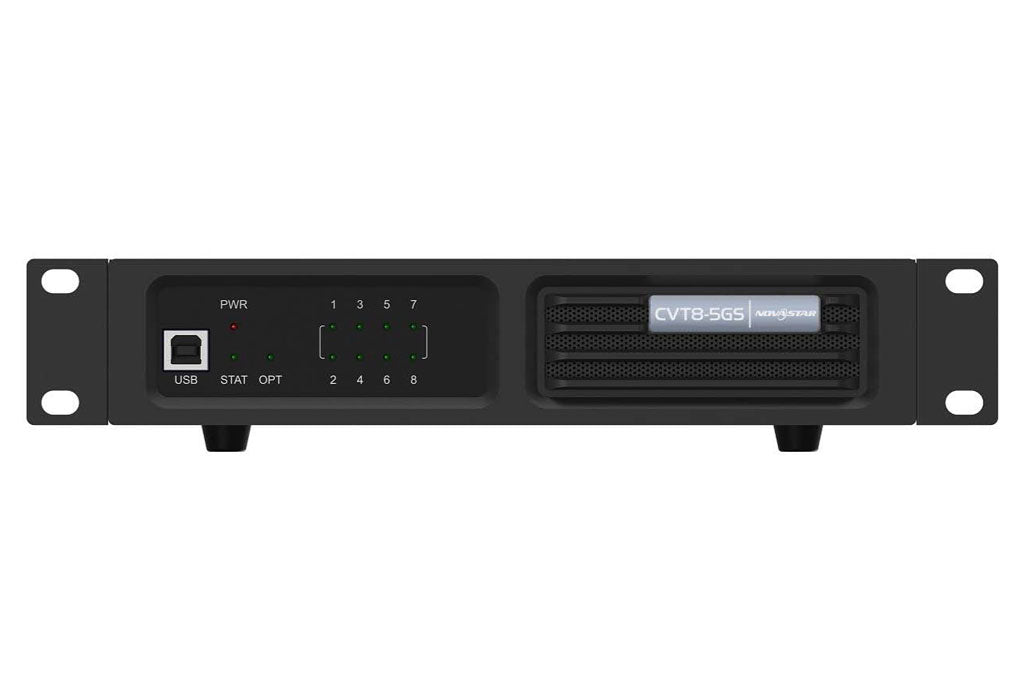

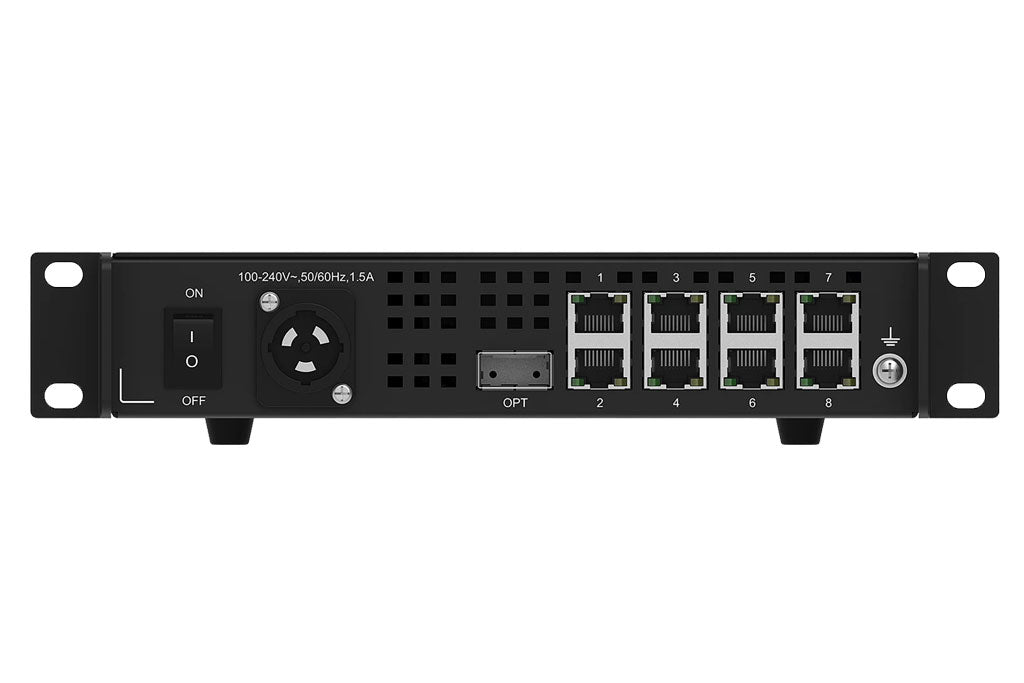

Fiber Converter Appearance
Novastar Fiber Converter CVT8-5G Parameters
|
Electrical Specifications |
Power supply |
100-240V~, 50/60Hz, 1.5A |
|
Rated power consumption |
33 W |
|
|
Operating Environment |
Temperature |
–20ºC to +55ºC |
|
Humidity |
10% RH to 80% RH, non-condensing |
|
|
Storage Environment |
Temperature |
–20°C to +70°C |
|
Humidity |
10% RH to 95% RH, non-condensing |
|
|
Physical Specifications |
Dimensions |
254.3 mm × 50.6 mm × 290.0 mm |
|
Net weight |
2.26 kg Note: It is the weight of a single product only. |
|
|
Gross weight |
3.26 kg Note: It is the total weight of the product, accessories, printed materials and packing materials packed according to the packing specifications. |
|
|
Packing Information |
Packing box |
362.0 mm × 141.0 mm × 331.0 mm, kraft paper box |
|
Outer box |
387.0 mm × 173.0 mm × 359.0 mm, kraft paper box |
|
|
Packing list |
l 1x CVT8-5G l 1x Power cord, 1x USB cable, 1x Ethernet cable l 1x Supporting bracket A (with nuts), 1x Supporting bracket B (without nuts) l 1x Connecting piece l 12x M3*8 screws l 1x Assembling diagram l 1x Certificate of Approval |
|
|
Certifications |
RoHS, FCC, CE, IC |
|
