Novastar COEX Control System MX40 Pro 4K LED Sending Box LED Display Controller for 3D xR Solution

Novastar COEX Control System MX40 Pro 4K LED Sending Box LED Display Controller for 3D xR Solution

Regular price $6,500.00 USD
Regular price $7,900.00 USD Sale price $6,500.00 USD
Sale Sold out
Shipping calculated at checkout.

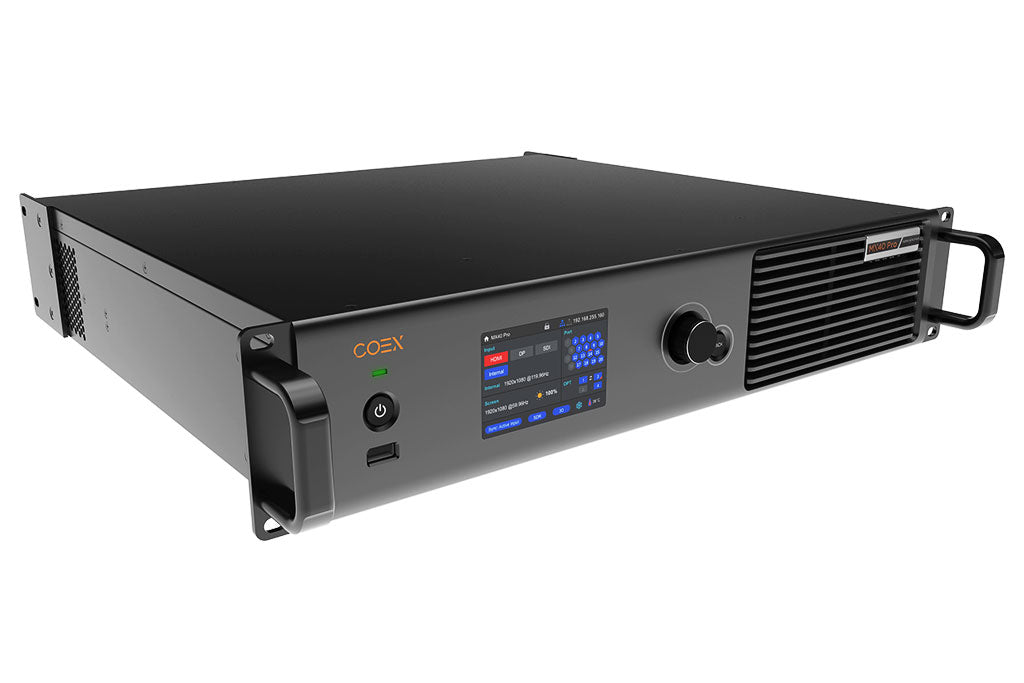

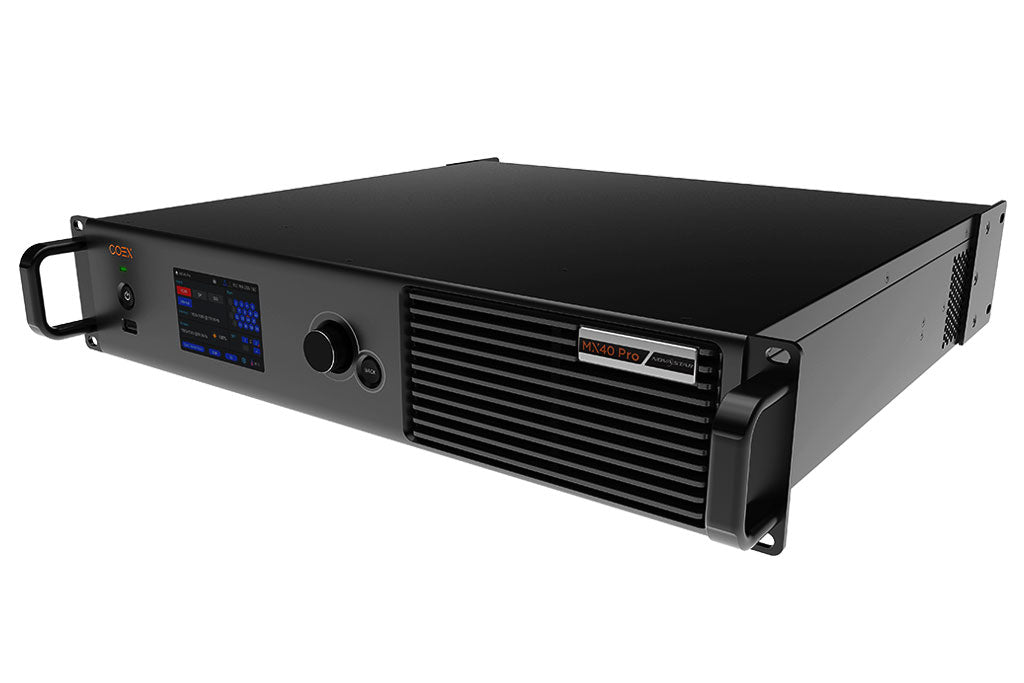

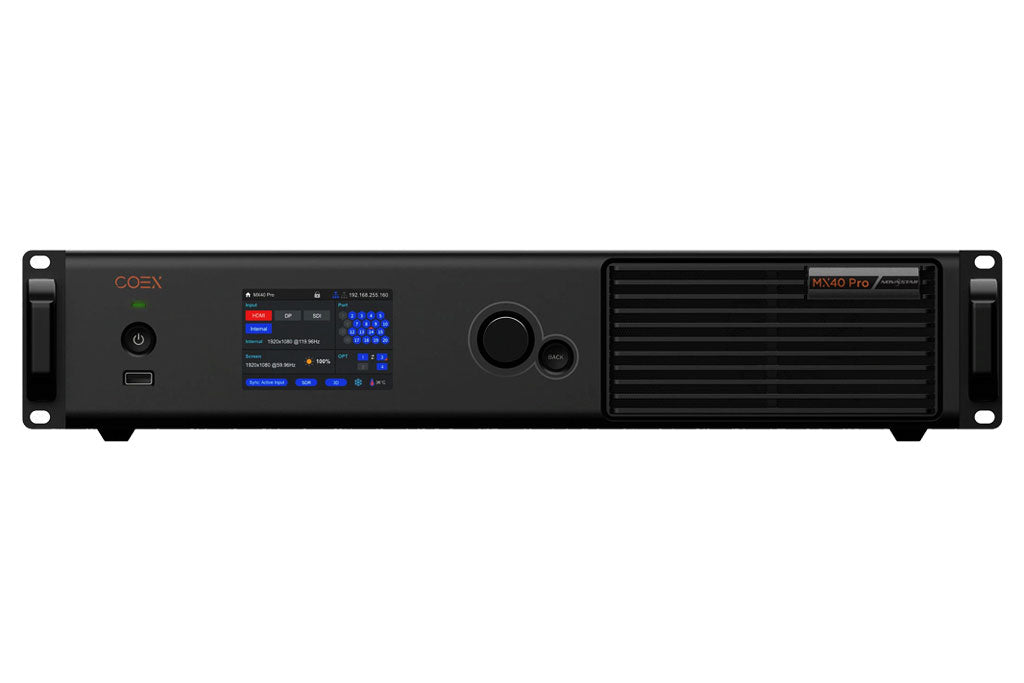

COEX Series MX40 Pro LED Display Controller

The MX40 Pro is a flagship 4K LED display controller in the new-generation control system COEX series. This controller offers rich video inputs (HDMI 2.0, DP 1.2 and 12G-SDI) and 20 Ethernet outputs. It can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.
VMP is an all-new display control software that integrates design, management, and monitoring into one single platform. When paired with the flagship MX Series controller and A10s Pro receiving card, an incredibly professional LED solution is realized, providing stunning image quality, precise color adjustment, and an intuitive software experience. This represents a totally new solution for managing high-end applications such as fine-pitch LED installation, studio broadcasting, touring, corporate events, virtual production and E-sports.


Stunning image quality with enhanced details
  • Dual boosters for exceptional image display
Utilizing Image Booster 2.0 and Dynamic Booster, grayscale performance, color performance and contrast ratio are dramatically improved.
  • Fine grayscale
22bit+, 64 times grayscale improvement, 0.002nits precise control, ultra-precise image for stunning realism.
  • More realistic color
Fully automated color standardization, calibration and verification, self-adapts to color gamut, △E<2.
  • Higher contrast ratio
By enhancing bright and dark content details to the idea level, an SDR source can deliver HDR-like effect, ensuring no overexposure in bright areas and no loss of detail in shadows.
  • Power saving with dynamic algorithm
With real-time analysis, brightness is adjusted dynamically frame by frame, saving 20%-40% power, extending the lifespan of an LED display.
  • HDR10 4:4:4
Virtual production with more realistic immersion
The only comprehensive 4K@60Hz 10bit 4:4:4 solution in the industry presents an ideal environment for virtual production that puts you in the scene, representing a new evolution in HDR applications.
  • Flexible frame rate for smoother visuals
Supports 240Hz high frame rate, frame multiplication, frame multiplexing and adaptive frame rate, providing a super smooth filming.
Perceptual color control on screen
  • Color adjustment at your fingertips
Color Replacement
Supports unrestricted color replacement, with minimal impact on other colors.
14CH Color Correctionn
Precise adjustment of hue, saturation, and brightness of primary, secondary and tertiary colors, with basic adjustment of black and white, ensuring perfect colors that retain their intended beauty.
  • Color adjustment for creative scenes
Curve adjustment and importing of 3D LUT files let you manage color in creative and artistic ways, just like a Hollywood colorist.
  • Contrast & Black level for impressive details
Allows independent adjustment of highlights and shadows by contrast and black level, avoiding overexposure in bright content but delivering rich details in dark content.
Intuitive interface for easy control
  • Quick and easy screen mapping
Screen mapping can be done easily on the software canvas with a mouse. Auto detection of connected cabinets and exporting of screen mapping file in advance serve to greatly increase operational efficiency.
  • Free from rectangular calculation, maximizing the capacity
Loading capacity is calculated by the physical cabinet pixels, free from rectangular limitation, helping maximize the loading capacity of controllers. No more capacity waste from leaving blank or irregular shape designs. Create without limits!
  • Finder tool for quick adjustment
With the finder tool, cabinets and controllers can be located quickly. After receiving command from VMP software, LED screen will show the position of specific cabinets and controllers accurately, making relevant adjustment much quicker and easier.
  • Group management made easy
All devices are grouped by screens, making multiple screen management easier and more efficient than before.
  • Visualized seam correction
Seam correction can be completed rapidly with an interactive and visualized design. Visually locate and select the seams simply by using a cursor, then directly view the screen to adjust the seams in the software, greatly improving efficiency.
  • Scenario presets
Save all parameters of inputs and outputs into presets, providing quick and easy retrieval with a single click.
  • What you see is what you get
Canvas monitor and source preview allow for recognition of screen display status in real time and easy fitting of content to screen.
  • Super smooth shooting
Supports phase offset and shutter fit, allowing the LED display to automatically adapt to camera exposure time and frequency, alleviating black field and scan lines from being captured by the camera when shooting the LED display.

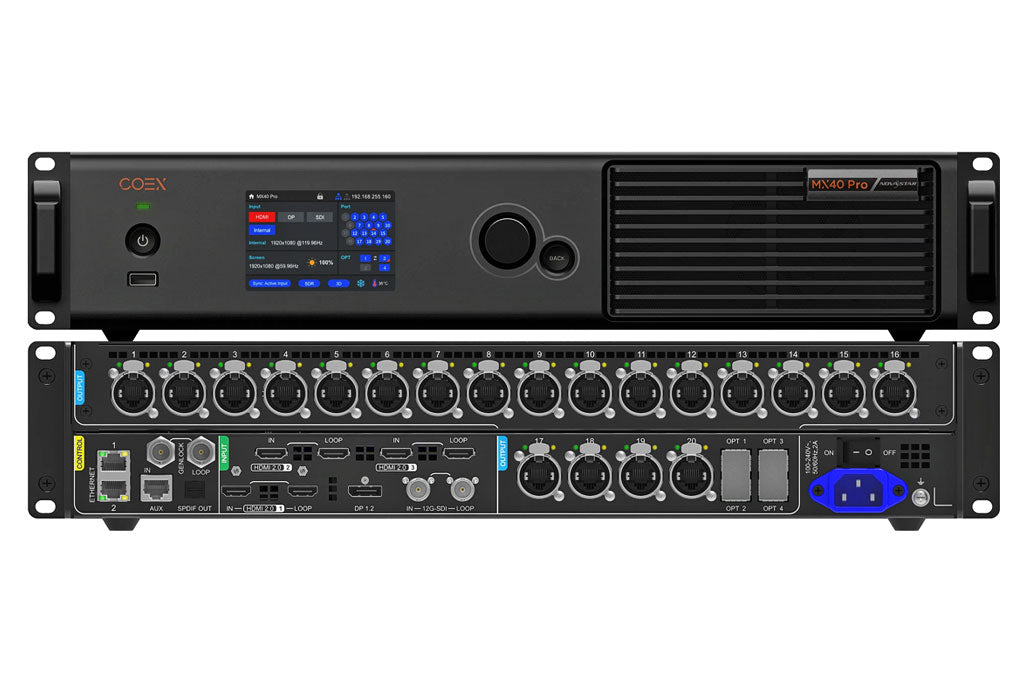

Flagship controller

  • Inputs:
3 × HDMI2.0 Loop   1 × 12G SDI Loop  1 × DP1.2

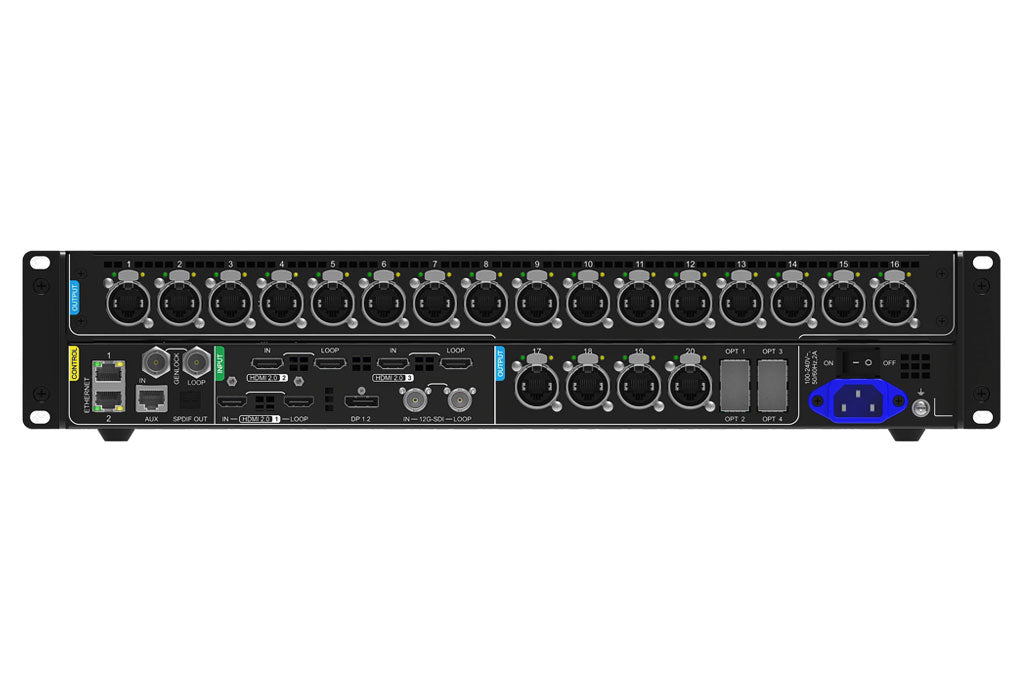

  • Outputs:
20 × EtherCON    4×10G OPT

  • Armor Series Receiving Card
Improving image quality through the optimization of every pixel

Further Information:
Novastar MX40 Pro
Novastar MX40 Pro LED Video Controller Specification
Novastar MX40 Pro LED Video Controller User Manual
Novastar MX40 Pro LED Video Controller Q&A
Novastar VMP (VISION MANAGEMENT PLATFORM) USER MANUAL
