Novastar MX Series MX6000 Pro MX2000 Pro 8K LED Sending Box LED Display Controller for 3D xR Solution

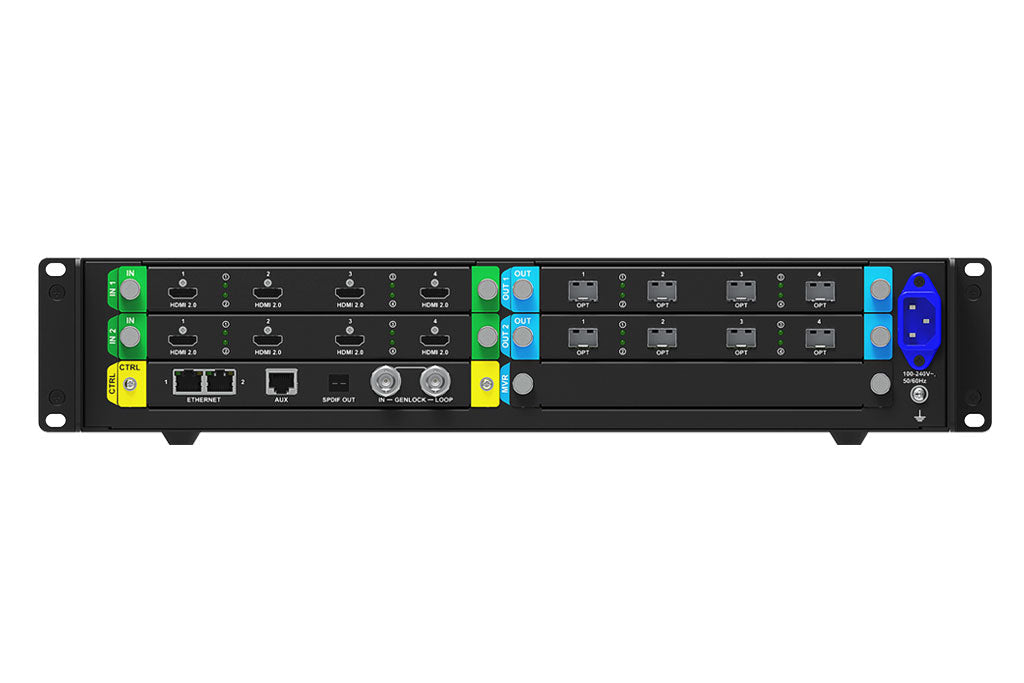

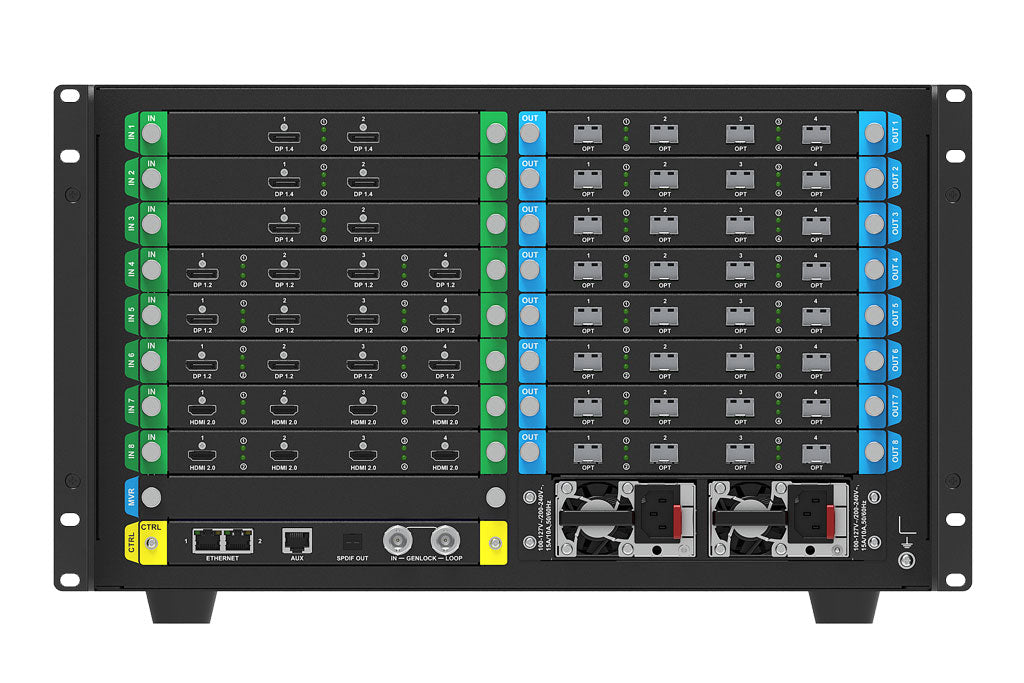

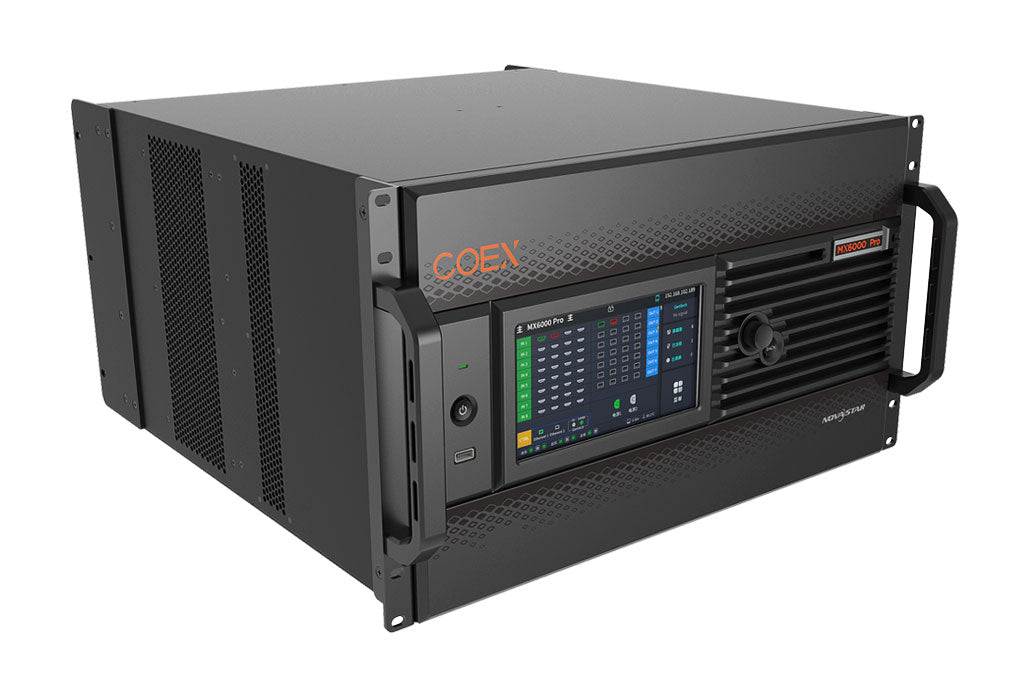

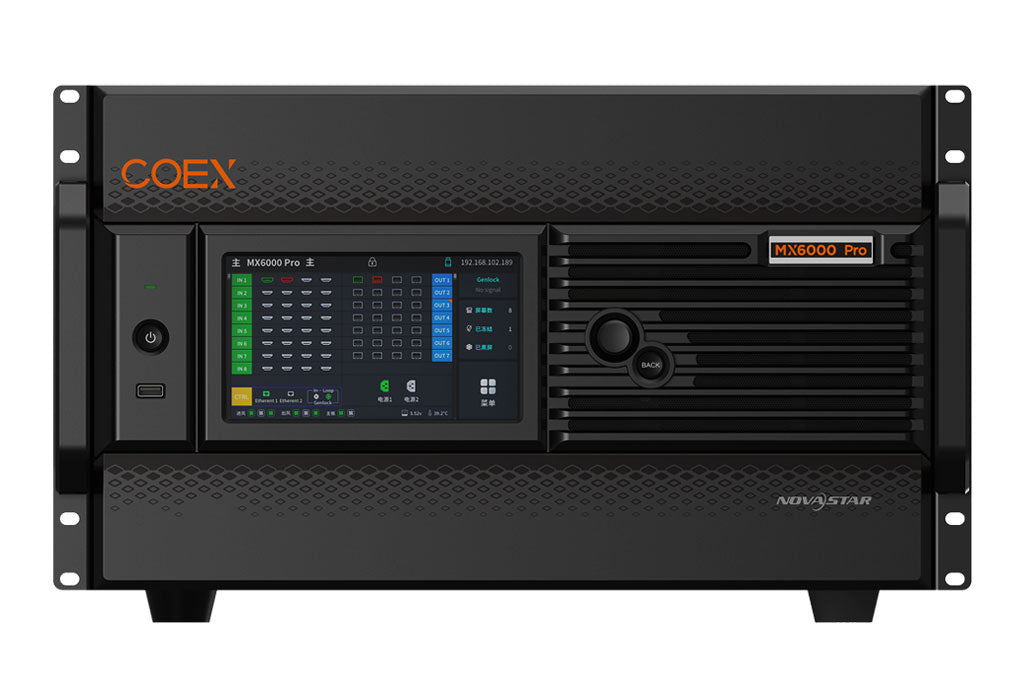

MX Series MX600 Pro / MX2000 Pro LED Display Controller

The MX6000 Pro/MX2000 Pro is a large professional 8K LED display controller from NovaStar, designed as part of the COEX control system series. Its remarkable features include 12-bit color depth, 360 Hz capability, real-time multi-screen scaling, 0-frame latency, and HDR supportability, providing precise brightness control, true-to-life color fidelity, and an excellent image quality. Its card-based modular design is specifically tailored for future LED displays, allowing for flexible input and output card configurations that are stable and easy to maintain. With a compact 6U/2U size, it supports up to 32x 4K or 8x 8K (8x 4K or 4x 8K) video inputs, with a maximum load capacity of 141/35.38 million pixels, making it ideal for large-screen configurations.
The MX6000 Pro/MX2000 Pro offers a wide range of options with up to six different input cards supporting 8K, 4K, and VoIP. For output, it supports two types of output cards: 4x 10G fiber and 1x 40G fiber. These cards can be configured flexibly to accommodate either 1G or 5G bandwidth for the control system, catering to different requirements. Additionally, it supports seamless backup and automatic switching between devices and cards. In case of any malfunction, it promptly switches over while issuing automatic alerts, ensuring stable output on-site. To further enhance the user experience, it is complemented by the advanced control software, VMP, enabling users to have better control and management capabilities.
The MX6000/MX2000 Pro Pro offers many advantages such as highly integrated design, premium image quality, powerful performance, tremendous load capacity, and easy control. It is widely used in rental services for large events, xR/VP studios, large fixed installation applications, TV production, e-sports events, exhibition halls, and other application scenarios.

Note: This model must be configured and the input and output card needs to be selected. Click ★HERE★ to start self-shopping for configurations..

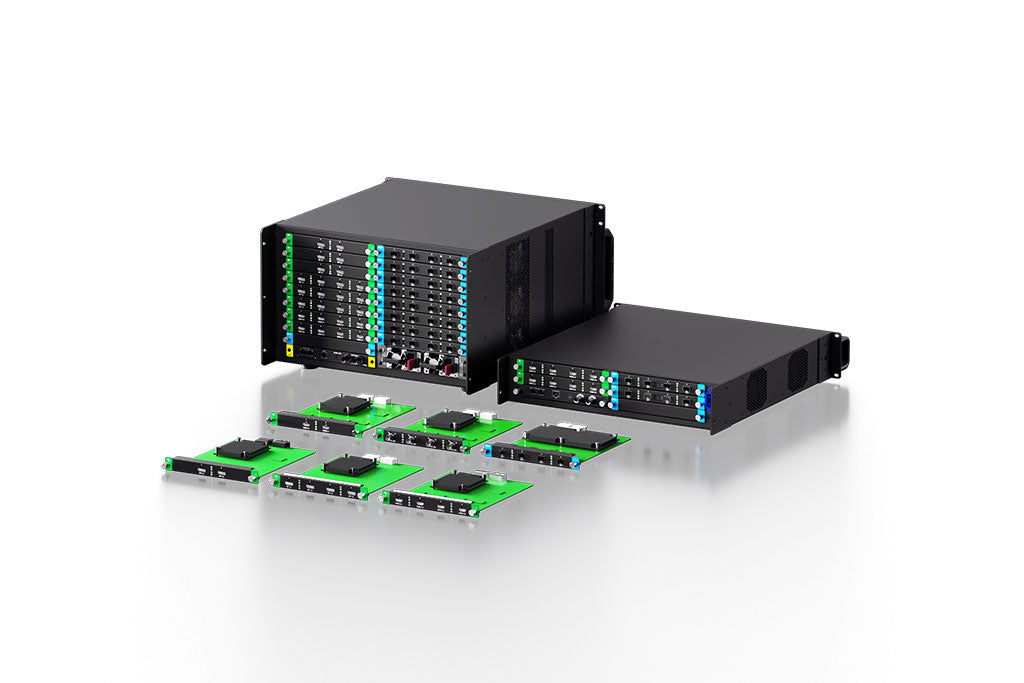

Various I/O Sub-card Group Plug-in card design,customized configuration

• Multi-Input Sub-Card
• One sub-card supports 8K@60Hz input.
• Maximum support 32 Channels of 4K Parallel Input.
• Users can replace I/O cards according to their needs, flexible and convenient.

8K Input Sub-Card  2 × HDMI 2.1  2 × DP 1.4  4K Input Sub-Card
4 × HDMI 2.0  4 × DP 1.2  4 × 12G-SDI  VoIP Card SMPTE ST2110
SMPTE ST 2110

Optical Transmission FOUR 8K huge screens handled by ONE unit
Output-Card Slots×8
ONE sub-card supports 16K with the loading capacity up to 141 million pixels
Ultra-long distance transmission, stable and efficientch

Minimalistic
A brand new solution
One MX6000 Pro is needed to meet your requirements

32×4K Layers in any Layout Move and zoom as you want
32 real 4K layers, which allow roaming freely across sub-cards in the multi-screen or large-screen scene.
Each layer supports customized scaling, and other layer effects.
Simplify the operation, layout as you want.

128 Presets Smooth switching by one click
According to different requirements on scene display ，set and save the layer in advance.
The display content, and other display parameters, could be one-click set during application, which enables to flexible switching.

Fine grayscale, More realistic color
0.002nits precise control
△E<2 Accurate Color Reproduction

22bit+, 64 times grayscale improvement, Ultra-precise image for stunning realism.
Fully automated color standardization, accurate color reproduction.
Dynamic booster 2.0
Bright and Shade, precisely pixel control

Dynamic booster 2.0
Bright and Shade, precisely pixel control
Professional color correction tools
Creative without capping

Professional color grading tools
xR/Vritual production | Broadcasting | E-Sports | Large event

Allowing users to easily handle color processing and adjustments.

Enhancing creative efficiency

Further Information:
MX6000 Pro / MX2000 Pro
MX6000 Pro LED Video Controller Specification
MX6000 Pro LED Video Controller User Manual
MX2000 Pro LED Video Controller Specification
MX2000 Pro LED Video Controller User Manual
