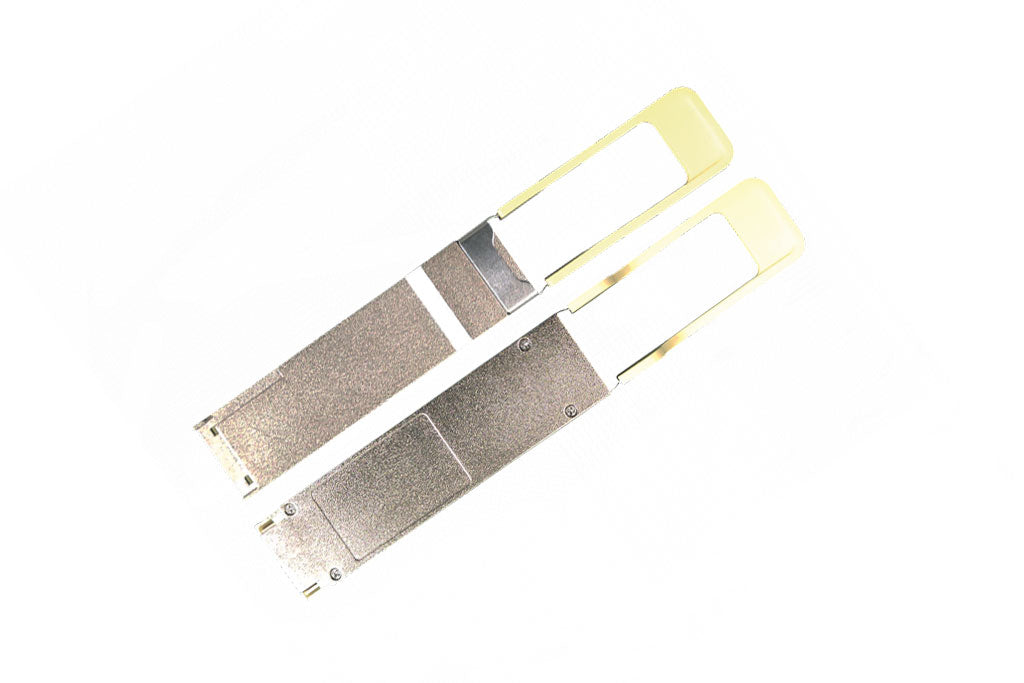

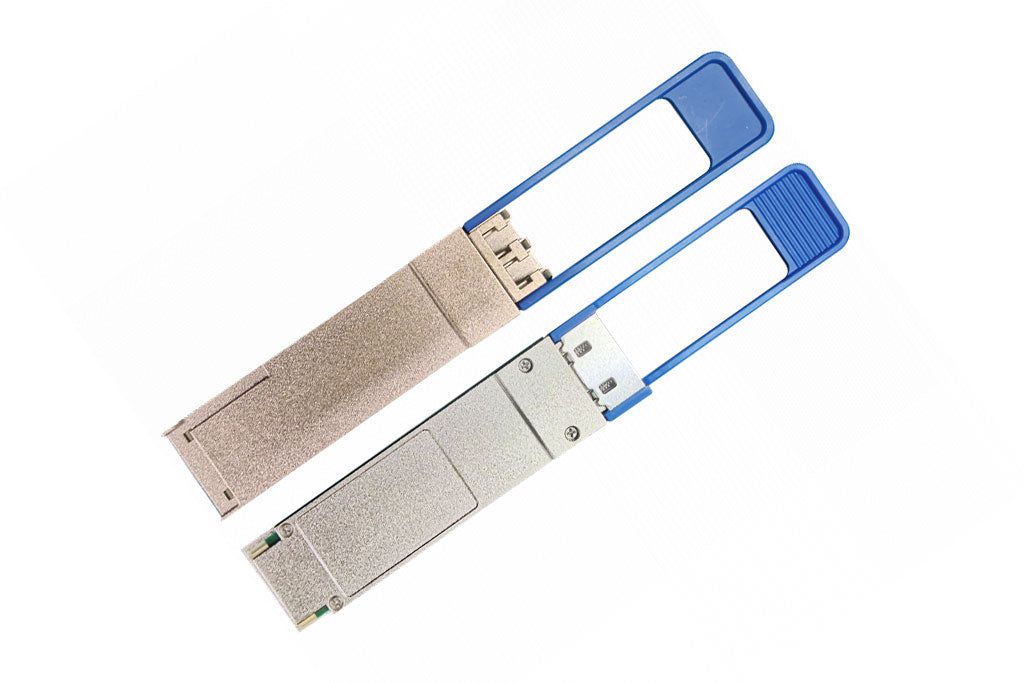

Novastar 40G SFP Module Fibre Optic Module

40G SFP Module Fibre Optic Module Single Mode/ Multi Mode
The Novastar 40G SFP Module is designed for the Novastar 5GB platform and can be used with the Novastar CX series processors, such as the CX 40 and CX 80. It offers a higher bandwidth and allows for more pixels to be controlled. It is available in Single Mode and Multimode version. The 40G SFP Module is equipped with an LC connector and can be used with regular optical LC fibre cables.

• Supports 9.95 to 40Gb/s bit rates
• 5G Ethernet port
• SONET OC-192 / SDH
• 40G Fiber Channel
• Hot-Pluggable
• Duplex LC connector
• 850nm/1310nm DFB transmitter, PIN photo-detector
• S Mode transmits up to 10km, and M mode transmits up to 100M
• RoHS compliant

40G SFP Fiber Module fits into the empty fiber slots on the back of these five products: CX 40, CX 80, CVT8-5G, & MX Series.

40G SFP module Specifications
Glass fiber interface ： LC connection
Supply voltage ： 3.3 V
Power consumption ： <3.5 W
Dimensions ： 73/118x19x12 mm
Weight ： 0.041 kg
Operating temperature ： 0 ~ + 70 °
Humidity ： 0% - 85% RH
IP Rating: IP20 (indoor use only)

Further Information:
40G SFP Module Fibre Optic Module
