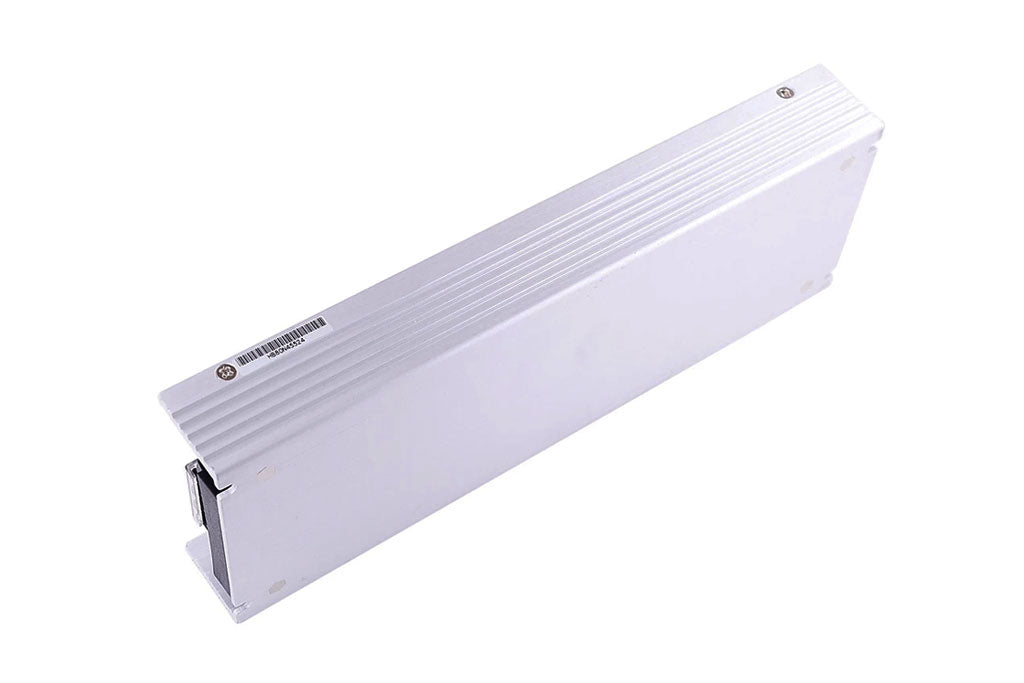

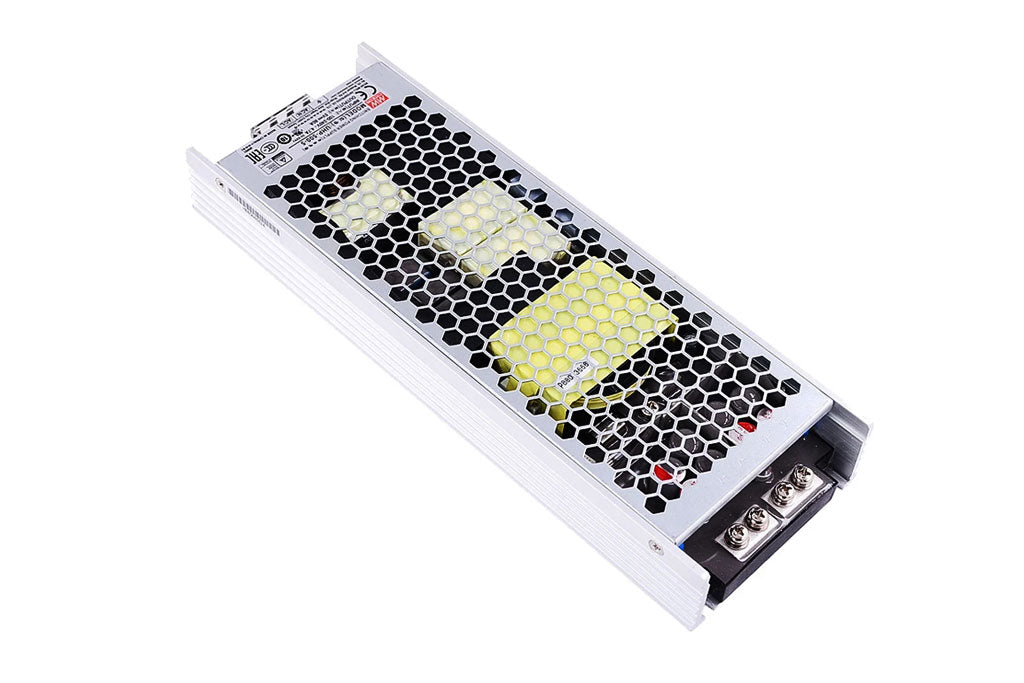

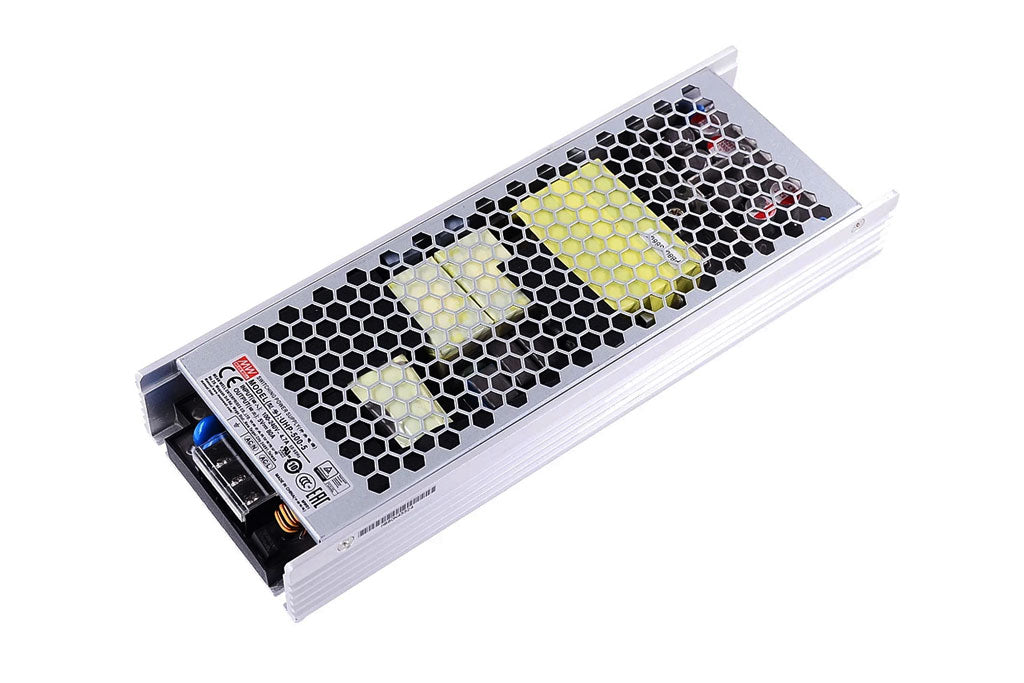

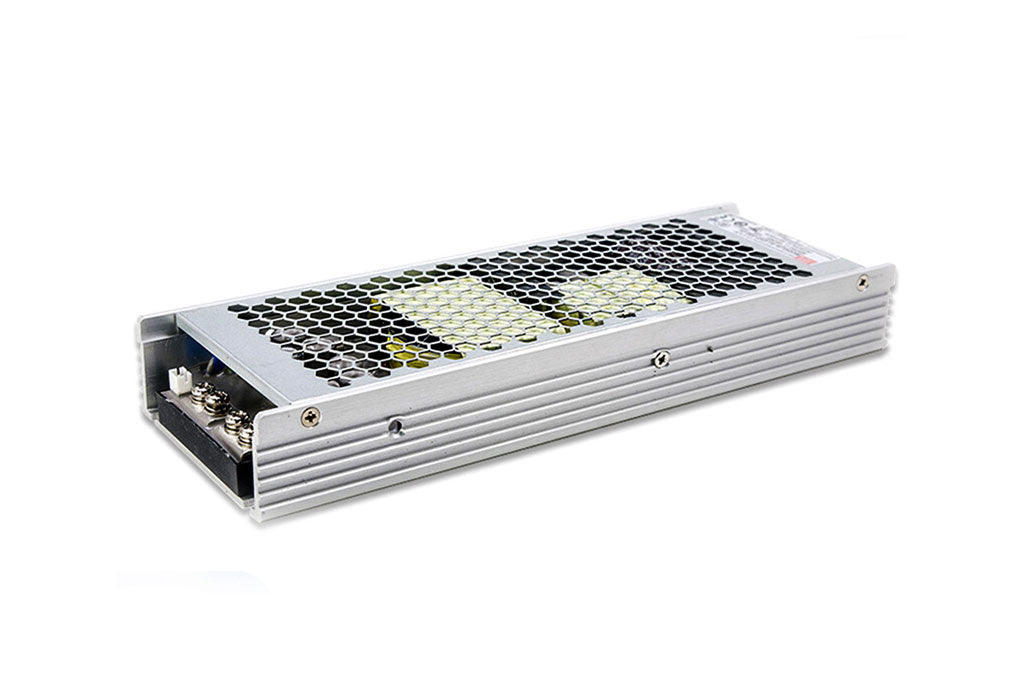

Meanwell UHP-500 Series UHP-500-5 UHP-500-12 LED Displays Power Supply

Meanwell UHP-500 Series UHP-500-5 UHP-500-12 LED Displays Power Supply

$90.00 USD
$100.00 USD $90.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Meanwell UHP-500 Series LED Displays Power Supply

UHP-500 series is a 500W single-output slim type power supply with 31 mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 4.2V, 5V, 12V, 15V, 24V, 36V, 48V and 55V. ln addition to the high efficiency up to 95%, that the whole series operates from -20°C ~70°C under air convection without fan. UHP-500 has the complete protection functions and 5G anti-vibration capability;lt is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, UL 62368-1 and GB4943. UHP-500 series serves as a high performance power supply solution for various industrial applications.
  • Slim and Low profile(31mm)
  • Fanless design, 500W convection
  • Withstand 300VAC surge input for 5 seconds
  • Built-in active PFC function
  • -30~+70℃ working temperature
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • DC OK active signal and redundant function(option)
  • Operating altitude up to 5000 meter(Note.5)
  • LED indicator for power on
  • 3 years warranty
    Applications
    Industrial automation machinery
    Industrial control system
    Mechanical and electrical equipment
    Electronic instruments, equipments or apparatus
    Household appliances
    LED display application
    Power Source Equipment for PoE(55V model)

    Meanwell UHP-500 Series LED Displays Power Supply Mechanical SpecificationMeanwell UHP-500 Series UHP-500-5 UHP-500-12 LED Displays Power Supply
    Meanwell UHP-500 Series LED Displays Power Supply Block Diagram
    Meanwell UHP-500 Series UHP-500-5 UHP-500-12 LED Displays Power Supply

    Meanwell UHP-500 Series LED Displays Power Supply Installation
    Meanwell UHP-500 Series UHP-500-5 UHP-500-12 LED Displays Power Supply

    Meanwell UHP-500 Series LED Displays Power Supply Specification
    Meanwell UHP-500 Series UHP-500-5 UHP-500-12 LED Displays Power Supply
    Further Information:
    UHP-500
    Meanwell UHP-500 LED Power Supply Specification
