Meanwell LSP-160 Series LSP-160-5 LED Displays Power Supply

Meanwell LSP-160 Series LSP-160-5 LED Displays Power Supply

$68.00 USD
$100.00 USD $68.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Meanwell LSP-160 Series LED Displays Power Supply

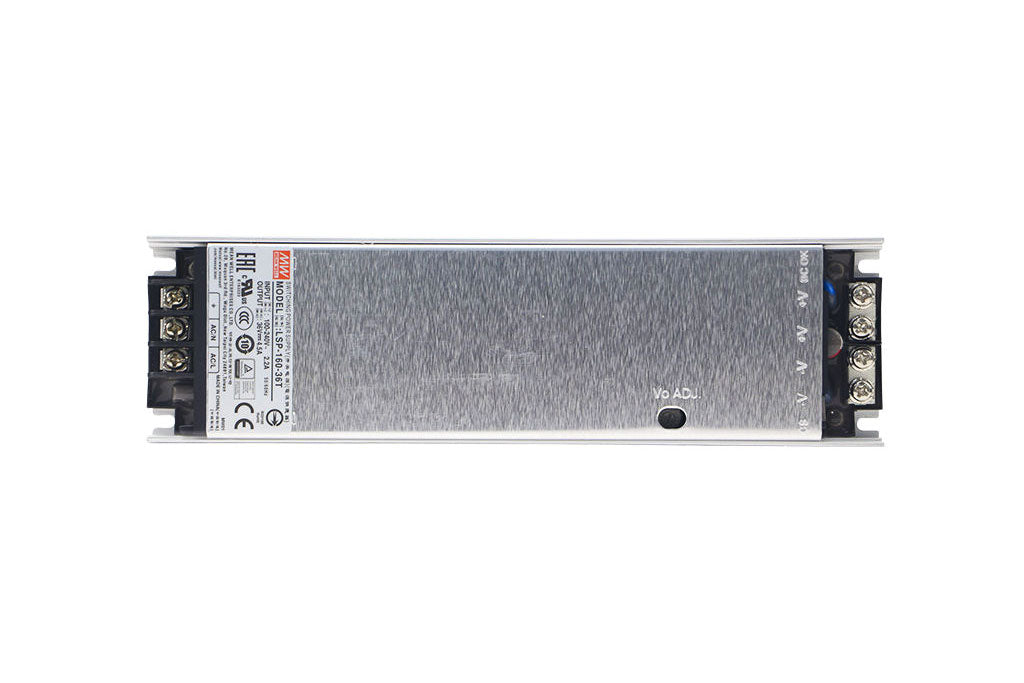

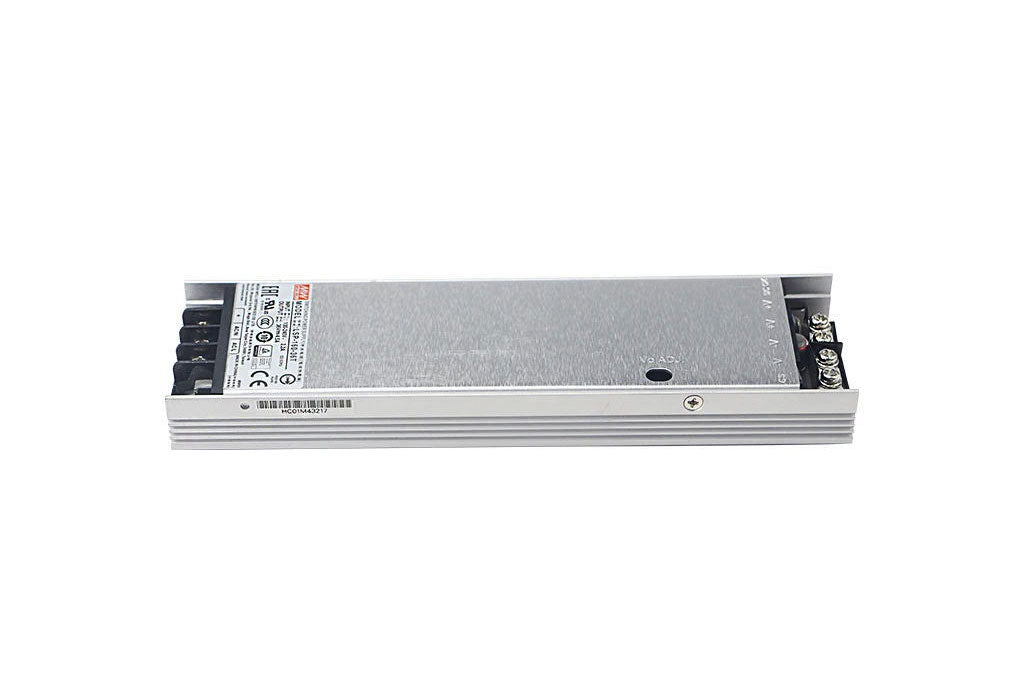

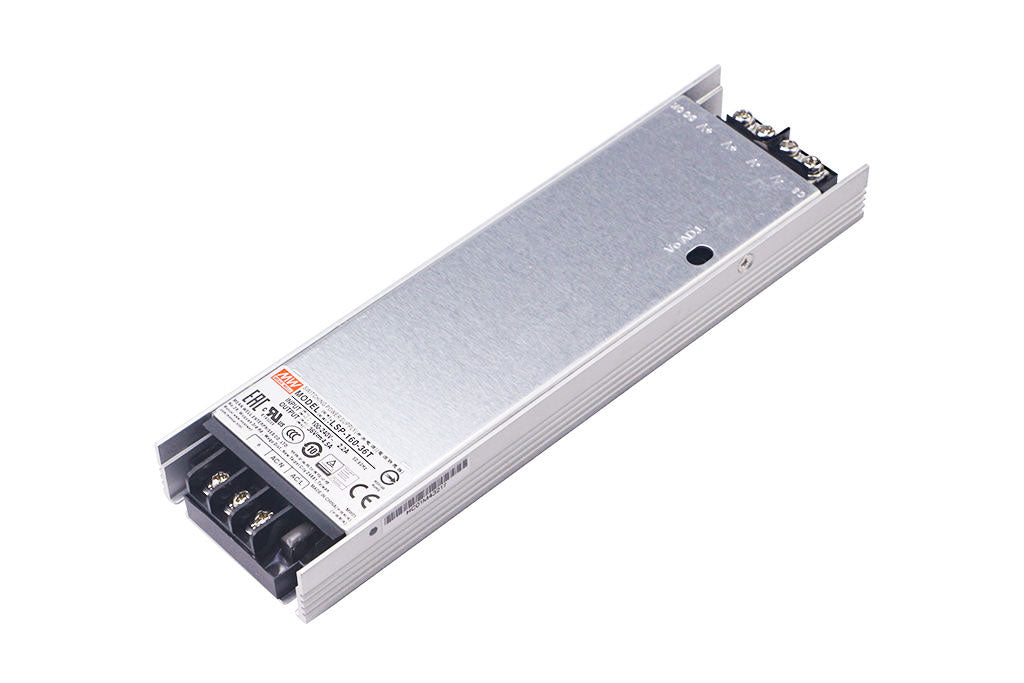

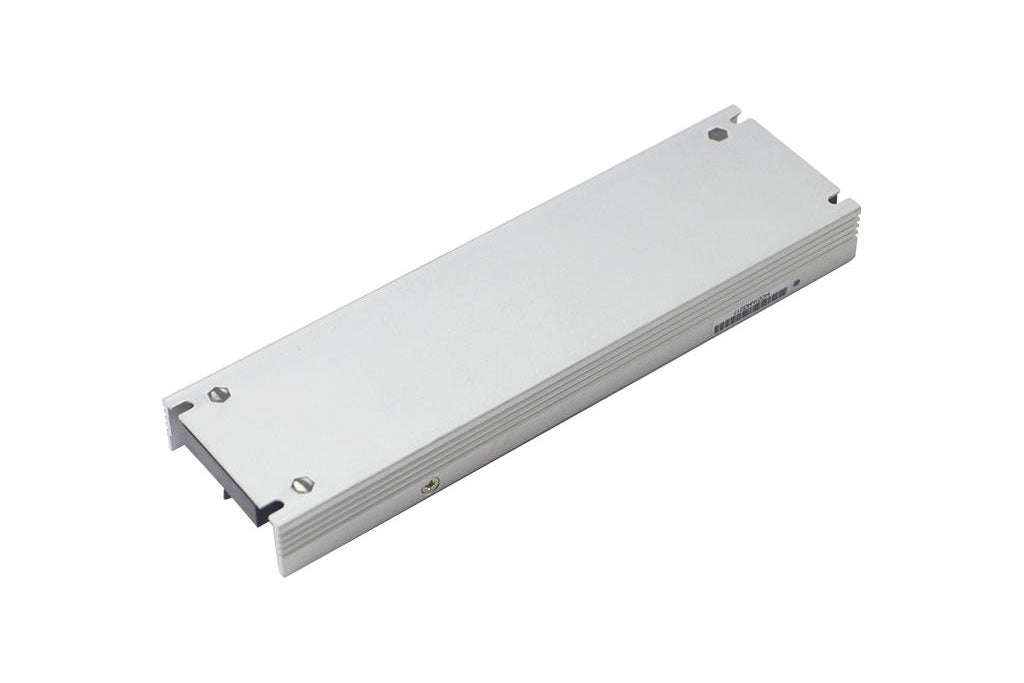

LSP-160 series is a 160W single-output slim type power supply with 20mm of low profile designAdopting the full range 100-264VAC input, the entire series provides an output voltage line of3.3V.4.2V.5V, 12V. 24V. 36V and 48V. In addition to the high efficiency up to 93.5%, that the wholeseries operates from-30℃ 70℃ under air convection without fan. LSP-160 has the completeprotection functions and 5G anti-vibration capability: It is complied with the international safetyrequlations such as TUV BS EN/EN62368. UL62368 and GB4943. LSP-160 series serves as a highperformance power supply solution for various industrial applications.
  • Slim width and low profile(20mm)
  • Fanless design for noise free environment
  • Withstand 300VAC surge input for 5 seconds
  • DC OK active signal function
  • Semi-Potting for high moisture environment
  • Protections:Short circuit/Over load/Over voltage/Over temperature
  • Current sharing for redundant function(5V/4.2V/3.3V only)
  • Max. operating wattage to 200W at 230V AC input
  • Operating altitude up to 5000 meter(Note.5）
  • LED indicator for power on
  • 3 years warranty
    Meanwell LSP-160 Series LED Displays Power Supply Mechanical SpecificationMeanwell LSP-160 Series LSP-160-5 LED Displays Power Supply
    Meanwell LSP-160 Series LED Displays Power Supply Block Diagram
    Meanwell LSP-160 Series LSP-160-5 LED Displays Power Supply

    Meanwell LSP-160 Series LED Displays Power Supply InstallationMeanwell UHP-200A Series UHP-200A-5 LED Displays Power Supply
    Meanwell LSP-160 Series LED Displays Power Supply Specification
    Meanwell LSP-160 Series LSP-160-5 LED Displays Power Supply
    Further Information:
    LSP-160
    Meanwell LSP-160 LED Power Supply Specification
