Meanwell

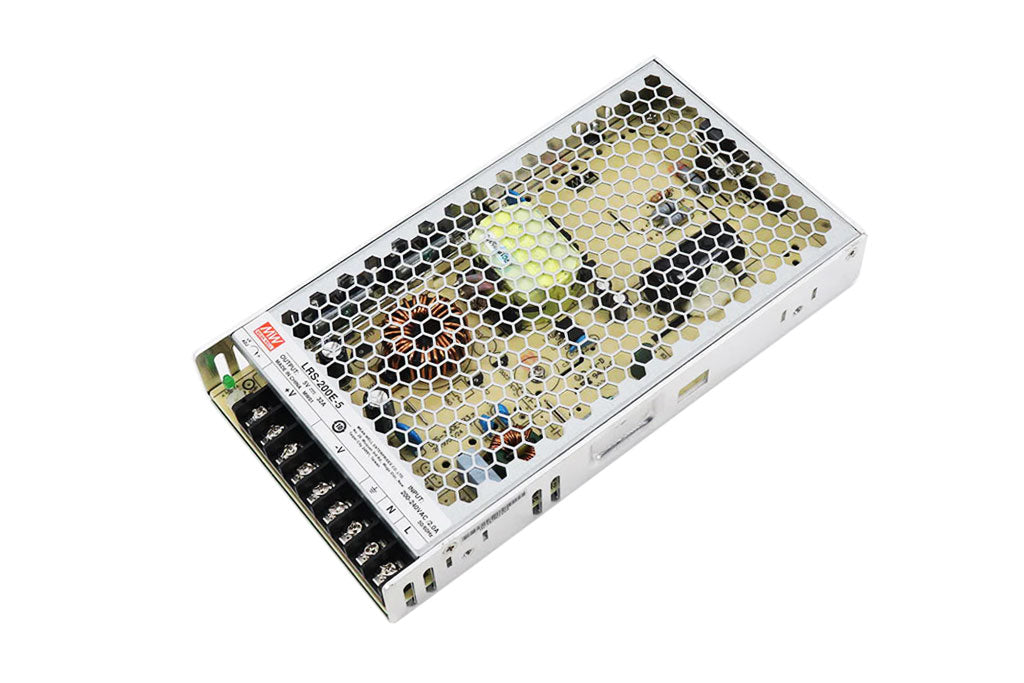

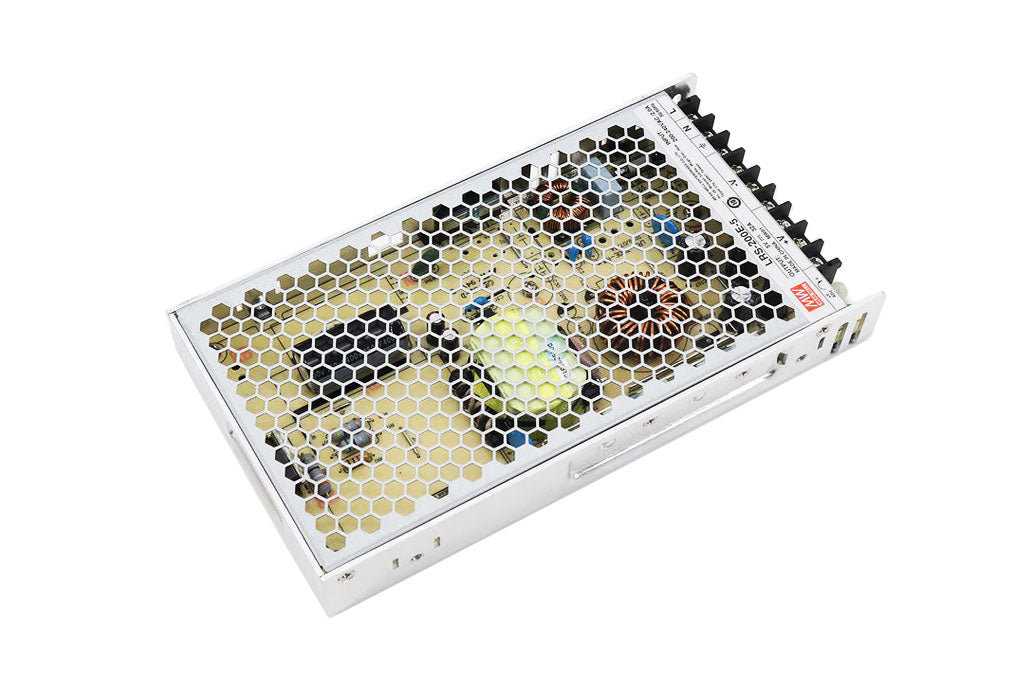

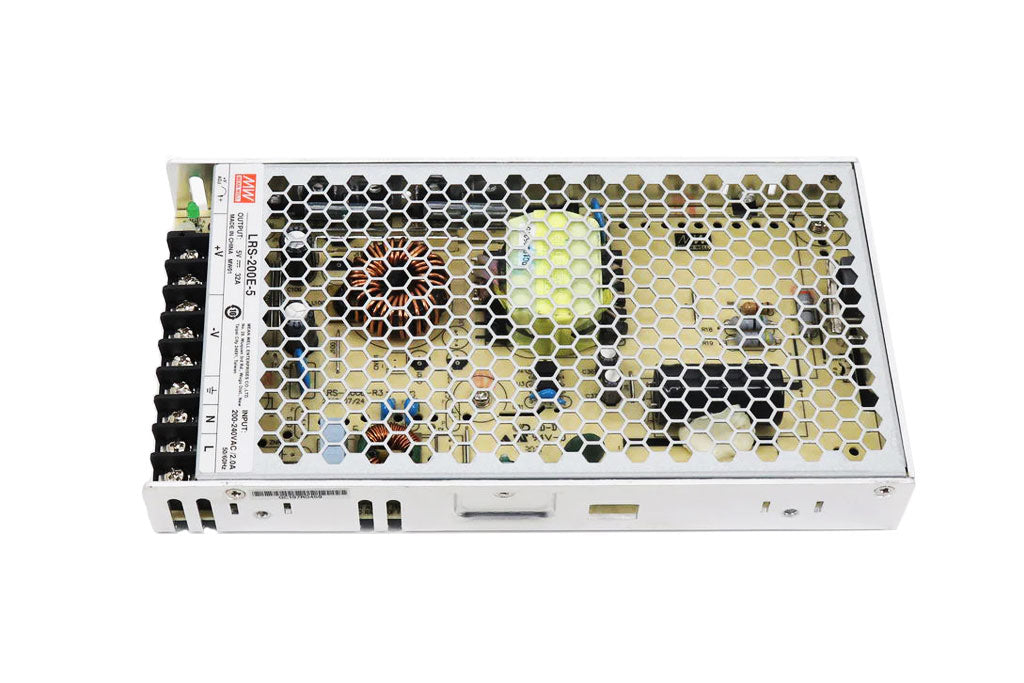

Meanwell LRS-200E Series LRS-200E-5 LED Displays Power Supply

Meanwell LRS-200E Series LRS-200E-5 LED Displays Power Supply

$26.00 USD
$42.00 USD $26.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Meanwell LRS-200E Series LRS-200E-5 LED Displays Power Supply

LRS-200E series is a 200W single-output enclosed type power supply with 30mm of low profile design.Adopting the full range 180~264VAC input,the entire series provides an output voltage line of 5V/4.2V.

  • AC input 180~264VAC
  • Protection type: short circuit/overload/overvoltage
  • Height only 30mm
  • LED power indicator
  • Low cost, high reliability
  • 100% full load aging test
  • 1 years warranty

Meanwell LRS-200E Series LED Displays Power Supply Mechanical Specification
Meanwell LRS-300E Series LED Displays Power Supply

Meanwell LRS-200E Series LED Displays Power Supply Block Diagram
Meanwell LRS-300E Series LED Displays Power Supply

Meanwell LRS-200E Series LED Displays Power Supply InstallationMeanwell HSP-200 Series LED Displays Power Supply
Meanwell LRS-200E Series LED Displays Power Supply Specification
Overload protection: Rated output power of 110 to 140% protection mode: Hiccup mode, exception conditions removed automatic recovery
Overvoltage protection: Protection mode: Hiccup mode, exception conditions removed automatic recovery
Over temperature protection: Hiccup mode, exception conditions removed automatically after restore
Working temperature: -25 ~ + 70 ℃ (refer to the "derating curve")
Humidity: 20 ~ 90% RH, non-condensing
Storage temperature and humidity: -44 ~ + 85 ℃, 10 ~ 95% RH
Temperature Coefficient: + -0.03% / ℃ (0 ~ 50 ℃)
Size: 215 * 115 * 30mm (L * W * H)
