Meanwell

Meanwell LRS-200 Series LRS-200-5 LRS-200-12 LED Displays Power Supply

Meanwell LRS-200 Series LRS-200-5 LRS-200-12 LED Displays Power Supply

Regular price $33.00 USD
Regular price $100.00 USD Sale price $33.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Meanwell LRS-200 Series LRS-200-5 LRS-200-12 LED Displays Power Supply

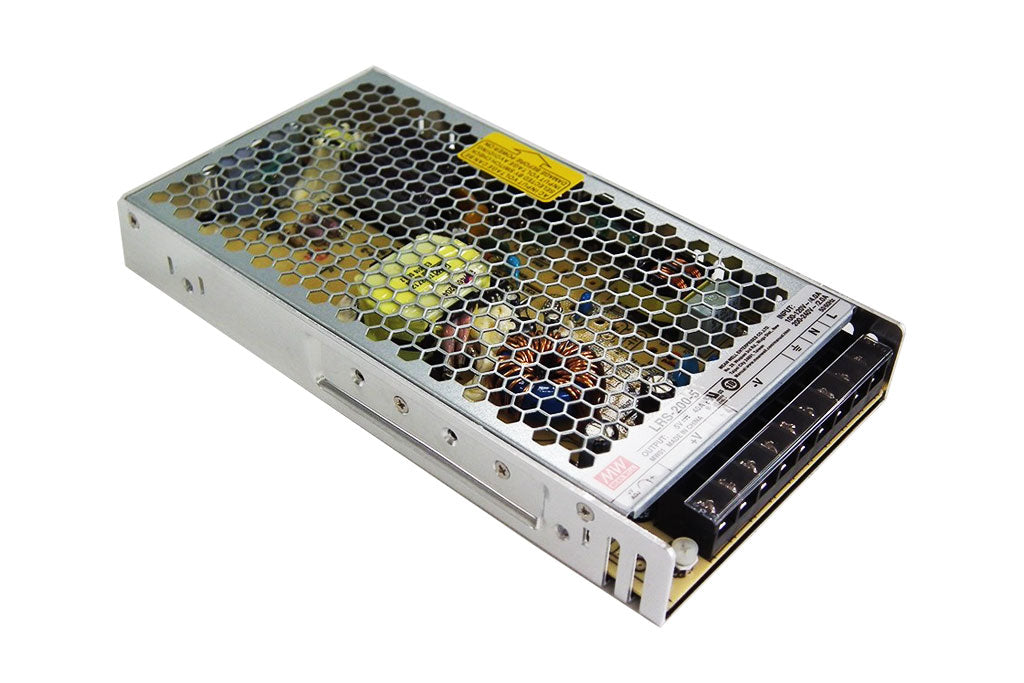

LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V,4.2V,5V,12V,15V,24V,36Vand48V.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-200that the whole series operates from -25℃ through 70℃
under air convection without a fan.Delivering an extremely low no load power
consumption(less than 0.75W),it allows the end system to easily meet the worldwide
energy requirement. LRS-200 has the complete protection functions and 5G anti-
vibration capability;it is complied with the international safety regulations such as
UL60950-1.
LRS-200 series serves as a high price-to-performance power supply solution for various industrial applications.

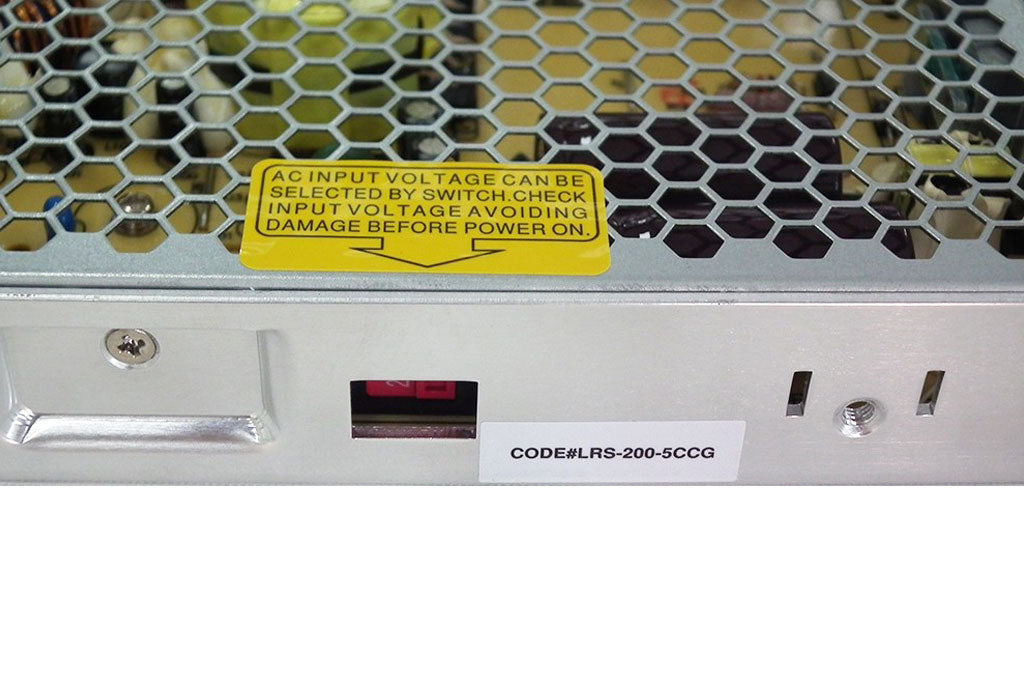

  • AC input range selectable by switch
  • Withstand 300VAC surge input for 5 second
  • Protections: Short circuit/Overload/Over voltage/Over temperature
  • Cooling by free air convection
  • 1U low profile
  • Withstand 5G vibration test
  • LED indicator for power on
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • High operating temperature up to 70°C
  • Operating altitude up to 5000 meters (Note.8)
  • High efficiency, long life and high reliability
  • 3 years warranty
