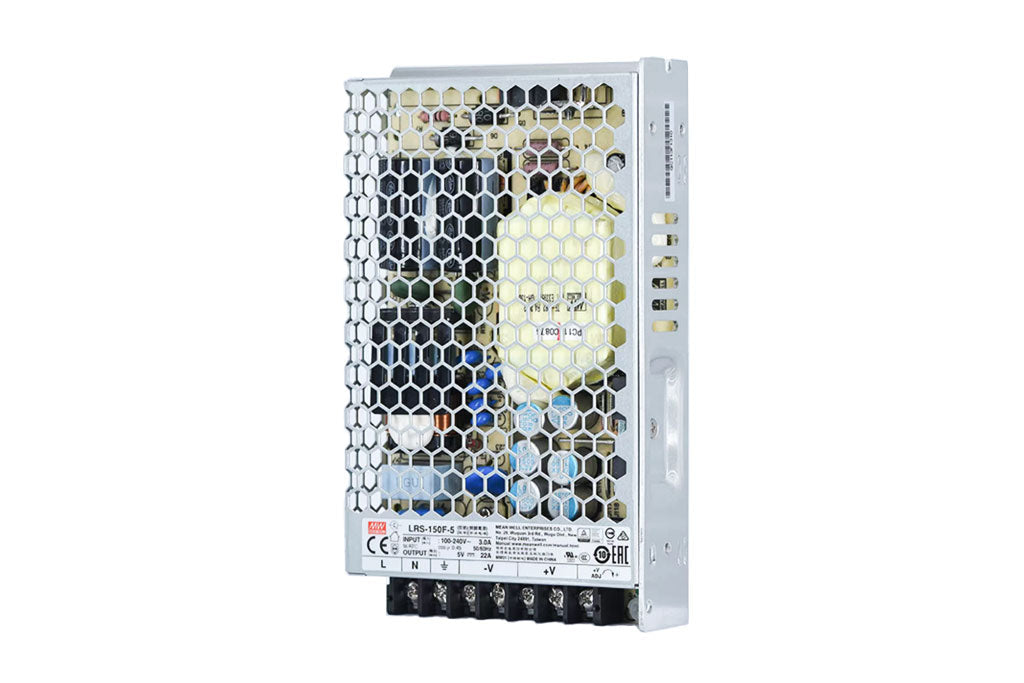

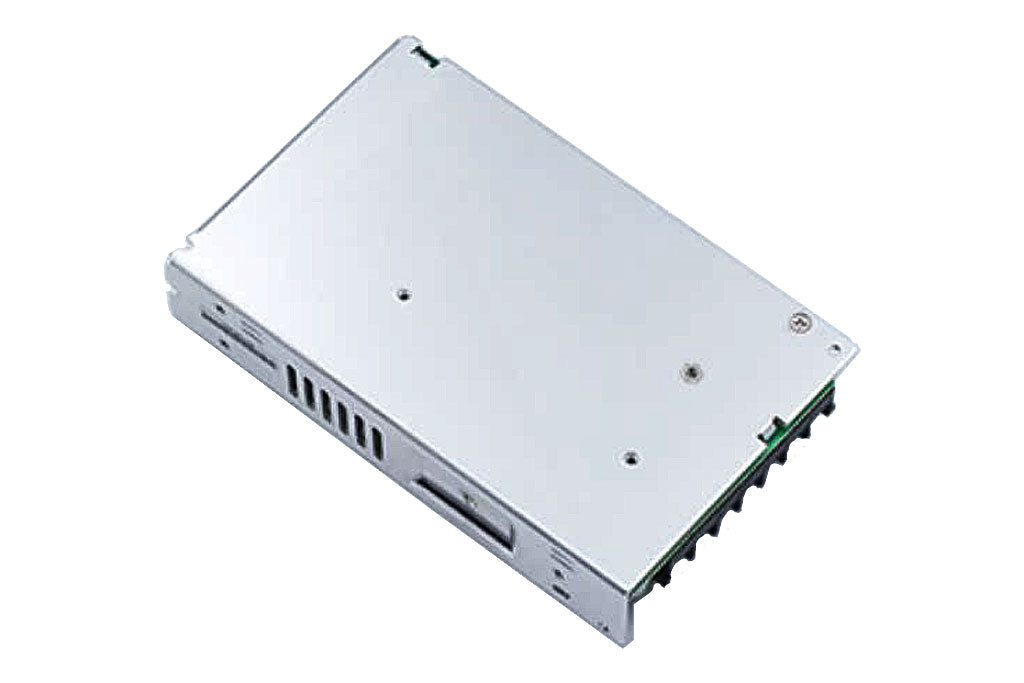

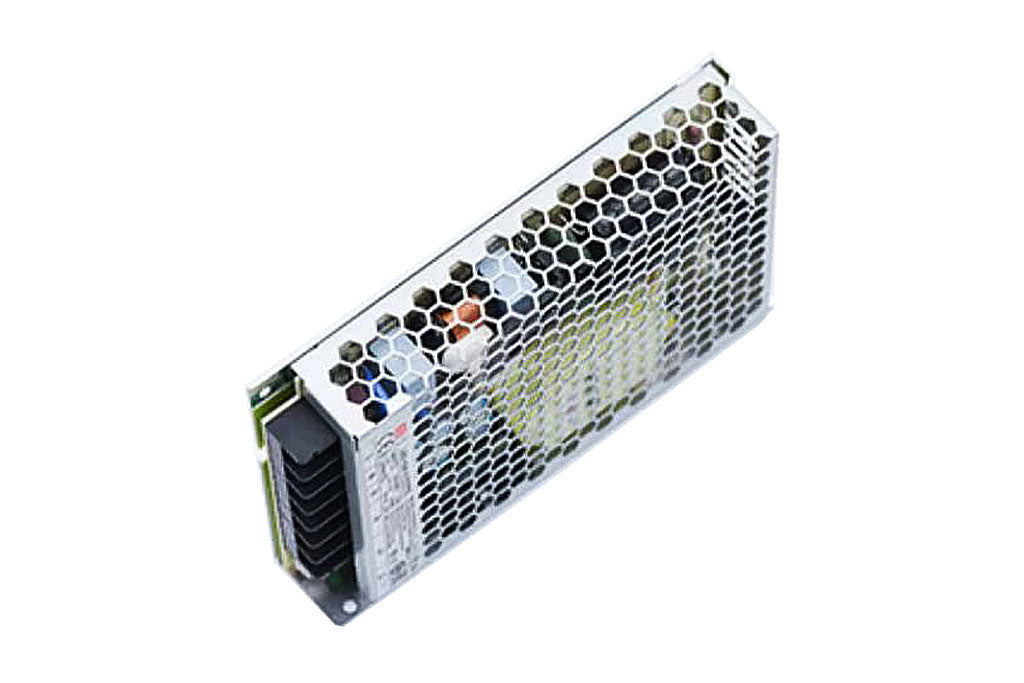

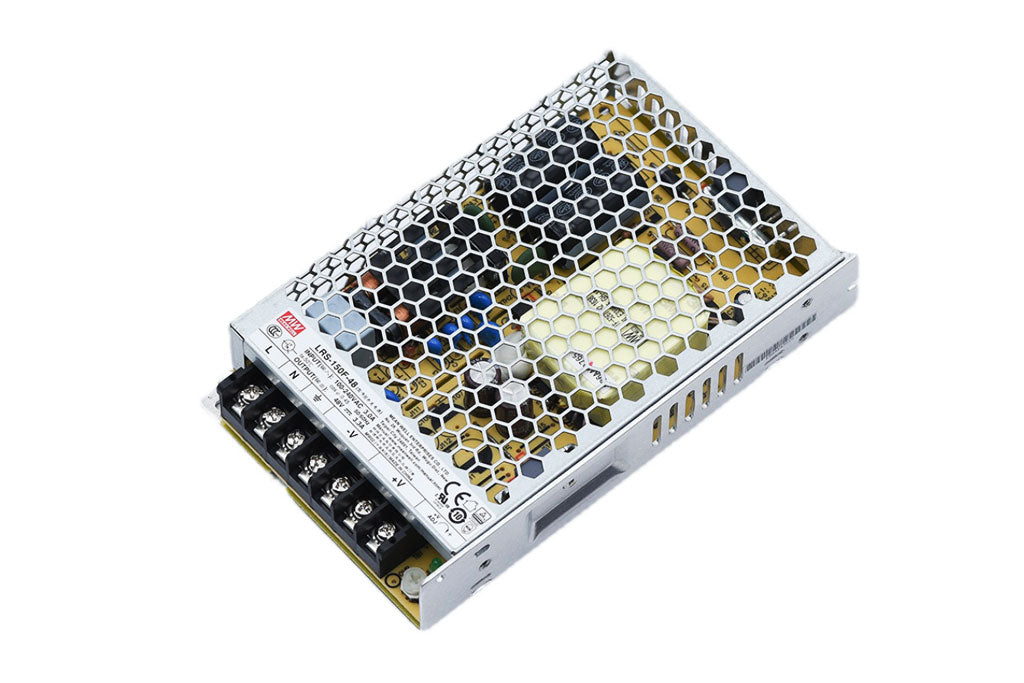

Meanwell LRS-150F Series LRS-150F-5 LRS-150F-12 LED Displays Power Supply

Meanwell LRS-150F Series LRS-150F-5 LRS-150F-12 LED Displays Power Supply

Regular price $32.50 USD
Regular price $42.00 USD Sale price $32.50 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Meanwell LRS-150F Series LRS-150F-5 LRS-150F-12 LED Displays Power Supply

LRS-150F series is a 150W single-output enclosed type power supply with 30mm of low profile design.Adopting the full range 85~264VAC input,the entire series provides an output voltage line of 5V,12V,15V,24V,36V and 48V.
In addition to the high efficiency up to 90%,the design of metallic mesh case enhances the heat dissipation of LRS-150F that the whole series operates from -30℃ through 70℃ under air convection without a fan.Delivering an extremely low no load power consumption (less than 0.5W),it allows the end system to easily meet the worldwide energy requirement.LRS-150F has the complete protection functions and 5G antivibration capability;it is complied with the international safety regulations such as TUV BS EN/EN62368-1,BS EN/EN60335-1,BS EN/EN61558-1/-2-16,UL62368-1 and GB 4943.1.LRS-150F series serves as a high price-to-performance power supply solution for various industrial applications.

  • Universal AC input/Full range
  • Withstand 300VAC surge input for 5 second
  • No load power consumption<0.5W
  • Miniature size and 1U low profile
  • High operating temperature up to 70℃
  • Protections:Short circuit/Overload /Over voltage/Over temperature
  • Cooling by free air convection
  • Comliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61558-1,2-16 for household appliances
  • Operating altitude up to 5000 meters
  • Withstand 5G vibration test
  • High efficiency,long life and high reliability
  • LED indicator for power on
  • Over voltage category III
  • 100% full load burn-in test
  • 3 years warranty

Applications:
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments,equipments or apparatus
Household appliances

Meanwell LRS-150F Series LED Displays Power Supply Mechanical Specification
Meanwell LRS-150F Series LED Displays Power Supply

Meanwell LRS-150F Series LED Displays Power Supply Block Diagram
Meanwell LRS-150F Series LED Displays Power Supply

Meanwell LRS-150F Series LED Displays Power Supply InstallationMeanwell HSP-200 Series LED Displays Power Supply
Meanwell LRS-150F Series LED Displays Power Supply Specification
Meanwell LRS-150F Series LED Displays Power Supply


Further Information:
LRS-150F
Meanwell LRS-150F LED Power Supply Specification
