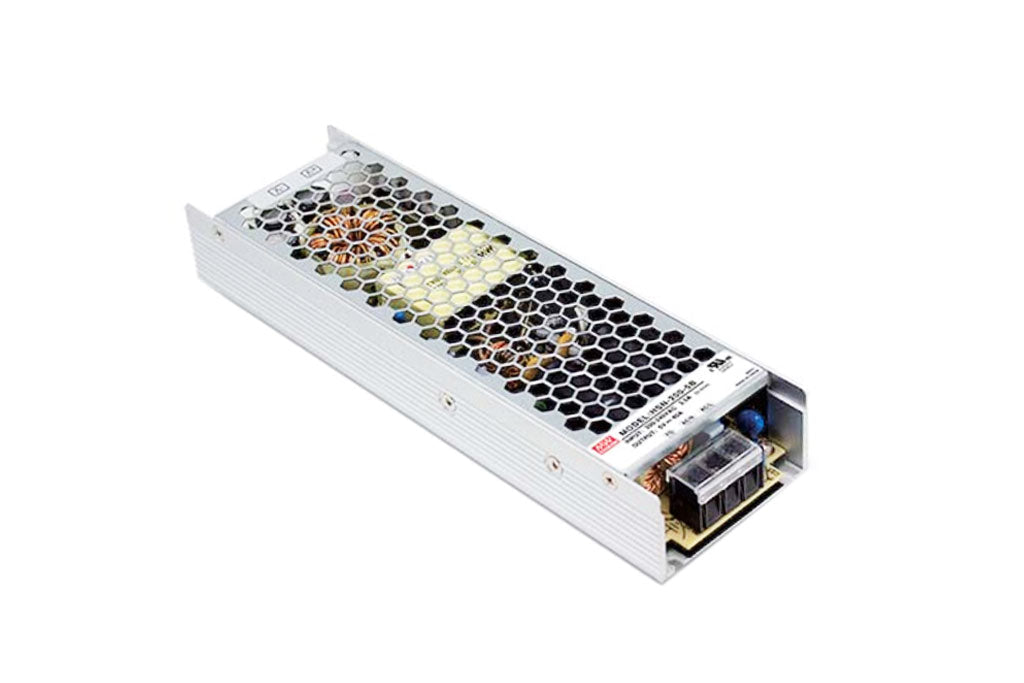

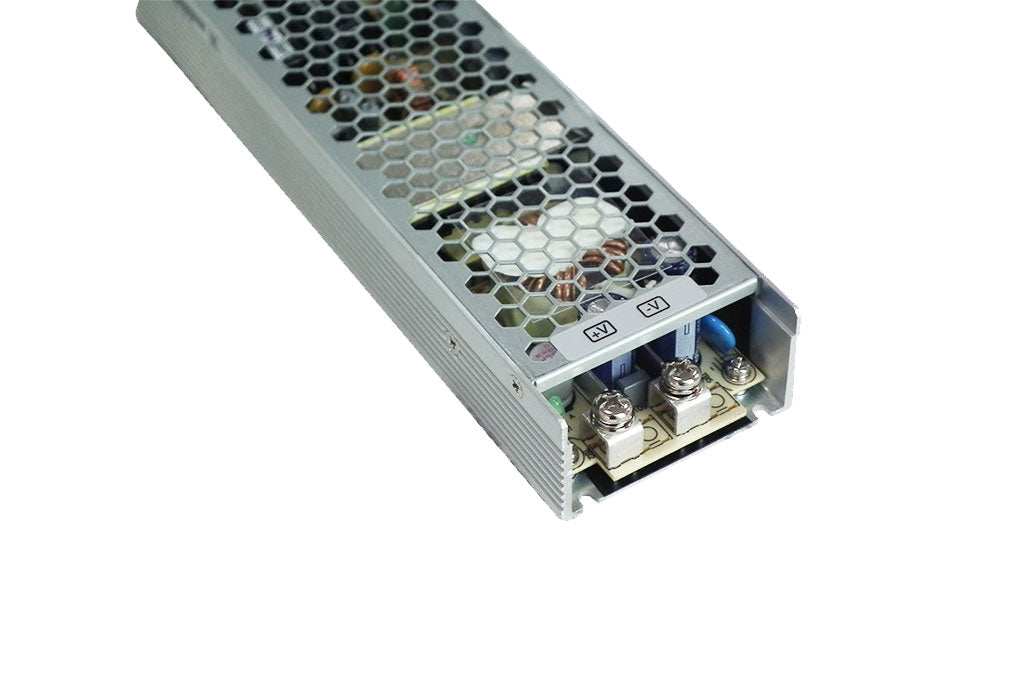

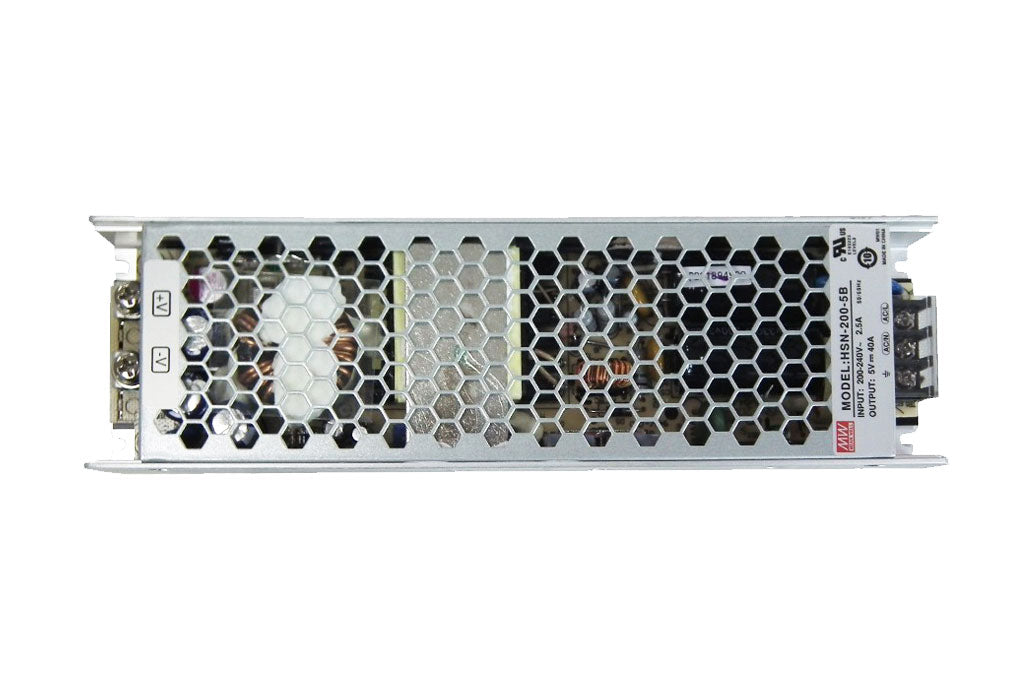

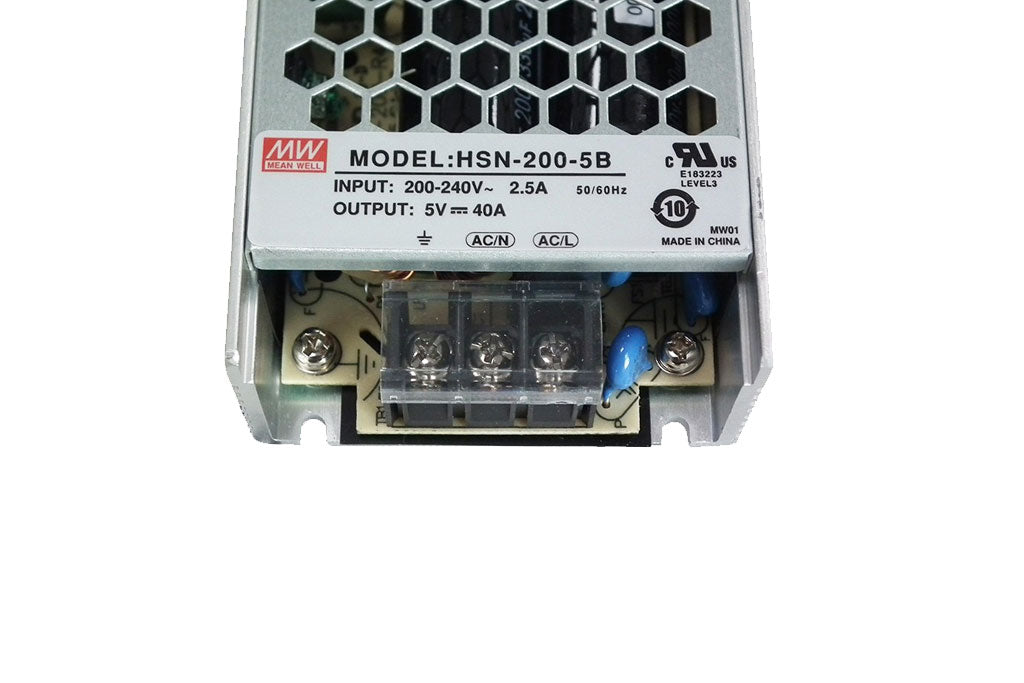

Meanwell HSN-200 Series HSN-200-5A HSN-200-5B LED Displays Power Supply

Meanwell HSN-200 Series HSN-200-5A HSN-200-5B LED Displays Power Supply

Regular price $41.00 USD
Regular price Sale price $41.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Meanwell HSN-200 Series LED Displays Power Supply

MEANWELL HSN-200 Power Supply is a ultra low profile slender sign panel power supply with up to 200W rated-power. The HSN-200 features two types with different input range: A-Type accepts 90~132VAC and B-Type accepts 180~264VAC. The output side supplies 4.2VDC and 5VDC, making HSN-200 work with both old and new generations of sign panel driver ICs, greatly raising the system design flexibility. This series incorporates non-PFC design, achieving a high efficiency up to 88% with a low cost, and the system performance is enhanced so both energy saving and electricity expense reduction can be fulfilled.

  • 31mm ultra low profile, slim design
  • Input range: A-Type, 90~132VAC; B-Type, 180~264VAC
  • Rated power up to 200W (150W for 90~132VAC input models)
  • High working efficiency up to 88%
  • Fanless design, cooling by conduction via bottom plate (minimal size 450 x 450 x 3 mm)
  • -25°C ~ +70°C working temperature
    (HSN-200 must be firmly mounted on an aluminum plate or the cabinet of sign panel module)
  • Low leakage current <1mA
  • Protections: short circuit / overload / over voltage / over temperature
  • Dimension (LxWxH): 210x 62x 31 mm
      Meanwell HSN-200 Series LED Displays Power Supply Mechanical SpecificationMeanwell HSN-200 Series HSN-200-5B LED Displays Power Supply
      Meanwell HSN-200 Series LED Displays Power Supply Block DiagramMeanwell HSN-200 Series HSN-200-5B LED Displays Power Supply
      Meanwell HSN-200 Series LED Displays Power Supply InstallationMeanwell HSN-200 Series HSN-200-5B LED Displays Power Supply
      Meanwell HSN-200 Series LED Displays Power Supply SpecificationMeanwell HSN-200 Series HSN-200-5B LED Displays Power Supply
